Water Butterfly Valve Elephant WCB-316L-EPDM body material - Carbon st
Elephant  |  SKU: D050-25064

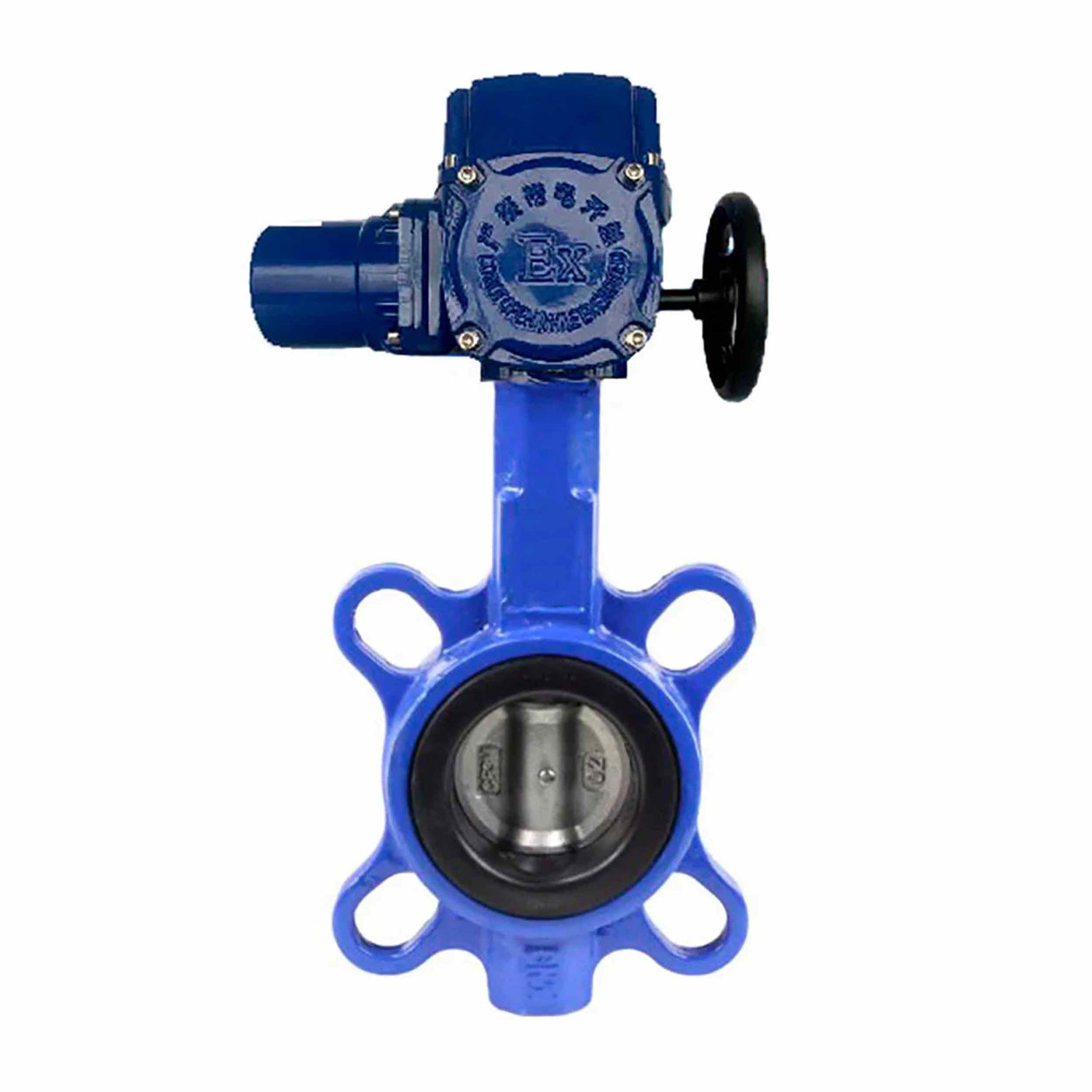

Water Butterfly Valve Elephant WCB-316L-EPDM body material - Carbon steel WCB, disk material - Stainless steel AISI 316L, seal - EPDM with 1/4-turn electric actuator Elephant QT-W (M) EX 380V

€995,84
Tax included Shipping calculated at checkout.

Water Butterfly Valve Elephant WCB-316L-EPDM body material - Carbon steel WCB, disk material - Stainless steel AISI 316L, seal - EPDM with 1/4-turn electric actuator Elephant QT-W (M) EX 380V - DN50 / 16 bar is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Butterfly valves Elephant are designed for use as shut-off or regulating valves for flow control in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries. Butterfly valves should be installed only between collar flanges.
Electric quarter-turn actuators Elephant are designed for remote and local control of shut-off pipeline valves having a quarter-turn shut-off valve. They are used in various branches of national economy: in gas, oil, metallurgy, food industry, housing and utilities, etc.




Basic technical data and characteristics of butterfly valves

Parameter Value
Nominal diameter DN, mm 40 – 300
Nominal pressure PN, bar 16
Flow direction Bidirectional
Operating medium temperature, °C -20 to +120
Ambient temperature, °C -20 to +100
Shut-off tightness Class A
Working medium Cold and hot water, oil-free and grease-free air, stationary air conditioning, mildly aggressive media, other media neutral to material
Body material Cast iron GGG50
Disc material Cast iron GGG40
Pipeline connection interflange
Control type Handle
Average service life, years 5
Average cycle life (open/close cycles) 20,000 (under non-aggressive media and average pressure and temperature conditions)





Gate dimensions Elephant Water Butterfly Valve Elephant WBV1432E-2W-Fb-H

DN H H1 H2 L L1 ØDм ØDк D2
(flow section)
mm
40 146 74 25 43 216 73 75 50



DN H H1 H2 L L1 ØDm ØDk
mm
50 146 74 25 43 216 73 84.5
65 156 80 25 46 216 86 104.5
80 163 100 25 46 216 103 123.5
100 180 116 25 52 255 131 139.5
125 189 123 25 56 255 155 169.5
150 206 137 25 56 255 183 196
200 232 165 35 60 370 235 247
250 275 203 35 68 370 286 304
300 314 235 35 78 370 338 358

Sketch of gates Elephant Water Butterfly Valve Elephant WBV1432E-2W-Fb-H





Materials of parts of rotary disc valves Elephant Water Butterfly Valve Elephant WBV1432E-2W-Fb-H

№ Name Material
1 Body cast iron GGG50
2 Cuff EPDM
3 Disk cast iron GGG40
4 Stock stainless steel SS 416/2Cr13
5 Hairpin stainless steel AISI 316L
6 Sleeve NBR
7 Sealing ring NBR
8 Fixing plate carbon steel
9 Handle with lock carbon steel

Sketch of materials for rotary disc valves Elephant Water Butterfly Valve Elephant WBV1432E-2W-Fb-H





Characteristics of actuators Elephant QT-W (M) EX 380V:

Actuator model Torque,
Nm 		Cycle time,
sec 		Power,
W
QT-W (M)-005 380V 50 30 25
QT-W (M)-010 380V 100 30 30
QT-W (M)-015 380V 150 30 40
QT-W (M)-020 380V 200 30 50
QT-W (M)-030 380V 300 30 60
QT-W (M)-040 380V 400 30 90
QT-W (M)-060 380V 600 30 120
QT-W (M)-120 380V 1200 30 180
QT-W (M)-180 380V 1800 30 250
QT-W (M)-300 380V 3000 60 370
QT-W (M)-500 380V 5000 60 550



Actuator model Current,
A 		Weight,
kg 		Stem size square,
mm
QT-W (M)-005 380V 0,35 7,6 17x17
QT-W (M)-010 380V 0,48 7,8 17x17
QT-W (M)-015 380V 0,55 8 17x17
QT-W (M)-020 380V 0,65 12,7 22x22
QT-W (M)-030 380V 0,75 12,8 22x22
QT-W (M)-040 380V 0,95 13 22x22
QT-W (M)-060 380V 1,1 21,2 27x27
QT-W (M)-120 380V 1,3 23,2 27x27
QT-W (M)-180 380V 1,5 23,5 27x27
QT-W (M)-300 380V 1,6 37,5 36x36
QT-W (M)-500 380V 1,7 38 36x36

Specifications
  • Country of origin
    China
  • Body material
    Carbon steel
  • Connection type
    Compact flanged
  • Control type
    Electric actuator
  • Nominal pressure
    16 bar
  • Type of seal
    EPDM
  • Disc material
    Stainless steel AISI 316L/1.4404
  • Voltage
    380V
  • Actuator cycle time
    30s
  • Explosion-proof
    Yes
  • Torque
    50 Nm
  • Limit switches
    No
