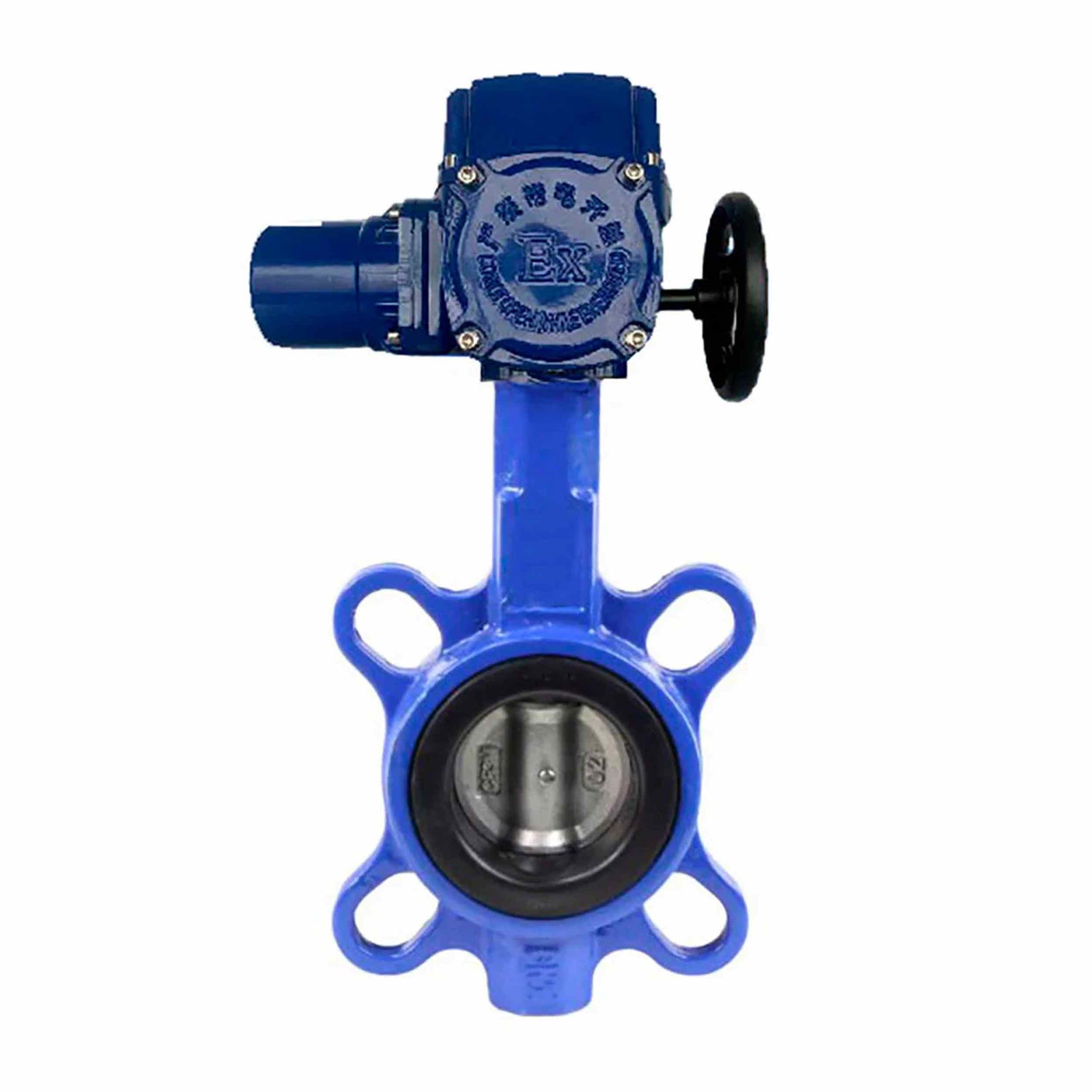

Water Butterfly Valve Elephant WCB-316L-EPDM body material - Carbon steel WCB, disk material - Stainless steel AISI 316L, seal - EPDM with 1/4-turn electric actuator Elephant QT-W (M) 220V

€650,32
Tax included Shipping calculated at checkout.

Water Butterfly Valve Elephant WCB-316L-EPDM body material - Carbon steel WCB, disk material - Stainless steel AISI 316L, seal - EPDM with 1/4-turn electric actuator Elephant QT-W (M) 220V - DN50 / 16 bar is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Butterfly valves Elephant are designed for use as shut-off or regulating valves for flow control in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries. Butterfly valves should be installed only between collar flanges.
Electric quarter-turn actuators Elephant are designed for remote and local control of shut-off pipeline valves having a quarter-turn shut-off valve. They are used in various branches of national economy: in gas, oil, metallurgical, food industries, housing and utilities, etc.




Basic technical data and characteristics of butterfly valves

Parameter Value
Nominal diameter DN, mm 40 – 300
Nominal pressure PN, bar 16
Flow direction Bidirectional
Operating medium temperature, °C -20 to +120
Ambient temperature, °C -20 to +100
Shut-off tightness Class A
Working medium Cold and hot water, oil-free and grease-free air, stationary air conditioning, mildly aggressive media, other media neutral to material
Body material Cast iron GGG50
Disc material Cast iron GGG40
Pipeline connection interflange
Control type Handle
Average service life, years 5
Average cycle life (open/close cycles) 20,000 (under non-aggressive media and average pressure and temperature conditions)





Materials of parts of rotary disc valves Elephant Water Butterfly Valve Elephant WBV1432E-2W-Fb-H

№ Name Material
1 Body cast iron GGG50
2 Cuff EPDM
3 Disk cast iron GGG40
4 Stock stainless steel SS 416/2Cr13
5 Hairpin stainless steel AISI 316L
6 Sleeve NBR
7 Sealing ring NBR
8 Fixing plate carbon steel
9 Handle with lock carbon steel

Sketch of materials for rotary disc valves Elephant Water Butterfly Valve Elephant WBV1432E-2W-Fb-H





Characteristics of actuators Elephant QT-W (M) 220V:

Actuator model Torque,
Nm 		Cycle time,
sec 		Power,
W
QT-W (M)-005 220V 50 30 25
QT-W (M)-010 220V 100 30 30
QT-W (M)-015 220V 150 30 40
QT-W (M)-020 220V 200 30 50
QT-W (M)-030 220V 300 30 60
QT-W (M)-040 220V 400 30 90
QT-W (M)-060 220V 600 30 120
QT-W (M)-120 220V 1200 30 180
QT-W (M)-180 220V 1800 30 250
QT-W (M)-300 220V 3000 60 370
QT-W (M)-500 220V 5000 60 550



Actuator model Current,
A 		Weight,
kg 		Stem size square,
mm
QT-W (M)-005 220V 0,35 7,6 17x17
QT-W (M)-010 220V 0,48 7,8 17x17
QT-W (M)-015 220V 0,55 8 17x17
QT-W (M)-020 220V 0,65 12,7 22x22
QT-W (M)-030 220V 0,75 12,8 22x22
QT-W (M)-040 220V 0,95 13 22x22
QT-W (M)-060 220V 1,1 21,2 27x27
QT-W (M)-120 220V 1,3 23,2 27x27
QT-W (M)-180 220V 1,5 23,5 27x27
QT-W (M)-300 220V 1,6 37,5 36x36
QT-W (M)-500 220V 1,7 38 36x36

Specifications
  • Country of origin
    China
  • Body material
    Carbon steel
  • Connection type
    Compact flanged
  • Control type
    Electric actuator
  • Nominal pressure
    16 bar
  • Type of seal
    EPDM
  • Disc material
    Stainless steel AISI 316L/1.4404
  • Voltage
    110/220V
  • Actuator cycle time
    30s
  • Explosion-proof
    No
  • Torque
    50 Nm
  • Limit switches
    No
