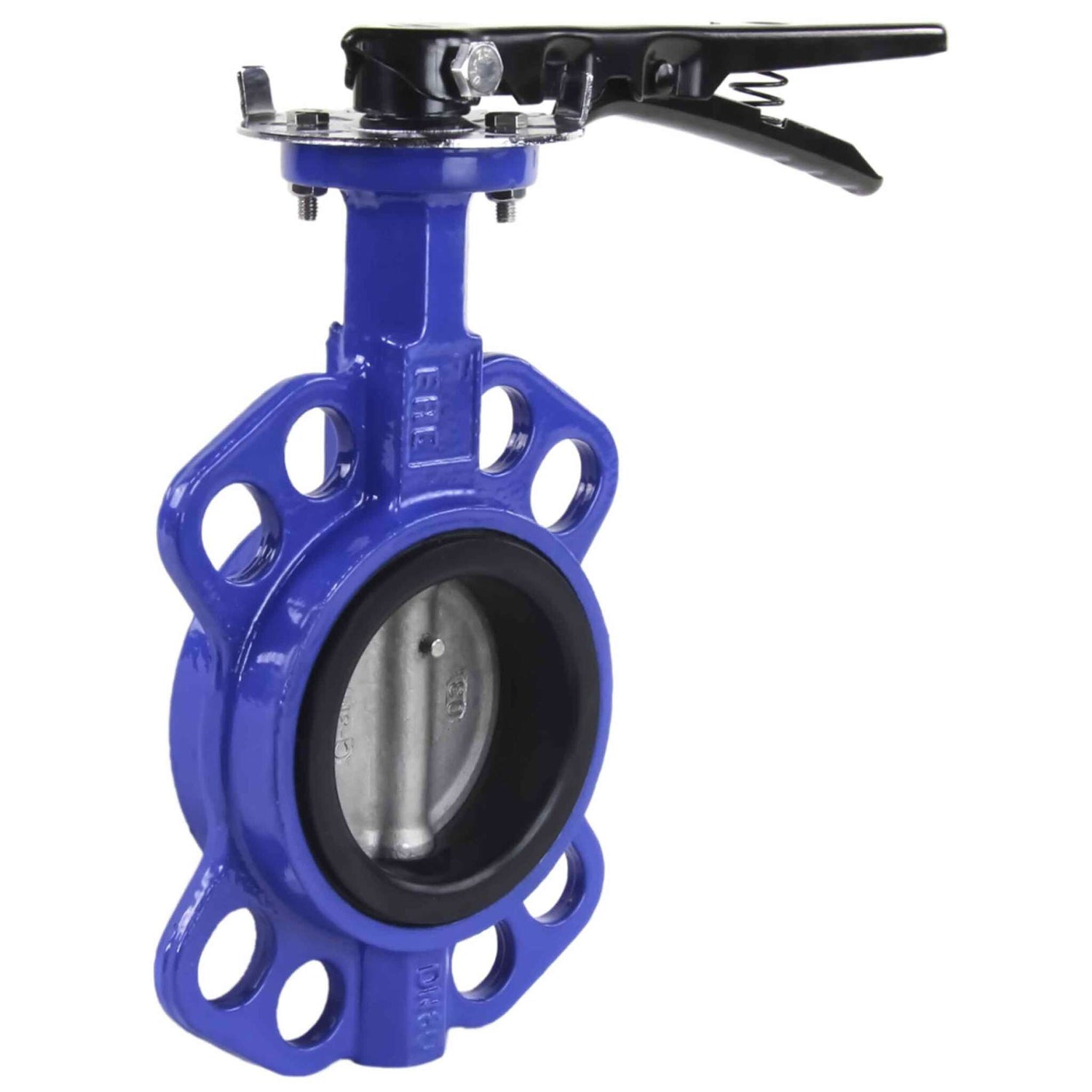

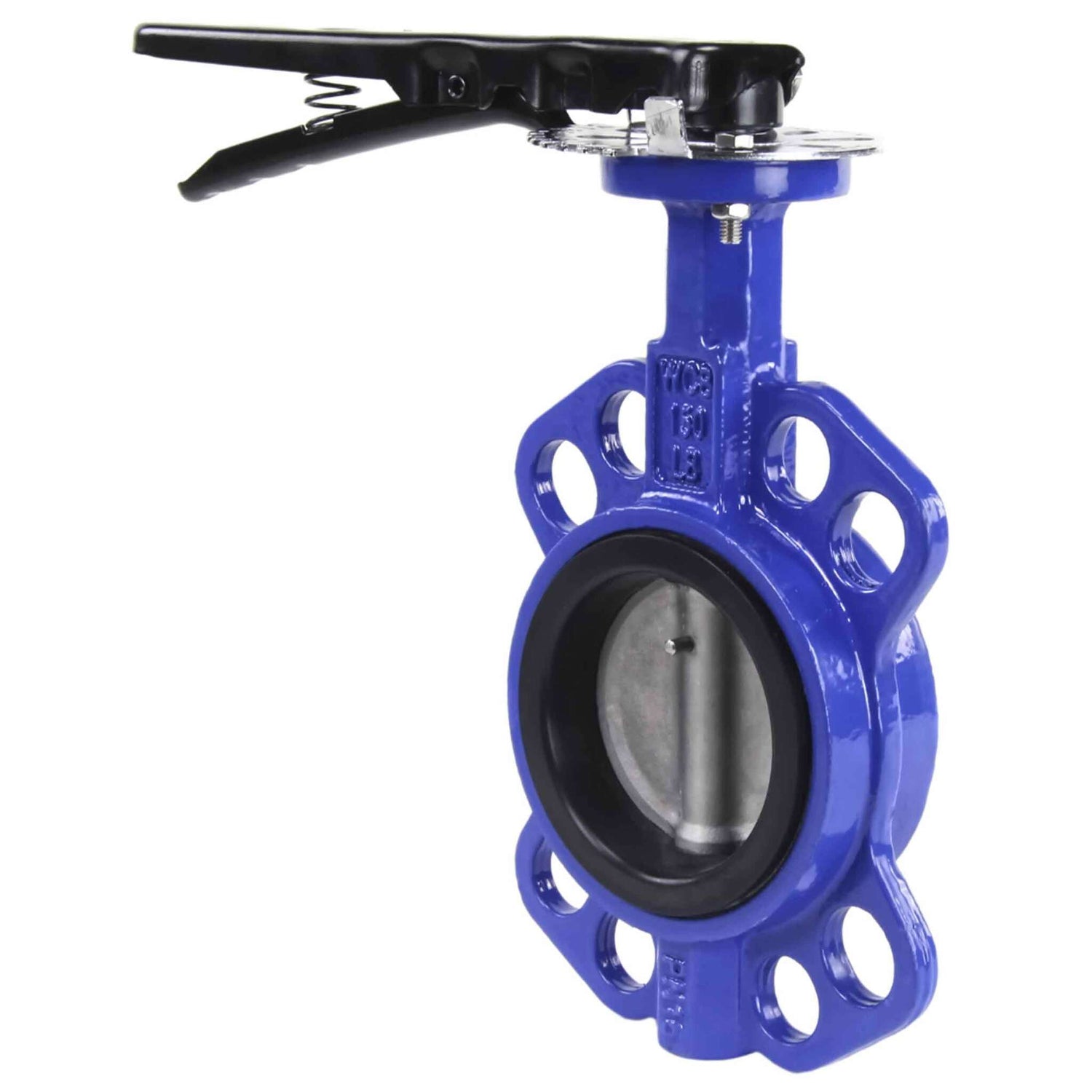

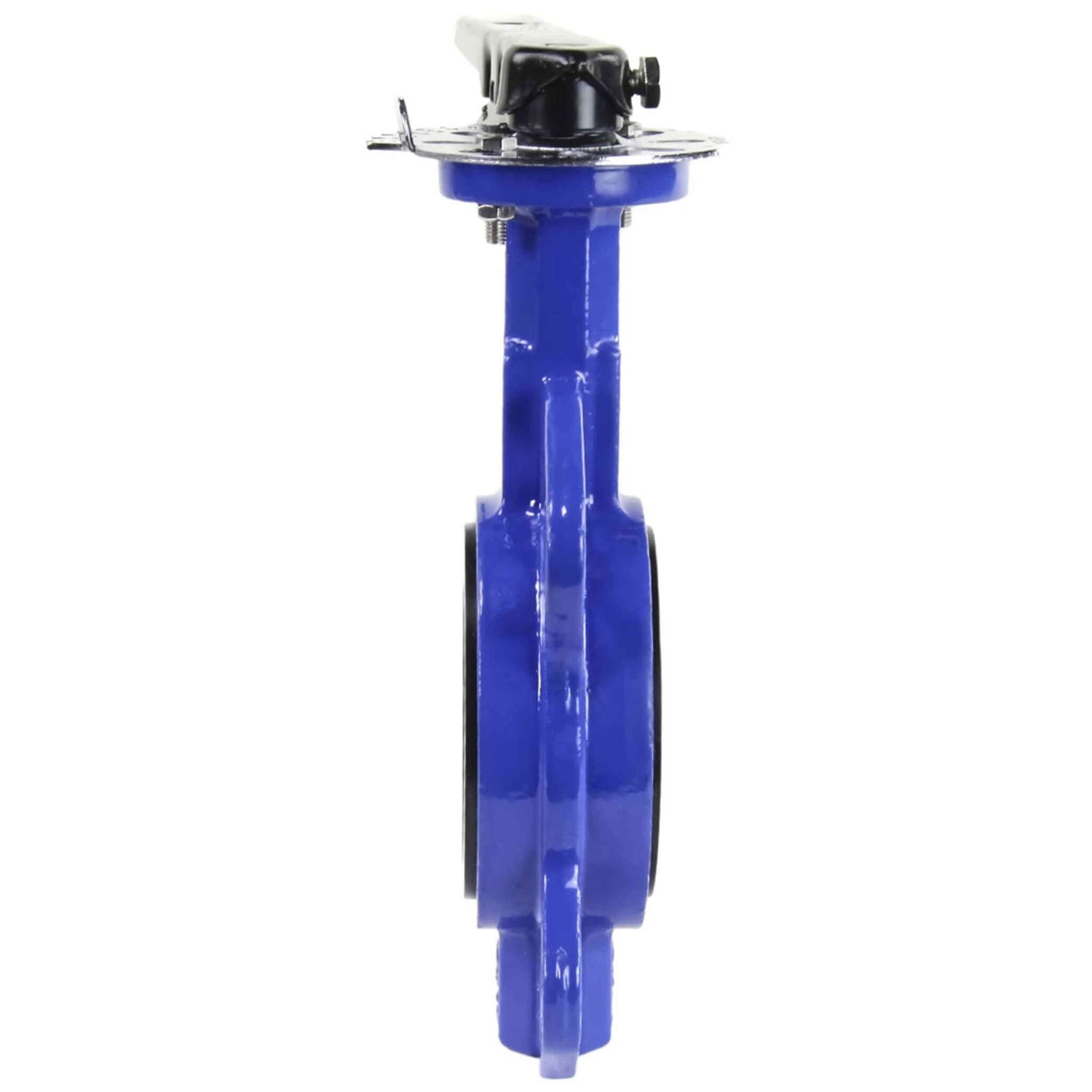

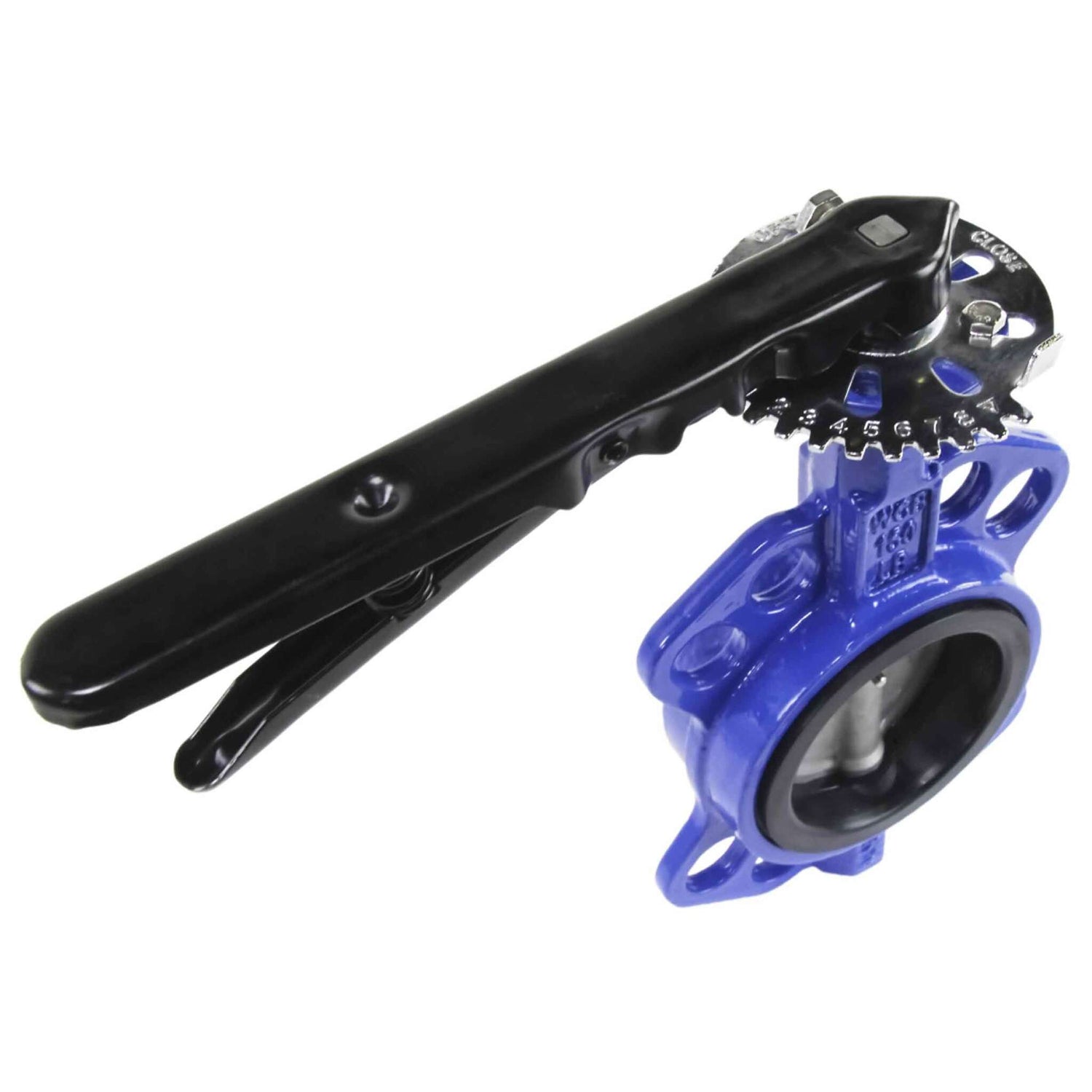

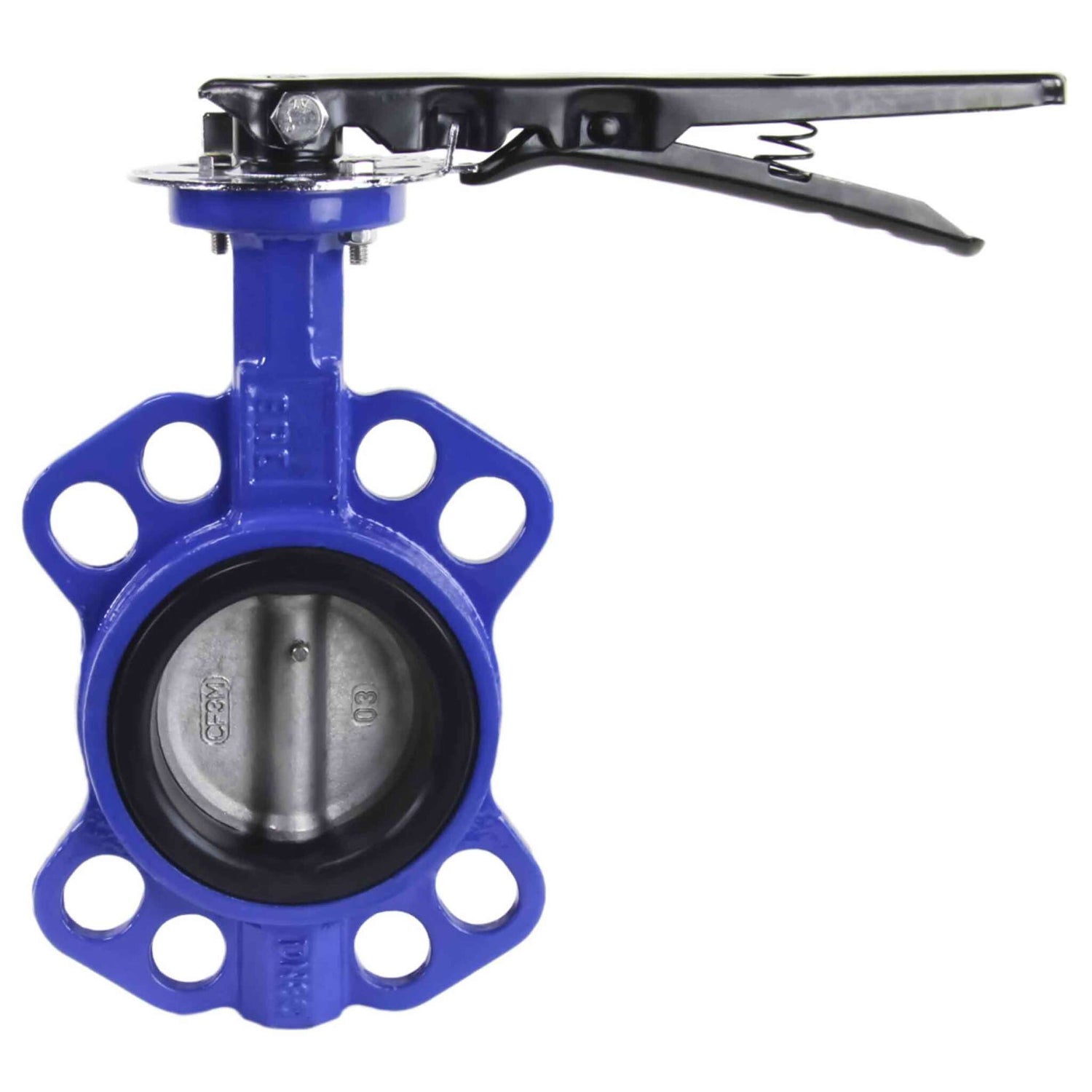

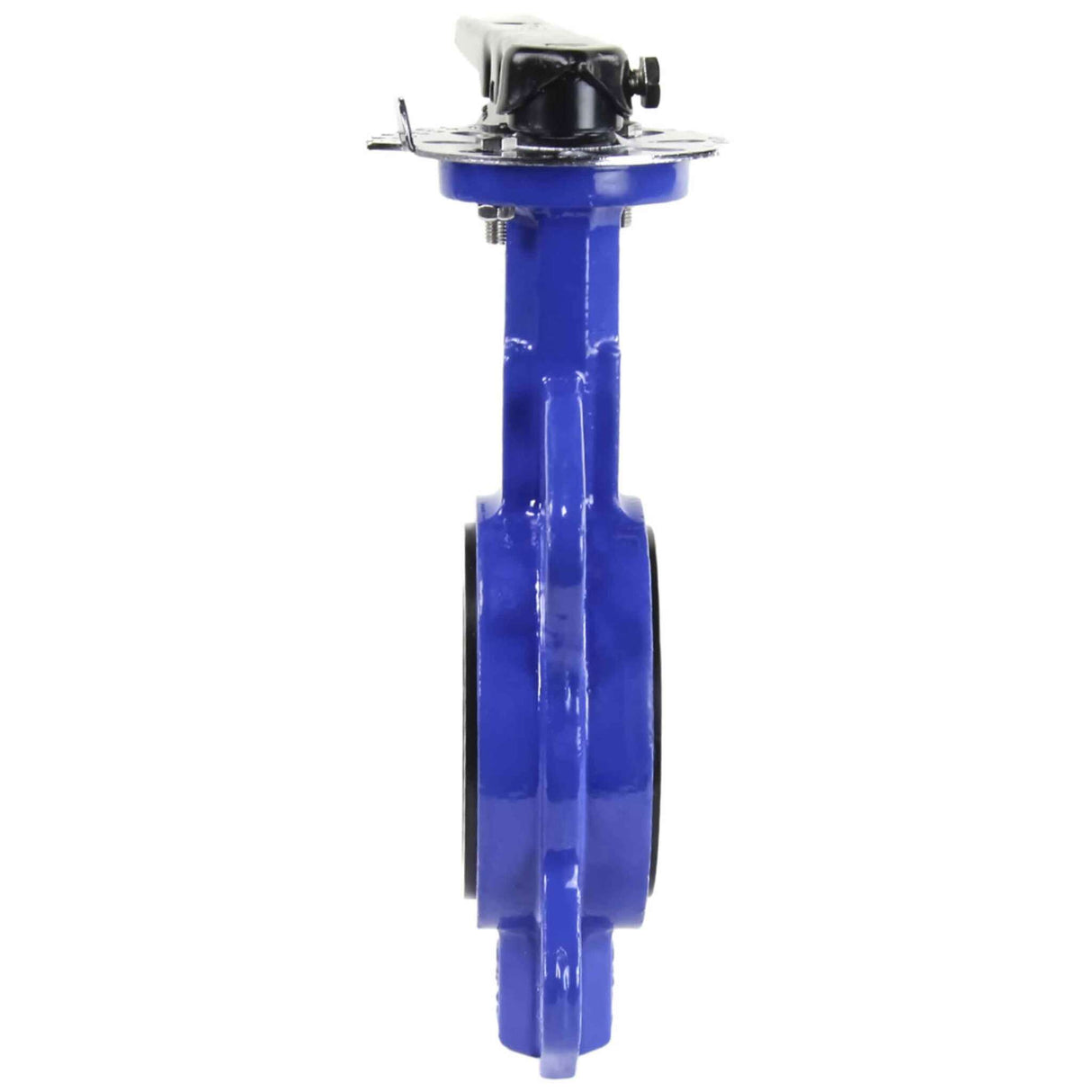

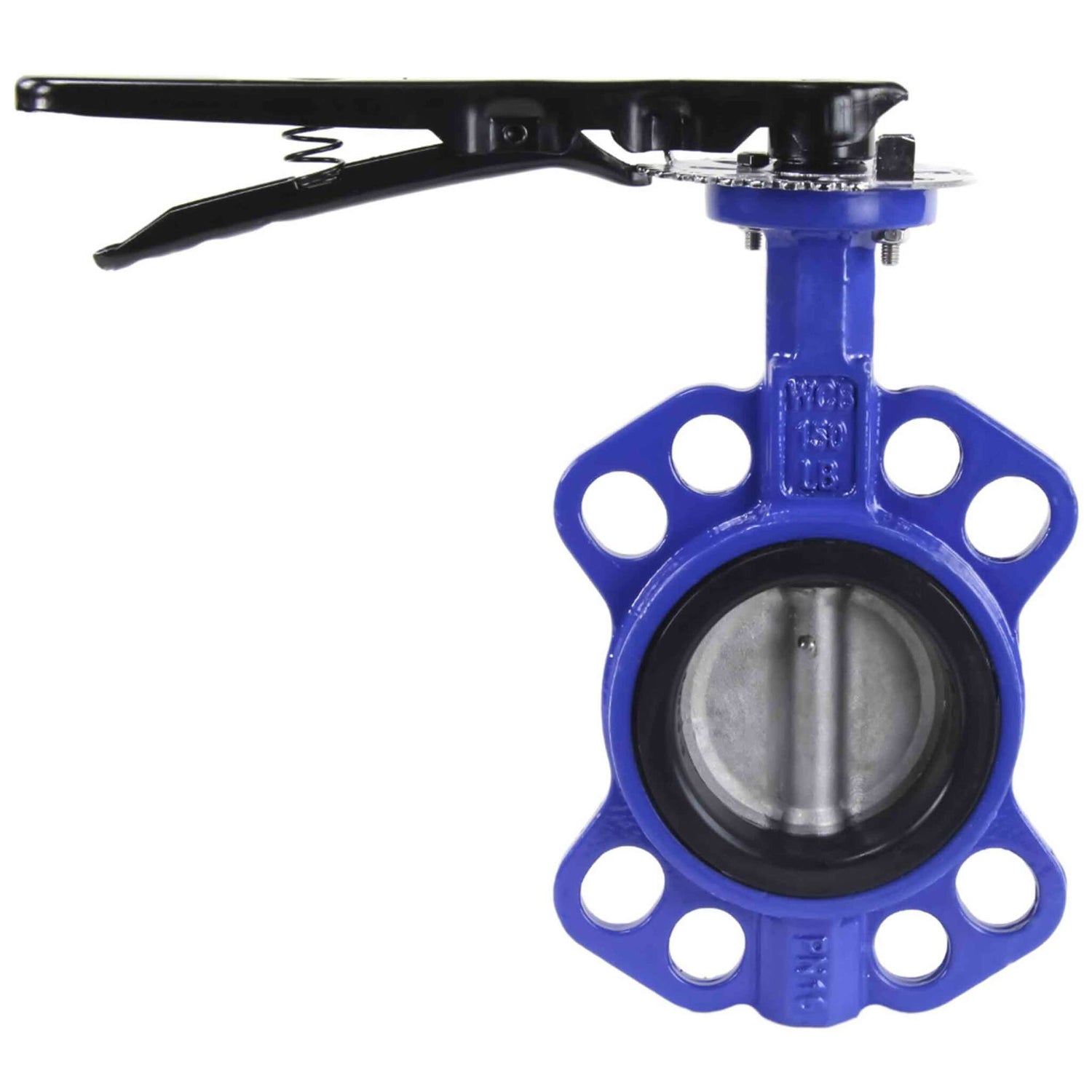

Water Butterfly Valve Elephant WBV3432E-2W-Fb-H PN16, body material -
Elephant  |  SKU: D050-16335

Water Butterfly Valve Elephant WBV3432E-2W-Fb-H PN16, body material - carbon steel WCB, disk material - stainless steel 316L, seal - EPDM, handwheel operated

€69,41
Tax included Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Water Butterfly Valve Elephant is intended for use as shut-off or control valves for flow control in heat supply systems, water supply systems, in technological processes in the food, chemical, oil and gas, pulp and paper and other industries.





Overall and installation dimensions of the gate valve Elephant WBV3432E-2W-Fb-H PN16, body material - carbon steel WCB, disk material - stainless steel 316L, seal - EPDM, handwheel operated

DN H1, mm H2, mm H3, mm Dm, mm Dk, mm L, mm ØC, mm
DN40/50 66 126 25 73 90 43 125
DN50 66 126 25 73 90 43 125
DN65 74 137 25 85 103 46 145
DN80 91 146 25 100 116 46 160
DN100 105 166 25 131 151 52 180
DN125 121 182 25 155 174 56 210
DN150 134 198 25 184 205 56 240
DN200 169 223 35 234 255 60 295
DN250 200 270 35 288 315 68 355
DN300 240 299 35 340 375 78 410

Эскиз Затворы дисковые поворотные DN.ru WBV3432E-2W-Fb Ду40-300 Ру16, корпус -сталь WCB, диск - сталь 316L, уплотнение - EPDM, рукоятка/редуктор

Shutter sketch Elephant WBV3432E-2W-Fb-H PN16, body material - carbon steel WCB, disk material - stainless steel 316L, seal - EPDM, handwheel operated





Materials of bolt parts Elephant WBV3432E-2W-Fb-H PN16, body material - carbon steel WCB, disk material - stainless steel 316L, seal - EPDM, handwheel operated

Name Material
1 Housing WCB steel or AISI 316L stainless steel
2 Cuff EPDM, PTFE, NBR
3 Disc AISI 316L stainless steel
4 Rod SS 416/2Cr13 stainless steel
5 Pin AISI 316L stainless steel
6 Bushing EPDM
7 Sealing ring EPDM
8 Fixing plate carbon steel
9 Handle with lock carbon steel

Эскиз Затворы дисковые поворотные DN.ru WBV3232E-2W-Fb-H Ду40-300 Ру16, корпус -сталь 316L, диск - сталь 316L, уплотнение - EPDM, с рукояткой

Sketch of specification water Butterfly Valve Elephant

Specifications

  • Country of origin
    China
  • Body material
    Carbon steel WCB
  • Maximum allowable temperature
    120 °C
  • Connection type
    Compact flanged
  • Control type
    Handle
  • Nominal pressure
    16 bar
  • Type of seal
    EPDM
  • Disc material
    Stainless steel AISI 316L/1.4404

Reviews (0)

Documentation

Payment & Security

Payment methods

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    Available Variants

    SKUConnection sizePressurePrice AvailabilityQuantity Add to cart
    D050-16335DN4016 bar €69,41 1 In stock
    D050-16336DN5016 bar €62,24 25 In stock
    D050-16337DN6516 bar €70,18 10 In stock
    D050-16338DN8016 bar €77,65 25 In stock
    D050-16339DN10016 bar €103,95 30 In stock
    D050-16340DN12516 bar €137,63 5 In stock
    D050-16341DN15016 bar €180,35 25 In stock
    D050-16342DN20016 bar €234,48 5 In stock
    D050-16343DN25016 bar €421,14 2 In stock
    D050-16344DN30016 bar €615,11 2 In stock
