Elephant  |  SKU: D050-24544

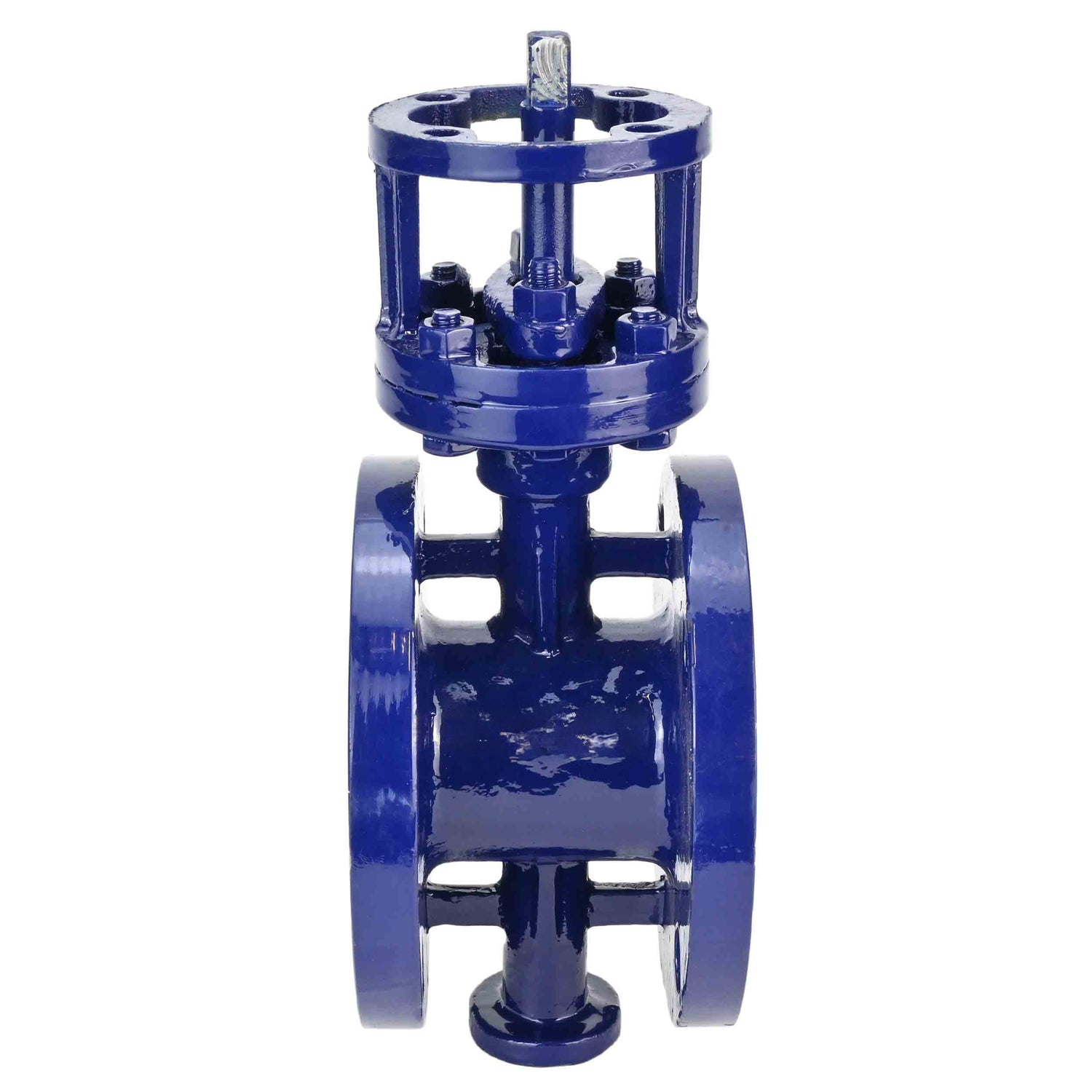

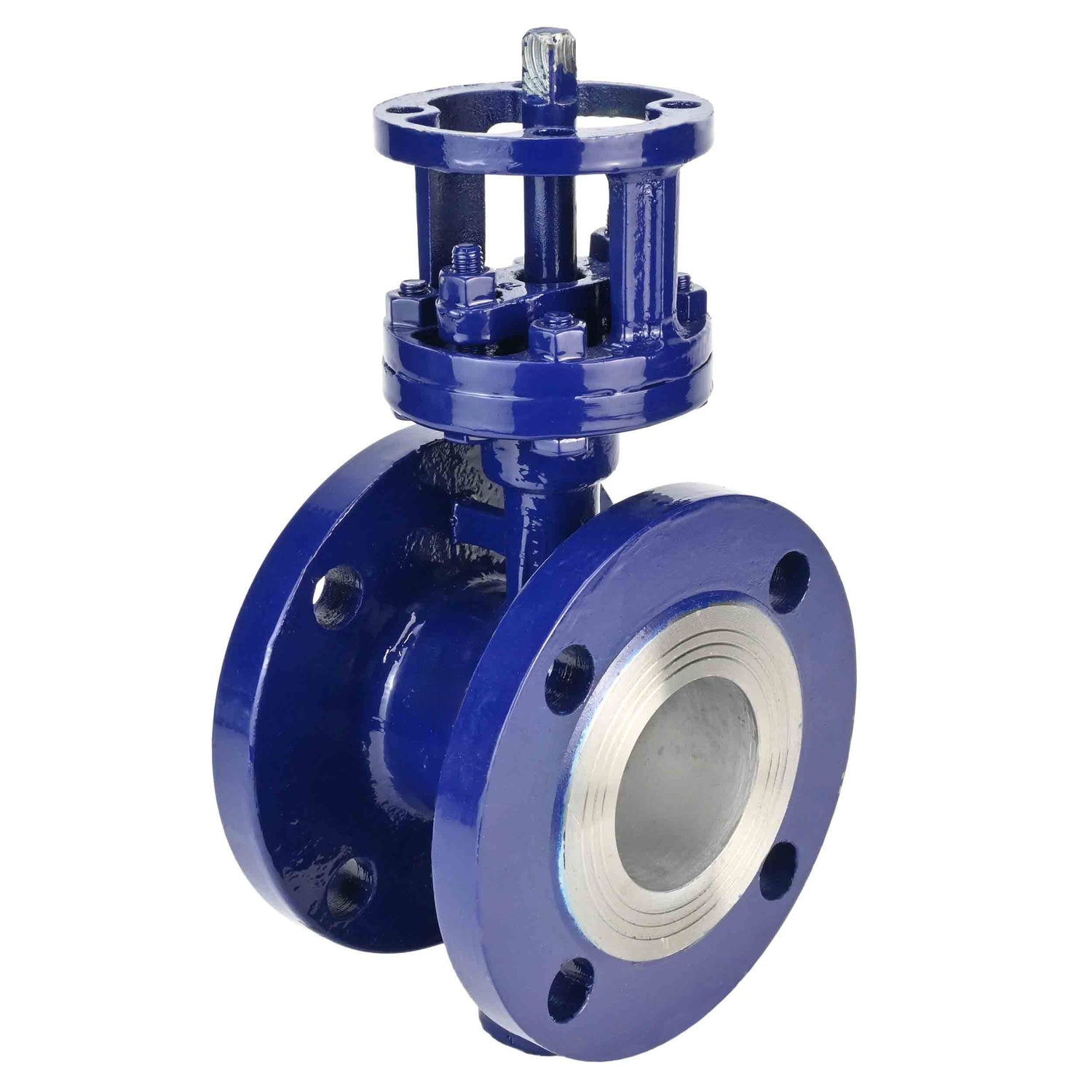

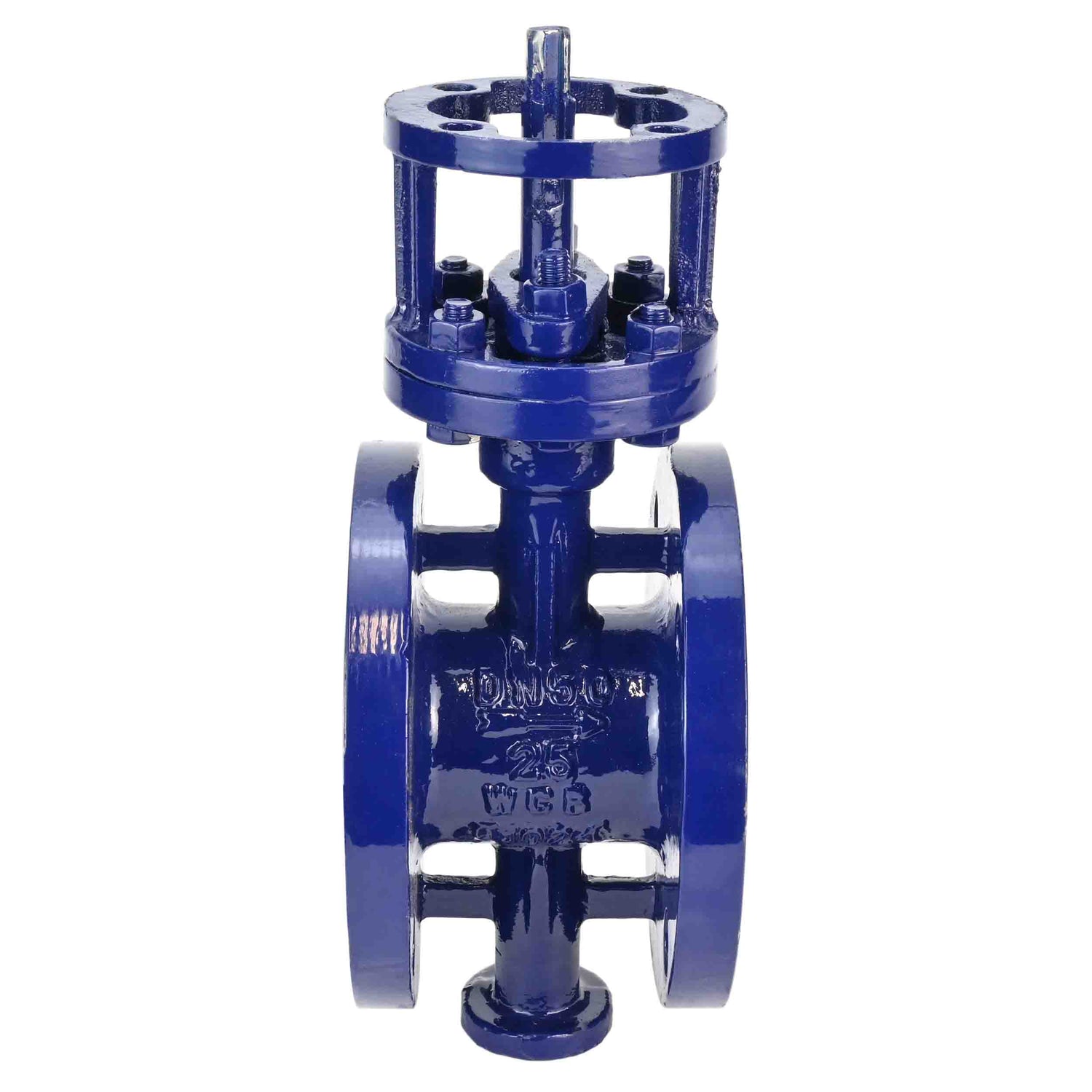

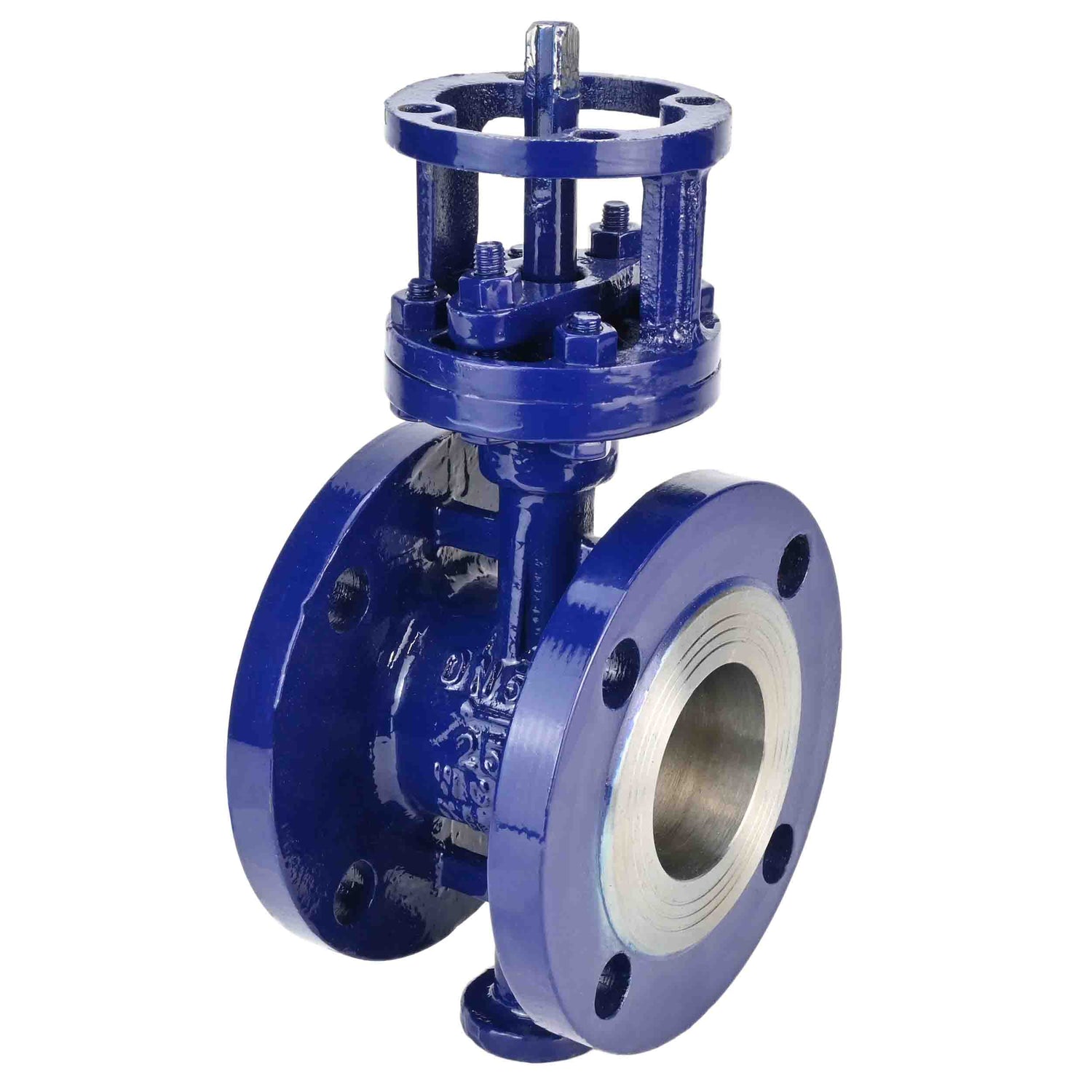

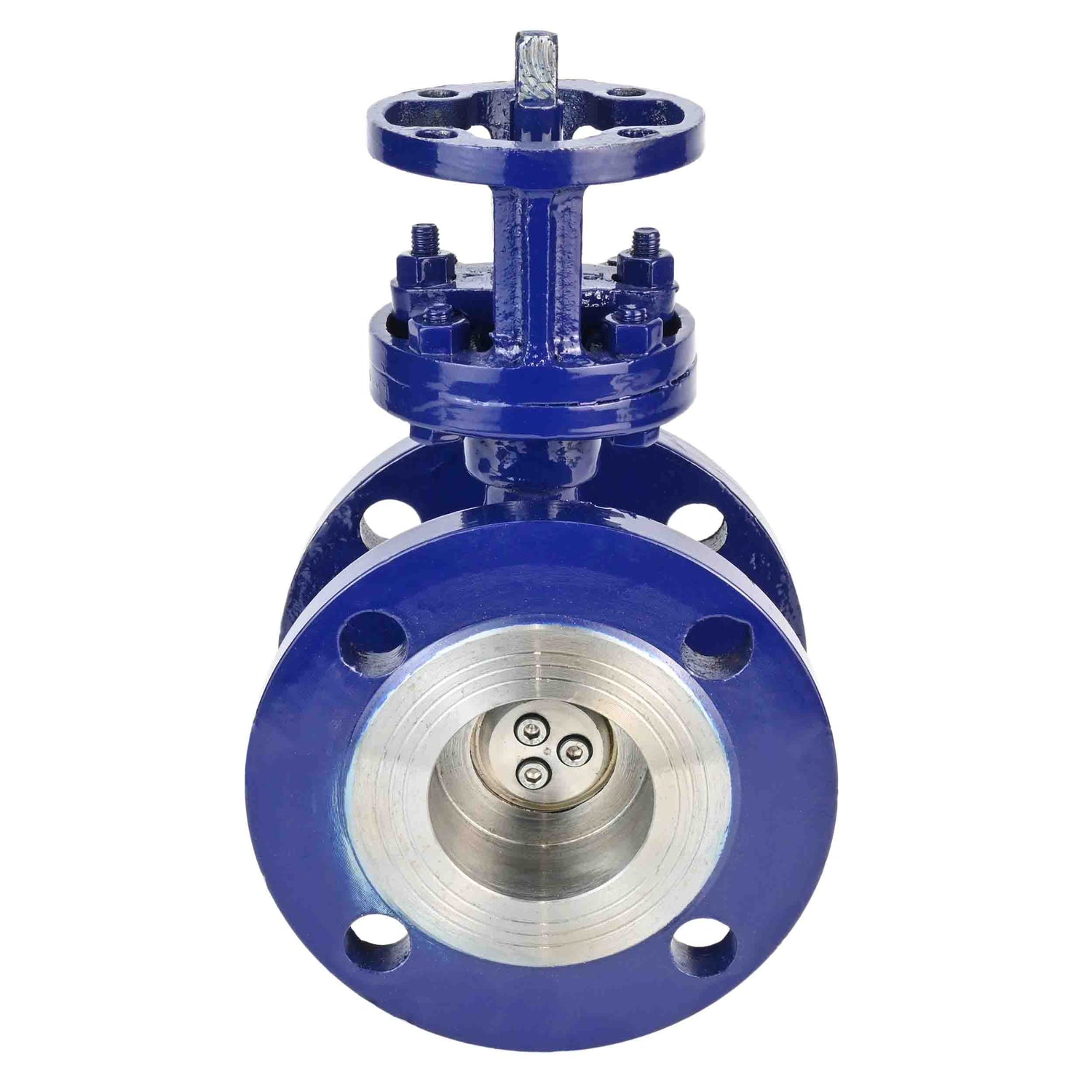

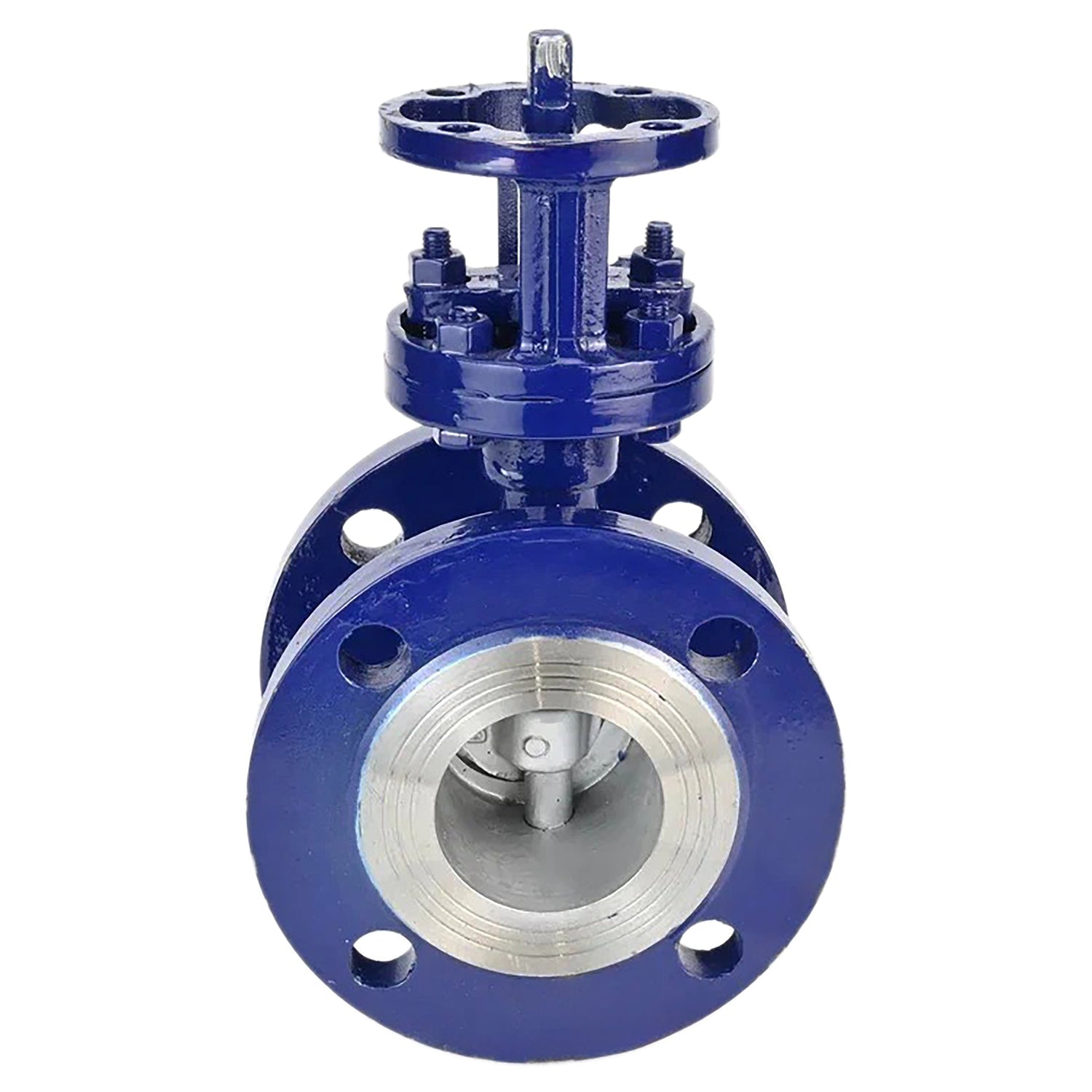

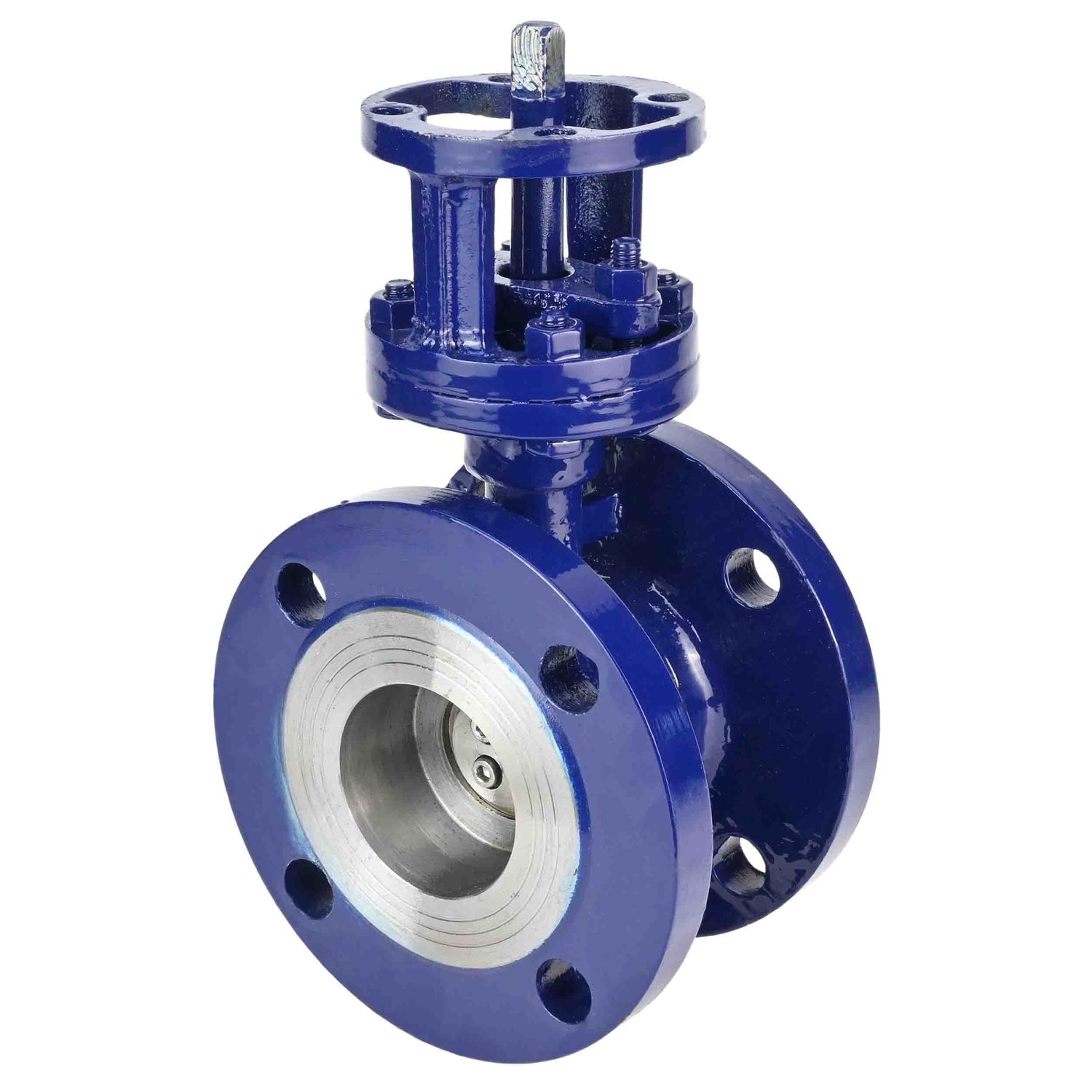

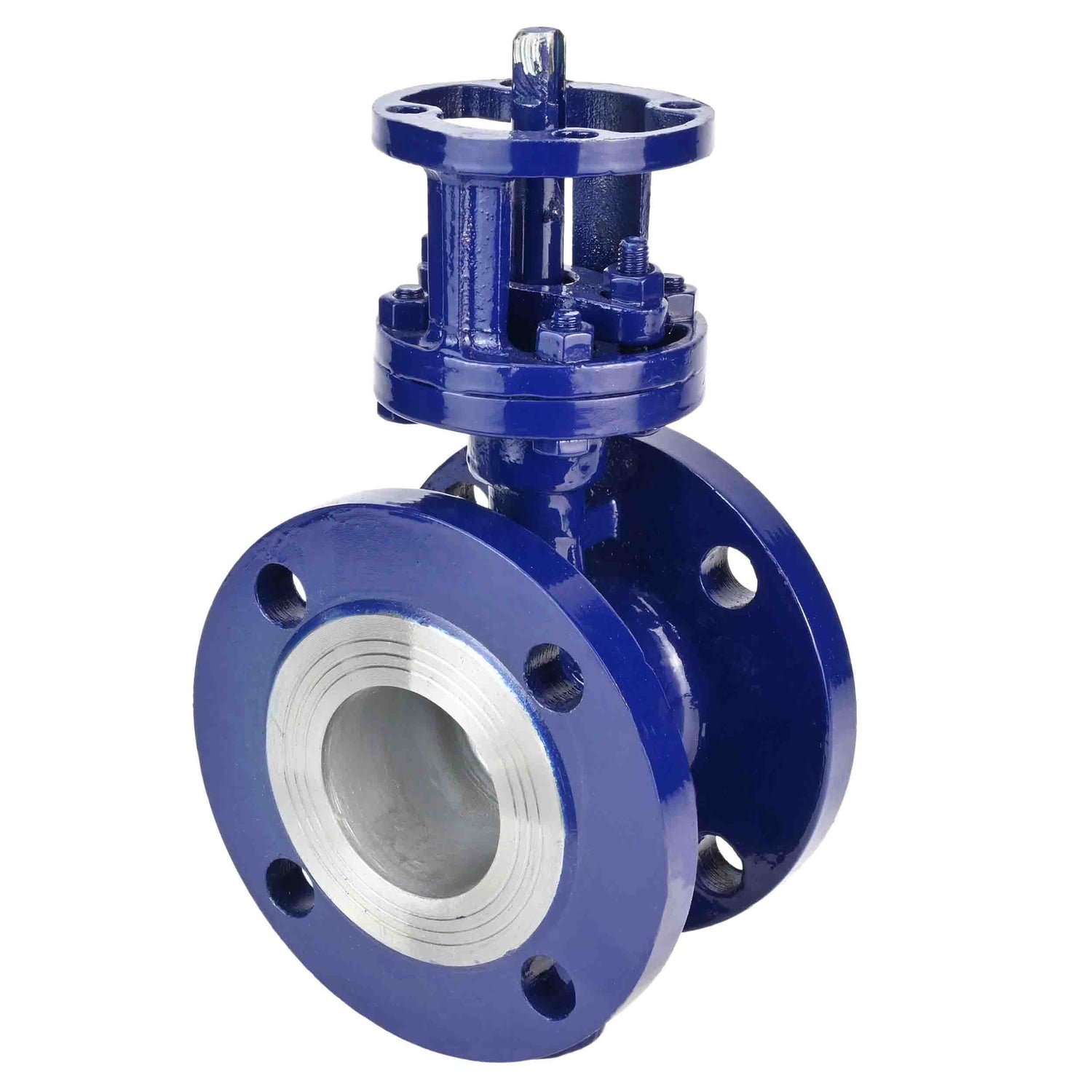

Water Butterfly Valve Elephant WBV3EX-3432M-1W-F-ISO, body material - carbon steel, disk material - stainless steel AISI 316, seal - metal, stem only

€256,00
Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Butterfly valves are designed for use as shut-off or regulating valves to control flows in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.

Operating principle: The valves are opened and closed by turning the disk by 90°. Opening is made by turning the handle counterclockwise, closing - clockwise. The peculiarity of the gate valves of this series is the complete covering of the flow part and disk with PTFE material, which allows to exclude the contact of the working medium with the materials of the main parts.

Butterfly valves are designed for use as shut-off or regulating valves for controlling flows in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.

The valves are opened and closed by turning the disk by 90°. The triple eccentricity design reduces friction at the disk and seat contact points, which increases the reliability and service life of the gate. In this design, the stem is offset relative to the center axis of the disc and the center axis of the pipeline, and the sealing surfaces are asymmetrically shaped. The combination of the three displacements at the moment of pressing and opening of the sealing surfaces ensures complete absence of friction of the sealing surfaces, contributing to minimization of wear of the seat and seal during the entire service life of the gate.

Technical characteristics of water butterfly valve Elephant WBV3EX-3432M-1W-F-ISO, body material - carbon steel, disk material - stainless steel AISI 316, seal - metal, stem only:

Characteristic Value
Nominal diameter DN, mm 50 - 300
Nominal pressure PN, bar 25
Working medium temperature t, ⁰C from -45 to +425
Working medium Water, air, steam, natural gas and gaseous hydrocarbons, oil, petroleum products, coke oven gas, aggressive media
Flow direction One-way
Pipeline connection Flanged
Body material WCB steel
Field of application Water and heat supply systems, process pipelines
Average service life, opening/closing cycles 30 000
Average service life, years 10


Overall and installation dimensions of water butterfly valve Elephant WBV3EX-3432M-1W-F-ISO, body material - carbon steel, disk material - stainless steel AISI 316, seal - metal, stem only:

Model DN L D D1 D2 n–Ød b H1 H2
mm
DN50 50 108 160 125 99 4–Ø18 20 102 78
DN65 65 112 180 145 118 8–Ø18 22 112 72
DN80 80 114 195 160 132 8–Ø18 24 122 78
DN100 100 127 230 190 156 8–Ø22 24 155 78
DN125 125 140 270 220 184 8–Ø26 26 157 95
DN150 150 140 300 250 211 8–Ø26 28 170 95
DN200 200 152 360 310 274 12–Ø26 30 200 102
DN250 250 165 425 370 330 12–Ø30 32 247 108
DN300 300 178 485 430 389 16–Ø30 34 274 110





Materials of water butterfly valve Elephant WBV3EX-3432M-1W-F-ISO, body material - carbon steel, disk material - stainless steel AISI 316, seal - metal, stem only:

№ Part name Material
1 Body WCB steel
2 Disc Stainless steel 316
3 Stem Stainless steel 316
4 Seat seal Metal + graphite
5 Gland seal Stainless steel 316 + graphite



Specifications
  • Country of origin
    China
  • Body material
    carbon steel
  • Maximum allowable temperature
    425 °C
  • Connection type
    flanged
  • Control type
    stem only
  • Nominal pressure
    25 bar
  • Type of seal
    metal
  • Disc material
    stainless steel AISI 316

Reviews (0)

Payment & Security

Payment methods

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    Available Variants

    SKUConnection sizePressurePrice AvailabilityMax TemperatureQuantity Add to cart
    D050-24544DN5025 bar €256,00 5 in stock 425 °C
    D050-24545DN6525 bar €291,00 5 in stock 425 °C
    D050-24546DN8025 bar €333,00 5 in stock 425 °C
    D050-24547DN10025 bar €434,00 5 in stock 425 °C
    D050-24548DN12525 bar €514,00 5 in stock 425 °C
    D050-24549DN15025 bar €678,00 5 in stock 425 °C
    D050-24550DN20025 bar €736,00 5 in stock 425 °C
    D050-24551DN25025 bar €1.035,00 5 in stock 425 °C
    D050-24552DN30025 bar €1.431,00 5 in stock 425 °C
