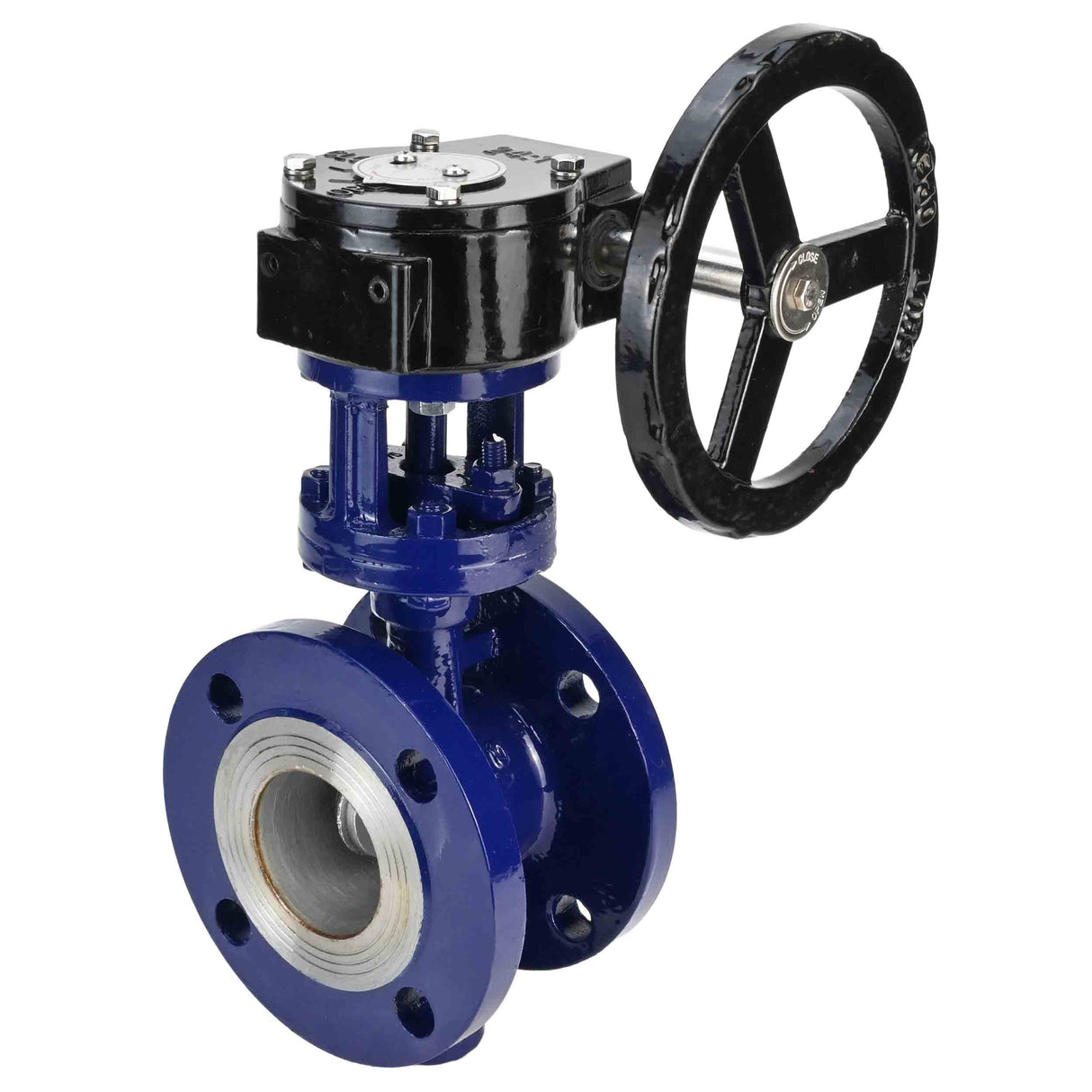

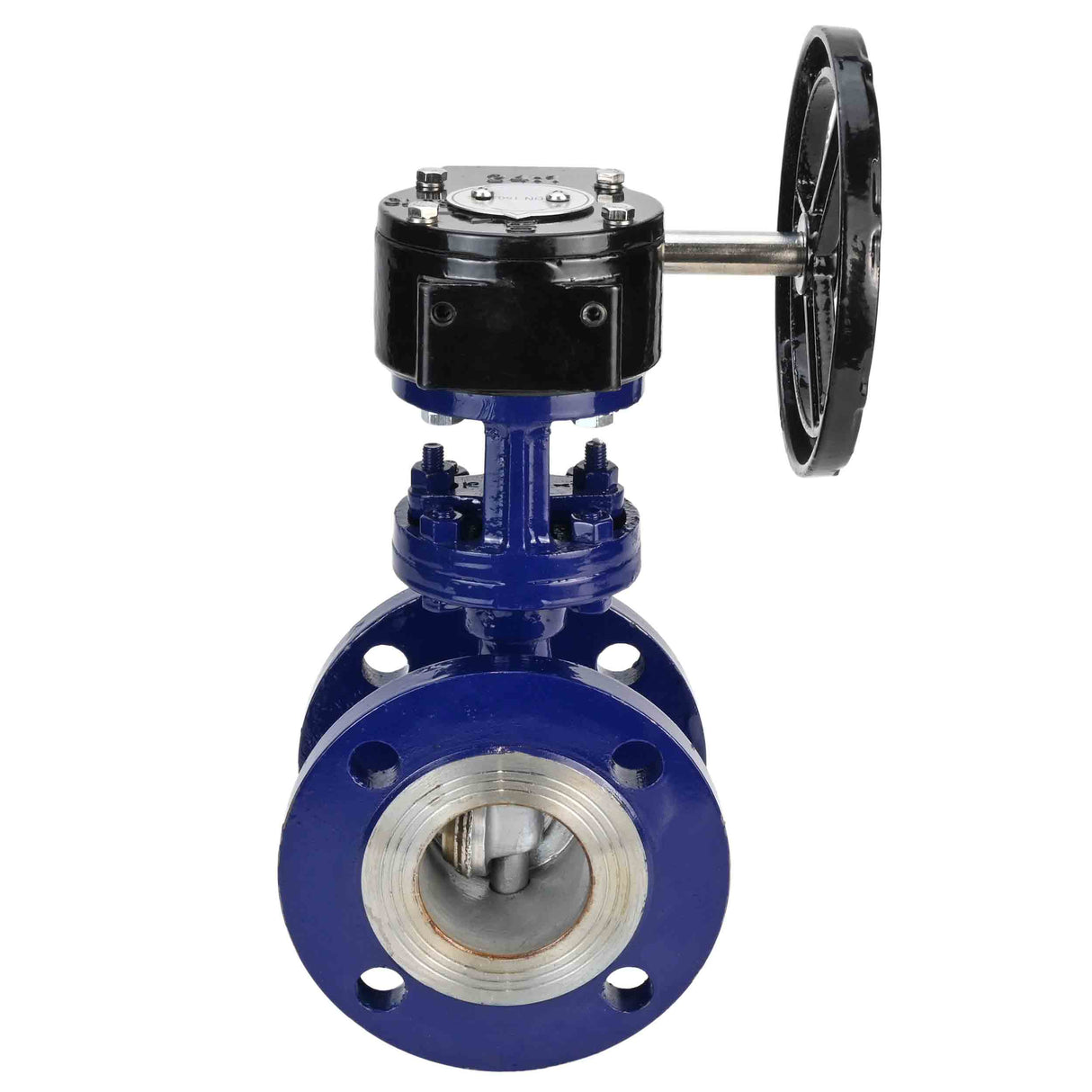

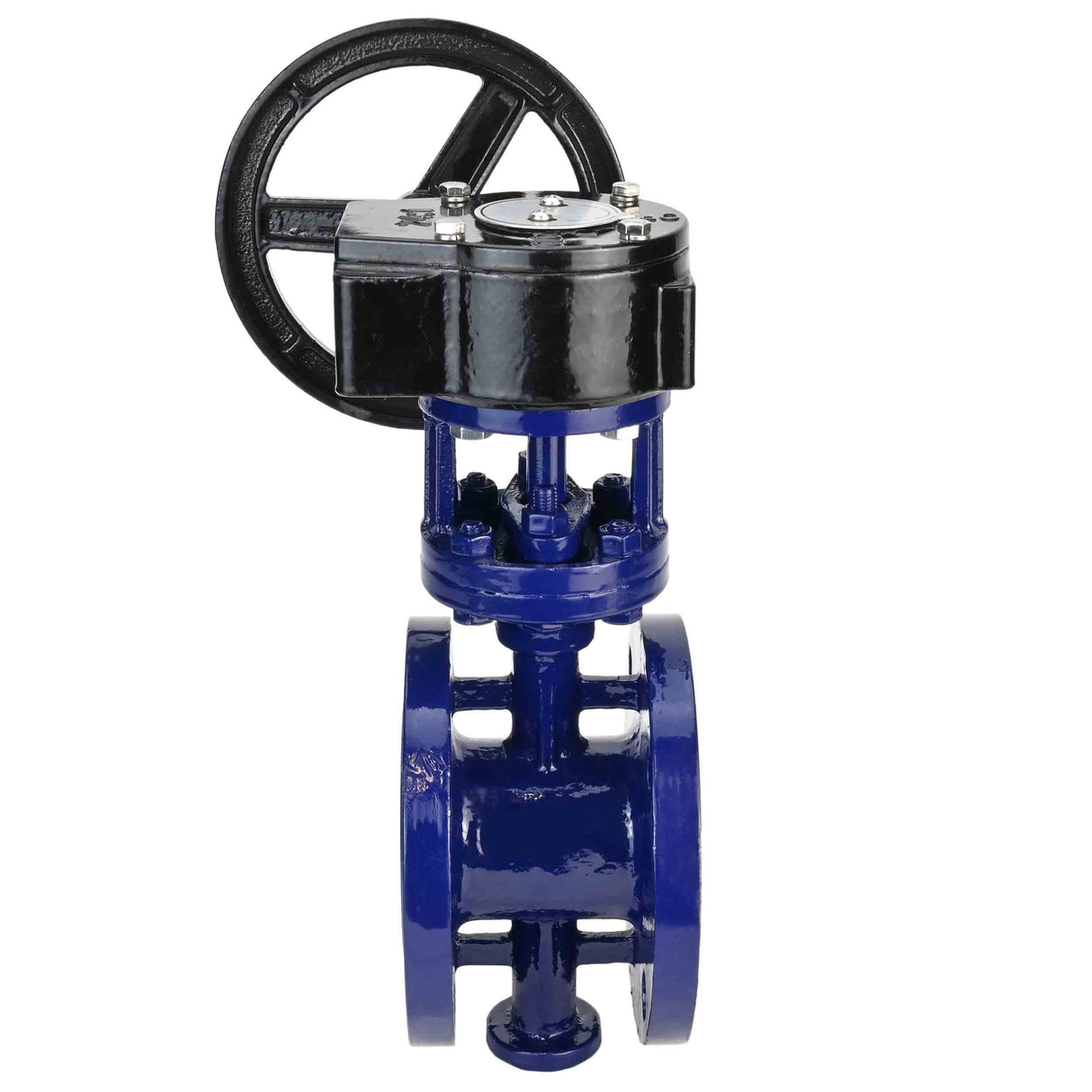

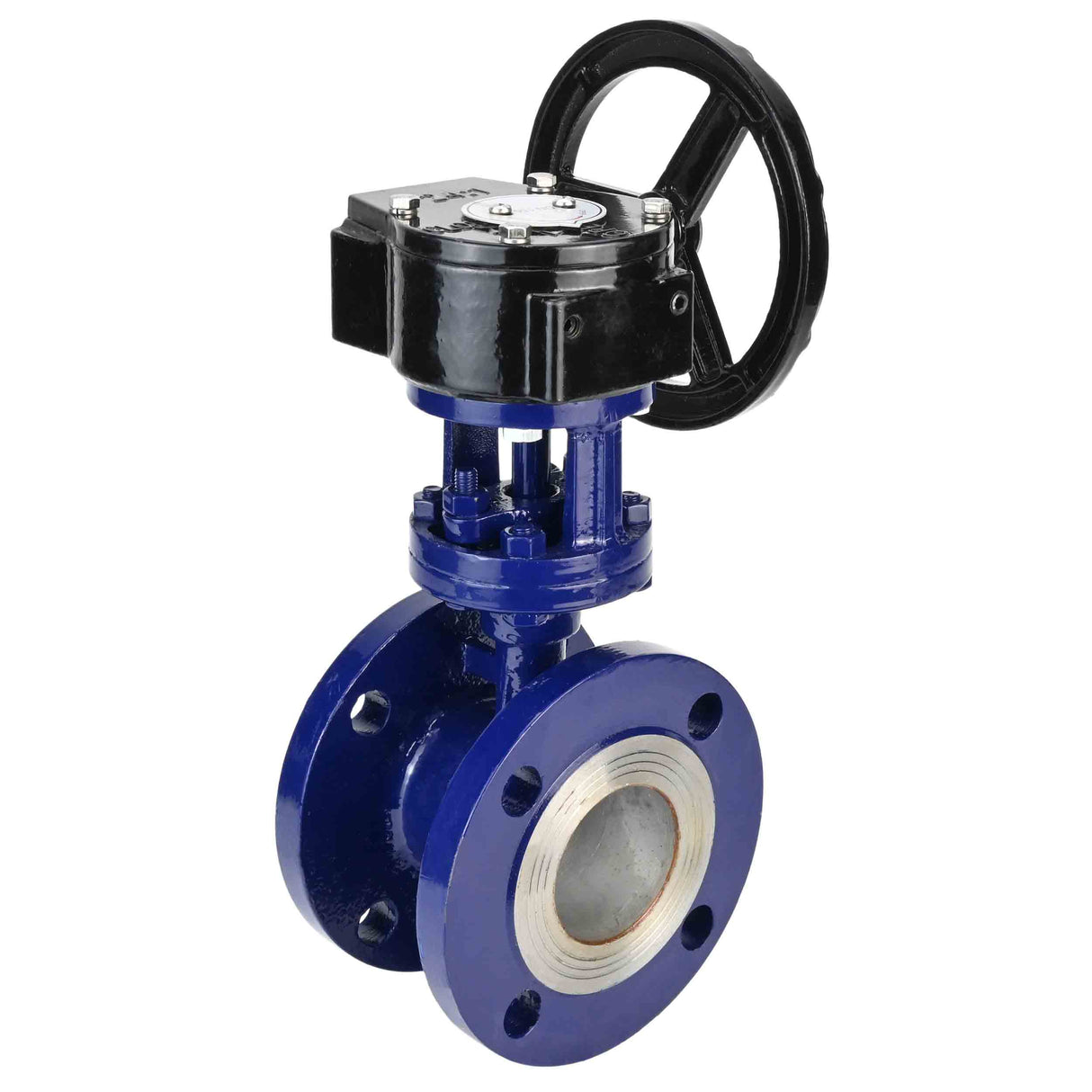

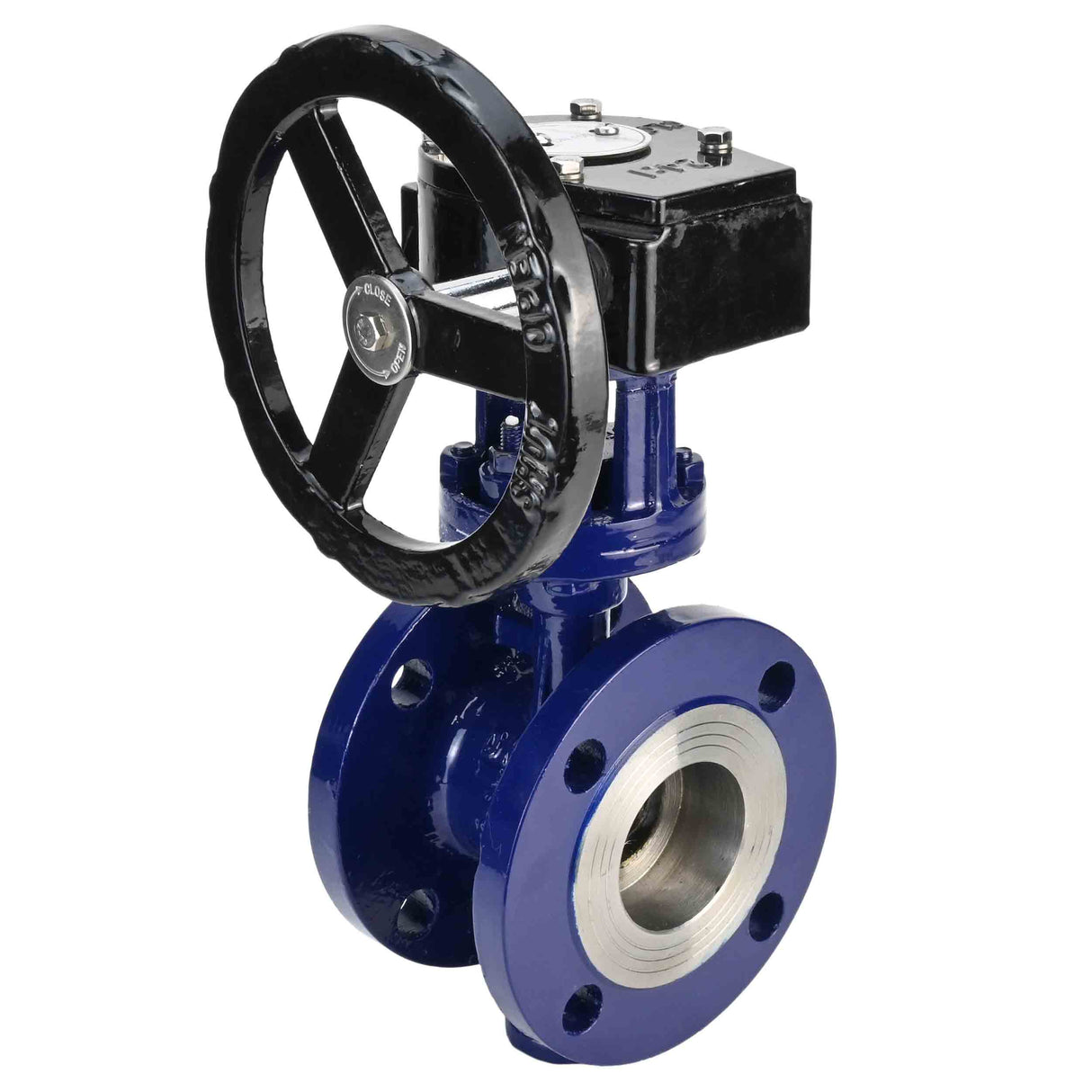

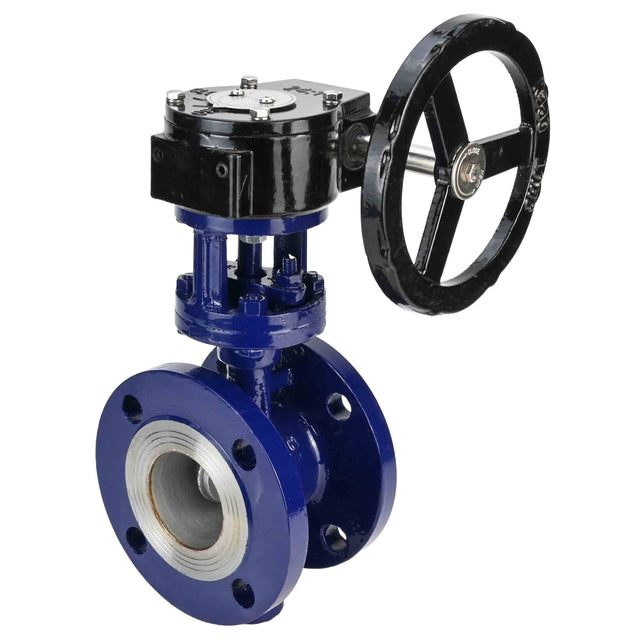

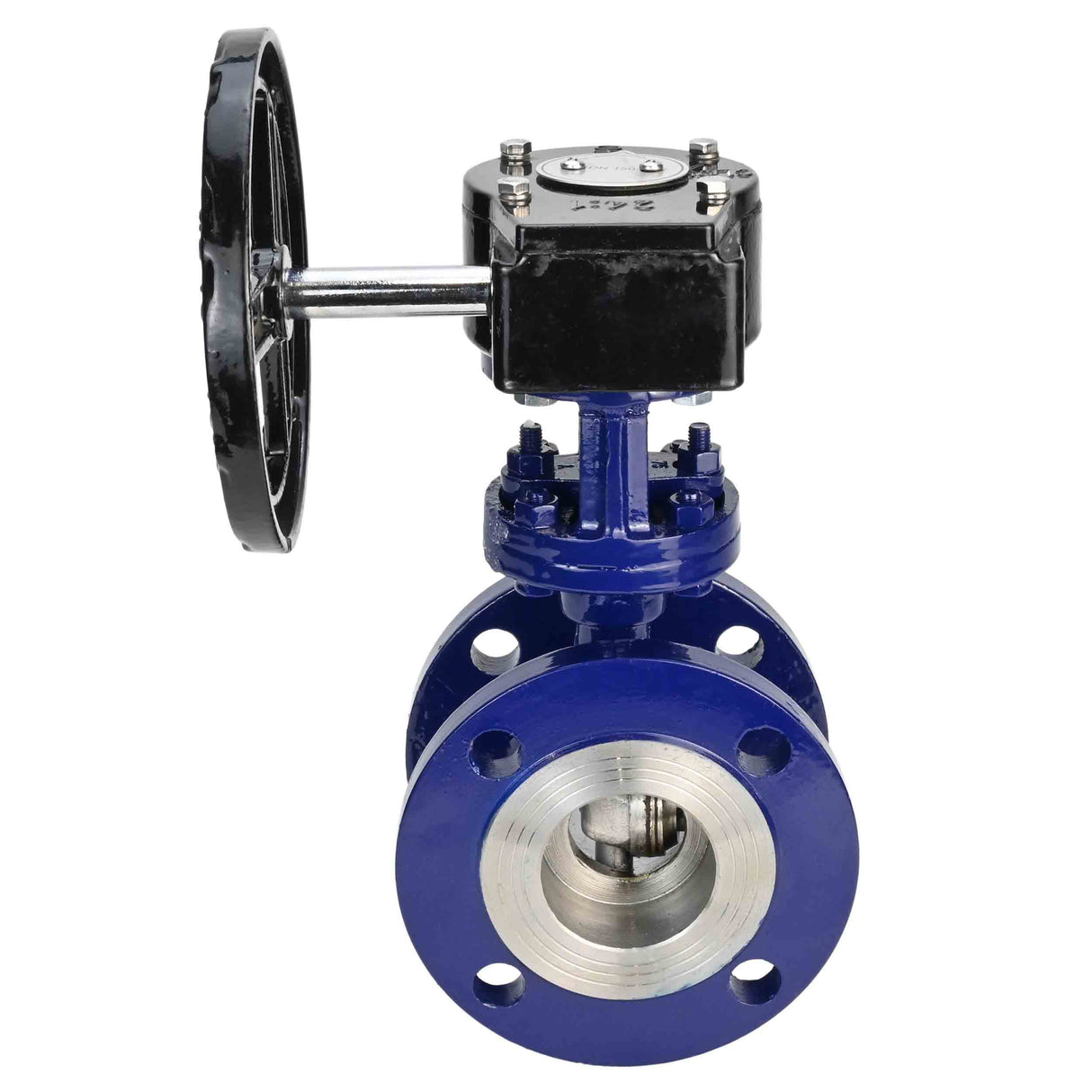

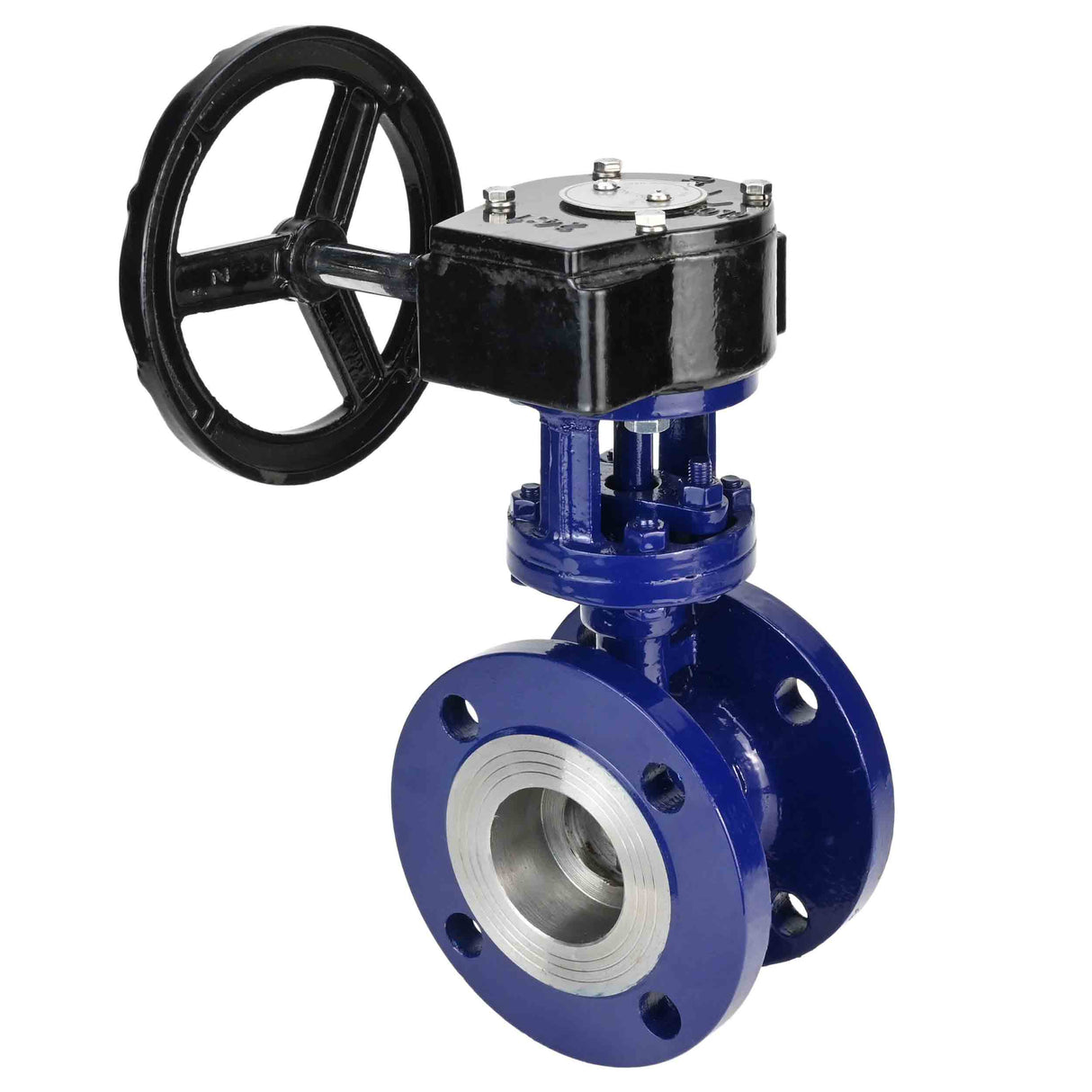

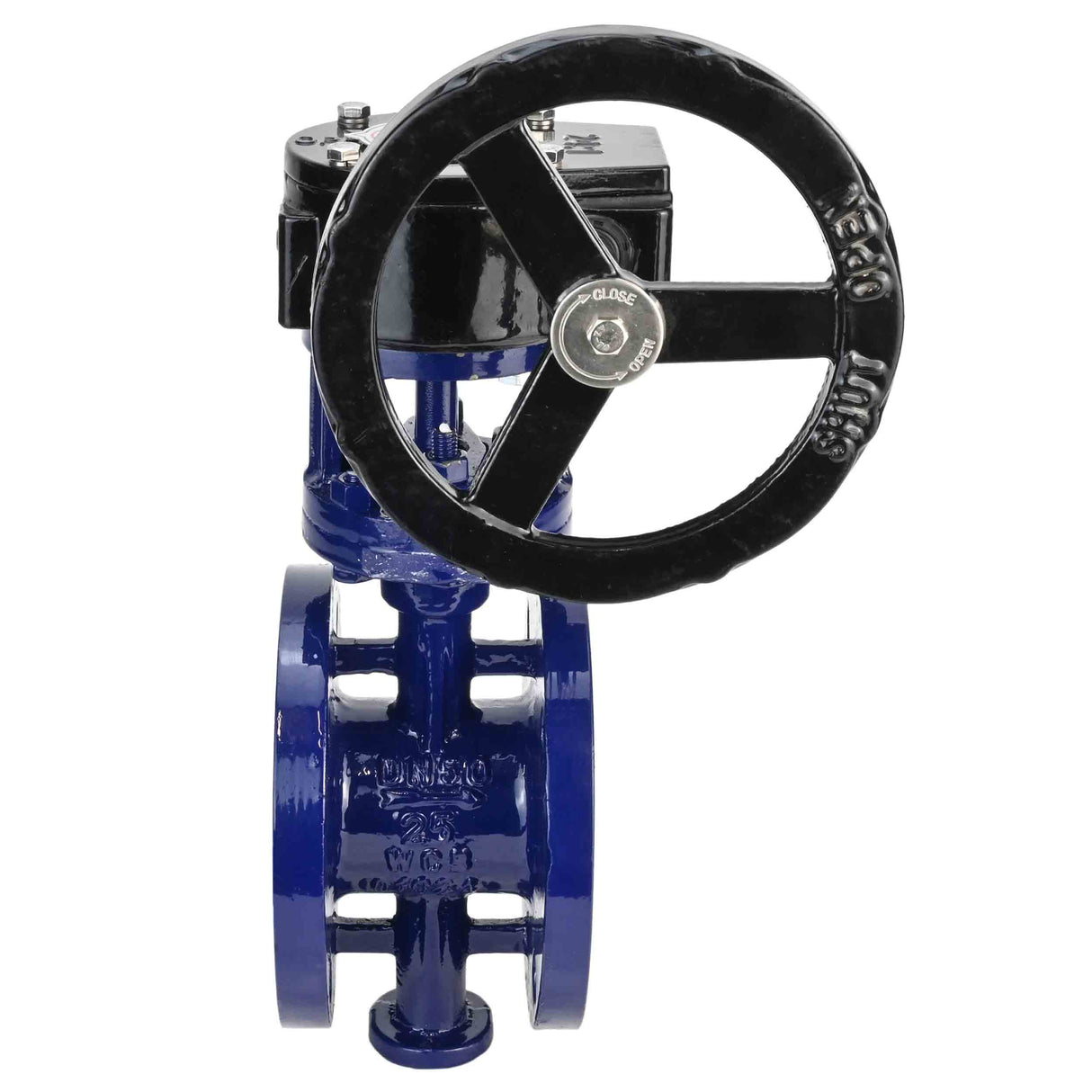

Water Butterfly Valve Elephant WBV3EX-3432M-1W-F-ISO, body material - Carbon steel, disk material - Stainless steel AISI 316, seal - Metal, gearbox RDN RQN

€520,81
Tax included Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

The butterfly valve is designed to be used as a shut-off or control valve to control flows in heat supply systems, water supply, in technological processes in the food, chemical, oil and gas, pulp and paper and other industries. The valves are opened and closed by rotating the disk by 90°. The triple eccentricity design reduces friction at the contact points of the disk and seat, which increases the reliability and service life of this valve. With this design, the stem is offset relative to the central axis of the disk and the central axis of the pipeline, and the sealing surfaces have an asymmetric shape. The combination of three offsets at the moment of pressing and opening the sealing surfaces ensures a complete absence of friction of the sealing surfaces, helping to minimize wear of the seat and seal throughout the service life of the valve.
The Elephant gearbox allows you to manually set the required positioning of the shut-off element by a quarter of a turn, acting as an alternative to pneumatic, electric or hydraulic quarter-turn actuators.





Technical characteristics of triple eccentricity butterfly valves Elephant WBV3EX-3432M-1W-F-ISO DN50-125 PN25:

Characteristic Meaning
Shutter type rotary disc
Diameter 50-125 mm
Nominal pressure 25 bar
Working environment temperature from -45 to +425°C
Application water supply, heat supply, process pipelines
Connection type flanged
Control type Manual (handle, gearbox)
Sealing class A
Service life 10 years
Guarantee 12 months





Reducers Elephant RDN



Technical characteristics of Elephant RDN gearboxes:

Characteristic Meaning
Electric drive type quarter turn
Ambient temperature from -40 to +120 °C
Application water supply, heat supply, process pipelines
Connection type ISO 5211





Sketch of dimensions of triple eccentricity butterfly valves Elephant WBV3EX-3432M-1W-F-ISO DN50-125 PN25



Overall and installation dimensions of triple eccentricity butterfly valves Elephant WBV3EX-3432M-1W-F-ISO DN50-125 PN25:

Model D.N. L D D1 D2 n–Ød b H1 H2
mm
DN50 50 108 160 125 99 4–Ø18 20 102 78
DN65 65 112 180 145 118 8–Ø18 22 112 72
DN80 80 114 195 160 132 8–Ø18 24 122 78
DN100 100 127 230 190 156 8–Ø22 24 155 78
DN125 125 140 270 220 184 8–Ø26 26 157 95
DN150 150 140 300 250 211 8–Ø26 28 170 95
DN200 200 152 360 310 274 12–Ø26 30 200 102
DN250 250 165 425 370 330 12–Ø30 32 247 108
DN300 300 178 485 430 389 16–Ø30 34 274 110





Sketch of the dimensions of the gearboxes Elephant RDN



Overall and installation dimensions of Elephant RDN gearboxes:

Model A, mm B, mm ØC, mm D, mm J, mm G, mm T, mm ØF, mm 4M, mm HxH, mm
RDN-1 170 130 160 100 45 120 50 50 4-M8 9x9
RDN-2 170 130 160 100 45 120 50 50 4-M8 11x11
RDN-3 170 130 160 100 45 120 50 50 4-M8 14x14
RDN-4 240 160 260 130 55 150 70 100 4-M10 17x17
RDN-5 240 160 260 130 55 150 70 100 4-M12 22x22





Sketch of materials of butterfly valves with triple eccentricity Elephant WBV3EX-3432M-1W-F-ISO DN50-125 PN25







Materials of parts of triple eccentricity butterfly valves Elephant WBV3EX-3432M-1W-F-ISO DN50-125 PN25:

No. Part name Material
1 Frame WCB steel
2 Disk Stainless steel 316
3 Stock Stainless steel 316
4 Saddle seal metal (surfacing D507) + graphite
5 Gland seal Stainless steel 316 + graphite

Specifications
  • Country of origin
    China
  • Body material
    Carbon steel
  • Maximum allowable temperature
    425 °C
  • Connection type
    Flanged
  • Control type
    Gearbox
  • Operating environment
    Water, Air, Steam, Steam, Oil, Oil Products, Corrosive Media, Natural Gas, Gaseous Media
  • Applications
    Water Supply, Heat Supply, Process Pipelines
  • Nominal pressure
    25 bar
  • Type of seal
    Metal
  • Disc material
    Stainless steel AISI 316
