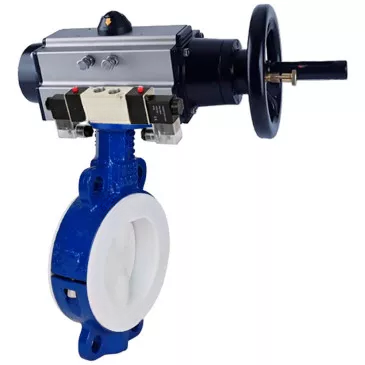

Water Butterfly Valve Elephant WBV3434Pf-2W-Fb, wafer, body - carbon steel WCB, disk - carbon steel WCB, seal - PTFE, with pneumatic drive PA-DA-105-1, with pneumatic distributor 4V320-10 220V
Water Butterfly Valve Elephant WBV3434Pf-2W-Fb, wafer, body - carbon steel WCB, disk - carbon steel WCB, seal - PTFE, with pneumatic drive PA-DA-105-1, with pneumatic distributor 4V320-10 220V - DN100 / 16 bar is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.
Description
Description
Elephant WBV3434Pf-2W-Fb butterfly valves are designed for use as shut-off or regulating valves for flow control in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.
Pneumatic valve Elephant 4V320-10 220V is used to change the direction, start, stop the compressed air flow in the pneumatic system depending on the external control action.
Technical parameters Rotary disc gate valves Elephant WBV3434Pf-2W-Fb, wafer, body - carbon steel WCB, disk - carbon steel WCB, PTFE
| Name | Value |
|---|---|
| Nominal pressure PN, bar | 16 |
| Operating temperature, °C | From -10 to 150 |
| Application | Water supply, heating, chemical industry, oil and gas industry, food industry, pulp and paper industry |
| Pipe connection | Flanged |
| Valve type | Rotary disc valve |
| Tightness class | A according to 9544 |
| Control type | Pneumatic drive |
| Country of origin | China |
Dimensions and dimensions of Butterfly valves Elephant WBV3434Pf-2W-Fb, wafer, body - carbon steel WCB, disk - carbon steel WCB, PTFE
| DN | L | D | F | L1 | G | X | Y |
| 100 | 52 | 155 | 153 | 495 | 138,4 | 88 | 162 |
| 125 | 56 | 185 | 153 | 495 | 138,4 | 88 | 162 |
| 150 | 56 | 210 | 153 | 495 | 138,4 | 88 | 162 |
| 200 | 60 | 265 | 153 | 495 | 138,4 | 88 | 162 |
Sketch of rotary disc gate valves Elephant WBV3434Pf-2W-Fb, wafer, body - carbon steel WCB, disk - carbon steel WCB, PTFE
Table of parts and materials for butterfly disc gate valves Elephant WBV3434Pf-2W-Fb, wafer, body - carbon steel WCB, disk - carbon steel WCB, PTFE
| No. | Part Name | Material |
|---|---|---|
| 1 | Body | Steel WCB + PTFE |
| 2 | Disk | Steel WCB + PTFE |
| 3 | Stem | Steel 2Cr13 |
| 4 | Saddle seal | PTFE |
Technical parameters of pneumatic actuator PA-DA-105-1:
| Type of pneumatic actuator | double-acting |
| Control pressure, bar | 2 ÷ 8 |
| Operating temperature, °C | -20 to +80 |
| Visual position indicator | open / closed |
| Manual control | handwheel |
| Swivel angle, ° | 90 ± 5 |
| Top connection standard | NAMUR |
| Air connection standard | NAMUR |
| Air supply connection thread | G 1/4ʺ |
| ISO flange type | F07/F10 |
| Stem square, mm | 22x22 |
| Weight, kg | 9 |
| Average life, cycles closed/open | 300 000 |
Pneumatic actuator PA-DA-105-1
Dimensions and dimensions of the pneumatic actuator PA-DA-105-1:
| A, mm | 495 |
| A1, mm | 461.5 |
| B, mm | 133 |
| C, mm | 109.5 |
| D, mm | 153 |
| E, mm | 57.5 |
| F, mm | 64 |
| G, mm | 26 |
| H, mm | 80 |
| I, mm | 30 |
| N, mm | 22 |
| W, mm | 200 |
| J, mm | 102 |
| K, mm | 70 |
| L, mm | M10x16 |
| M, mm | M8x13 |
| O, mm | 4 |
| P, mm | 4 |
| S, mm | M6 |
| T, mm | 24 |
| U, mm | 32 |
Sketch of dimensions and dimensions of pneumatic actuator PA-DA-105-1
PA-DA-105-1 air actuator parts and materials table:
| № | Part name | Material |
| 1 | Indicator screw | ABS (plastic) |
| 2 | Position indicator | ABS (plastic) |
| 3 | Spring clip | Stainless steel 304 |
| 4 | Washer | Stainless steel 304 |
| 5 | External washer | Engineering plastic |
| 6 | Adjustment screw | Stainless steel 304 |
| 7 | Nut | Stainless steel 304 |
| 8 | Washer | Stainless steel 304 |
| 9 | Body | Extruded aluminum alloy |
| 10 | Piston | Die cast aluminum alloy |
| 11 | Piston O-ring | NBR |
| 12 | Bearing group | Engineering plastic |
| 13 | End cap O-ring | NBR |
| 14 | End cap | Die cast aluminum alloy coated with polyester paint |
| 15 | Fixing screw | Stainless steel 304 |
| 16 | Internal washer | Engineering plastic |
| 17 | Sealing ring | NBR |
| 18 | Bearing | Engineering plastic |
| 19 | Retainer | Alloy steel |
| 20 | Gear | Alloy steel |
| 21 | Bearing | Engineering plastic |
| 22 | Sealing ring | NBR |
Parts and material sketch of the PA-DA-105-1 pneumatic actuator
Technical parameters of pneumatic valve Elephant 4V320-10 220V
| Name | Value |
|---|---|
| Type of Pneumatic Distributor | Spool type |
| Model of Pneumatic Distributor | 4V320-10 220V |
| Working Pressure, bar | 1.5 ÷ 1.8 |
| Supply Voltage, V | 220 V |
| Actuation Frequency, cycles/sec | 5 |
Specifications
Specifications
-
Country of origin
-
Body material
-
Maximum allowable temperature
-
Connection type
-
Type of seal
-
Disc material
Reviews (0)
Reviews (0)
Documentation
Documentation
Pneumatic valve ELEPHANT 4V320-8 or 10 AC220V
Butterfly valve Elephant WBV3434Pf-2W-Fb-H
Butterfly valve Elephant WBV3434Pf-2W-Fb-R DN150-300 16 bar
Rotary pneumatic actuator ELEPHANT PA-DA-105-1 double-acting with handwheel
Pneumatic rotary actuator ELEPHANT PA-x-x double-acting and with return springs
