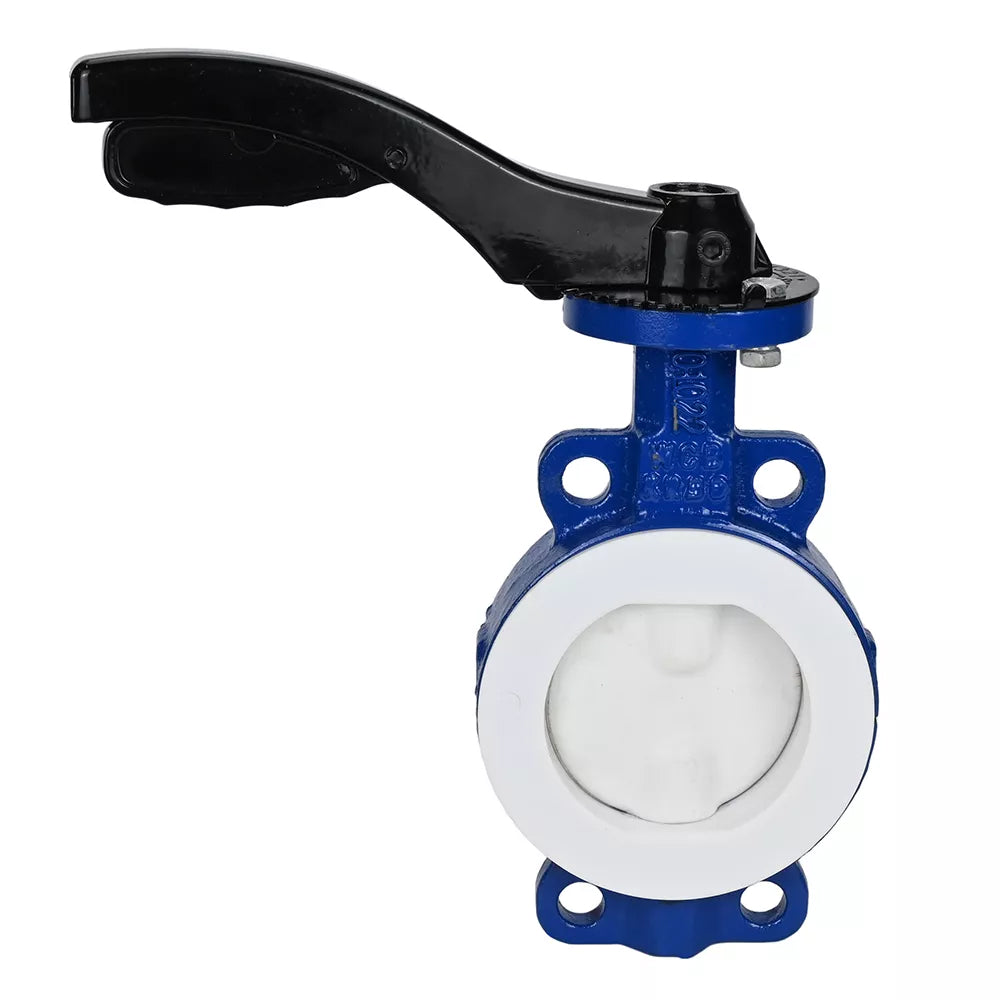

Water Butterfly Valve Elephant WBV3434Pf-2W-Fb, body material - carbon steel, disk material - carbon steel, seal - PTFE, handle
Water Butterfly Valve Elephant WBV3434Pf-2W-Fb, body material - carbon steel, disk material - carbon steel, seal - PTFE, handle - DN50 / 16 bar is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.
Water Butterfly Valve Elephant WBV3434Pf-2W-Fb, body material - car...
Description
Description
Butterfly valves are designed for use as shut-off or regulating valves to control flows in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.
Operating principle: The valves are opened and closed by turning the disk by 90°. Opening is made by turning the handle counterclockwise, closing - clockwise. The peculiarity of the gate valves of this series is the complete covering of the flow part and disk with PTFE material, which allows to exclude the contact of the working medium with the materials of the main parts.
Technical characteristics of butterfly valves Elephant WBV3434Pf-2W-Fb, body material - carbon steel, disk material - carbon steel, seal - PTFE, handle:
| Characteristic | Value |
| Butterfly valve type | Rotary disk |
| Diameter | 50-300 mm |
| Nominal pressure | 16 bar |
| Working medium temperature | -10 to +150°C |
| Application | Water supply, heat supply, chemical industry, oil and gas industry, food industry |
| Connection type | Flanged |
| Control type | Manual (handle, reducer) |
| Country of manufacturer | China |
| Service life | 10 years |
| Warranty | 12 months |
Overall and installation dimensions of butterfly valves Elephant WBV3434Pf-2W-Fb, body material - carbon steel, disk material - carbon steel, seal - PTFE, handle:
| Diameter | L, mm | D1, mm | D2, mm | Z-Ød, mm | H1, mm |
| DN50 | 43 | 125 | 100 | 2-Ø18 | 80 |
| DN65 | 46 | 145 | 120 | 2-Ø18 | 90 |
| DN80 | 46 | 160 | 135 | 4-Ø18 | 100 |
| DN100 | 52 | 180 | 155 | 4-Ø18 | 110 |
| DN125 | 56 | 210 | 185 | 4-Ø18 | 120 |
| DN150 | 56 | 240 | 210 | 4-Ø18 | 150 |
| DN200 | 60 | 295 | 265 | 4-Ø18 | 170 |
| DN250 | 68 | 355 | 320 | 4-Ø18 | 190 |
| DN300 | 78 | 410 | 375 | 4-Ø18 | 230 |
Materials of parts of butterfly valves Elephant WBV3434Pf-2W-Fb, body material - carbon steel, disk material - carbon steel, seal - PTFE, handle:
| № | Part name | Material |
| 1 | Body | DN50-200 - steel WCB+PTFE DN250-300 – steel WCB+PFA |
| 2 | Disc | DN50-200 - steel WCB+PTFE DN250-300 – steel WCB+PFA |
| 3 | Stem | DN50-250 – steel 2Cr13 DN300 – steel 45 |
| 4 | Seat Seal | PTFE |
Specifications
Specifications
-
Country of origin
-
Body material
-
Maximum allowable temperature
-
Connection type
-
Control type
-
Nominal pressure
-
Type of seal
-
Disc material
Reviews (0)
Reviews (0)
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Available Variants
| SKU | Connection size | Pressure | Price | Availability | Max Temperature | Quantity | Add to cart |
|---|---|---|---|---|---|---|---|
| D050-24521 | DN50 | 16 bar | €222,00 | 5 in stock | 180 °C | ||
| D050-24522 | DN65 | 16 bar | €242,00 | 5 in stock | 180 °C | ||
| D050-24523 | DN80 | 16 bar | €287,00 | 5 in stock | 180 °C | ||
| D050-24524 | DN100 | 16 bar | €342,00 | 5 in stock | 180 °C | ||
| D050-24525 | DN125 | 16 bar | €531,00 | 5 in stock | 180 °C | ||
| D050-24526 | DN150 | 16 bar | €606,00 | 5 in stock | 180 °C | ||
| D050-24527 | DN200 | 16 bar | €1.009,00 | 5 in stock | 180 °C | ||
| D050-24528 | DN250 | 16 bar | €1.543,00 | 5 in stock | 180 °C | ||
| D050-24529 | DN300 | 16 bar | €2.210,00 | 5 in stock | 180 °C |
