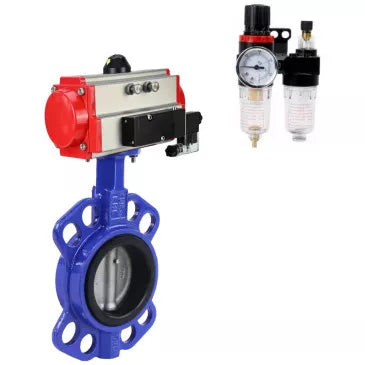

Water Butterfly Valve Elephant WBV3432N-2W-Fb-H, body - carbon steel WCB, disk - stainless steel 316L, seal - NBR, with pneumatic actuator PA-SA, with pneumatic distributor 4V320-08 220V, ATU AFC2000

Butterfly valves Elephant WBV3432P-2W-Fb-H are designed for use as shut-off or regulating valves to control flows in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.

Pneumatic valve Elephant 4V320-08 220V is used to change direction, start, stop compressed air flows in pneumatic system depending on external control action.

The AFC2000 air treatment unit is designed to clean compressed air from moisture droplets and solid particles, remove condensate, automatically maintain pressure at a preset level, supply lubricant from the tank in the compressed air flow to the elements of the pneumatic system with a wide range of throughput from 500 liters/minute to 10 000 liters/minute. The lubricator adds oil with a viscosity of 32 mm²/s (=cSt) at 40°C to the pneumatic system for further lubrication of control components such as pneumatic cylinders and pneumatic valves.

Technical parameters of Butterfly valves Elephant WBV3432P-2W-Fb-H, body - carbon steel WCB, disk - stainless steel 316L, seal - NBR

Table of parts and materials for butterfly valves Elephant WBV3432P-2W-Fb-H Du40-125 Ru16, body - carbon steel WCB

Sketch of parts and materials of rotary disc gate valves Elephant WBV3432P-2W-Fb-H Du40-125 Ru16, body - carbon steel WCB

Technical parameters of pneumatic valve Elephant 4V320-08 220V

Main parameters of air treatment unit Elephant AFC2000

Sketch of ATU Elephant AFC2000
