Elephant  |  SKU: D050-38742

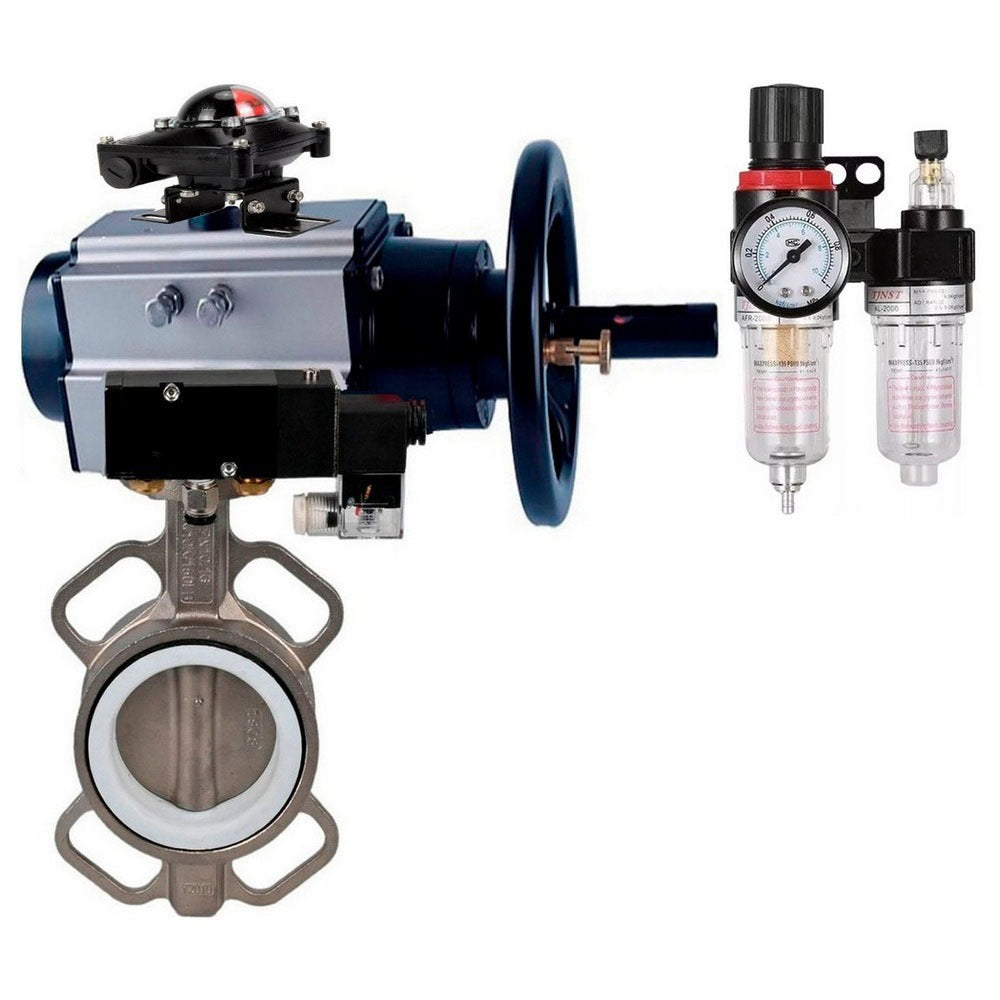

Water Butterfly Valve Elephant WBV3432N-2W-Fb body material - Carbon steel, disk material - Stainless steel AISI 316L/1.4404, seal - NBR with pneumatic actuator double acting PA-DA-105-1, pneumatic distributor 4V320-10 220V, limit switch APL-510N-EX

€0,00
Tax included Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Butterfly valves are designed to be used as shut-off or control valves for managing flows in heating systems, water supply systems, and technological processes in the food, chemical, oil and gas, pulp and paper, and other industries.
The reducer allows manual positioning of the shut-off element at a quarter turn, serving as an alternative to pneumatic, electric, or hydraulic quarter-turn actuators.





Technical parameters water butterfly valve Elephant WBV3432N-2W-Fb body material - Carbon steel, disk material - Stainless steel AISI 316L/1.4404, seal - NBR with pneumatic actuator double acting PA-DA-105-1, pneumatic distributor 4V320-10 220V, limit switch APL-510N-EX:

Name

Value

Working pressure, bar

16

Application

Water supply, heat supply

Pipeline connection

Interflanged

Gate type

Rotary disk

Control type

Pneumatic actuator

Country of manufacture

China


Dimensions and installation dimensions water butterfly valve Elephant WBV3432P-2W-Fb body material - Carbon steel, disk material - Stainless steel AISI 316L/1.4404, seal - PTFE with pneumatic actuator double acting PA-DA-105-1, pneumatic distributor 4V320-10 220V, limit switch APL-510N-EX:

Model A, mm B, mm A1, mm W, mm I, mm C, mm
DN150 225 140 495 200 162 139





Technical parameters of Elephant PA-DA-105-1 pneumatic actuator:

Name Value
Design Double action
Nominal torque, Nm 202
Angle of rotation of the actuator 90°
Working pressure, bar 8
Operating medium Filtered compressed air or non-aggressive gases, oils



Dimensions and dimensions of Elephant PA-DA-105-1 pneumatic actuator:

A, mm 495
A1, mm 461.5
B, mm 133
C, mm 109.5
D, mm 153
E, mm 57.5
F, mm 64
G, mm 26
H, mm 80
I, mm 30
N, mm 22
W, mm 200
J, mm 102
K, mm 70
L, mm М10х16
M, mm М8х13
O, mm 4
P, mm 4
S, mm M6
T, mm 24
U, mm 32





Parts and materials table of Elephant PA-DA-105-1 pneumatic actuator:

№ Name Material
1 Indicator screw ABS (plastic)
2 Position indicator ABS (plastic)
3 Spring clip Stainless steel 304
4 Washer Stainless steel 304
5 Outer washer Engineering plastic
6 Adjustment screw Stainless steel 304
7 Nut Stainless steel 304
8 Washer Stainless steel 304
9 Body Extruded aluminum
10 Piston Aluminum, die casting
11 Piston O-ring NBR
12 Bearing group Engineering plastic
13 End cap O-ring NBR
14 End cap Cast aluminum, coated with polyester paint
15 Fixing screw Stainless steel 304
16 Washer inner Engineering plastic
17 O-ring NBR
18 Bearing Engineering plastic
19 Retainer Alloy steel
20 Gear Alloy steel
21 Bearing Engineering plastic
22 O-ring NBR




Parameters of pneumatic valve 4V320-10 220V:

Name Value
Type of pneumatic valve Spool valve
Working pressure, bar 1.5 ÷ 1.8
Supply voltage, V 220 V
Total power, V-A 4.5
Control Two-way electromagnetic
Response frequency, cycle/sec 5




Main technical characteristics of Elephant APL-510N-EX limit switch unit:

Cable glands 2 x NPT3/4"
Protection degree of enclosure, IP 67
Nominal voltage, V 250
Approved ambient temperature, °С from -40 to +80
Service life, years 10





Dimensions and dimensions of Elephant APL-510N-EX limit switch unit:

H, mm L, mm B, mm D, mm D1, mm M, mm
77 112 88 10 5 20х1.5





Technical parameters of Elephant AFC2000 air treatment unit:

Name Value
Working pressure, bar 8
Adjustable pressure range, bar 0.5 ÷ 9
Filterable particle size, µm 40 µm
Weight, kg 0.395



Specifications
  • Country of origin
    China
  • Body material
    Carbon steel
  • Connection type
    Compact flanged
  • Control type
    pneumatic actuator
  • Nominal pressure
    16 bar
  • Type of seal
    NBR
  • Disc material
    Stainless steel AISI 316L/1.4404
  • Voltage
    110/220 V
  • Valve feedback
    limit switches
  • Explosion-proof
    Yes
  • Pneumatic actuator
    Double acting
  • Manual override
    Yes
  • Limit switches
    Yes
