Elephant  |  SKU: D050-25322

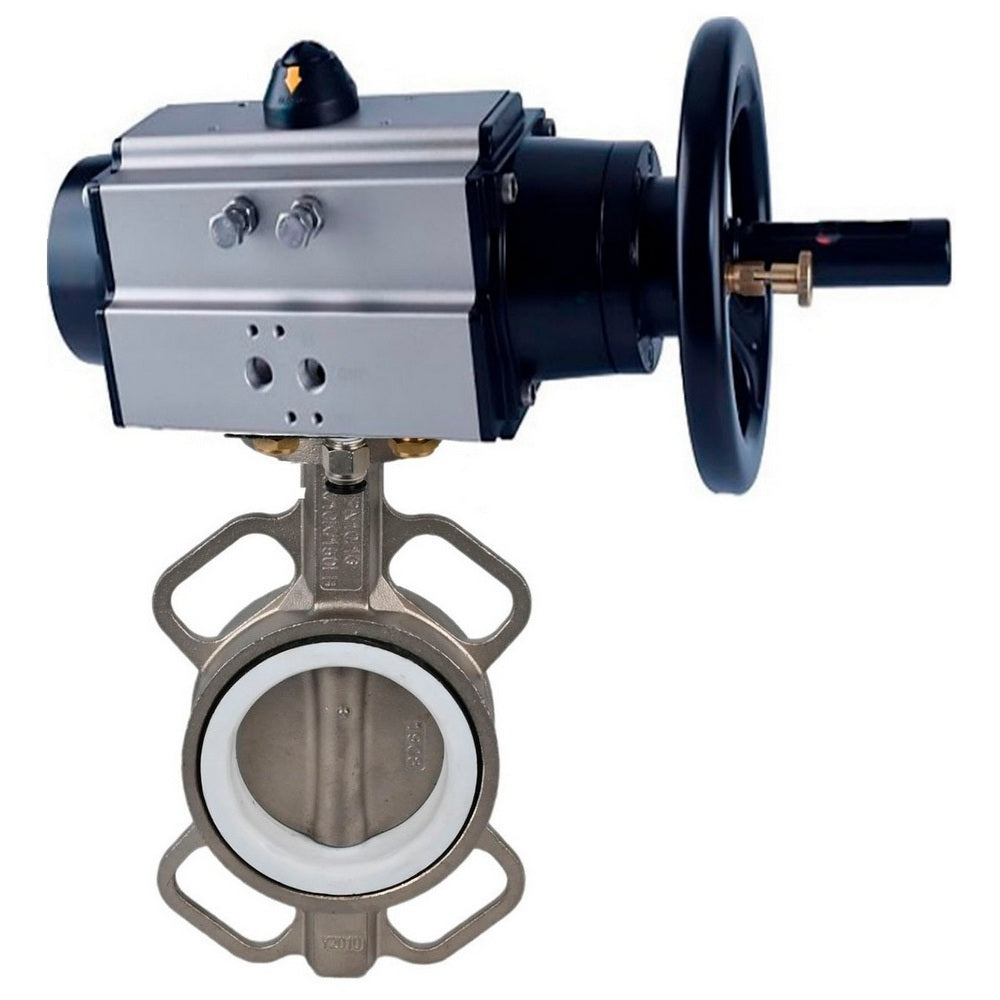

Water Butterfly Valve Elephant WBV3232V-2W-Fb body material - Stainless steel AISI 316L/1.4404, disk material - Stainless steel AISI 316L/1.4404, seal - Viton with pneumatic actuator double acting PA-DA-105-1

€500,00
Tax included Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

The butterfly valve is designed for use as shut-off or regulating valves to control flows in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.
Pneumatic Elephant double-acting pneumatic actuators PA-DA-105-1 are designed for automation of industrial valves control process with maximum torque up to 2128 Nm.





Technical parameters water butterfly valve Elephant WBV3232V-2W-Fb body material - Stainless steel AISI 316L/1.4404, disk material - Stainless steel AISI 316L/1.4404, seal - Viton with pneumatic actuator double acting PA-DA-105-1:

Name

Value

Working pressure, bar

16

Working medium temperature, °С

from -20 to 200

Pipeline connection

Interflanged

Gate type

Rotary disk

Control type

Pneumatic actuator

Country of manufacture

China


Dimensions and installation dimensions butterfly valve Elephant WBV3232V-2W-Fb body material - Stainless steel AISI 316L/1.4404, disk material - Stainless steel AISI 316L/1.4404, seal - Viton with pneumatic actuator double acting PA-DA-105-1:

Model A, mm B, mm A1, mm W, mm
DN150 140 225 495 200





Technical parameters of Elephant PA-DA-105-1 pneumatic actuator:

Name Value
Design Double action
Nominal torque, Nm 202
Angle of rotation of the actuator 90°
Working pressure, bar 8
Operating medium Filtered compressed air or non-aggressive gases, oils



Dimensions and dimensions of Elephant PA-DA-105-1 pneumatic actuator:

A, mm 495
A1, mm 461.5
B, mm 133
C, mm 109.5
D, mm 153
E, mm 57.5
F, mm 64
G, mm 26
H, mm 80
I, mm 30
N, mm 22
W, mm 200
J, mm 102
K, mm 70
L, mm М10х16
M, mm М8х13
O, mm 4
P, mm 4
S, mm M6
T, mm 24
U, mm 32





Parts and materials table of Elephant PA-DA-105-1 pneumatic actuator:

№ Name Material
1 Indicator screw ABS (plastic)
2 Position indicator ABS (plastic)
3 Spring clip Stainless steel 304
4 Washer Stainless steel 304
5 Outer washer Engineering plastic
6 Adjustment screw Stainless steel 304
7 Nut Stainless steel 304
8 Washer Stainless steel 304
9 Body Extruded aluminum
10 Piston Aluminum, die casting
11 Piston O-ring NBR
12 Bearing group Engineering plastic
13 End cap O-ring NBR
14 End cap Cast aluminum, coated with polyester paint
15 Fixing screw Stainless steel 304
16 Washer inner Engineering plastic
17 O-ring NBR
18 Bearing Engineering plastic
19 Retainer Alloy steel
20 Gear Alloy steel
21 Bearing Engineering plastic
22 O-ring NBR



Specifications
  • Country of origin
    China
  • Body material
    Stainless steel AISI 316
  • Maximum allowable temperature
    200 °C
  • Connection type
    Compact flanged
  • Control type
    pneumatic actuator
  • Nominal pressure
    16 bar
  • Type of seal
    Viton
  • Disc material
    Stainless steel AISI 316L/1.4404
  • Pneumatic actuator
    Double acting
  • Manual override
    Yes
  • Limit switches
    No
