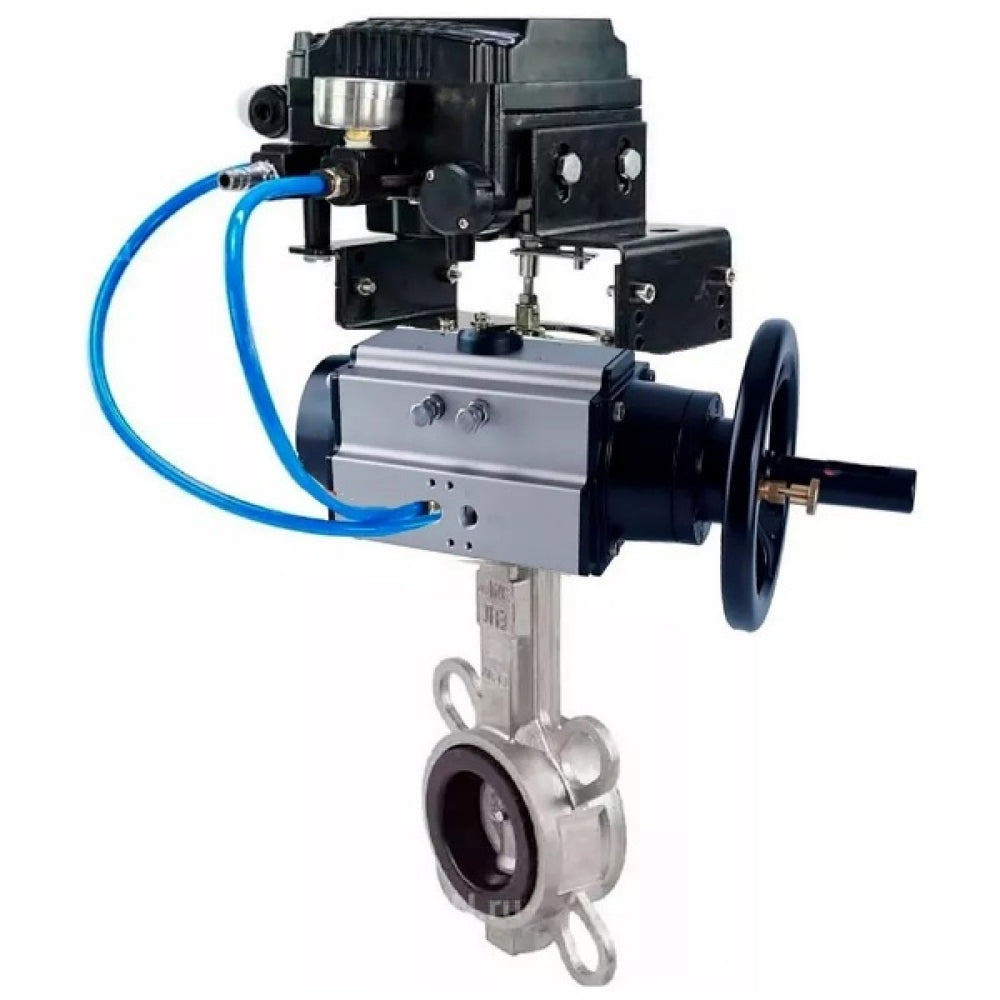

Water Butterfly Valve Elephant WBV3232P-2W-Fb-H, body material - stainless steel AISI 316L, disk material - stainless steel AISI 316L, seal - PTFE, with pneumatic actuator double action PA-DA-105-1, electropneumatic rotary positioner YT-1000RSN feedback
Water Butterfly Valve Elephant WBV3232P-2W-Fb-H, body material - stainless steel AISI 316L, disk material - stainless steel AISI 316L, seal - PTFE, with pneumatic actuator double action PA-DA-105-1, electropneumatic rotary positioner YT-1000RSN feedback - DN125 / 16 bar is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.
Description
Description
The butterfly valve is designed for use as shut-off or regulating valves for flow control in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.
Pneumatic actuator is designed for automation of industrial valve control process with maximum torque up to 2128 Nm. Pneumatic actuator can be installed on various quarter-turn valves according to the instructions. The flanges must comply with iso 5211.
The electropneumatic rotary positioner is used to control pneumatic rotary actuators by means of an electric controller or a control system with an analog DC output signal with a range of 4 to 20 mA. The function of the positioner is based on the balancing of forces. The positioner uses a nozzle-flap type device and a feedback servomechanism (spring and lever system) to balance the control and feedback forces when the pneumatic actuator (valve) reaches the position corresponding to the control signal.
Technical parameters of Water Butterfly Valve Elephant WBV3232P-2W-Fb-H, body material - stainless steel AISI 316L, disk material - stainless steel AISI 316L, seal - PTFE, with pneumatic actuator double action PA-DA-105-1, electropneumatic rotary positioner YT-1000RSN feedback:
| Nominal pressure PN, bar | 16 |
| Flow direction | double-sided |
| Working medium temperature t, ⁰C | -20 to +85 for NBR |
| -20 to +120 for EPDM | |
| -10 to +180 for PTFE | |
| Ambient temperature t, ⁰C | -40 to +120 |
| Working medium | EPDM: cold and hot water, air without impurities of oil and grease, other media neutral to the material |
| PTFE: water, alkalis, acids, solvents and oxidizers | |
| NBR: water, mineral oils, hydrocarbons, | |
| oils, fats | |
| Connection to pipeline | interflange |
Butterfly valves WBV3232P-2W-Fb-H, body material - stainless steel AISI 316L, disk material - stainless steel AISI 316L, seal - PTFE, with pneumatic actuator double action PA-DA-105-1, electropneumatic rotary positioner YT-1000RSN feedback
Dimensions and dimensions of butterfly valves Elephant WBV3232P-2W-Fb-H, body material - stainless steel AISI 316L, disk material - stainless steel AISI 316L, seal - PTFE, with pneumatic actuator double action PA-DA-105-1, electropneumatic rotary positioner YT-1000RSN feedback:
| DN | A, mm | B, mm | A1, mm | W, mm | S, mm | C, mm |
| 150 | 140 | 225 | 495 | 200 | 62.5 | 117.5 |
Sketch Butterfly valves WBV3232P-2W-Fb-H, body material - stainless steel AISI 316L, disk material - stainless steel AISI 316L, seal - PTFE, with pneumatic actuator double action PA-DA-105-1, electropneumatic rotary positioner YT-1000RSN feedback
Materials of butterfly valves Elephant WBV3232P-2W-Fb-H, body material - stainless steel AISI 316L, disk material - stainless steel AISI 316L, seal - PTFE, with pneumatic actuator double action PA-DA-105-1, electropneumatic rotary positioner YT-1000RSN feedback:
| № | Name | Material |
| 1 | Body | Stainless steel AISI 316L |
| 2 | Cuff | PTFE |
| 3 | Disk | Stainless steel AISI 316L |
| 4 | Stem | Stainless steel AISI 316L |
| 5 | Stud | Stainless steel AISI 316L |
| 6 | Sleeve | PTFE |
| 7 | O-ring | NBR (nitrile) |
| 8 | plate | Carbon steel |
Sketch of parts and materials Butterfly valves WBV3232P-2W-Fb-H, body material - stainless steel AISI 316L, disk material - stainless steel AISI 316L, seal - PTFE, with pneumatic actuator double action PA-DA-105-1, electropneumatic rotary positioner YT-1000RSN feedback
Technical parameters of pneumatic actuator PA-DA-105-1:
| Type of pneumatic actuator | double-acting |
| Control pressure, bar | 2 ÷ 8 |
| Operating temperature, °C | -20 to +80 |
| Visual position indicator | open / closed |
| Manual control | handwheel |
| Swivel angle, ° | 90 ± 5 |
| Top connection standard | NAMUR |
| Air connection standard | NAMUR |
| Air supply connection thread | G 1/4ʺ |
| ISO flange type | F07/F10 |
| Stem square, mm | 22x22 |
| Weight, kg | 9 |
| Average life, cycles closed/open | 300 000 |
Pneumatic actuator PA-DA-105-1
Dimensions and dimensions of the pneumatic actuator PA-DA-105-1:
| A, mm | 495 |
| A1, mm | 461.5 |
| B, mm | 133 |
| C, mm | 109.5 |
| D, mm | 153 |
| E, mm | 57.5 |
| F, mm | 64 |
| G, mm | 26 |
| H, mm | 80 |
| I, mm | 30 |
| N, mm | 22 |
| W, mm | 200 |
| J, mm | 102 |
| K, mm | 70 |
| L, mm | M10x16 |
| M, mm | M8x13 |
| O, mm | 4 |
| P, mm | 4 |
| S, mm | M6 |
| T, mm | 24 |
| U, mm | 32 |
Sketch of dimensions and dimensions of pneumatic actuator PA-DA-105-1
PA-DA-105-1 air actuator parts and materials table:
| № | Part name | Material |
| 1 | Indicator screw | ABS (plastic) |
| 2 | Position indicator | ABS (plastic) |
| 3 | Spring clip | Stainless steel 304 |
| 4 | Washer | Stainless steel 304 |
| 5 | External washer | Engineering plastic |
| 6 | Adjustment screw | Stainless steel 304 |
| 7 | Nut | Stainless steel 304 |
| 8 | Washer | Stainless steel 304 |
| 9 | Body | Extruded aluminum alloy |
| 10 | Piston | Die cast aluminum alloy |
| 11 | Piston O-ring | NBR |
| 12 | Bearing group | Engineering plastic |
| 13 | End cap O-ring | NBR |
| 14 | End cap | Die cast aluminum alloy coated with polyester paint |
| 15 | Fixing screw | Stainless steel 304 |
| 16 | Internal washer | Engineering plastic |
| 17 | Sealing ring | NBR |
| 18 | Bearing | Engineering plastic |
| 19 | Retainer | Alloy steel |
| 20 | Gear | Alloy steel |
| 21 | Bearing | Engineering plastic |
| 22 | Sealing ring | NBR |
Parts and material sketch of the PA-DA-105-1 pneumatic actuator
Technical parameters of electropneumatic rotary positioners:
| Name | Value |
| Control input signal, mA | 4 ~ 20 |
| Internal resistance, Ohm | 250(±15) |
| Input pressure, bar | 1,4~7 |
| Lever travel angle | 0~90° |
| Compressed air connection thread | 1/4″ |
| Pressure gauge connection thread | 1/8″ |
| Cable gland | G1/2″ |
| Protection type | IP66 |
| Compressed air flow rate, l/min | 3 |
| Output air flow rate, l/min | 80 |
| Housing material | aluminum casting |
Electropneumatic rotary positioners
Dimensions and dimensions of electropneumatic rotary positioners:
| Positioner model | YT-1000RSI |
| A, mm | 224.3 |
| B, mm | 166.5 |
| C, mm | 117.5 |
| D, mm | 132.3 |
| E, mm | 6 |
| F, mm | 122 |
| G, mm | 45 |
| H, mm | 45 |
| I, mm | 23 |
| J, mm | 27 |
| K, mm | 32.5 |
| L, mm | 35.5 |
| M, mm | 91.8 |
| N, mm | 37.2 |
| O, mm | 43.5 |
| P, mm | 26.5 |
| Q, mm | 33 |
| R, mm | 80.25 |
| S, mm | 62.5 |
| T, mm | 8 |
| U1, mm | 70 |
| U2, mm | 93 |
| V1, mm | 40 |
| V2, mm | 63 |
| W, mm | 26 |
| X, mm | 32 |
| Y, mm | 9 |
| Z, mm | 24 |
Sketch of dimensions and dimensions of electropneumatic rotary positioners
Specifications
Specifications
-
Country of origin
-
Body material
-
Maximum allowable temperature
-
Connection type
-
Control type
-
Nominal pressure
-
Type of seal
-
Coating type
-
Disc material
-
Torque
-
Manual override
-
Limit switches
-
Feedback sensor
-
Control signal
-
Type of pneumatic actuator
-
Angle of rotation
Reviews (0)
Reviews (0)
Documentation
Documentation
Electropneumatic rotary positioner ELEPHANT YT-1000RSN with without feedback for pneumatic rotary actuators control signal 4-20 mA without explosion protection
Electropneumatic rotary positioner ELEPHANT YT-1000RSN with or without feedback
Butterfly valve Elephant WBVx32x-2W-Fb-H DN40-300 16 bar
Rotary pneumatic actuator ELEPHANT PA-DA-105-1 double-acting with handwheel
