Elephant | SKU: D050-23771

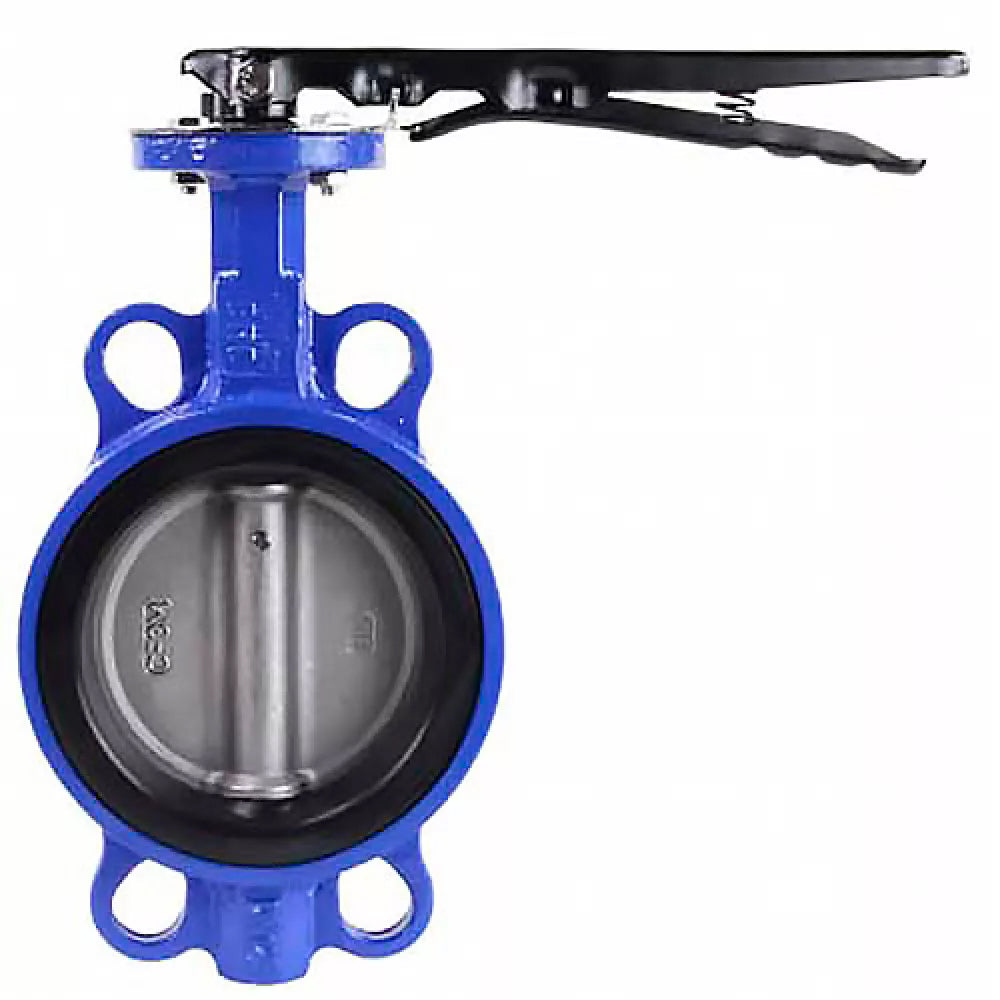

Water Butterfly Valve Elephant WBV3131V-2W-Fb-H, body material - stainless steel AISI 304, disk material - stainless steel AISI 304, seal - viton, handle

€99,00

Shipping calculated at checkout.

Connection size

Pressure

Product variants

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Butterfly valves are designed for use as shut-off or regulating valves to control flows in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.
Principle of operation: The valves are opened and closed by turning the disk by 90°. Opening is performed by turning the handle counterclockwise, closing - clockwise.

Installation dimensions and sizes of water butterfly valve Elephant WBV3131V-2W-Fb-H, body material - stainless steel AISI 304, disk material - stainless steel AISI 304, seal - viton, handle:

Diameter	A, mm	B, mm	C, mm	PCD, mm	ØD, mm	H, mm	Q°
DN50	72.5	130.5	43	125	19	220	45
DN65	77.5	146.5	46	145	19	220	45
DN80	92	156	46	160	19	220	22.5
DN100	109	168.5	52	180	19	260	22.5
DN125	127	190.5	56	210	19	260	22.5
DN150	141	213.5	56	240	23	260	22.5
DN200	166	246.5	60	295	23	370	15
DN250	203	283	68	355	28	370	15

Details and materials of water butterfly valve Elephant WBV3131V-2W-Fb-H, body material - stainless steel AISI 304, disk material - stainless steel AISI 304, seal - viton, handle:

№	Details	Material
1	Body	Stainless steel 304
2	Disk	Stainless steel 304
3	Seat seal	Viton
4	Stem	Stainless steel 416
5	Handle	Carbon steel

Specifications

Country of origin

China
Body material

stainless steel AISI 304
Maximum allowable temperature

200 °C
Connection type

compact flanged
Control type

handle
Nominal pressure

16 bar
Type of seal

viton
Disc material

stainless steel AISI 304

Reviews (0)

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Available Variants

SKU	Connection size	Pressure	Price	Availability	Max Temperature	Quantity
D050-23771	DN50	16 bar	€99,00	5 in stock	200 °C	Qty
D050-23772	DN65	16 bar	€118,00	5 in stock	200 °C	Qty
D050-23773	DN80	16 bar	€137,00	5 in stock	200 °C	Qty
D050-23774	DN100	16 bar	€203,00	5 in stock	200 °C	Qty
D050-23775	DN125	16 bar	€257,00	5 in stock	200 °C	Qty
D050-23776	DN150	16 bar	€318,00	5 in stock	200 °C	Qty
D050-23777	DN200	16 bar	€453,00	5 in stock	200 °C	Qty
D050-23778	DN250	16 bar	€719,00	5 in stock	200 °C	Qty
