Elephant | SKU: D050-24558

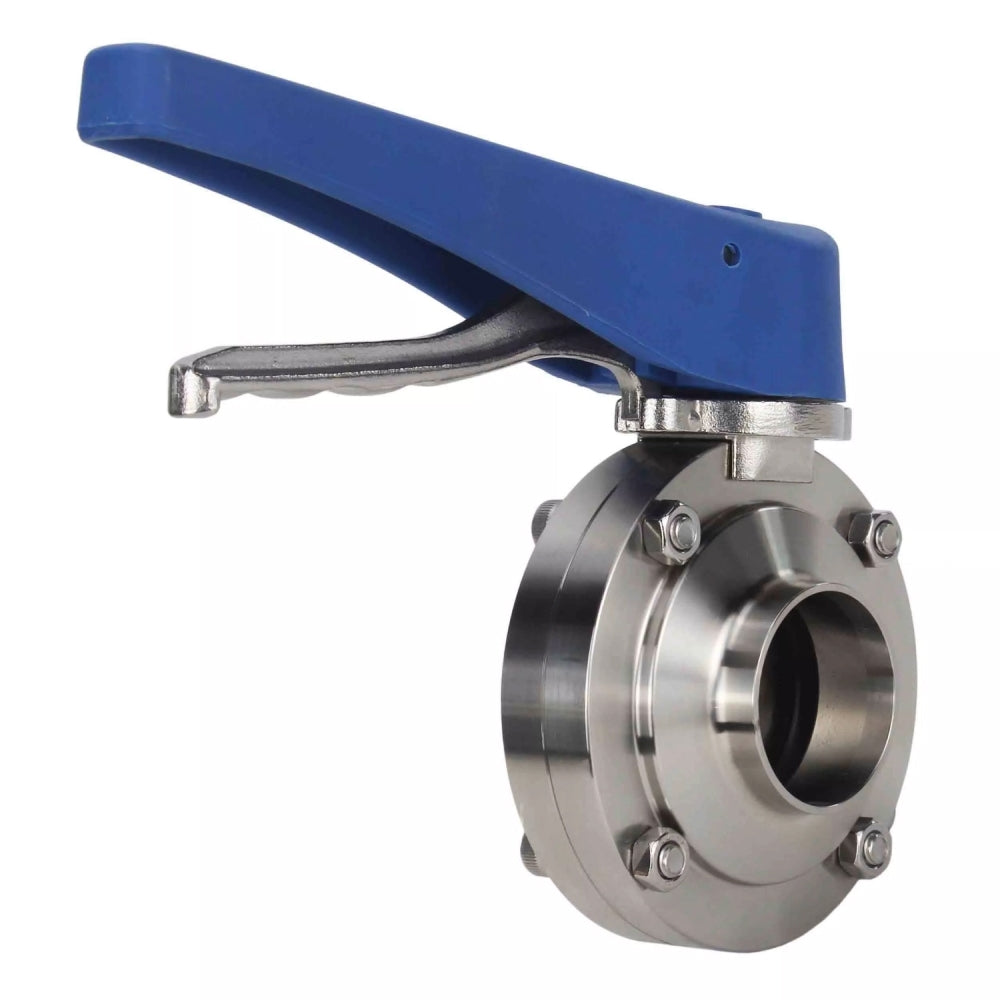

Water Butterfly Valve Elephant WBV3131E-2W-W-H, body material - stainless steel AISI 304, disk material - stainless steel AISI 304, seal - EPDM, handle

€54,00

Shipping calculated at checkout.

Connection size

Pressure

Product variants

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Butterfly valves are designed for use as shut-off or regulating valves to control flows in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.
Principle of operation: The valves are opened and closed by turning the disk by 90°. Opening is performed by turning the handle counterclockwise, closing - clockwise.

Overall and installation dimensions of water butterfly valve Elephant WBV3131E-2W-W-H, body material - stainless steel AISI 304, disk material - stainless steel AISI 304, seal - EPDM, handle:

Diameter	D, mm	t, mm	D1, mm	A, mm	H, mm	J, mm	K, mm
DN15	18	1.5	78	50	86	126	8х8
DN20	23	1.5	78	50	86	126	8х8
DN25	29	1.5	78	50	86	126	8х8
DN32	35	1.5	86	50	90	126	8х8
DN40	41	1.5	90	50	92	126	8х8
DN50	53	1.5	106	52	104	133	10х10
DN65	70	2.0	124	56	113	144	10х10
DN80	85	2.0	139	60	123.5	160	11х11
DN100	104	2.0	159	64	133.5	160	11х11

Materials of parts of water butterfly valve Elephant WBV3131E-2W-W-H, body material - stainless steel AISI 304, disk material - stainless steel AISI 304, seal - EPDM, handle:

№	Part name	Material
1	Body	Stainless steel 304
2	Rotary unit	Stainless steel 304
3	Disk	Stainless steel 304
4	Seat seal	EPDM
5	Nut	A2~70 steel
6	Bolt	A2~70 steel
7	Plug	ABS plastic

Specifications

Country of origin

China
Body material

stainless steel AISI 304
Maximum allowable temperature

135 °C
Connection type

welded
Control type

handle
Nominal pressure

10 bar
Type of seal

EPDM
Disc material

stainless steel AISI 304

Reviews (0)

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Available Variants

SKU	Connection size	Pressure	Price	Availability	Max Temperature	Quantity
D050-24558	DN15	10 bar	€54,00	5 in stock	135 °C	Qty
D050-24559	DN20	10 bar	€55,00	5 in stock	135 °C	Qty
D050-24560	DN25	10 bar	€55,00	5 in stock	135 °C	Qty
D050-24561	DN32	10 bar	€56,00	5 in stock	135 °C	Qty
D050-24562	DN40	10 bar	€59,00	5 in stock	135 °C	Qty
D050-24563	DN50	10 bar	€80,00	5 in stock	135 °C	Qty
D050-24564	DN65	10 bar	€100,00	5 in stock	135 °C	Qty
D050-24565	DN80	10 bar	€127,00	5 in stock	135 °C	Qty
D050-24566	DN100	10 bar	€158,00	5 in stock	135 °C	Qty
