Water Butterfly Valve Elephant WBV3131E-2W-Fb-H, body material - Stain
1 8
Elephant  |  SKU: D050-40355

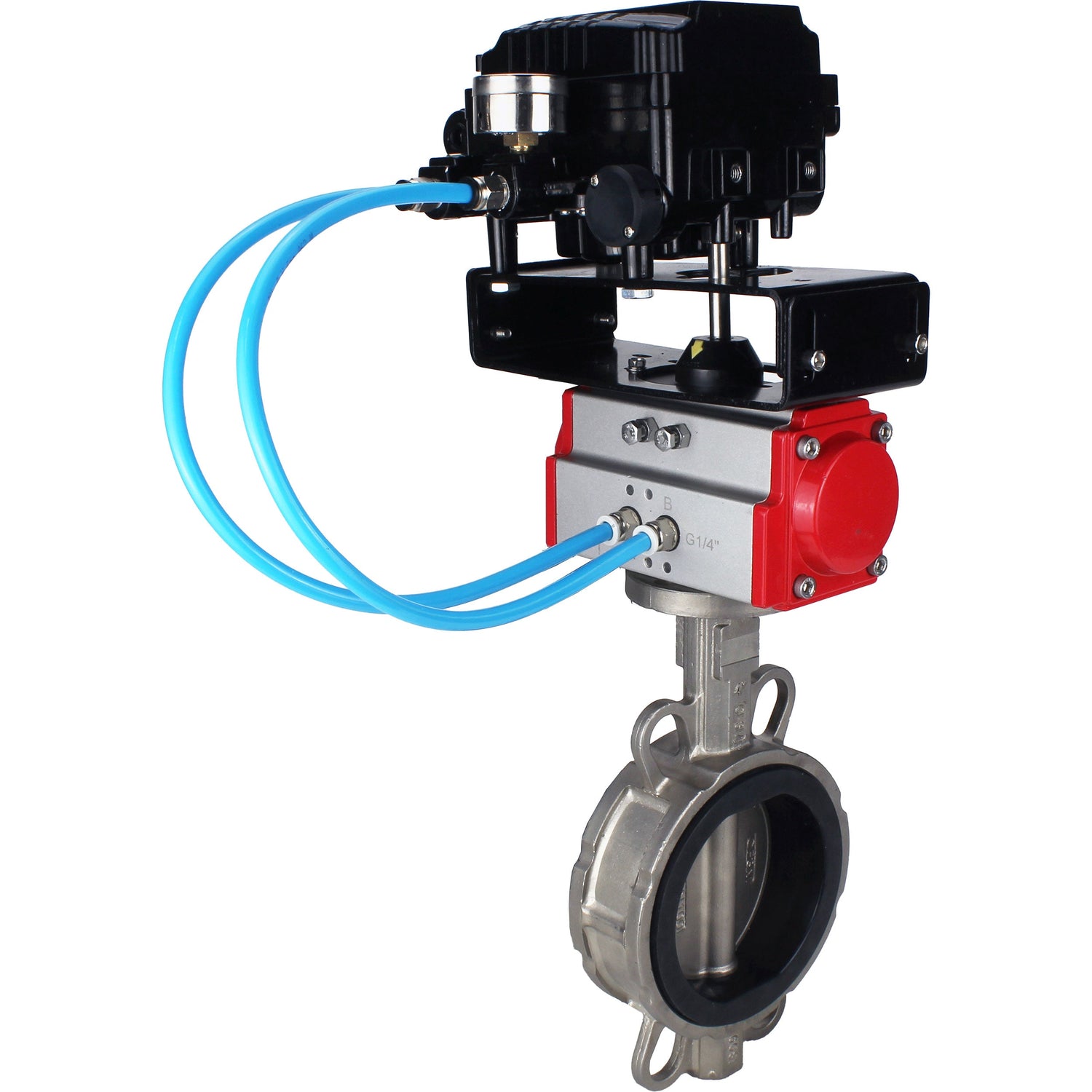

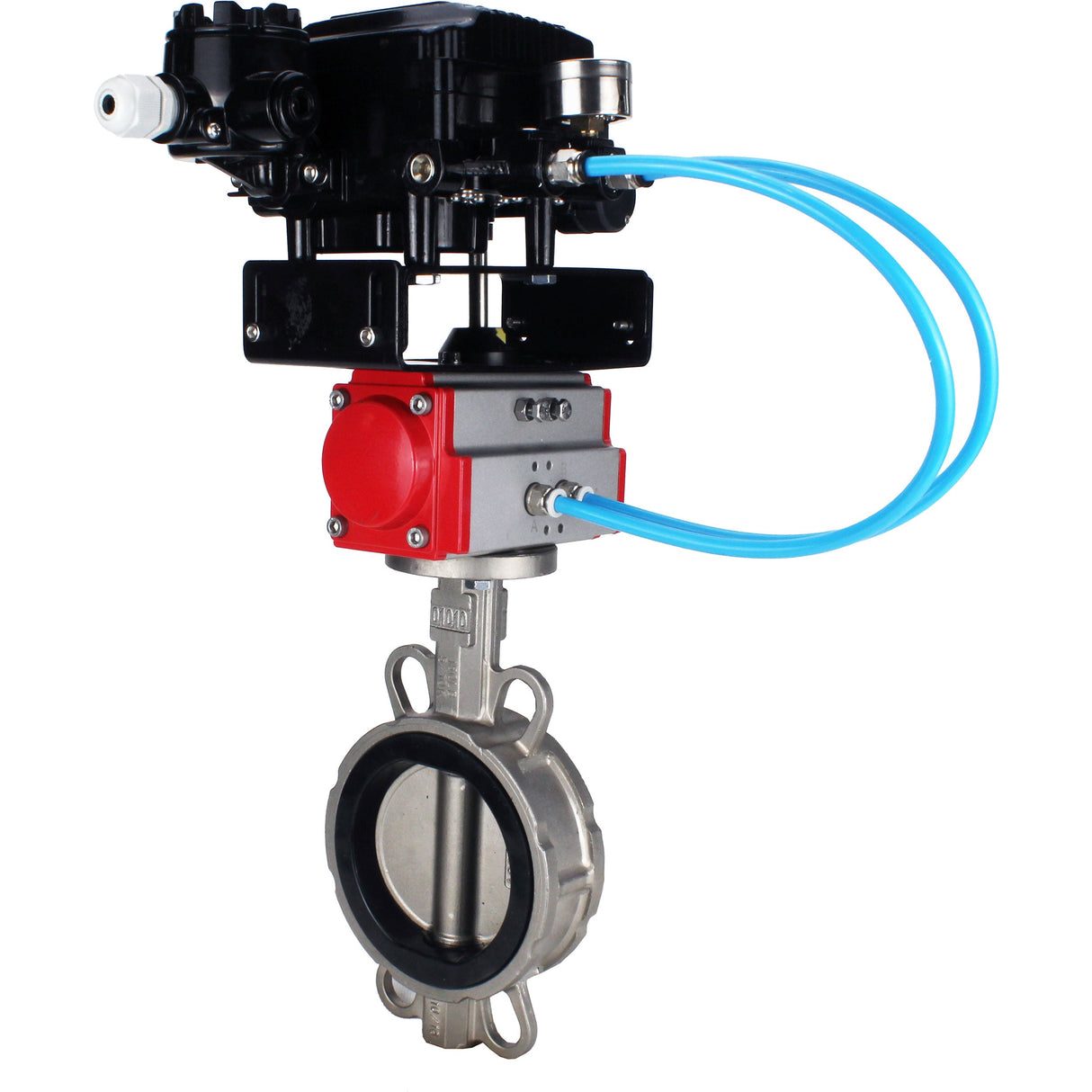

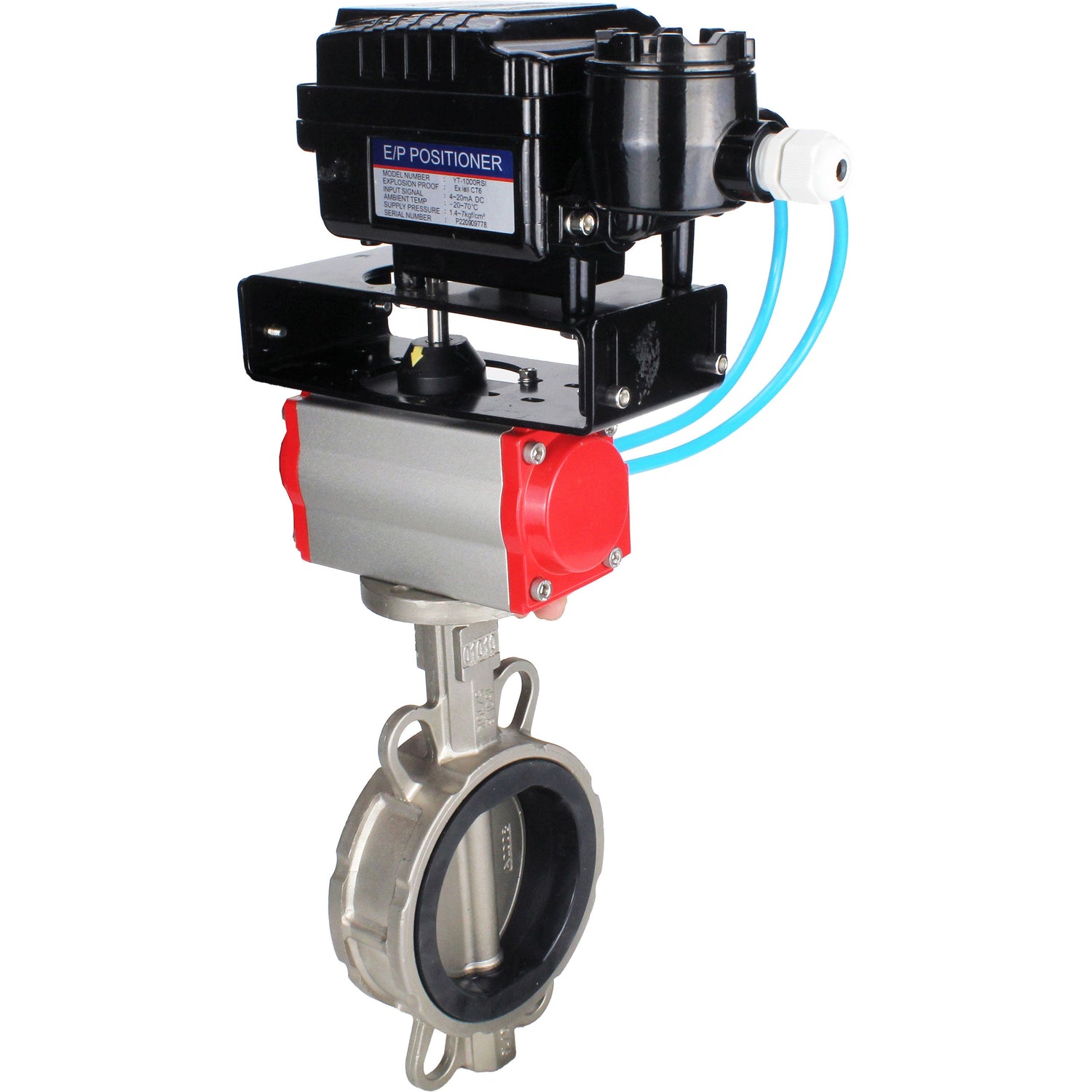

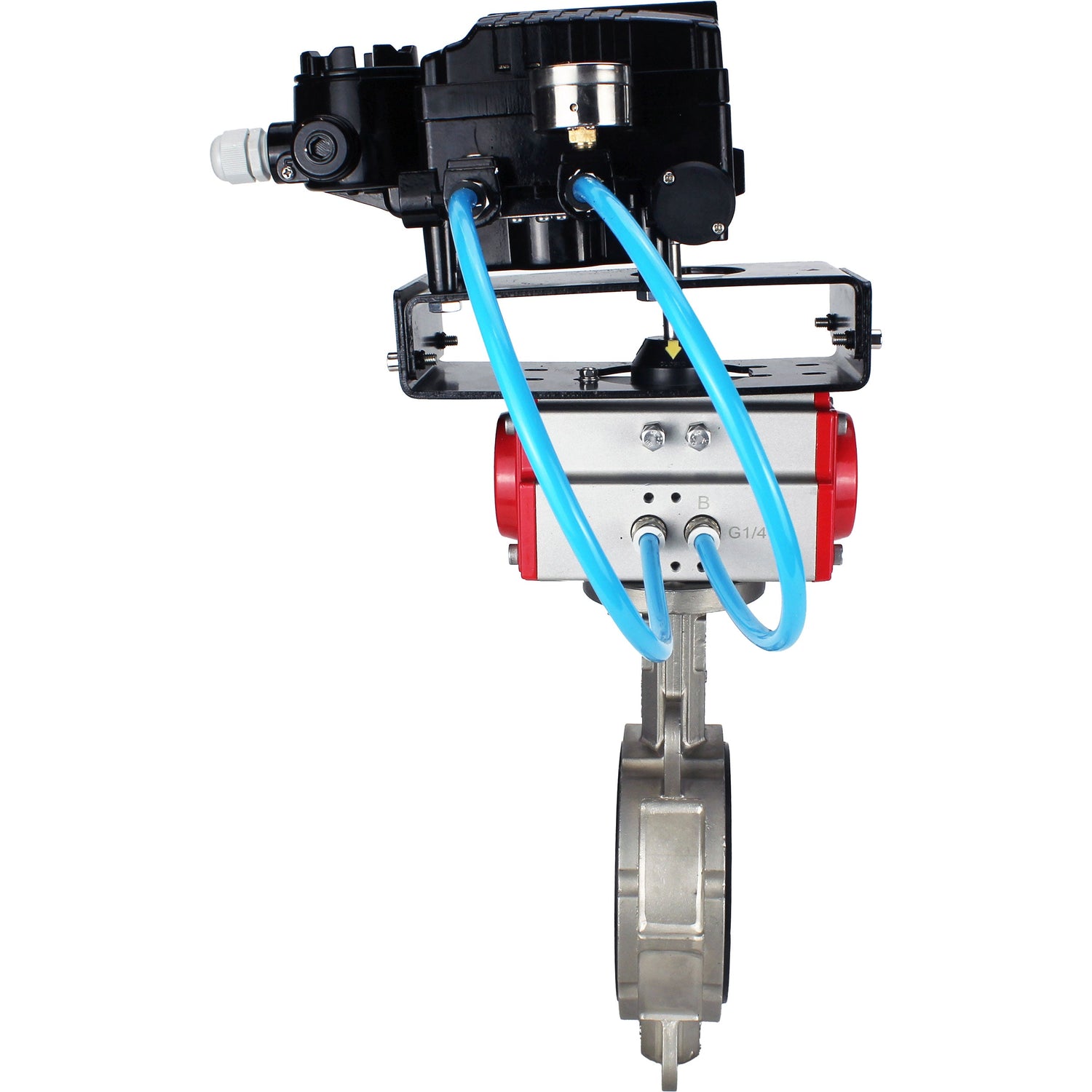

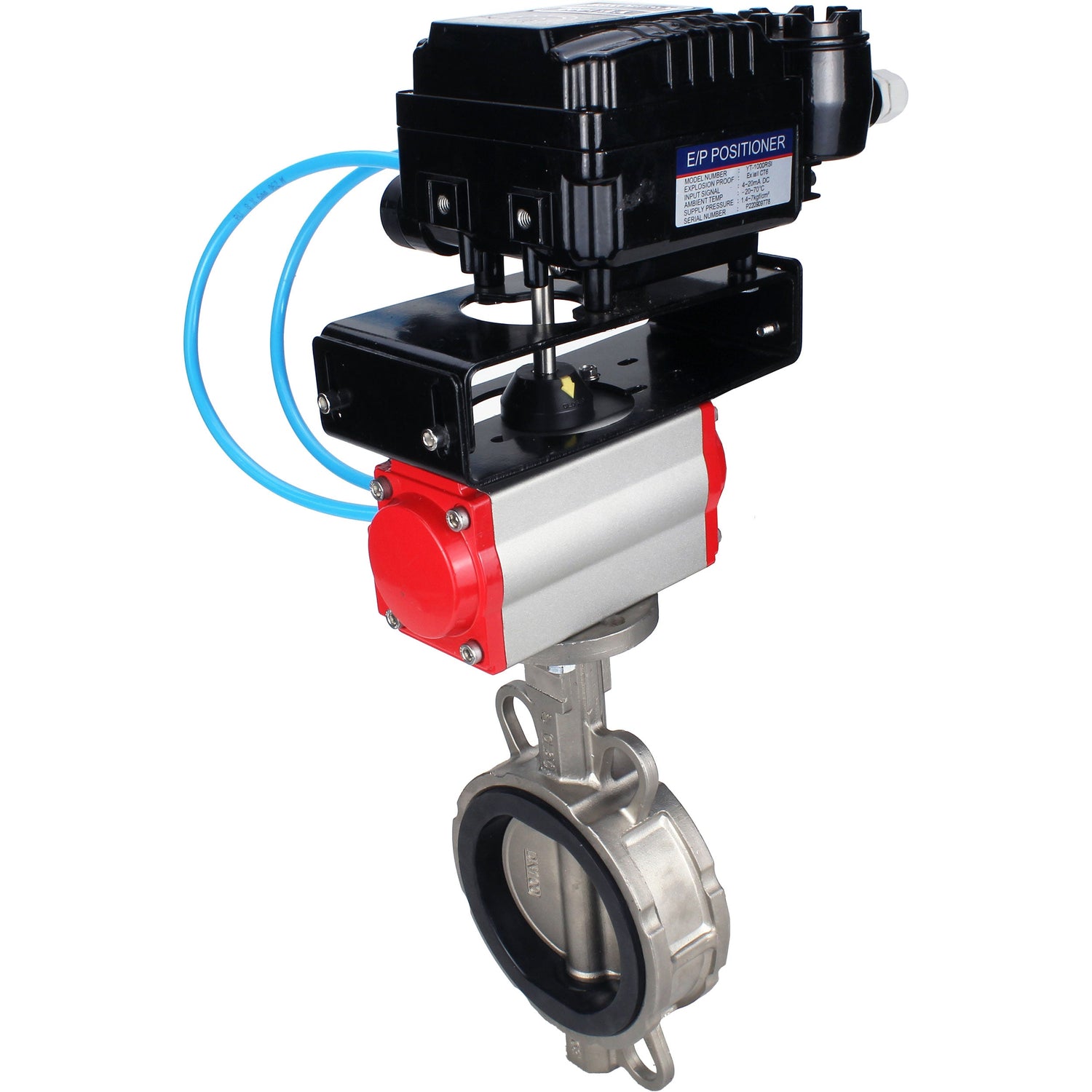

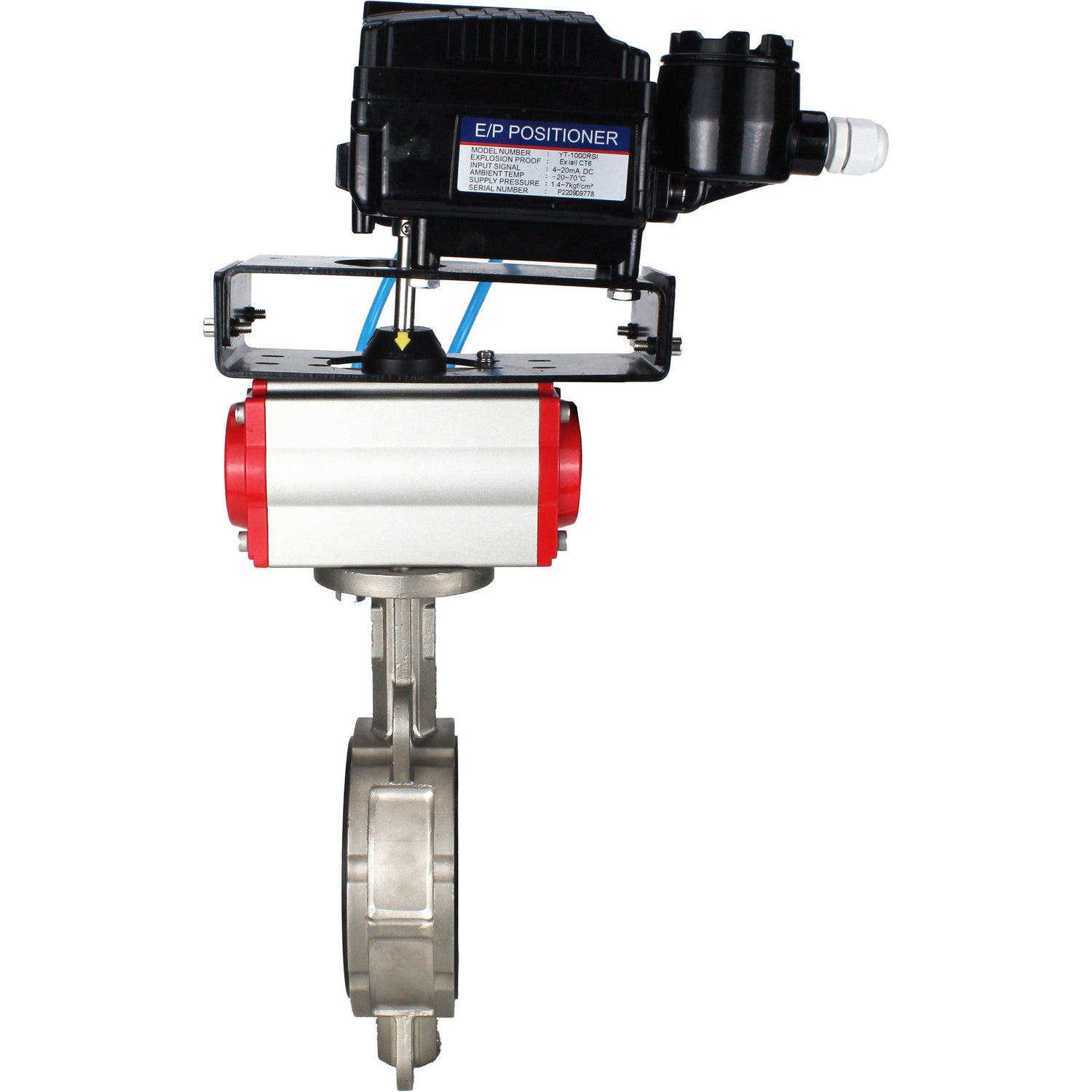

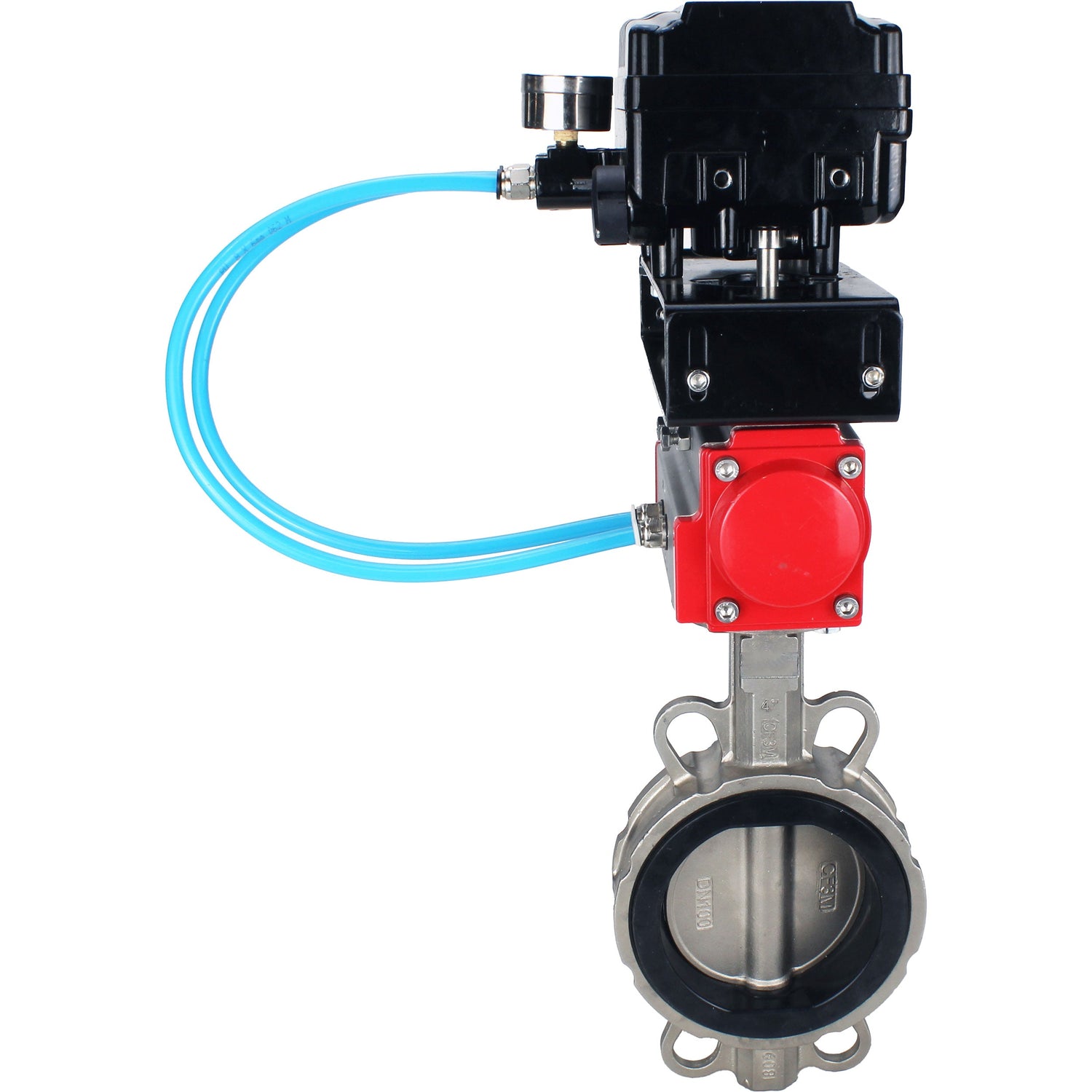

Water Butterfly Valve Elephant WBV3131E-2W-Fb-H, body material - Stainless steel AISI 304, disk material - Stainless steel AISI 304, seal - EPDM, pneumatic actuator PA-SA with return springs, positioner YT-1000RSN without feedback

€720,20
Tax included Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Butterfly valves are designed for use as shut-off or regulating valves for controlling flows in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.

Operating principle: The valves are opened and closed by turning the disk by 90°. Opening is performed by turning the handle counterclockwise, closing - clockwise.

PA-DA-XXX double-acting pneumatic rotary actuators and PA-SA-XXX pneumatic rotary actuators with return spring are designed for automation of industrial valve control process with maximum torque up to 2128 Nm.

The electropneumatic rotary positioner is used for controlling pneumatic rotary actuators by means of an electric controller or control system with analog DC output signal range from 4 to 20 mA.

Operating principle: The positioner functions based on the balancing of forces. The positioner uses a nozzle-flap type device and a feedback servomechanism (spring and lever system) to balance the control and feedback forces when the pneumatic actuator (valve) reaches the position corresponding to the control signal.





Technical parameters of Water Butterfly Valve Elephant WBV3131E-2W-Fb-H, body material - Stainless steel AISI 304, disk material - Stainless steel AISI 304, seal - EPDM, pneumatic actuator PA-SA with return springs, positioner YT-1000RSN without feedback:

Characteristic Meaning
Gate type rotary disk
Diameter 50-150 mm
Nominal pressure 16 bar
Working medium temperature -20 to +120°C
Application water supply, heat supply, chemical industry, oil and gas industry, food industry, pulp and paper industry
Connection type interflange
Control type pneumatic actuator
Sealing class A
Manufacturer's country China
Service life 10 years
Warranty 12 months.

Butterfly valves WBV3131E-2W-Fb-H, body material - Stainless steel AISI 304, disk material - Stainless steel AISI 304, seal - EPDM, pneumatic actuator PA-SA with return springs, positioner YT-1000RSN without feedback




Dimensions and dimensions of butterfly valves Elephant WBV3131E-2W-Fb-H, body material - Stainless steel AISI 304, disk material - Stainless steel AISI 304, seal - EPDM, pneumatic actuator PA-SA with return springs, positioner YT-1000RSN without feedback:

Diameter A, mm B, mm C, mm PCD, mm ØD, mm H, mm Q°
DN50 72.5 130.5 43 125 19 220 45
DN65 77.5 146.5 46 145 19 220 45
DN80 92 156 46 160 19 220 22.5
DN100 109 168.5 52 180 19 260 22.5
DN125 127 190.5 56 210 19 260 22.5
DN150 141 213.5 56 240 23 260 22.5
DN200 166 246.5 60 295 23 - 15
DN250 203 283 68 355 28 - 15

Water Butterfly Valve Elephant WBV3131E-2W-Fb-H, body material - Stainless steel AISI 304, disk material - Stainless steel AISI 304, seal - EPDM, pneumatic actuator PA-DA double action

Sketch Butterfly valves WBV3131E-2W-Fb-H, body material - Stainless steel AISI 304, disk material - Stainless steel AISI 304, seal - EPDM, pneumatic actuator PA-SA with return springs, positioner YT-1000RSN without feedback





Materials of butterfly valves Elephant WBV3131E-2W-Fb-H, body material - Stainless steel AISI 304, disk material - Stainless steel AISI 304, seal - EPDM, pneumatic actuator PA-SA with return springs, positioner YT-1000RSN without feedback:

№ Part name Material
1 Body stainless steel 304
2 Disk stainless steel 304
3 Seat seal EPDM
4 Stem stainless steel SS 416
5 Handle carbon steel

Water Butterfly Valve Elephant WBV3131E-2W-Fb-H, body material - Stainless steel AISI 304, disk material - Stainless steel AISI 304, seal - EPDM, pneumatic actuator PA-DA double action

Sketch of parts and materials Butterfly valves WBV3131E-2W-Fb-H, body material - Stainless steel AISI 304, disk material - Stainless steel AISI 304, seal - EPDM, pneumatic actuator PA-SA with return springs, positioner YT-1000RSN without feedback





Technical data of PA-SA pneumatic actuators

Design with return springs
Nominal pressure PN, bar 12
Working pressure, bar 2...8
Working medium Filtered compressed air or non-aggressive gases, oils
Maximum particle diameter less than 30 µm2
Operating temperature t, ⁰C - 20 to +80 - 40 to +80 (low temperature version) - 20 to +160 (in dry air)
Adjustment range ± 5 ° for rotation at 0 ° and 90 °
Manual override is
Position indicator open/closed
Operating environment indoors and outdoors. (All internal and external parts are anti-corrosion coated)





Materials of PA-SA pneumatic actuator parts:

№ Name Material
1 Enclosure extruded aluminum
2 Side plugs cast aluminum
3 Gear stainless steel
4 Piston steel/aluminum
5 Plugs stainless steel
6 Piston ring NBR
7 Springs spring steel
8 Piston bearing engineering plastic
9 Piston ring NBR
10 Plug NBR
11 Thrust ring engineering plastic
12 Ring engineering plastic
13 Washer stainless steel
14 Spring clip stainless steel
15 Indicator plastic
16 Indicator housing plastic
17 Bearing engineering plastic
18 Cam steel
19 Bearing NBR
20 Bearing engineering plastic
21 Bearing engineering plastic
22 Sealing ring NBR
23 Sealing ring NBR
24 Bearing stainless steel
25 Adjustment nut stainless steel
26 Adjustment screw stainless steel
27 Sleeve aluminum

Затворы дисковые поворотные DN.ru WBV0232E-2W-Fb Ду25-32 Ру16, корпус - алюминиевый сплав AL-316L, диск - нержавеющая сталь 316L, уплотнение - EPDM, с пневмоприводом PA-SA-083 с возвратными пружинами и блоком концевых выключателей APL-510N-EX

Material sketch of PA-SA pneumatic actuator





Technical parameters of electropneumatic rotary positioners:

Name Value
Control input signal, mA 4 ~ 20
Internal resistance, Ohm 250(±15)
Input pressure, bar 1,4~7
Lever travel angle 0~90°
Compressed air connection thread 1/4″
Pressure gauge connection thread 1/8″
Cable gland G1/2″
Protection type IP66
Compressed air flow rate, l/min 3
Output air flow rate, l/min 80
Housing material aluminum casting

Ball valves Elephant BV3232P-FP-Fb-ISO-H DN80-100 16 bar, full bore wafer, stainless steel SS316, seal - PTFE, with double-acting pneumatic actuator PA-DA-105-1 and with electro-pneumatic rotary positioner YT-1000RSN without return communications

Electropneumatic rotary positioners





Dimensions and dimensions of electropneumatic rotary positioners:

Positioner model YT-1000RSN
A, mm 224.3
B, mm 166.5
C, mm 117.5
D, mm 132.3
E, mm 6
F, mm 122
G, mm 45
H, mm 45
I, mm 23
J, mm 27
K, mm 32.5
L, mm 35.5
M, mm 91.8
N, mm 37.2
O, mm 43.5
P, mm 26.5
Q, mm 33
R, mm 80.25
S, mm 62.5
T, mm 8
U1, mm 70
U2, mm 93
V1, mm 40
V2, mm 63
W, mm 26
X, mm 32
Y, mm 9
Z, mm 24

Ball valves Elephant BV3232P-FP-Fb-ISO-H DN80-100 16 bar, full bore wafer, stainless steel SS316, seal - PTFE, with double-acting pneumatic actuator PA-DA-105-1 and with electro-pneumatic rotary positioner YT-1000RSN without return communications

Sketch of dimensions and dimensions of electropneumatic rotary positioners

Specifications
  • Country of origin
    China
  • Body material
    Stainless steel AISI 304
  • Maximum allowable temperature
    120 °C
  • Connection type
    compact flanged
  • Control type
    Pneumatic actuator
  • Operating environment
    Water, Air, Neutral Media
  • Applications
    Water Supply, Heating, Chemical Industry, Oil And Gas Industry, Food Industry, Pulp And Paper Industry
  • Nominal pressure
    16 bar
  • Type of seal
    EPDM
  • Disc material
    Stainless steel AISI 304
  • Manual override
    No
  • Limit switches
    No
  • Control signal
    4-20 mA
  • Type of pneumatic actuator
    with return springs

Reviews (0)

Documentation
nullElectropneumatic rotary positioner ELEPHANT YT-1000RSN with without feedback for pneumatic rotary actuators control signal 4-20 mA without explosion protection

Payment & Security

Payment methods

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    Available Variants

    SKUConnection sizePressurePrice AvailabilityQuantity Add to cart
    D050-40355DN10016 bar €720,20 Out of stock
    D050-40356DN12516 bar €857,82 Out of stock
    D050-40357DN15016 bar €1.161,64 Out of stock
    D050-40352DN5016 bar €539,00 Out of stock
    D050-40353DN6516 bar €612,19 Out of stock
    D050-40354DN8016 bar €622,65 Out of stock
