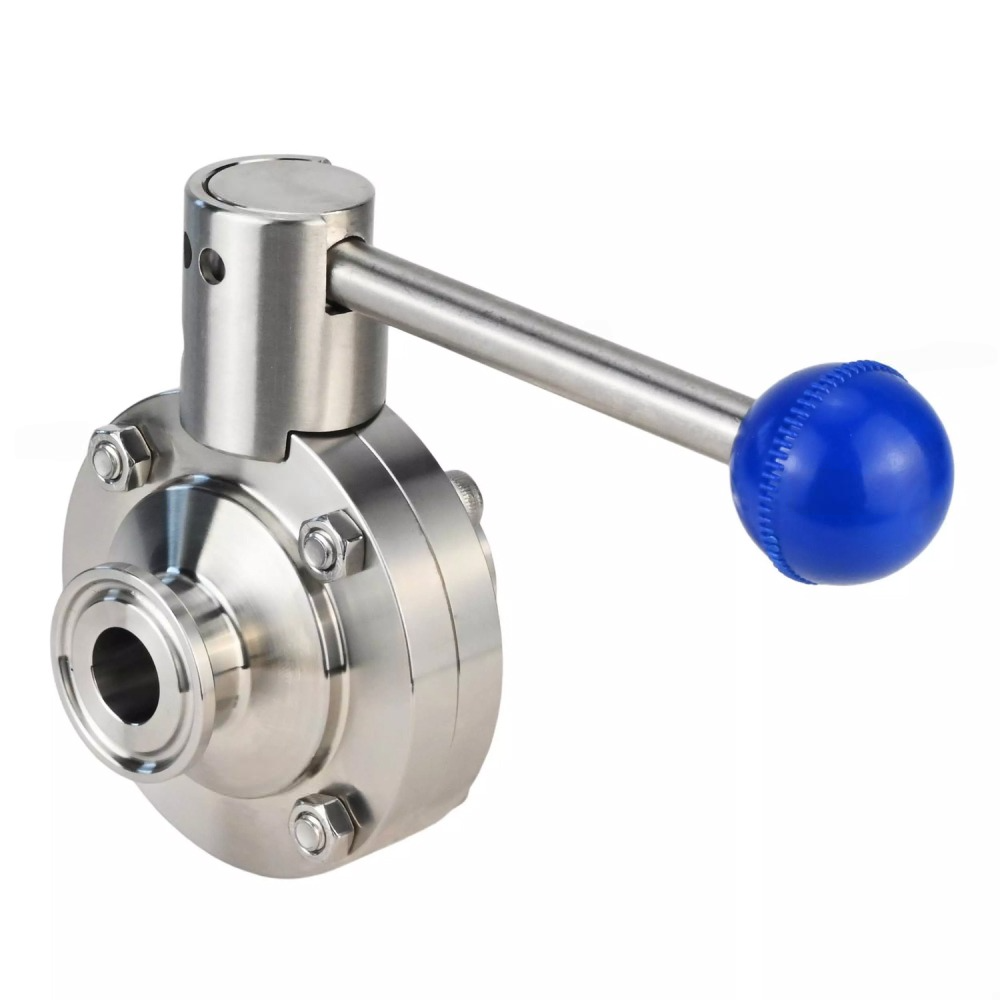

Water Butterfly Valve Elephant WBV3131E-2W-C-H, body material - stainless steel AISI 304, disk material - stainless steel AISI 304, seal - EPDM, handle
Water Butterfly Valve Elephant WBV3131E-2W-C-H, body material - stainless steel AISI 304, disk material - stainless steel AISI 304, seal - EPDM, handle - DN15 / 10 bar is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.
Water Butterfly Valve Elephant WBV3131E-2W-C-H, body material - sta...
Description
Description
Butterfly valves are designed for use as shut-off or regulating valves to control flows in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.
Principle of operation: The valves are opened and closed by turning the disk by 90°. Opening is performed by turning the handle counterclockwise, closing - clockwise.
Technical characteristics of water butterfly valve Elephant WBV3131E-2W-C-H, body material - stainless steel AISI 304, disk material - stainless steel AISI 304, seal - EPDM, handle:
| Characteristic | Value |
| Butterfly valve type | Disk |
| Diameter | 15-100 mm |
| Nominal pressure | 10 bar |
| Working medium temperature | -20 to +135°C |
| Application | Food industry |
| Connection type | Clamp |
| Control type | Manual (handle, gearbox) |
| Manufacturer country | China |
| Warranty | 12 months |
Overall and installation dimensions of water butterfly valve Elephant WBV3131E-2W-C-H, body material - stainless steel AISI 304, disk material - stainless steel AISI 304, seal - EPDM, handle:
| Diameter | D, mm | D1, mm | A, mm | H, mm | J, mm | K, mm |
| DN15 | 34 | 78 | 66 | 86 | 126 | 8х8 |
| DN20 | 34 | 78 | 66 | 86 | 126 | 8х8 |
| DN25 | 50.5 | 78 | 66 | 86 | 126 | 8х8 |
| DN32 | 50.5 | 86 | 66 | 90 | 126 | 8х8 |
| DN40 | 50.5 | 90 | 70 | 92 | 126 | 8х8 |
| DN50 | 64 | 106 | 76 | 104 | 133 | 10х10 |
| DN65 | 91 | 124 | 80 | 113 | 144 | 10х10 |
| DN80 | 106 | 139 | 84 | 123.5 | 160 | 10х10 |
| DN100 | 119 | 159 | 104 | 133.5 | 160 | 10х10 |
Materials of water butterfly valve Elephant WBV3131E-2W-C-H, body material - stainless steel AISI 304, disk material - stainless steel AISI 304, seal - EPDM, handle:
| № | Part name | Material |
| 1 | Body | Stainless steel 304 |
| 2 | Swivel unit | Stainless steel 304 |
| 3 | Disc | Stainless steel 304 |
| 4 | Seal | EPDM |
| 5 | Nut | steel |
| 6 | Bolt | steel |
| 7 | Plug | ABS plastic |
Specifications
Specifications
-
Country of origin
-
Body material
-
Maximum allowable temperature
-
Connection type
-
Control type
-
Nominal pressure
-
Type of seal
-
Disc material
Reviews (0)
Reviews (0)
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Available Variants
| SKU | Connection size | Pressure | Price | Availability | Max Temperature | Quantity | Add to cart |
|---|---|---|---|---|---|---|---|
| D050-24576 | DN15 | 10 bar | €66,00 | 5 in stock | 135 °C | ||
| D050-24577 | DN20 | 10 bar | €67,00 | 5 in stock | 135 °C | ||
| D050-24578 | DN25 | 10 bar | €67,00 | 5 in stock | 135 °C | ||
| D050-24579 | DN32 | 10 bar | €68,00 | 5 in stock | 135 °C | ||
| D050-24580 | DN40 | 10 bar | €73,00 | 5 in stock | 135 °C | ||
| D050-24581 | DN50 | 10 bar | €93,00 | 5 in stock | 135 °C | ||
| D050-24582 | DN65 | 10 bar | €167,00 | 5 in stock | 135 °C | ||
| D050-24583 | DN80 | 10 bar | €173,00 | 5 in stock | 135 °C | ||
| D050-24584 | DN100 | 10 bar | €181,00 | 5 in stock | 135 °C |
