Water Butterfly Valve Elephant WBV3131E-2W-C-H, body material - Stainl
1 9
Elephant  |  SKU: D050-60363

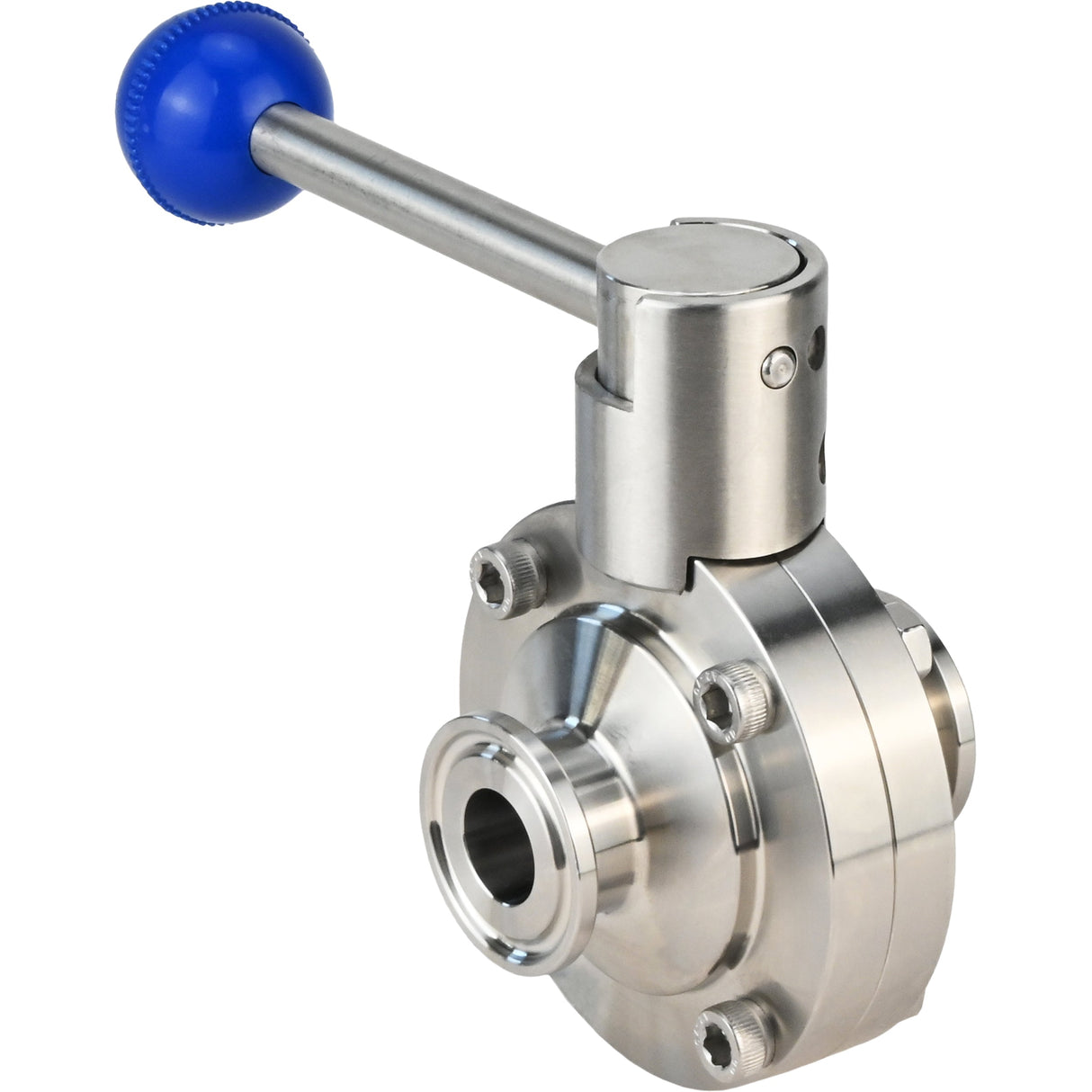

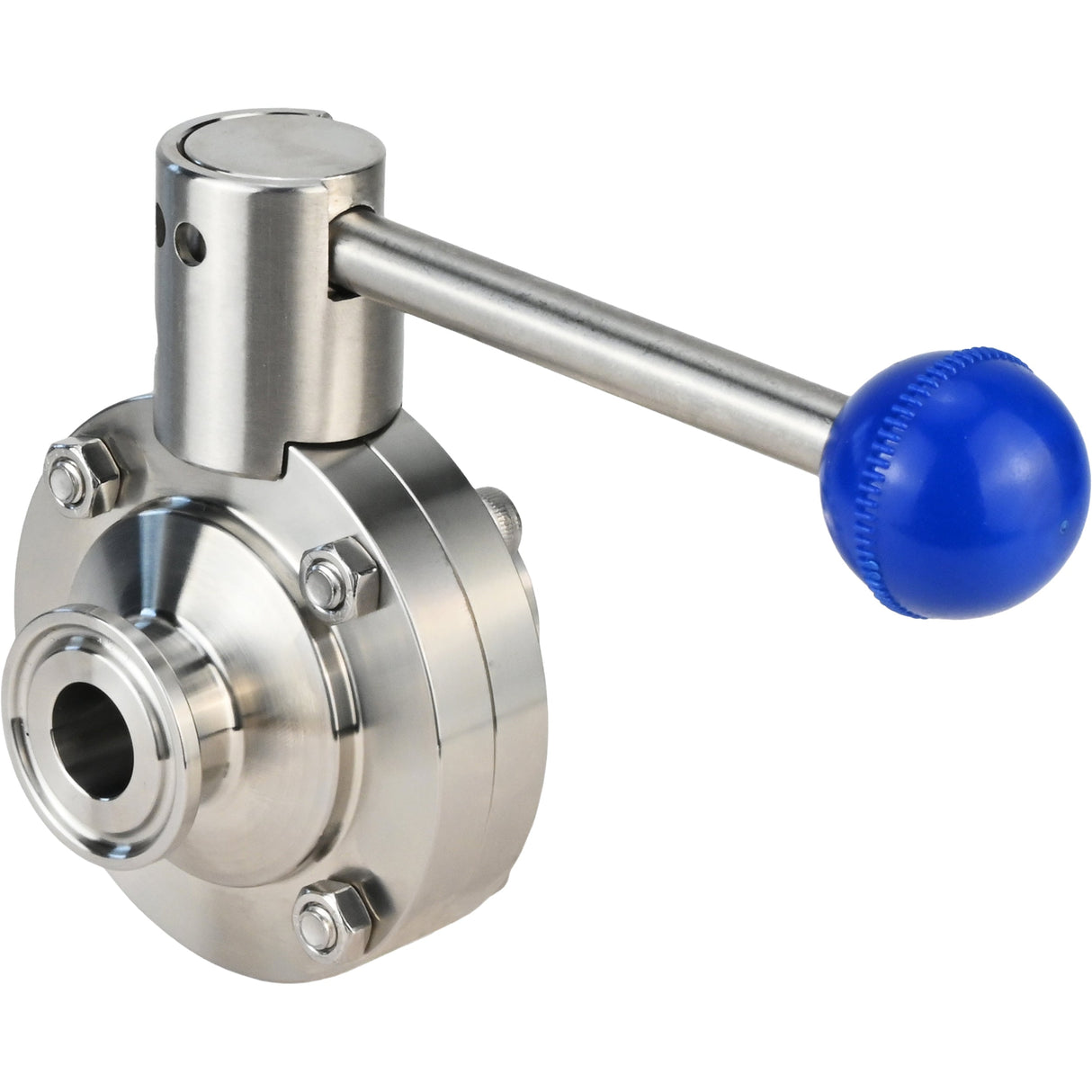

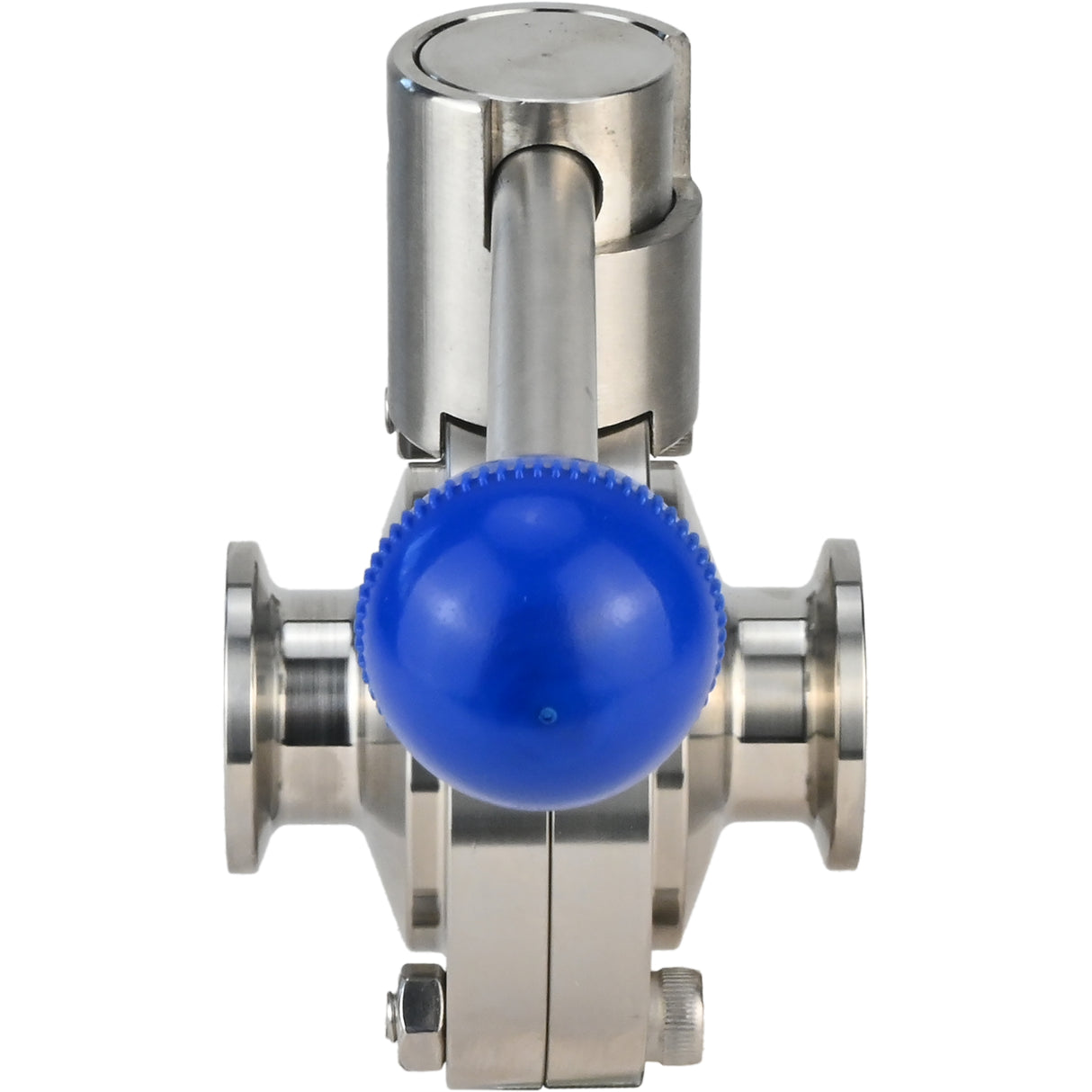

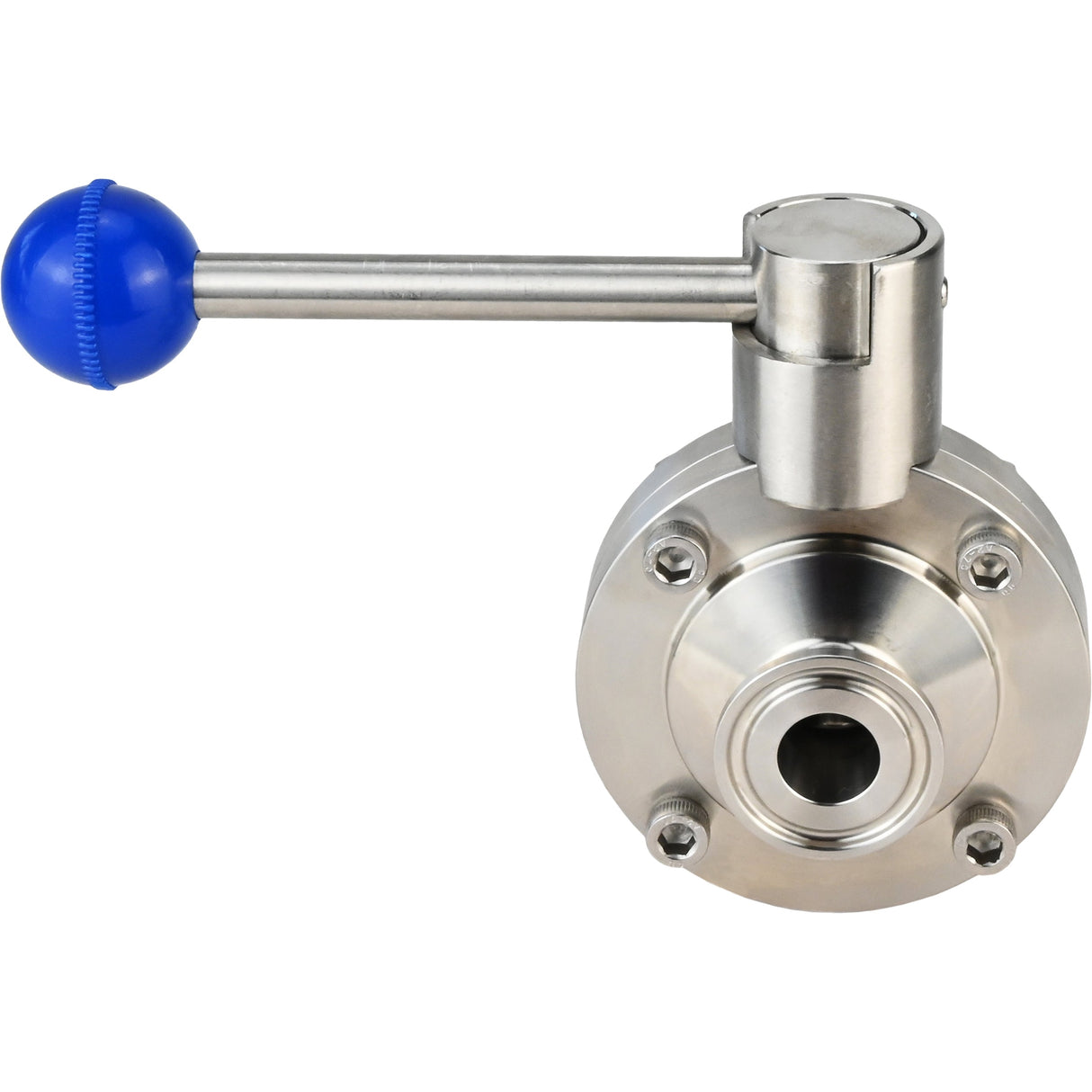

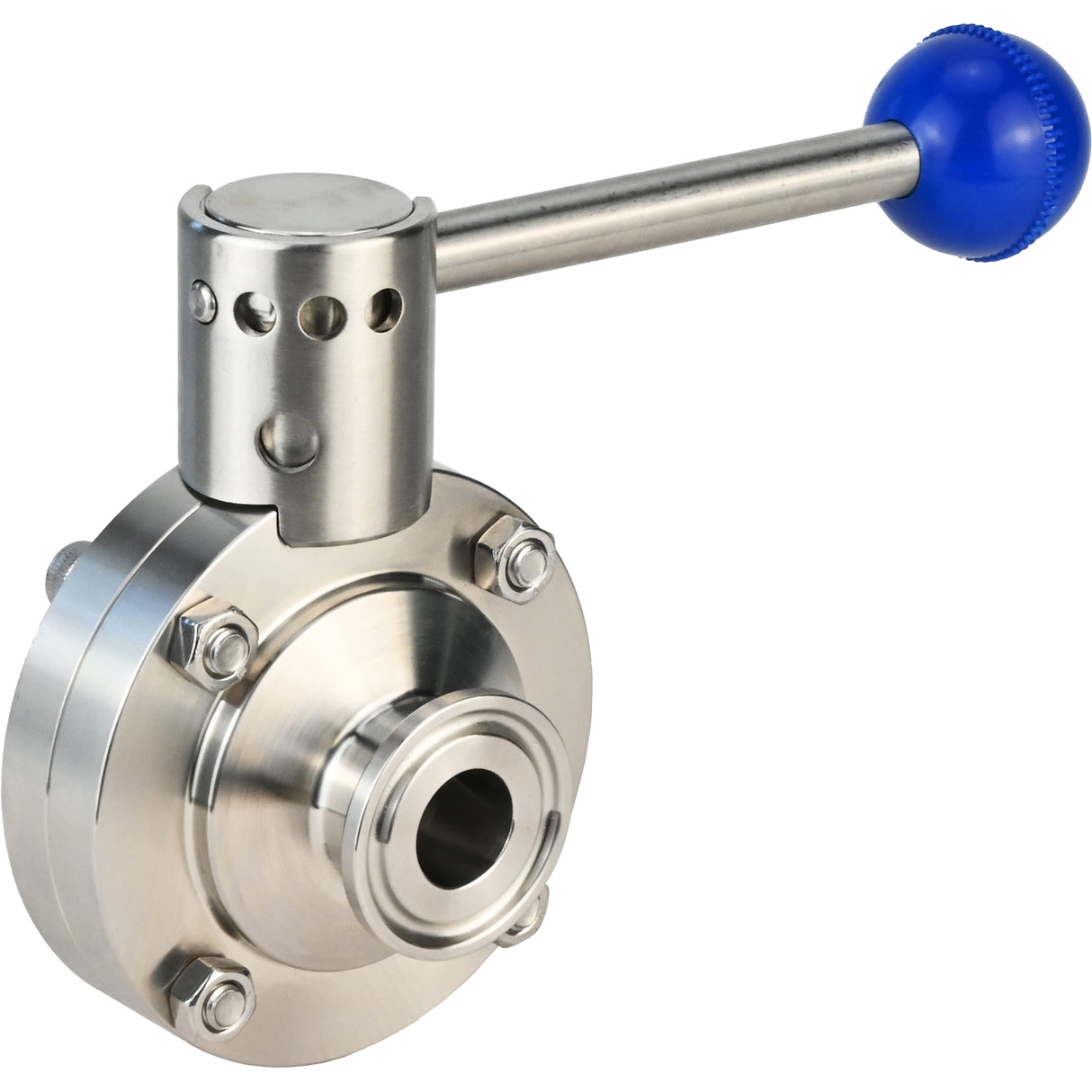

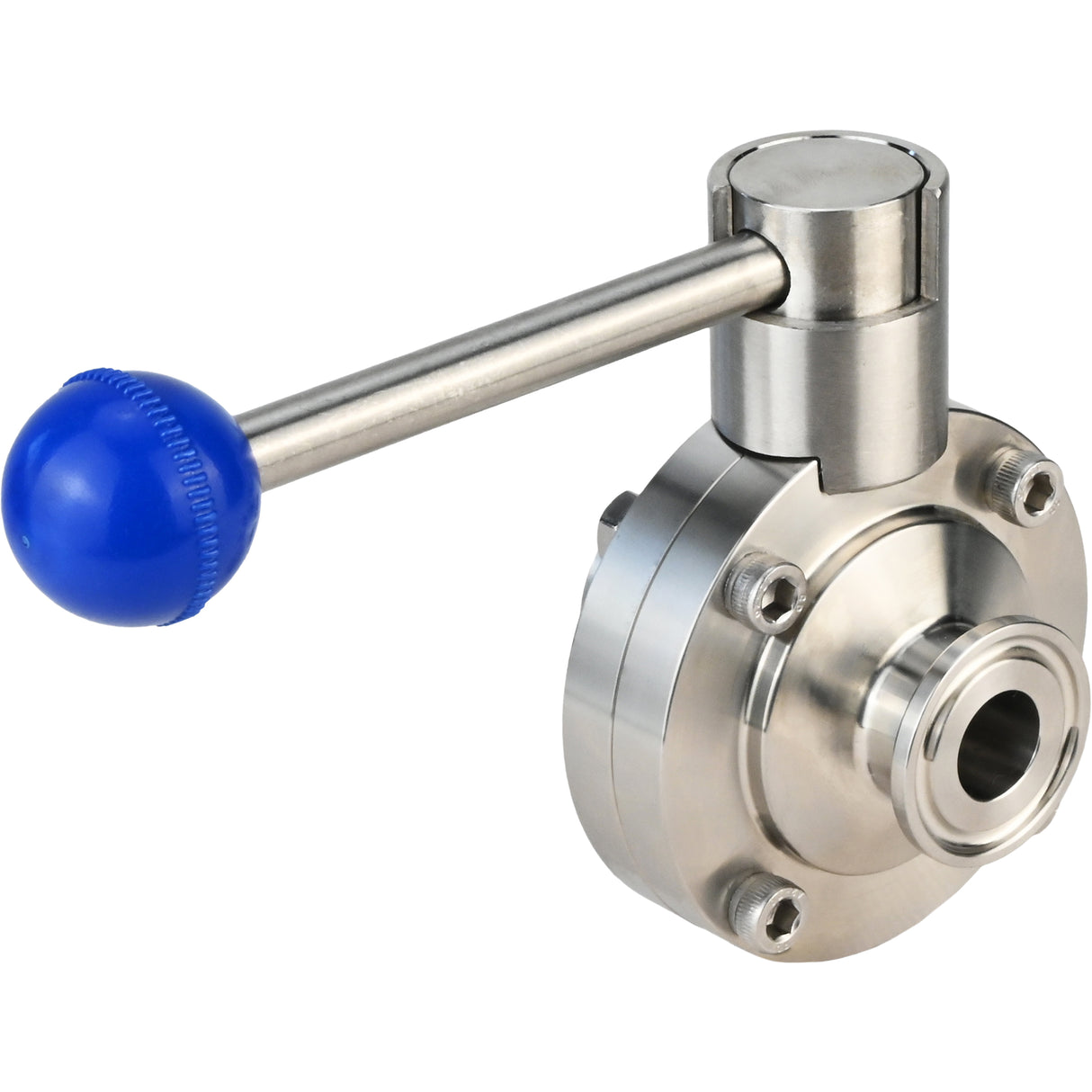

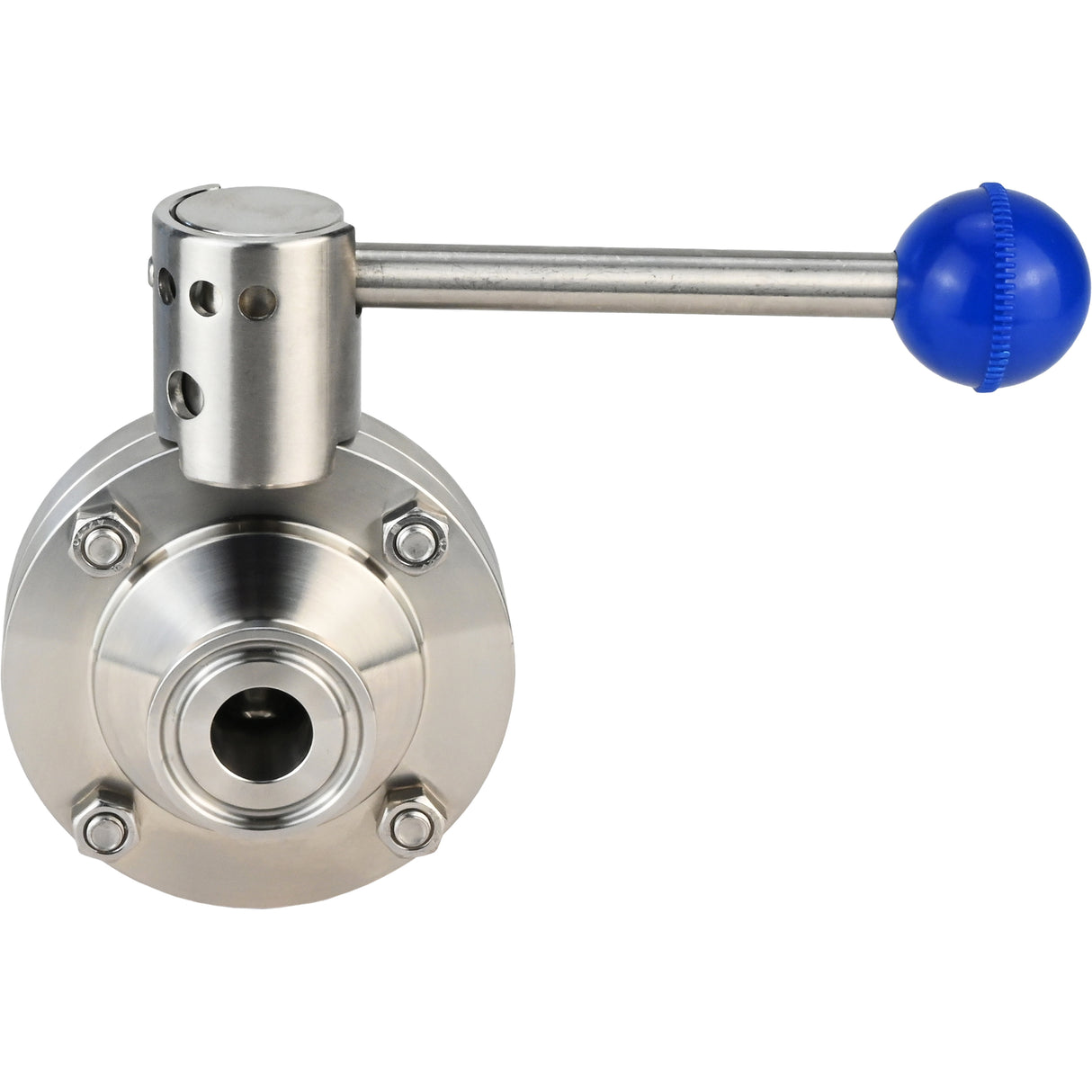

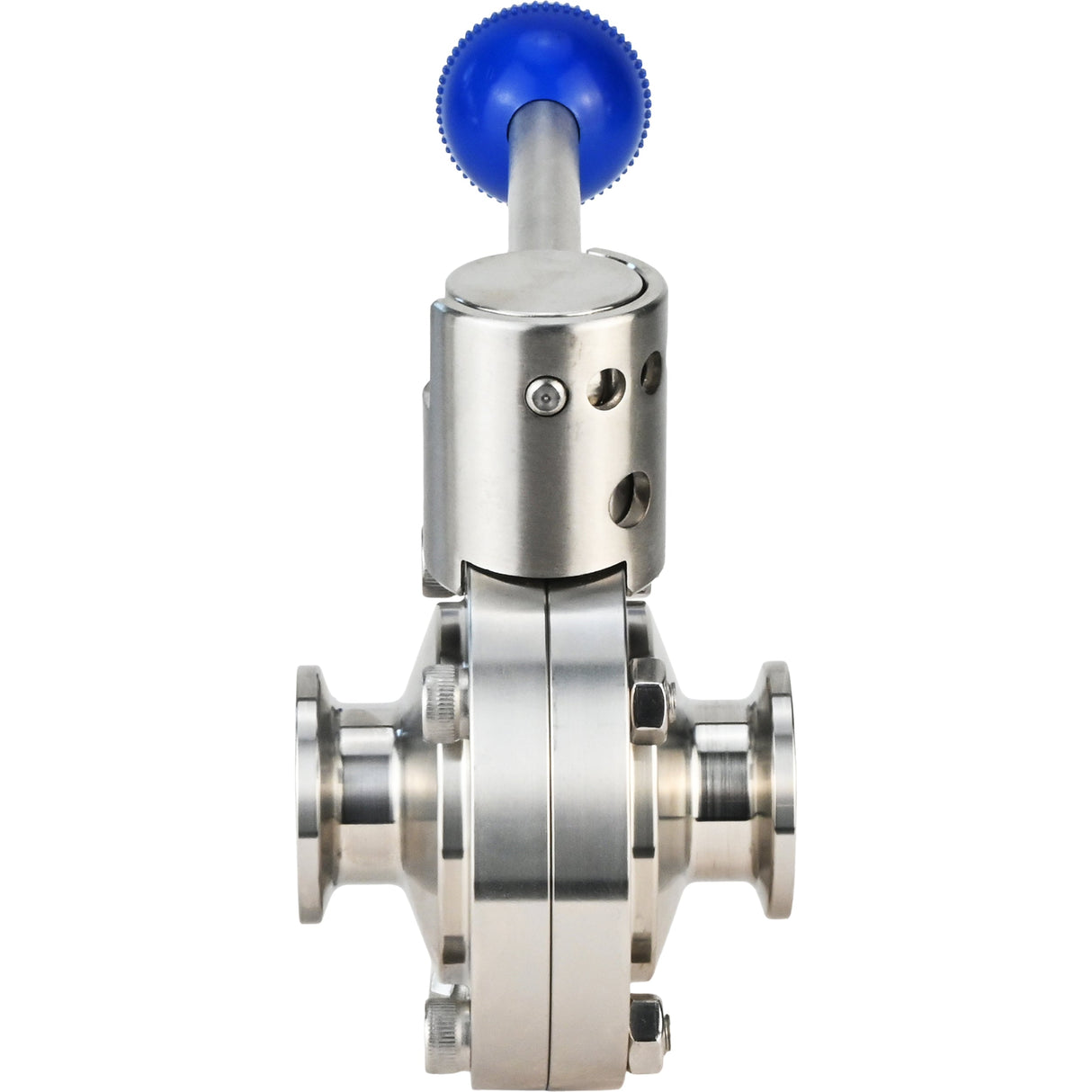

Water Butterfly Valve Elephant WBV3131E-2W-C-H, body material - Stainless steel AISI 304, disk material - Stainless steel AISI 304, seal - EPDM, connection - clamp, handle

€103,47
Tax included Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

The rotary disc valve is designed for use as a shut-off or control valve for flow control in heat supply systems, water supply systems, in technological processes in the food, chemical, oil and gas, pulp and paper and other industries. Operating principle: The valves open and close by turning the disc by 90°. Opening is done by turning the handle counterclockwise, closing - clockwise.





Technical characteristics of butterfly valves Elephant WBV3131E-2W-C-H, body material - Stainless steel AISI 304, disk material - Stainless steel AISI 304, seal - EPDM, connection - clamp, handle

Characteristic Meaning
Shutter type rotary disc
Diameter 15-100 mm
Nominal pressure 10 bar
Working environment temperature from -20 to +135°C
Application Food industry
Connection type for welding
Control type Manual (handle, gearbox)
Sealing class A
Guarantee 12 months





Sketch of dimensions of butterfly valves Elephant WBV3131E-2W-C-H, body material - Stainless steel AISI 304, disk material - Stainless steel AISI 304, seal - EPDM, connection - clamp, handle



Overall and installation dimensions of butterfly valves Elephant WBV3131E-2W-C-H, body material - Stainless steel AISI 304, disk material - Stainless steel AISI 304, seal - EPDM, connection - clamp, handle

Diameter D, mm D1, mm A, mm H, mm J, mm K, mm
DN15 34 78 66 86 126 8x8
DN20 34 78 66 86 126 8x8
DN25 50.5 78 66 86 126 8x8
DN32 50.5 86 66 90 126 8x8
DN40 50.5 90 70 92 126 8x8
DN50 64 106 76 104 133 10x10
DN65 91 124 80 113 144 10x10
DN80 106 139 84 123.5 160 10x10
DN100 119 159 104 133.5 160 10x10





Sketch of materials of butterfly valves Elephant WBV3131E-2W-C-H, body material - Stainless steel AISI 304, disk material - Stainless steel AISI 304, seal - EPDM, connection - clamp, handle



Materials of parts of butterfly valves Elephant WBV3131E-2W-C-H, body material - Stainless steel AISI 304, disk material - Stainless steel AISI 304, seal - EPDM, connection - clamp, handle

No. Part name Material
1 Frame stainless steel 304
2 Pivot knot stainless steel 304
3 Disk stainless steel 304
4 Saddle seal EPDM
5 screw steel A2~70
6 Bolt steel A2~70
7 Cork ABS plastic

Specifications
  • Country of origin
    China
  • Body material
    Stainless steel AISI 304
  • Maximum allowable temperature
    135 °C
  • Connection type
    Clamp
  • Control type
    Handle
  • Operating environment
    Water, Steam, Neutral Media
  • Applications
    Food Industry
  • Nominal pressure
    10 bar
  • Type of seal
    EPDM
  • Disc material
    Stainless steel AISI 304
  • Limit switches
    No
