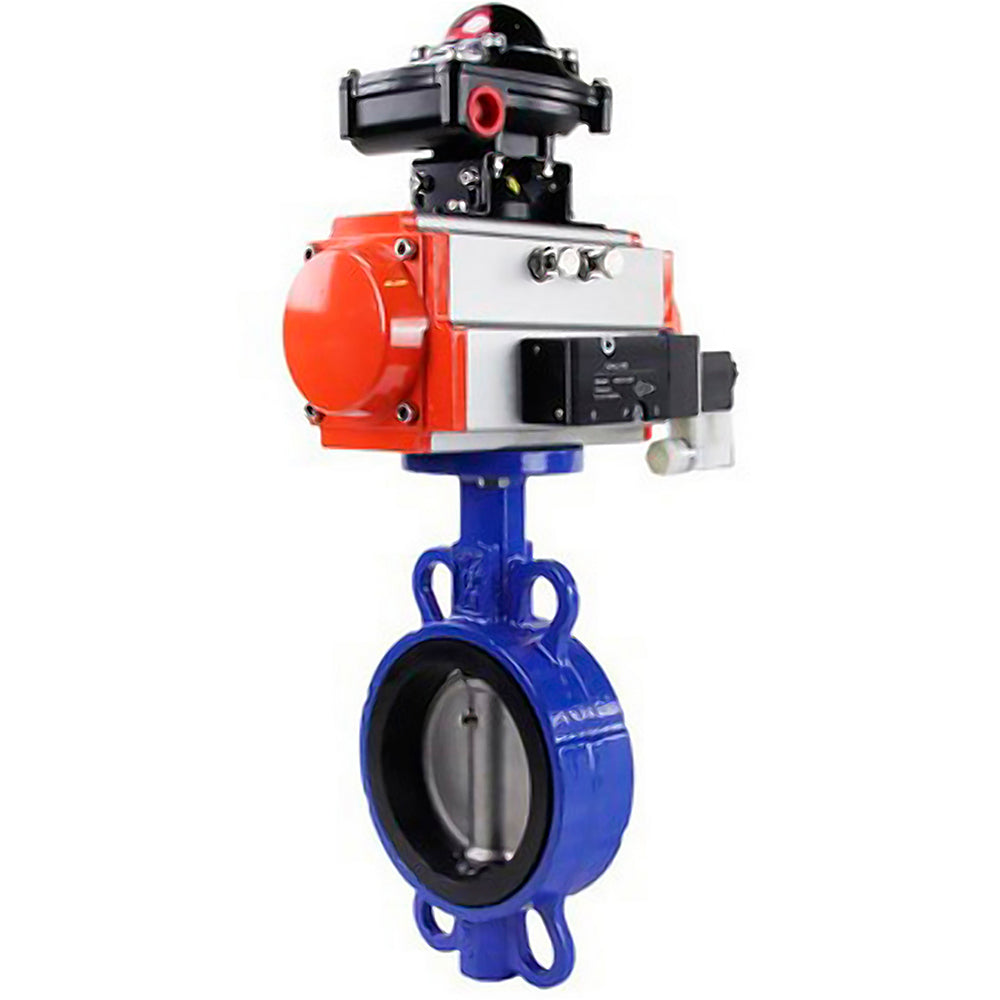

Water Butterfly Valve Elephant WBV1632E-2W-Fb-H, body material - cast iron QT450, disk material - stainless steel AISI 316L, seal - EPDM, pneumatic actuator PA-SA with return springs, 4V320-10 220V, LSU APL-210N
Water Butterfly Valve Elephant WBV1632E-2W-Fb-H, body material - cast iron QT450, disk material - stainless steel AISI 316L, seal - EPDM, pneumatic actuator PA-SA with return springs, 4V320-10 220V, LSU APL-210N - DN100 / 16 bar is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.
Description
Description
The WBV1632E-2W-Fb butterfly valve is designed for use as a shut-off or control valve to control flows in heat supply systems, water supply, in technological processes in the food, chemical, oil and gas, pulp and paper and other industries. Operating principle: The valves open and close by turning the disk by 90°. Opening is performed by turning the handle counterclockwise, closing - clockwise.
PA-SA pneumatic actuators are designed to automate the process of controlling industrial shut-off valves - valves, ball valves. Elephant pneumatic actuators are designed for use both indoors and outdoors. All internal and external parts have an anti-corrosion coating.
Pneumatic distributors 4V320-08 220V 220V are used for control in pneumatic systems with a NAMUR mating surface, for installing distributors through through holes in the body.
The APL-210N limit switch unit is designed for visual and electrical signaling of the end positions of the valve shut-off element. It is installed on top of the surface of the pneumatic drive and connected to the drive shaft - DIN standard. In a sealed box, as a rule, there are two sensors that track the position of the drive shaft and signal in extreme positions. Visual indication of the position can be observed on the body of the unit there is a 3D visual indicator RED - CLOSED and YELLOW - OPEN.
Technical characteristics of butterfly valves Elephant WBV1632E-2W-Fb-H, body material - cast iron QT450, disk material - stainless steel AISI 316L, seal - EPDM, pneumatic actuator PA-SA with return springs, 4V320-10 220V, APL-210N
Parameter | Meaning |
Nominal diameter DN, mm | 40 - 300 |
Nominal pressure PN, bar | 16 |
Temperature of working environment t, ⁰C | from -20 to +110 |
Working environment |
water, steam, aggressive environments and liquids with abrasive content (cement, sand, alumina, etc.) |
Direction of flow | bilateral |
Control type |
DN40-200 - handle DN250-300 - reducer |
Connection to the pipeline | interflange |
Body material | cast iron QT450 |
Seal material | EPDM with wear-resistant coating |
Service life, years | 10 |
Sketch of parts of rotary disc valves Elephant WBV1132N-2W-Fb DN40-300 PN16
General details and materials of butterfly valves Elephant WBV1132N-2W-Fb DN40-300 PN16
No. | Part name | Material |
1 | Frame | cast iron QT450 |
2 | Disk | Stainless steel 316L |
3 | Saddle seal |
EPDM + wear-resistant material (siliclone+graphite) |
4 | Stock | steel 2Cr13 |
Sketch of dimensions of butterfly valves Elephant WBV1132N-2W-Fb DN40-300 PN16
General weight and dimensions of the Elephant WBV1132N-2W-Fb butterfly valves DN40-300 PN16
DN | L | H | H1 | D2 | D1 | n.d. |
DN40 | 43 | 147 | 70 | 92 | 125 | 4- Ø23 |
DN50 | 43 | 147 | 70 | 92 | 125 | 4- Ø23 |
DN65 | 46 | 155 | 76 | 110 | 145 | 4- Ø23 |
DN80 | 46 | 164 | 92 | 121 | 160 | 8- Ø20 |
DN100 | 52 | 175 | 106 | 153 | 180 | 4- Ø23 |
DN125 | 56 | 194 | 119 | 176 | 210 | 4- Ø23 |
DN150 | 56 | 206 | 132 | 207 | 240 | 4- Ø25 |
DN200 | 60 | 237 | 162 | 259 | 295 | 4- Ø25 |
DN250 | 68 | 282 | 200 | 316 | 355 | 4-Ø28 |
DN300 | 78 | 311 | 225 | 370 | 410 | 4-Ø28 |
Sketch of pneumatic actuator parts Elephant PA-SA
General parts and materials of pneumatic actuators Elephant PA-SA
No. | Detail | Quantity | Material |
1 | Frame | 1 | extruded aluminum |
2 | Side plugs | 2 | cast aluminum |
3 | Gear | 1 | stainless steel |
4 | Piston | 2 | steel/aluminum |
5 | Plugs | 8 | stainless steel |
6 | Piston ring | 2 | NBR |
7 | Springs | 0-12 | spring steel |
8 | Piston bearing | 2 | engineering plastic |
9 | Piston ring | 2 | NBR |
10 | Plug | 2 | NBR |
11 | Thrust ring | 2 | engineering plastic |
12 | Ring | 1 | engineering plastic |
13 | Washer | 1 | stainless steel |
14 | Spring clamp | 2 | stainless steel |
15 | Indicator | 1 | plastic |
16 | Indicator housing | 1 | plastic |
17 | Bearing | 1 | engineering plastic |
18 | Cam | 1 | steel |
19 | Bearing | 1 | NBR |
20 | Bearing | 1 | engineering plastic |
21 | Bearing | 1 | engineering plastic |
22 | Sealing ring | 2 | NBR |
23 | Sealing ring | 2 | NBR |
24 | Bearing | 2 | stainless steel |
25 | Adjusting nut | 2 | stainless steel |
26 | Adjustment screw | 2 | stainless steel |
27 | Sleeve | 2 | aluminum |
Sketch of dimensions of pneumatic actuators Elephant PA-SA
General weight and dimensions parameters of pneumatic actuators Elephant PA-SA
Model | A, mm | B, mm | C, mm | G, mm | d1 | d2 | J | TO | Mmm | N, mm | Weight, kg |
Elephant PA-SA-052 | 153 | 71 | 98 | 15 | F03 | F05 | 4-M5x8 | 4-M6x10 | 80 | 30 | 1.3 |
Elephant PA-SA-065 | 174 | 82 | 115 | 15 | F05 | F07 | 4-M6x10 | 4-M8x12 | 80 | 30 | 2.1 |
Elephant PA-SA-083 | 216 | 101 | 135 | 15 | F05 | F07 | 4-M6x10 | 4-M8x12 | 80 | 30 | 3.7 |
Elephant PA-SA-105 | 279 | 119 | 160 | 25 | F07 | F10 | 4-M8x12 | 4-M10x16 | 80 | 30 | 7.1 |
Elephant PA-SA-130 | 308 | 137.5 | 193 | 25 | F07 | F10 | 4-M8x12 | 4-M10x16 | 80 | 30 | 10.9 |
Elephant PA-SA-140 | 405 | 153 | 210 | 30 | F10 | F12 | 4-M10x16 | 4-M12x20 | 130 | 30 | 15.7 |
Elephant PA-SA-160 | 465 | 175 | 237 | 30 | F10 | F12 | 4-M10x16 | 4-M12x20 | 130 | 30 | 23.6 |
Elephant PA-SA-210 | 542 | 226 | 295 | 40 | / | F14 | / | 4-M12x20 | 130 | 30 | 46.6 |
Elephant PA-SA-270 | 722 | 292 | 371 | 52 | / | F16 | / | 4-M20x24 | 130 | 30 | 98.3 |
Elephant PA-SA-300 | 825 | 335 | 392 | 52 | / | F16 | / | 4-M20x24 | 130 | 30 | 143 |
Elephant PA-SA-350 | 866 | 385 | 448 | 52 | / | F16 | / | 4-M20x24 | 130 | 30 | 188 |
Technical characteristics of the pneumatic distributor 4V320-08 220V 220V
Name | Meaning |
Type of pneumatic distributor | spool valve |
Body material | aluminum alloy and technopolymer |
Control | two-way electromagnetic |
Scheme of work |
5/2 5 working lines; 2 positions |
Effective cross-sectional area, mm2 |
model 4V320-8 – 25 (Cv = 1.4) model 4V320-10 – 30 (Cv = 1.68) |
Thread of working ports |
model 4V320-8 – G 1/4" model 4V320-10 – G 3/8" |
Exhaust port thread |
model 4V320-8 – G 1/4" model 4V320-10 – G 1/4" |
Working pressure, bar | 1.5 ÷ 8 |
Maximum pressure, bar | 12 |
Working environment |
purified air (filtration fineness 40 microns) |
Supply voltage, V | 220 |
Full power, V A | 4.5 |
Permissible changes in supply voltage |
±10% |
Degree of protection/insulation class | IP65/F |
Operating temperature, °C | from -5 to +50 |
Maximum response frequency | 5 cycles per second |
Minimum switching time, s | 0.05 |
Flow rate, l/min |
model 4V320-8 – 1,350 model 4V320-10 – 2,250 |
Average resource, cycles | 20,000,000 |
Weight, kg | 1,2 |
Limit Switch Block Elephant APL-210N
Characteristics of the limit switch unit Elephant APL-210N
Parameter | Meaning |
Protection | All-weather IP65 |
Ambient temperature |
From -40°C to +80°C |
Cable entry thread | 2 x NPT1/2” |
Terminal block | 8 cells 0.08-2.6mm² |
Voltage |
12V, 24V, 38V, 48V, 110V, 220V, 250V |
Indicator position | CLOSED: red OPEN: green |
Sensor |
2 SPDT Electromechanical Microswitches OMRON V151-1C25 |
External coating |
Polyester coating (black) |
Shaft | Standard shaft (17mm) |
Specifications
Specifications
-
Country of origin
-
Body material
-
Maximum allowable temperature
-
Connection type
-
Control type
-
Operating environmentWater, Steam, Aggressive Media, Abrasive Media
-
ApplicationsWater Supply, Heating, Chemical Industry, Oil And Gas Industry, Food Industry
-
Nominal pressure
-
Type of seal
-
Disc material
-
Explosion-proof
-
Manual override
-
Limit switches
-
Supply voltage
-
Type of pneumatic actuator
-
Angle of rotation
