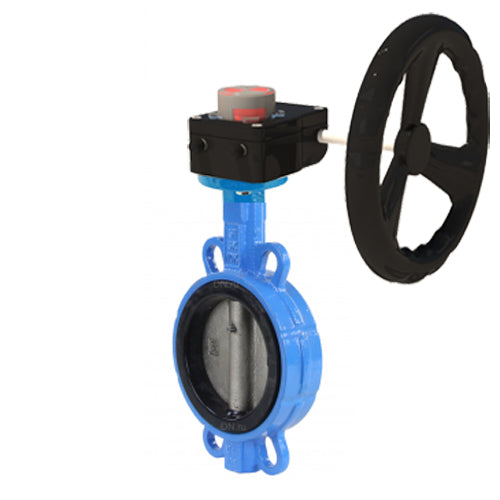

Water Butterfly Valve Elephant WBV1632E-2W-Fb-H, body material - cast
Elephant  |  SKU: D050-53242

Water Butterfly Valve Elephant WBV1632E-2W-Fb-H, body material - cast iron QT450, disk material - stainless steel AISI 316L, seal - EPDM, gearbox HGB RQN

€244,99
Tax included Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

The butterfly valve is designed for use as a shut-off or control valve to control flows in heat supply systems, water supply systems, in technological processes in the food, chemical, oil and gas, pulp and paper and other industries.
Operating principle: The valves open and close by turning the disk by 90°. Opening is done by turning the handle counterclockwise, closing - clockwise.
The Elephant HGB reducer allows you to manually set the required positioning of the shut-off element by a quarter turn, acting as an alternative to pneumatic, electric or hydraulic quarter-turn drives.





Butterfly valves for abrasive media Elephant WBV1632E-2W-Fb DN40-300 PN16 body - cast iron QT450, disc - stainless steel 316L, seal - EPDM, with gearbox Elephant HGB RQN



Technical characteristics of butterfly valves for abrasive media Elephant WBV1632E-2W-Fb DN40-300 PN16 body - cast iron QT450, disc - stainless steel 316L, EPDM:

Characteristic Meaning
Shutter type rotary disc
Diameter 40-300 mm
Nominal pressure 16 bar
Working environment temperature from -20 to +110°C
Application water supply, heat supply, chemical industry, oil and gas industry, food industry
Connection type interflange
Control type Manual (handle, gearbox)
Sealing class A
Service life 10 years
Guarantee 12 months





Reducers Elephant HGB RQN



Technical characteristics of Elephant HGB RQN gearboxes:

Characteristic Meaning
Working environment temperature from -30 to +120 °C
Application water supply, heat supply, chemical industry, oil and gas industry, food industry
Connection type ISO 5211





Sketch of dimensions of butterfly valves for abrasive media Elephant WBV1632E-2W-Fb DN40-300 PN16 body - cast iron QT450, disk - stainless steel 316L, EPDM



Overall and installation dimensions of butterfly valves for abrasive media Elephant WBV1632E-2W-Fb DN40-300 PN16 body - cast iron QT450, disc - stainless steel 316L, EPDM:

Diameter L, mm H, mm H1, mm D2, mm D1, mm nd, mm
DN40 43 147 70 92 125 4-23
DN50 43 147 70 92 125 4-23
DN65 46 155 76 110 145 4-23
DN80 46 164 92 121 160 8-20
DN100 52 175 106 153 180 4-23
DN125 56 194 119 176 210 4-23
DN150 56 206 132 207 240 4-25
DN200 60 237 162 259 295 4-25
DN250 68 282 200 316 355 4-28
DN300 78 311 225 370 410 4-28





Sketch of the dimensions of the gearboxes Elephant HGB RQN



Overall and installation dimensions of Elephant HGB RQN gearboxes:

Model A, mm B, mm C, mm D, mm E, mm F, mm H, mm d1, mm D2, mm D3, mm
HGB-1 165 127 84 66 12 47 73 35 81 50/70
HGB-2 185 142 102 79 12 52 78 42 92 70(89)
HGB-3 250 190 140 112 16 68 108 55 125 70/102/125
HGB-4 300 220 164 120 20 71 111 70 140 102/140(125)





Sketch of materials of butterfly valves for abrasive media Elephant WBV1632E-2W-Fb DN40-300 PN16 body - cast iron QT450, disk - stainless steel 316L, EPDM



Materials of parts of butterfly valves for abrasive media Elephant WBV1632E-2W-Fb DN40-300 PN16 body - cast iron QT450, disk - stainless steel 316L, EPDM:

No. Part name Material
1 Frame cast iron QT450
2 Disk Stainless steel 316L
3 Saddle seal EPDM + wear-resistant material (siliclone+graphite)
4 Stock steel 2Cr13





Sketch of gearboxes Elephant HGB RQN



Design of Elephant HGB RQN gearboxes:

No. Name Material
1 Transparent indicator cover PC Plycarton resin
2 Screw steel 304
3 Screw steel 304
4 Lid aluminum ADC 12
5 Worm gear reducer cast iron QT450
6 Adjusting screw steel 304
7 Rack steel 45
8 Case butadiene-acrylonityl rubber
9 Sleeve PZ2175 based on ketones
10 Bearing alloy steel
11 Frame aluminum ADC 12
12 Bearing alloy steel
13 Seal rubber
14 Washer steel 304
15 Screw steel 304
16 Axis steel 45
17 Limit switch -
18 Sealing ring butadiene-acrylonityl rubber

Specifications
  • Country of origin
    China
  • Body material
    cast iron QT450
  • Maximum allowable temperature
    110 °C
  • Connection type
    compact flanged
  • Control type
    Gearbox
  • Operating environment
    Water, Steam, Aggressive Media, Abrasive Media
  • Applications
    Water Supply, Heating, Chemical Industry, Oil And Gas Industry, Food Industry
  • Nominal pressure
    16 bar
  • Type of seal
    EPDM
  • Disc material
    stainless steel AISI 316L
  • Limit switches
    No

Reviews (0)

Documentation
nullQuarter-turn gearbox ELEPHANT HGB RQNx-xZ with visual position indicator
nullButterfly valve for abrasive media Elephant WBV1632E-2W-Fb-H DN40-200 16 bar cast iron interflanged with handle

Payment & Security

Payment methods

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    Available Variants

    SKUConnection sizePressurePrice AvailabilityQuantity Add to cart
    D050-53242DN10016 bar €244,99 Sold out
    D050-53243DN12516 bar €331,26 Sold out
    D050-53244DN15016 bar €417,47 Sold out
    D050-53245DN20016 bar €598,45 Sold out
    D050-53239DN5016 bar €204,53 Sold out
    D050-53240DN6516 bar €214,13 Sold out
    D050-53241DN8016 bar €229,27 Sold out
