Elephant | SKU: D050-24593

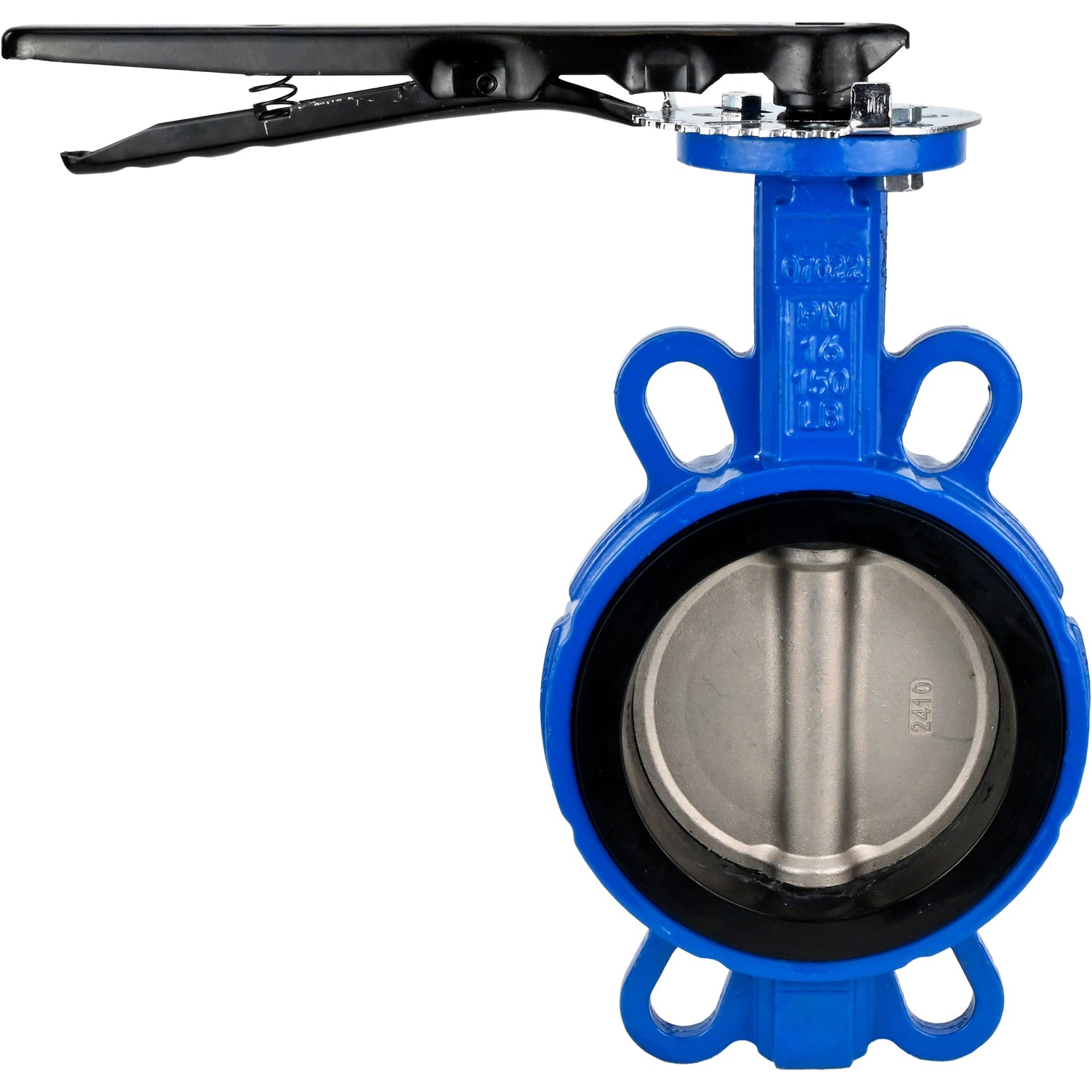

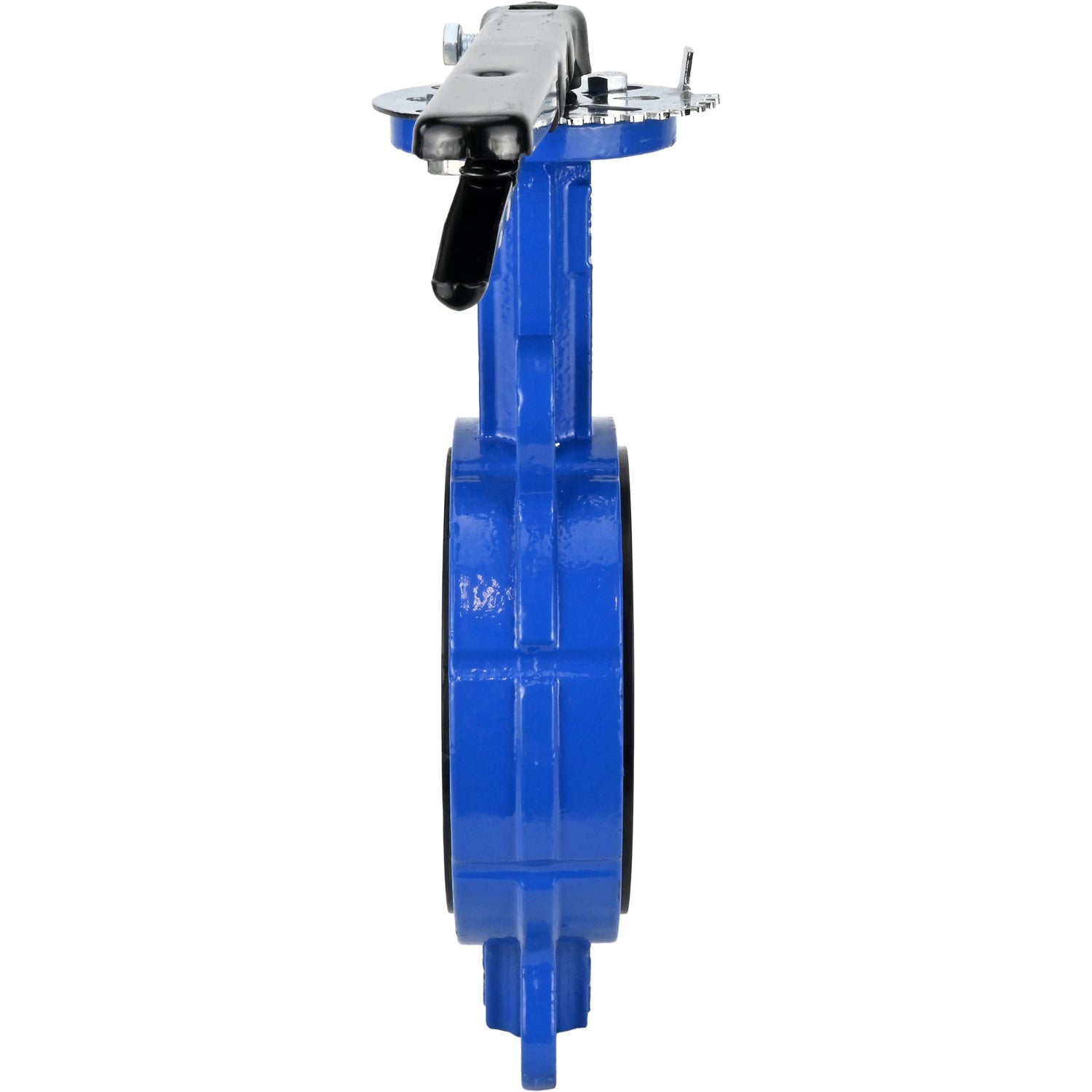

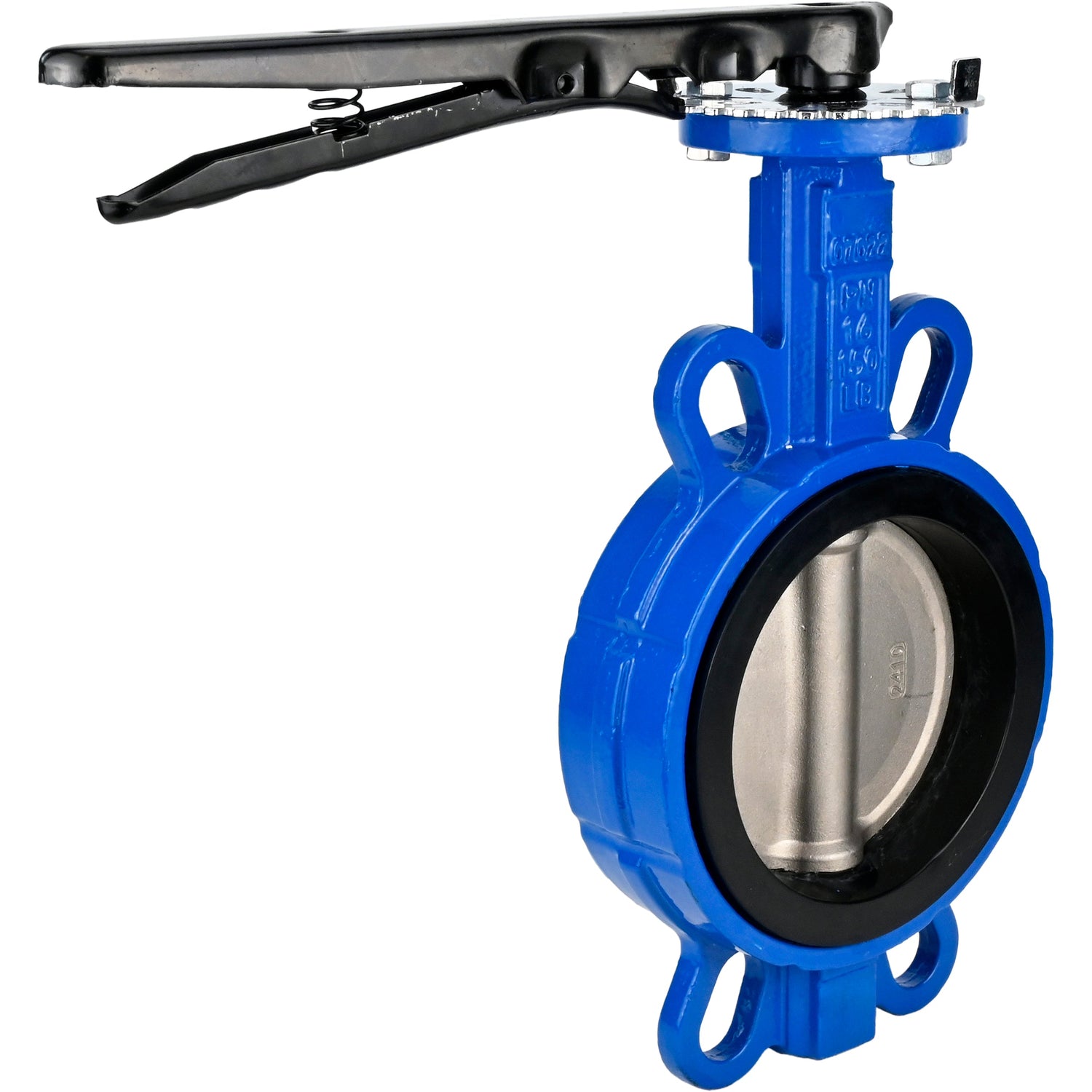

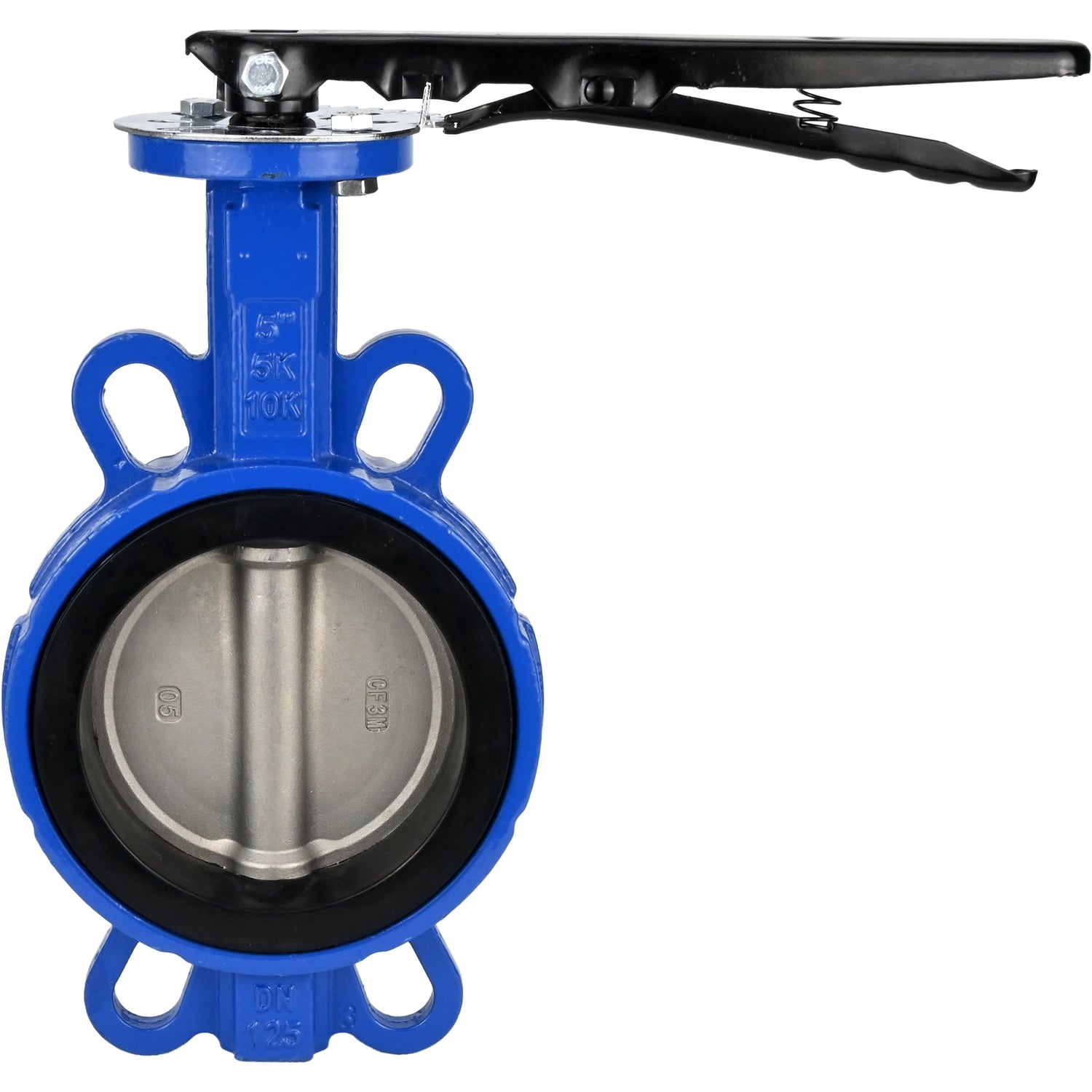

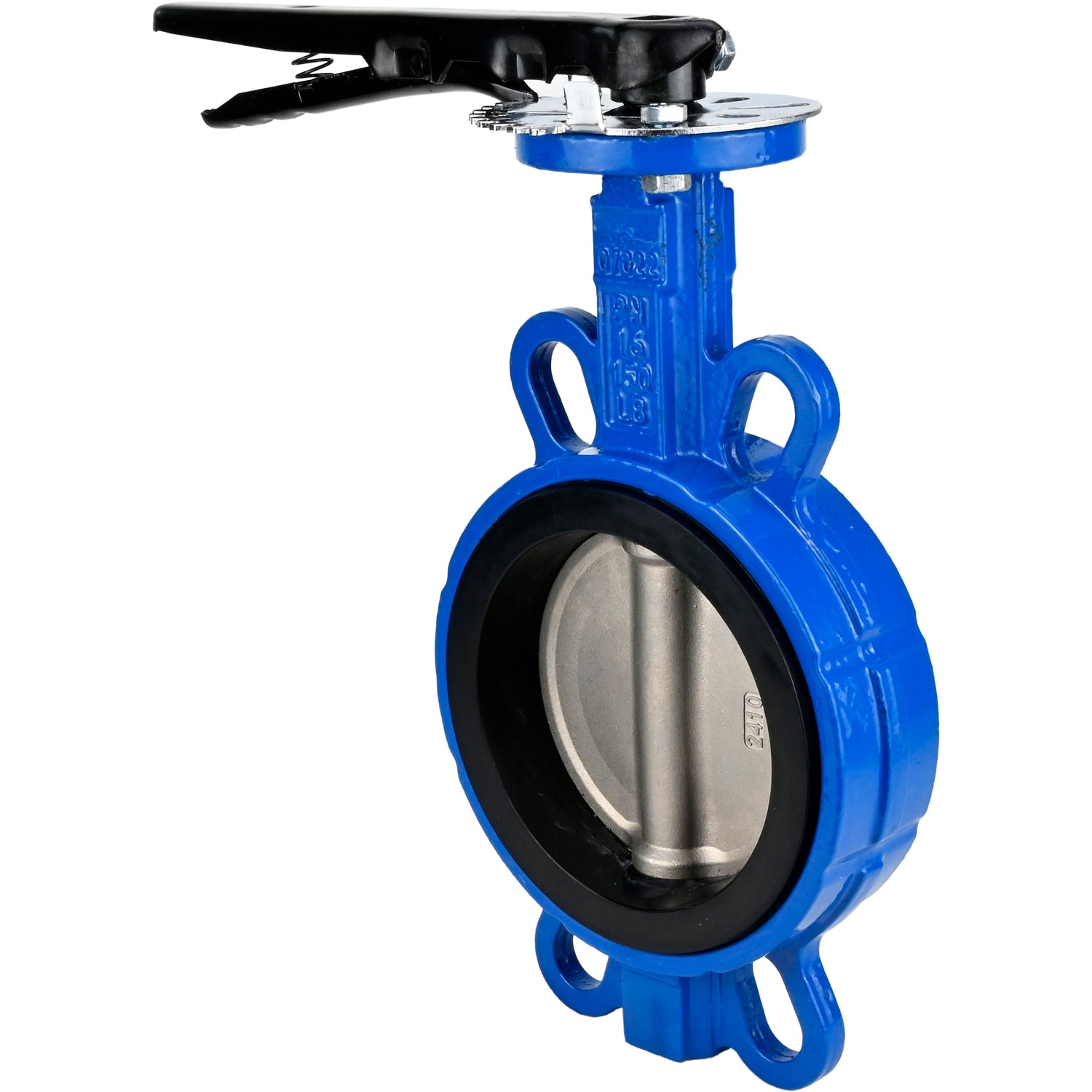

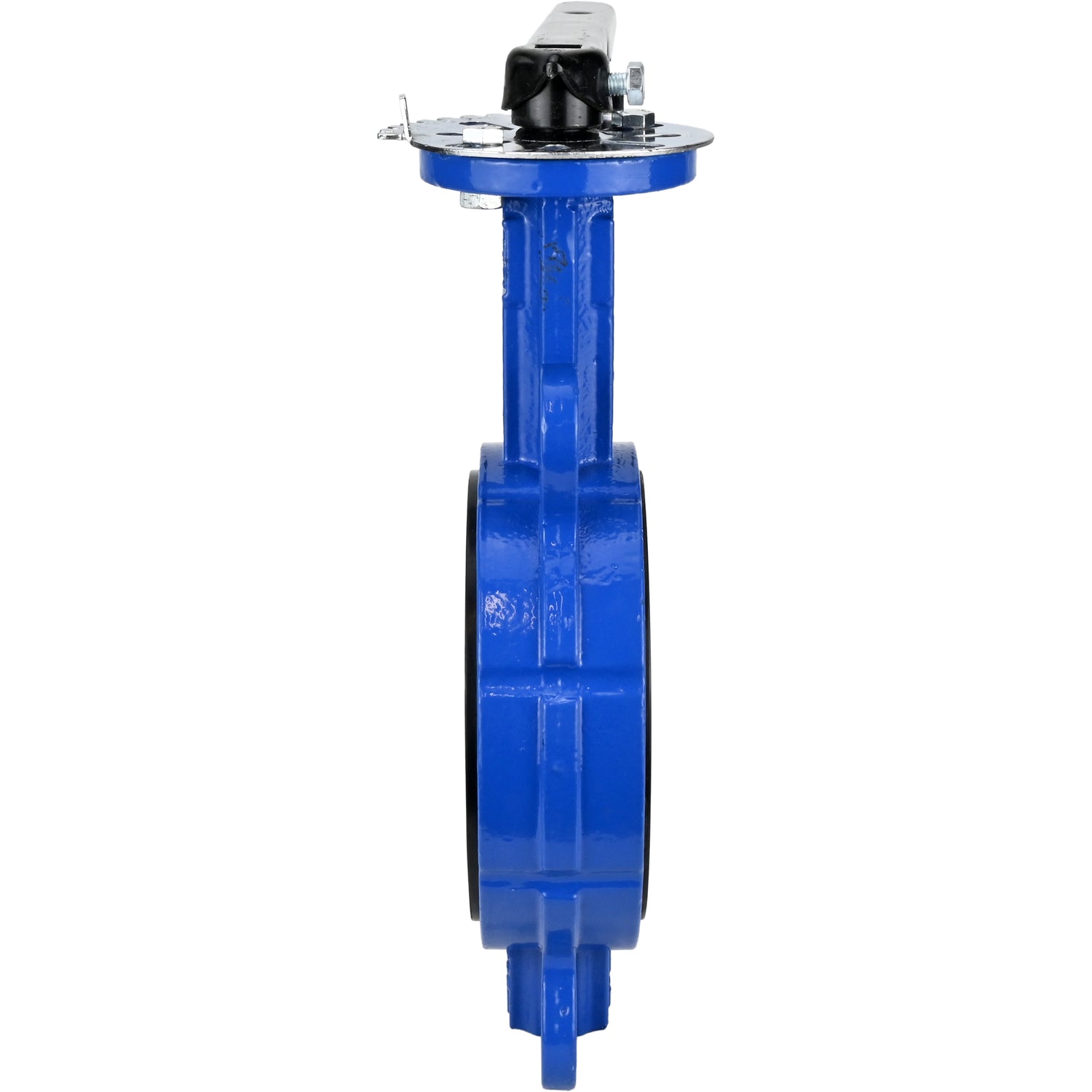

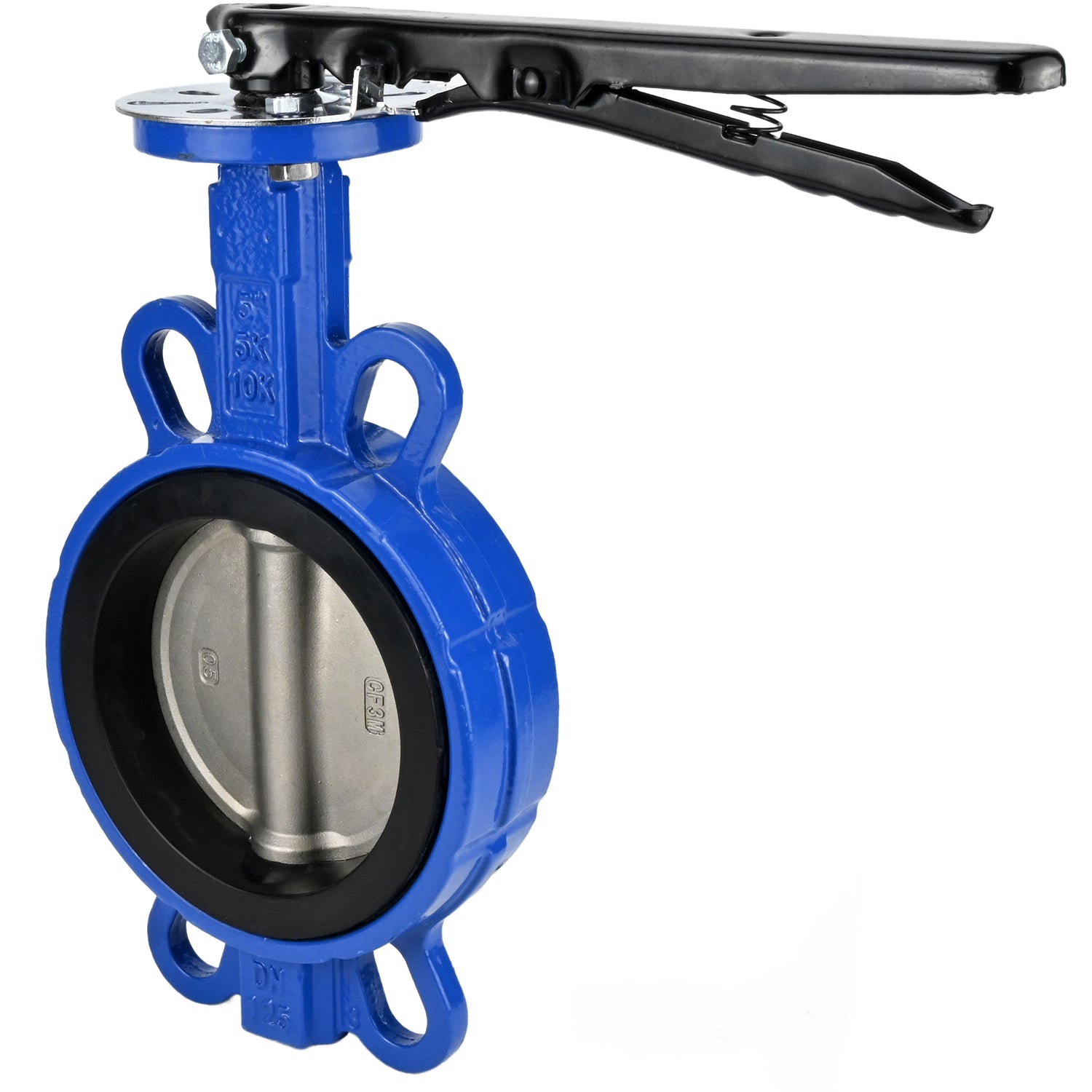

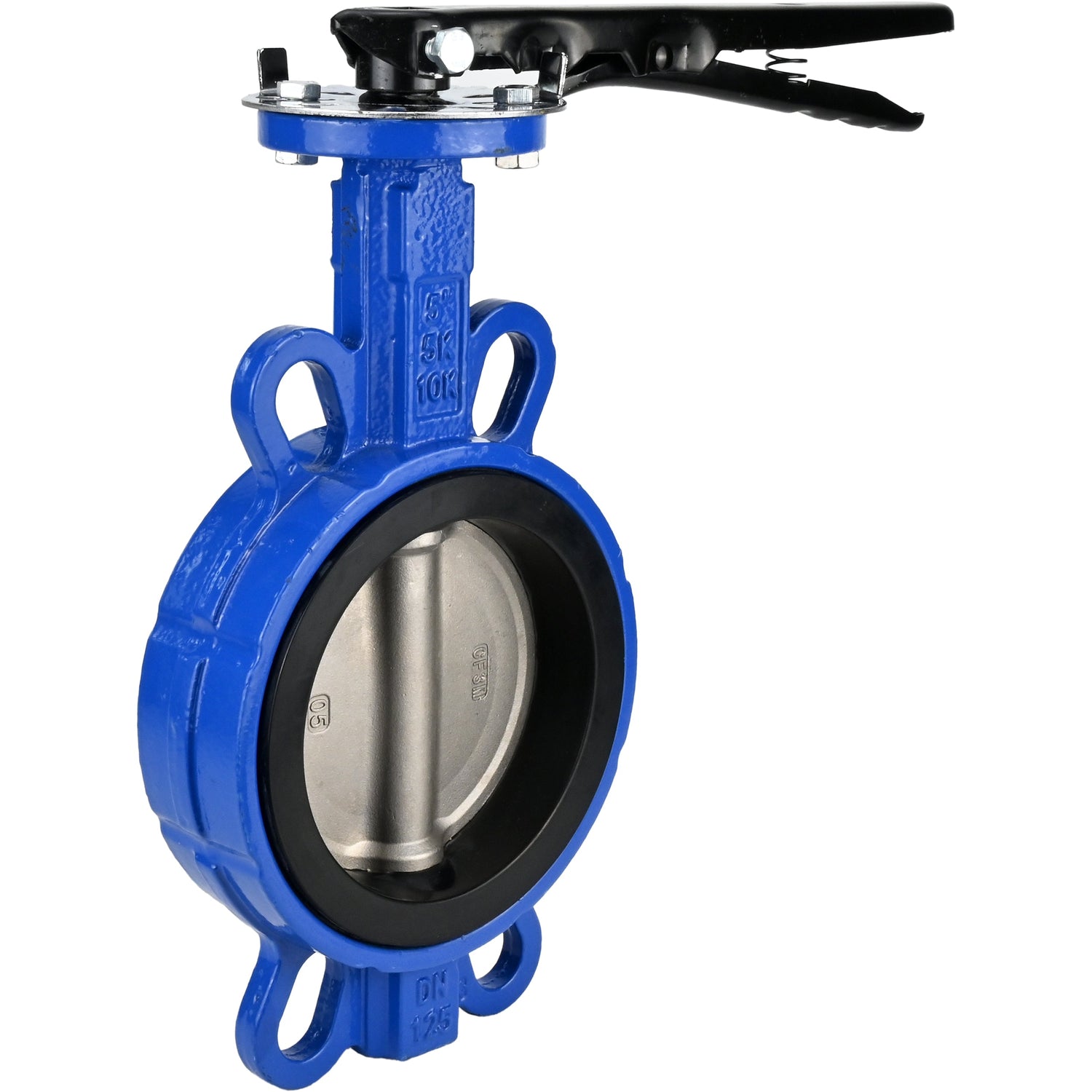

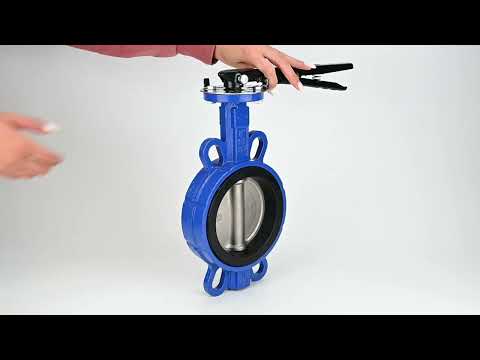

Water Butterfly Valve Elephant WBV1632E-2W-Fb, body material - cast iron QT450, disk material - stainless steel AISI 316, seal - EPDM, handle

€122,00

Shipping calculated at checkout.

Connection size

Pressure

Product variants

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

The WBV1632E-2W-Fb butterfly valve is designed for use as shut-off or regulating valves for flow control in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries. Operating principle: The valves are opened and closed by turning the disk by 90°. Opening is performed by turning the handle counterclockwise, closing - clockwise.

Installation dimensions and sizes of water butterfly valve Elephant WBV1632E-2W-Fb, body material - cast iron QT450, disk material - stainless steel AISI 316, seal - EPDM, handle:

Diameter	L	H	H1	D2	D1	n-d
DN40	43	147	70	92	125	4- Ø23
DN50	43	147	70	92	125	4- Ø23
DN65	46	155	76	110	145	4- Ø23
DN80	46	164	92	121	160	8- Ø20
DN100	52	175	106	153	180	4- Ø23
DN125	56	194	119	176	210	4- Ø23
DN150	56	206	132	207	240	4- Ø25
DN200	60	237	162	259	295	4- Ø25
DN250	68	282	200	316	355	4-Ø28
DN300	78	311	225	370	410	4-Ø28

Details and materials of water butterfly valve Elephant WBV1632E-2W-Fb, body material - cast iron QT450, disk material - stainless steel AISI 316, seal - EPDM, handle:

№	Part name	Material
1	Body	Cast iron QT450
2	Disk	Stainless steel 316L
3	Seat seal	EPDM + wear resistant material (siliclone+graphite)
4	Stem	Steel 2Cr13

Specifications

Country of origin

China
Body material

cast iron QT450
Maximum allowable temperature

110 °C
Connection type

compact flanged
Control type

handle
Nominal pressure

16 bar
Type of seal

EPDM
Disc material

stainless steel AISI 316

Reviews (0)

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Available Variants

SKU	Connection size	Pressure	Price	Availability	Max Temperature	Quantity
D050-24593	DN40	16 bar	€122,00	5 in stock	110 °C	Qty
D050-24594	DN50	16 bar	€133,00	5 in stock	110 °C	Qty
D050-24595	DN65	16 bar	€142,00	5 in stock	110 °C	Qty
D050-24596	DN80	16 bar	€156,00	5 in stock	110 °C	Qty
D050-24597	DN100	16 bar	€171,00	5 in stock	110 °C	Qty
D050-24598	DN125	16 bar	€235,00	5 in stock	110 °C	Qty
D050-24599	DN150	16 bar	€317,00	5 in stock	110 °C	Qty
D050-24600	DN200	16 bar	€434,00	5 in stock	110 °C	Qty
D050-24601	DN250	16 bar	€953,00	5 in stock	110 °C	Qty
D050-24602	DN300	16 bar	€1.233,00	5 in stock	110 °C	Qty
