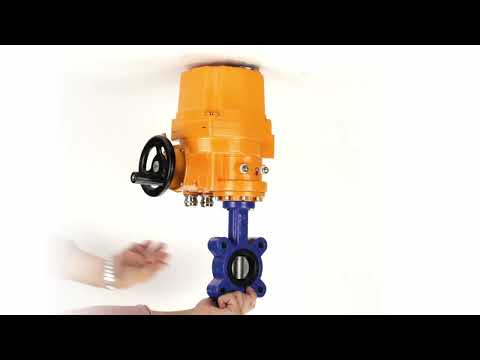

Water Butterfly Valve Elephant WBV1631E-2W-Fb-H, body material - cast iron QT450, disk material - Stainless steel AISI 304, seal - EPDM, electric actuator QT-EX-EM-O2-220VAC-U1 220V

€1.024,93

Tax included Shipping calculated at checkout.

Connection size

Pressure

Product variants

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Butterfly valves are designed for use as shut-off or regulating valves for controlling flows in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries. The valves are opened and closed by turning the disk by 90°. Opening is performed by turning the handle counterclockwise, closing - clockwise.
Electric quarter-turn actuators of explosion-proof version are designed for remote and local control of 0° ~ 270° rotation of a shut-off valve of such types as ball valve etc. They are widely used in various branches of national economy: in gas, oil, metallurgical, food industry, housing and communal services, etc. Suitable for use in industrial explosion hazardous areas

Technical parameters of water butterfly valve Elephant WBV1631E-2W-Fb-H, body material - cast iron QT450, disk material - Stainless steel AISI 304, seal - EPDM, electric actuator QT-EX-EM-O2-220VAC-U1 220V:

Parameter	Value
Nominal pressure, bar	16
Type of connection	Interflanged (threaded lugs)
Type of control	Electric actuator
Application	Water supply, heat supply
Working medium temperature, °C	From -20 to 150
Tightness class	A
Country of manufacture	China

Dimensions and sizes of water butterfly valve Elephant WBV1631E-2W-Fb-H, body material - cast iron QT450, disk material - Stainless steel AISI 304, seal - EPDM, electric actuator QT-EX-EM-O2-220VAC-U1 220V:

Model	H, mm	L, mm	H1, mm
DN100	277.5	255	265
DN125	317.5	255	265
DN150	354.5	280	270

Materials of parts of water butterfly valve Elephant WBV1631E-2W-Fb-H, body material - cast iron QT450, disk material - Stainless steel AISI 304, seal - EPDM, electric actuator QT-EX-EM-O2-220VAC-U1 220V:

№	Part name	Material
1	Body	Cast iron QT450
2	Disc	Stainless steel 304
3	Seat seal	EPDM
4	Stem	Stainless steel SS 316

Technical parameters of electric actuators Elephant:

Name	Value
Actuator model	QT-EX-EM-O2-220VAC-U1 220V
Supply voltage	220V

Dimensions and sizes of electric actuators Elephant:

Actuator model	H1, mm	L, mm	A, mm	D1, mm	D2, mm	MAX □, mm	MAX ○, mm	K
QT-EX-010EM-O1-220VAC	265	255	170	70	57	14	20	4-M8, depth 12
QT-EX-015EM-O1-220VAC	265	255	170	70	57	14	20	4-M8, depth 12
QT-EX-020EM-O1-220VAC	270	280	200	102	70	17	31	4-M10, depth 16

Device of electric actuators Elephant QT-EX-EM-O2-220VAC-U1 220V:

№	Part name	Material
1	Actuator housing	Aluminum
2, 23, 33, 38, 40, 64	Shaft	Steel
3, 39, 46, 48, 51, 66	Sealing ring	Oil-resistant rubber
4, 27	Mounting bracket	Steel Q235
5	Insulating gasket	Textolite
6, 9, 16	Bracket mounting screw	Steel
7, 1	Plate	Steel Q235
8	Plug screw	Aluminum
11, 14	Limit switch cam	Steel Q235
12, 13	Limit switch group	-
15, 32	Bushing	Brass H62
16, 30, 35, 41, 44, 61	Screw	Steel
17, 18	Disc	Steel Q235
19	Mechanical limit cam	Steel Q235
20	Actuator housing	Aluminum
21, 25	Mounting screw	Steel
22	Gland of sight glass	Steel
24	Indicator plate	Aluminum
26	Capacitor	CEM 2GR 220nJ
28	Terminal block	1Pcs T
29	Heating element	NTA-1/005
31, 36	Washer	Stainless steel
34	Through cover	MHQ50
37, 39	Locking washer, sealing ring	Steel
42	Torque switch group	-
43, 48	Torque switch mechanism	Steel Q235
45	Handwheel cover	Aluminum
47, 69	First-stage gear	Zinc alloy
49	Limiting screw	Steel
50	Stud	Steel
52	Coupling handle	Steel
53	Fork block	Aluminum
54	Thrust washer	Zinc alloy
55, 56	Separator fork	Zinc alloy
57	Retaining ring	Steel
58, 6	Main gear, disc	Zinc alloy
59, 68	Worm gear (2nd & 1st stage)	Steel 40Cr
62, 67	Gland	Aluminum
63	Motor	-
65	Clutch	Steel ZG20

Specifications

Country of origin

China
Body material

cast iron QT450
Maximum allowable temperature

150 °C
Connection type

Interflange (threaded lugs)
Control type

Electric actuator
Operating environment

Water, Air, Neutral Media
Applications

Water Supply, Heat Supply
Nominal pressure

16 bar
Type of seal

EPDM
Disc material

Stainless steel AISI 304
Explosion-proof

Yes
Manual override

handwheel
Limit switches

Yes
Type of electric actuator

Quarter-turn
Supply voltage

220 V
Angle of rotation

90°
