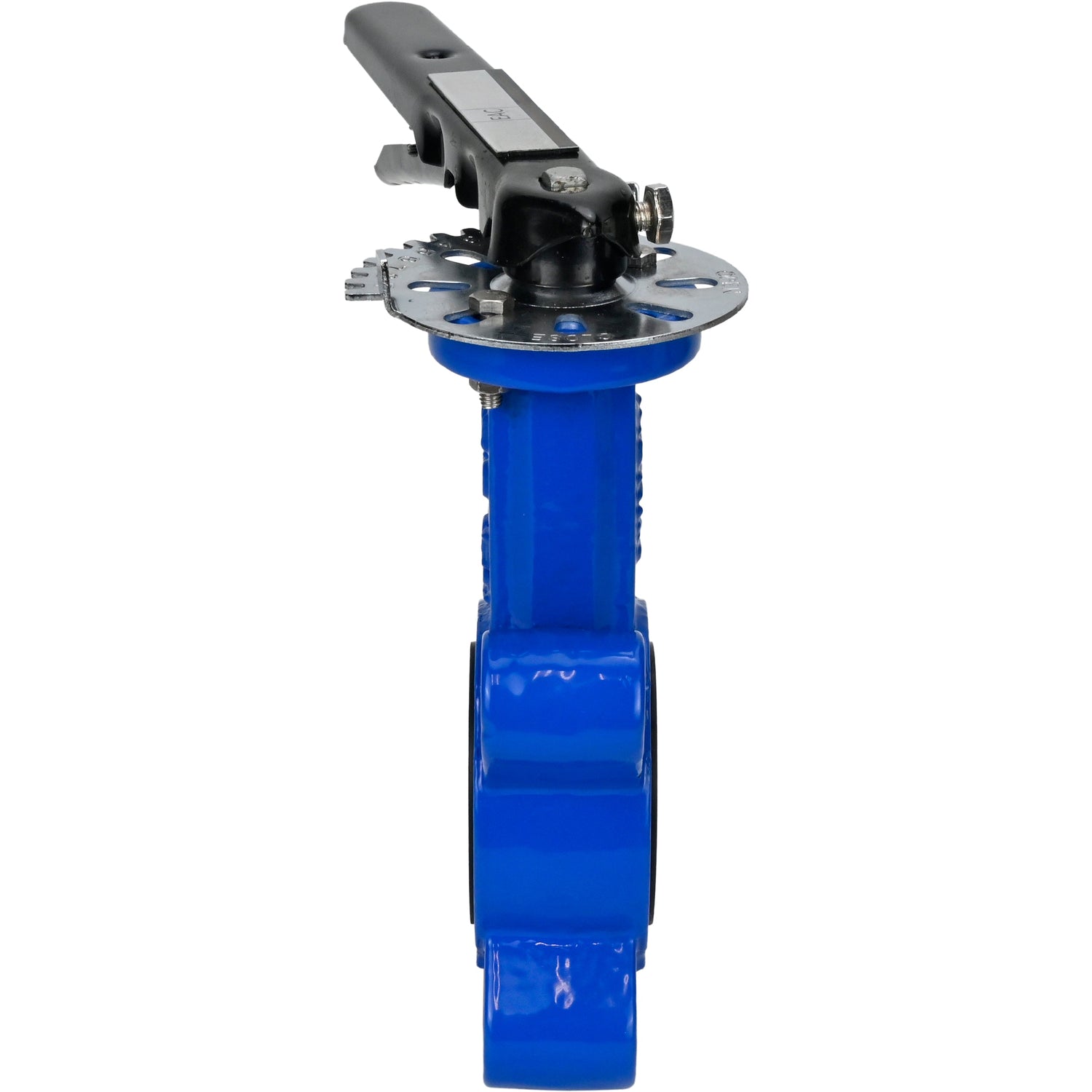

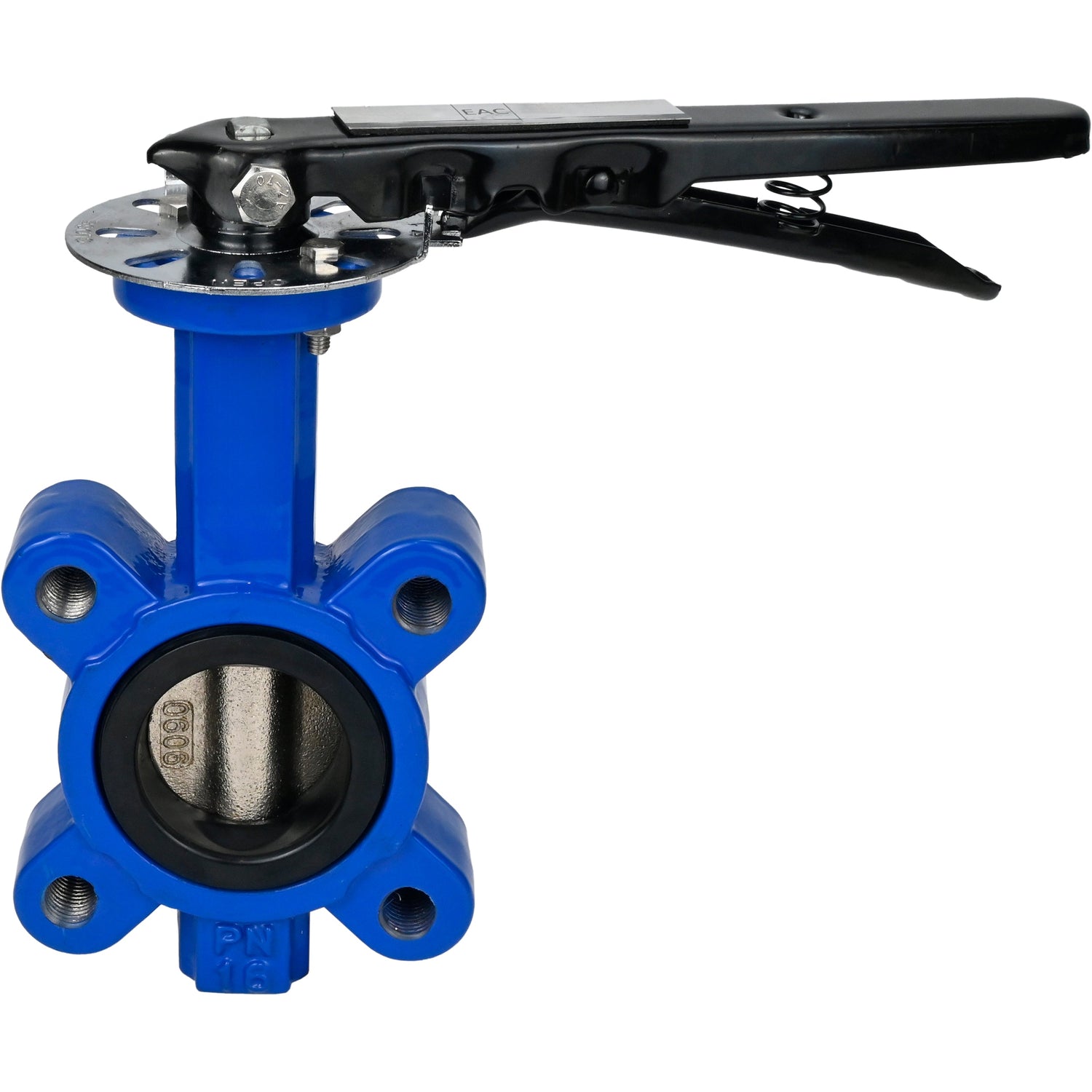

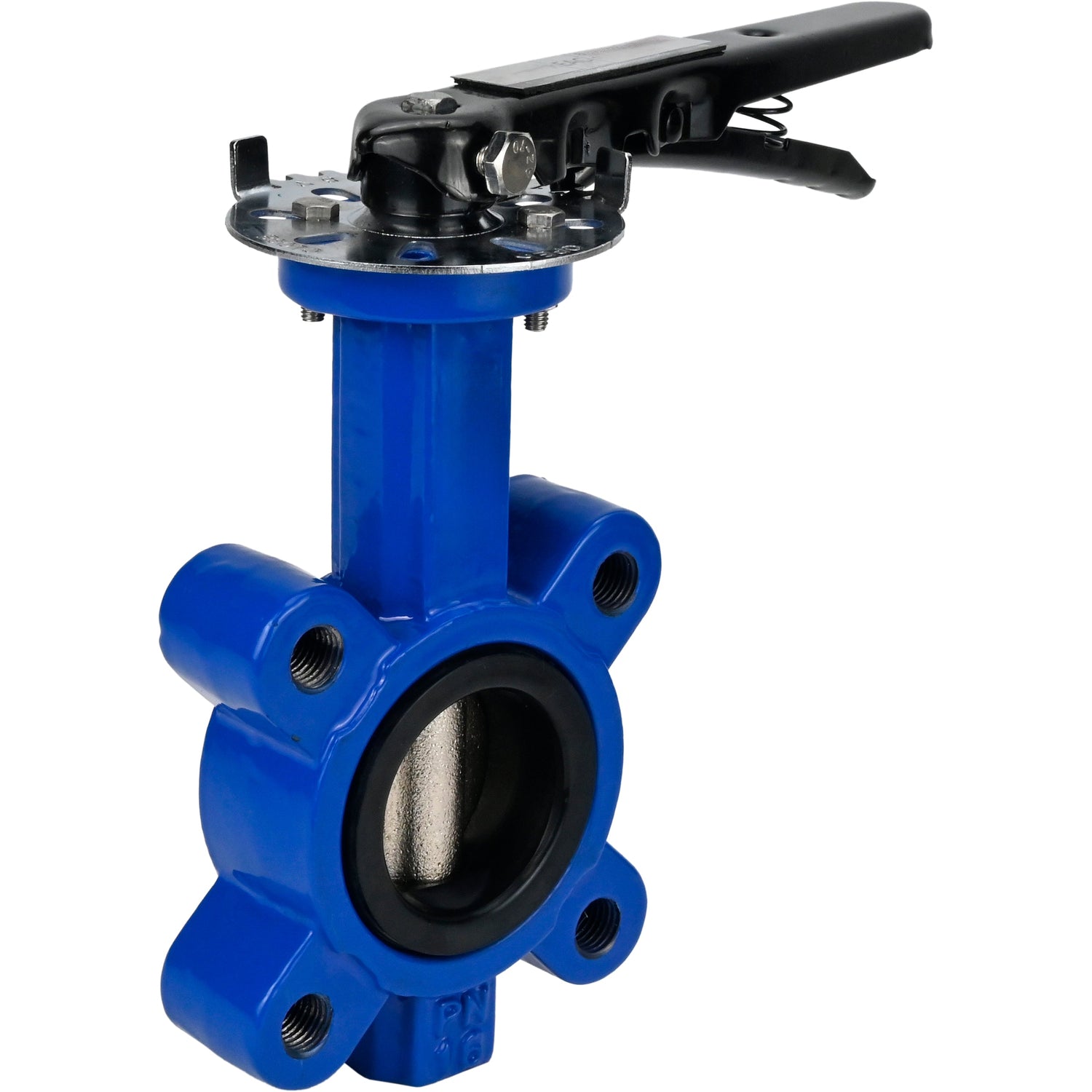

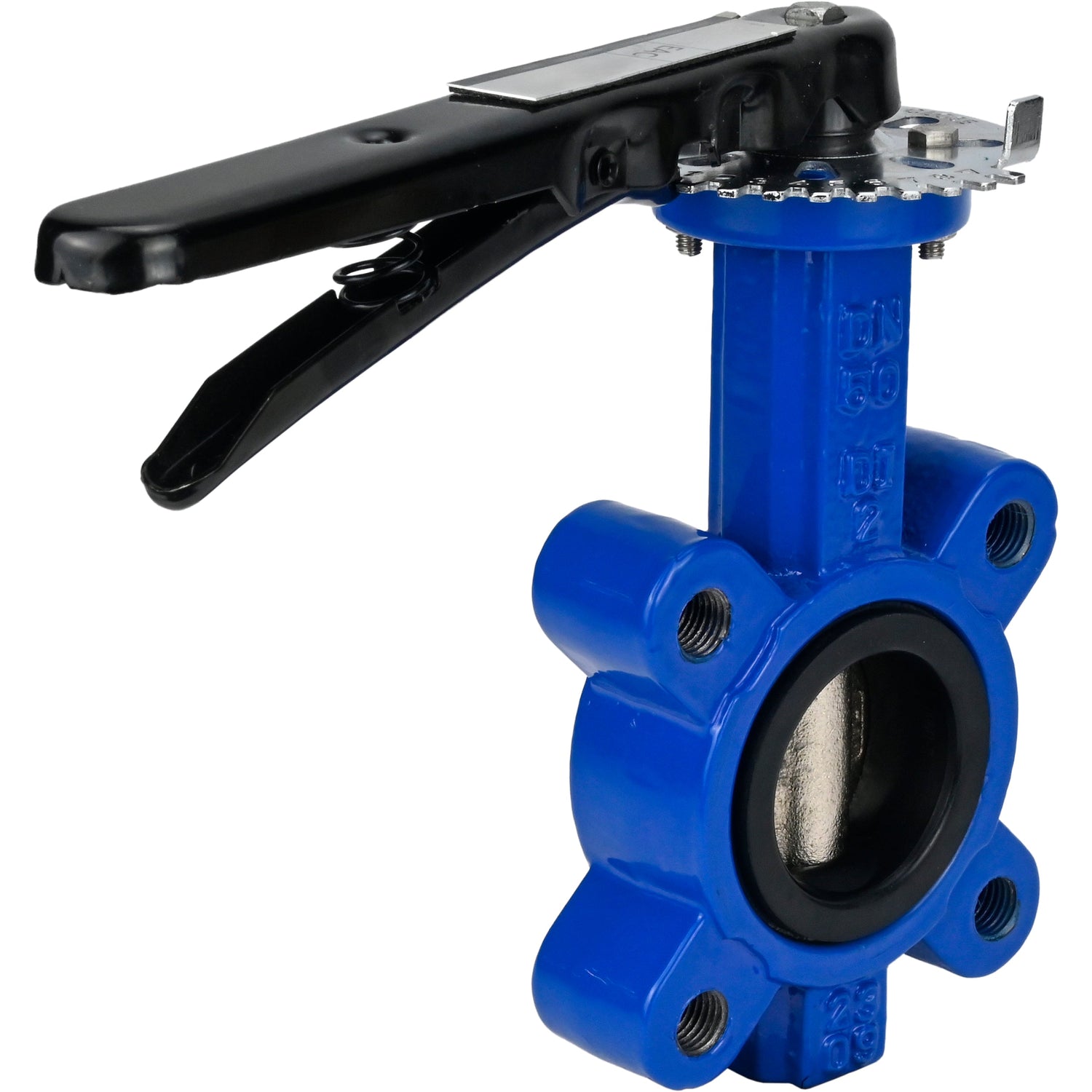

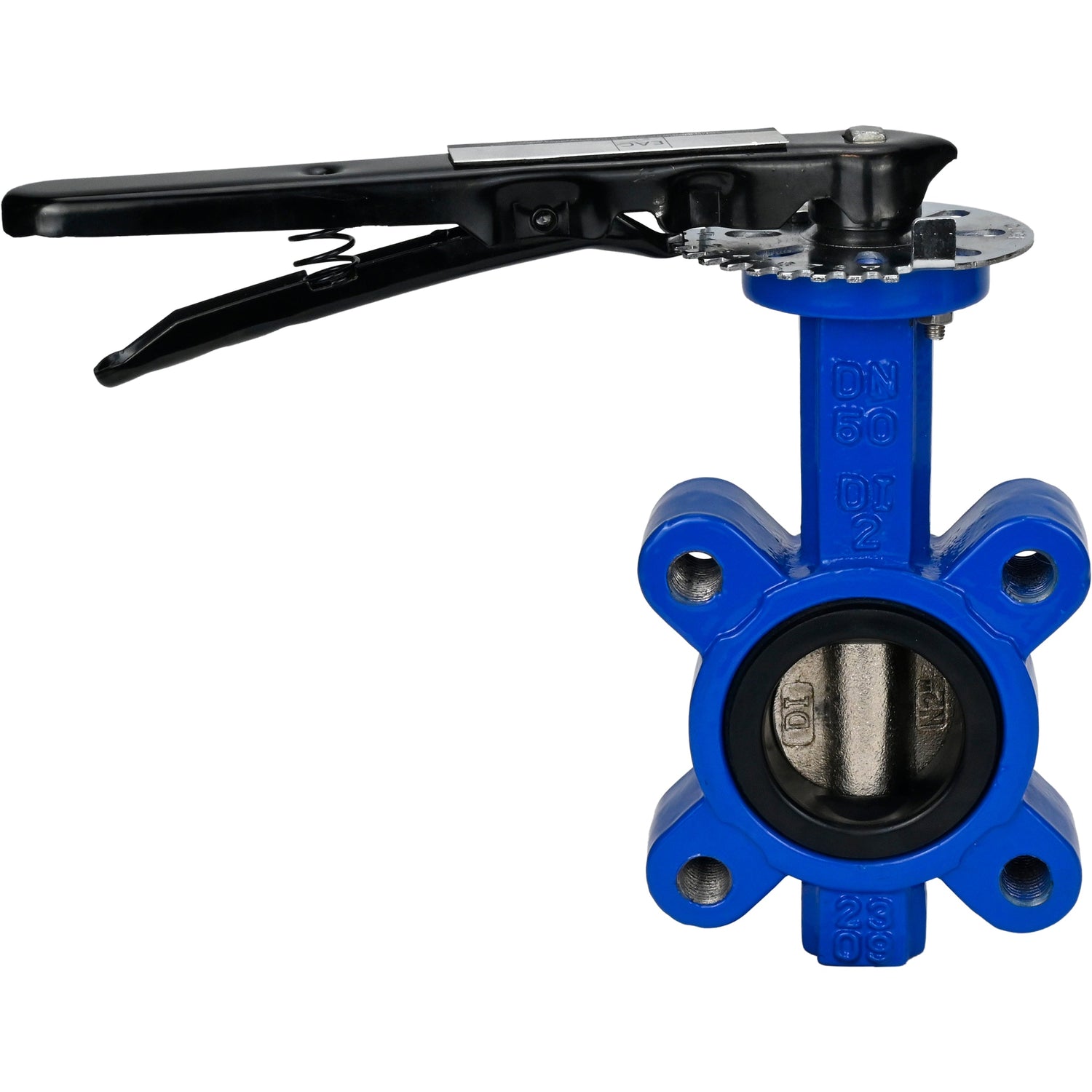

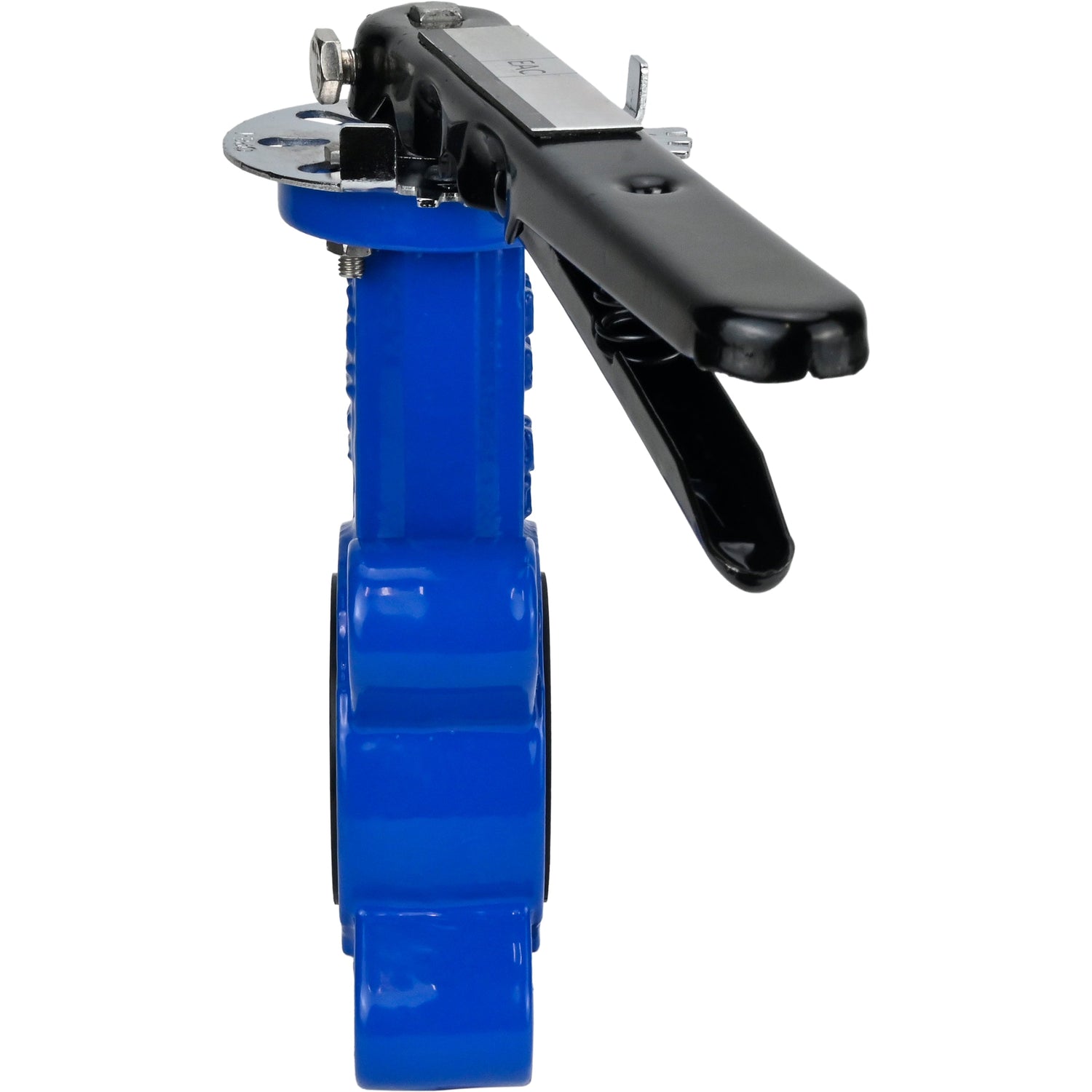

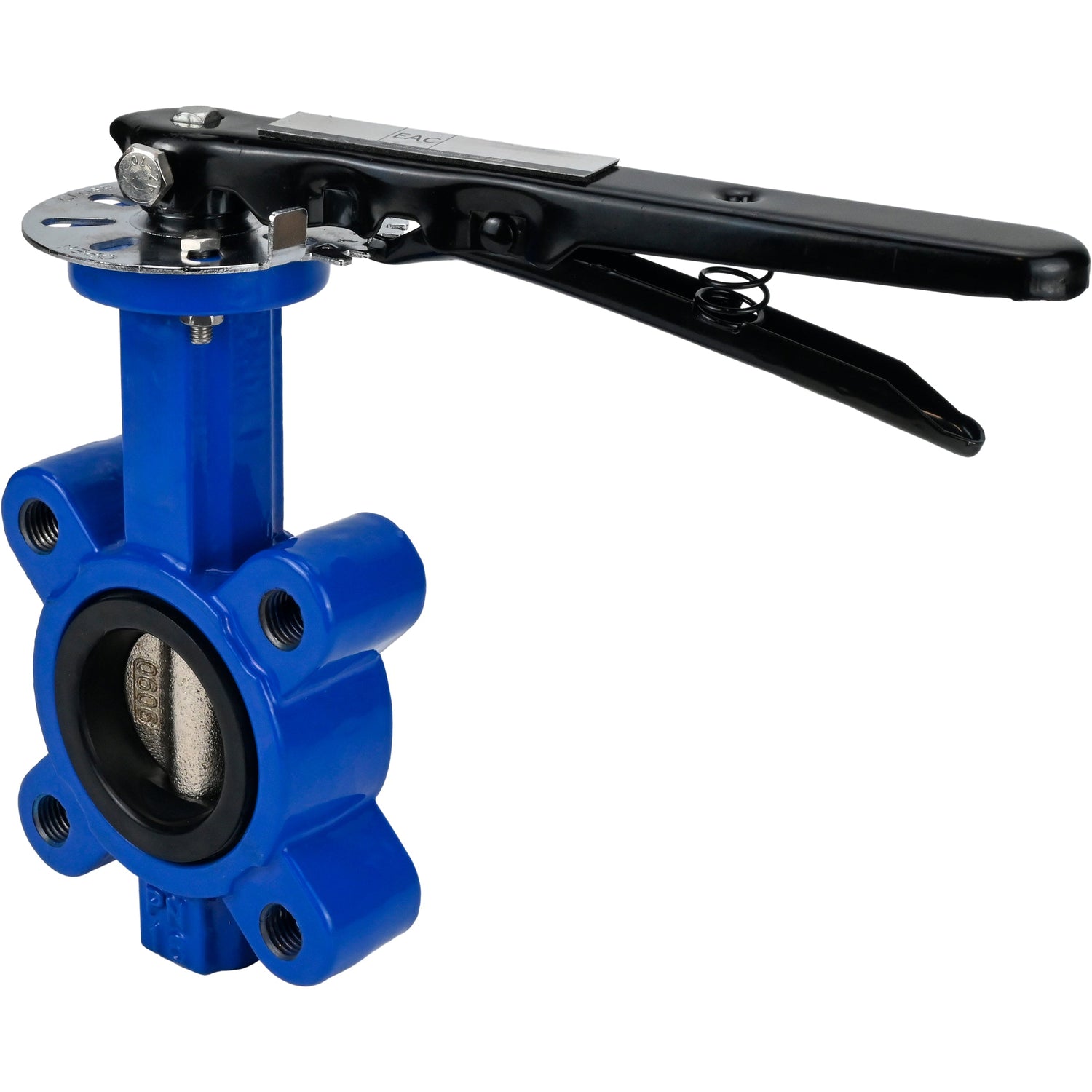

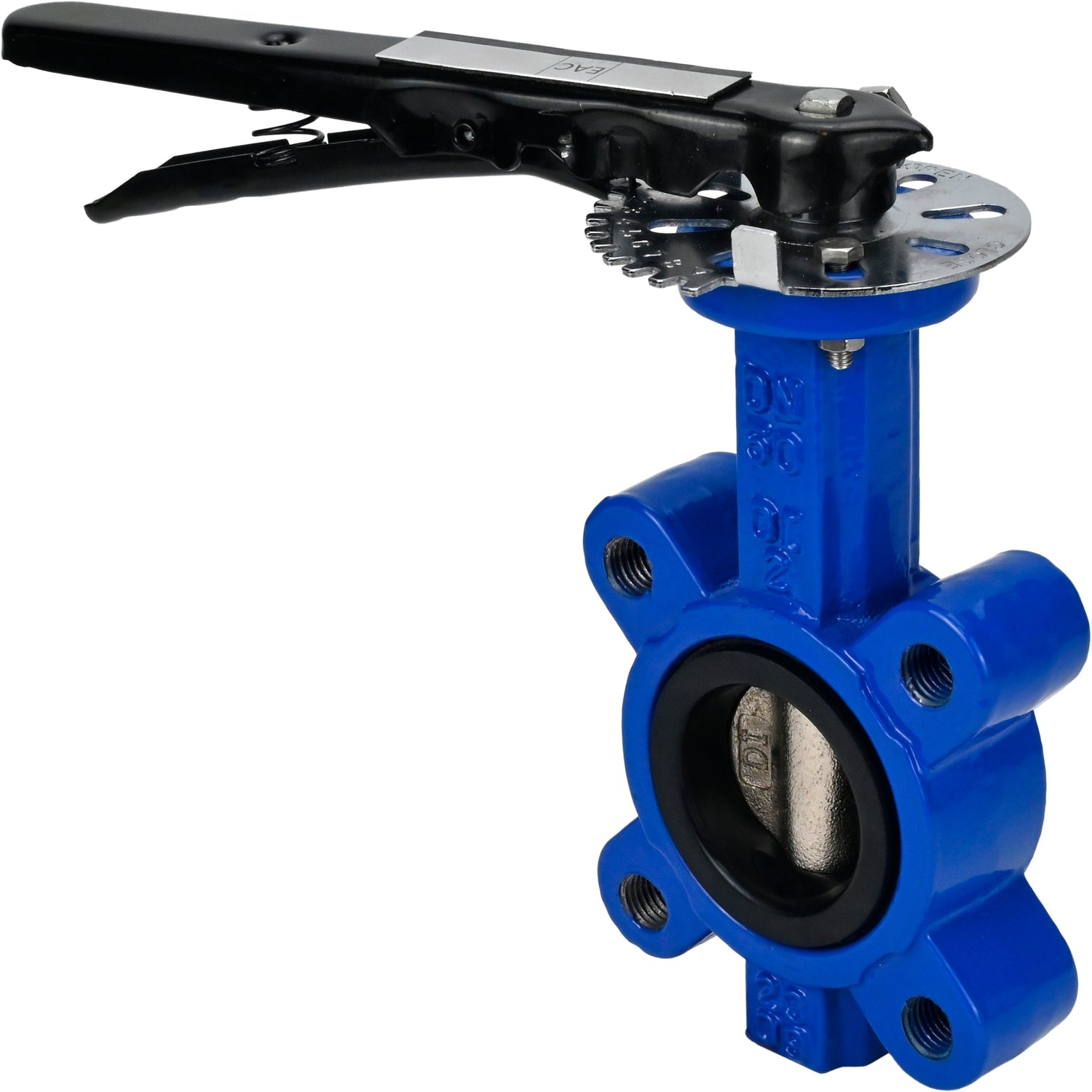

Water Butterfly Valve Elephant WBV1616N-2W-Fb-H, body material - cast iron QT450, disk material - cast iron QT450, seal - NBR, handle
Water Butterfly Valve Elephant WBV1616N-2W-Fb-H, body material - cast iron QT450, disk material - cast iron QT450, seal - NBR, handle - DN50 / 16 bar is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.
Water Butterfly Valve Elephant WBV1616N-2W-Fb-H, body material - ca...
Description
Description
Butterfly valves are designed for use as shut-off or regulating valves to control flows in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.
Principle of operation: The valves are opened and closed by turning the disk by 90°. Opening is performed by turning the handle counterclockwise, closing - clockwise.
Installation dimensions and sizes of water butterfly valve Elephant WBV1616N-2W-Fb-H, body material - cast iron QT450, disk material - cast iron QT450, seal - NBR, handle:
| Model | A, mm | B, mm | C, mm | D, mm | N-M | H, mm |
| DN50 | 72.5 | 130.5 | 43 | 125 | 4-М16 | 220 |
| DN65 | 77.5 | 146.5 | 46 | 145 | 4-М16 | 220 |
| DN80 | 92 | 156 | 46 | 160 | 8-М16 | 220 |
| DN100 | 109 | 168.5 | 52 | 180 | 8-М16 | 260 |
| DN125 | 127 | 190.5 | 56 | 210 | 8-М16 | 260 |
| DN150 | 141 | 213.5 | 56 | 240 | 8-М20 | 260 |
Details and materials of water butterfly valve Elephant WBV1616N-2W-Fb-H, body material - cast iron QT450, disk material - cast iron QT450, seal - NBR, handle:
| № | Details | Material |
| 1 | Body | Cast iron QT450 |
| 2 | Disk | Cast iron QT450 |
| 3 | Seat seal | NBR |
| 4 | Stem | Stainless steel SS 316 |
| 5 | Handle | Carbon steel |
Specifications
Specifications
-
Country of origin
-
Body material
-
Maximum allowable temperature
-
Connection type
-
Control type
-
Nominal pressure
-
Type of seal
-
Disc material
Reviews (0)
Reviews (0)
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Available Variants
| SKU | Connection size | Pressure | Price | Availability | Max Temperature | Quantity | Add to cart |
|---|---|---|---|---|---|---|---|
| D050-23717 | DN50 | 16 bar | €184,00 | 5 in stock | 90 °C | ||
| D050-23718 | DN65 | 16 bar | €202,00 | 5 in stock | 90 °C | ||
| D050-23719 | DN80 | 16 bar | €246,00 | 5 in stock | 90 °C | ||
| D050-23720 | DN100 | 16 bar | €335,00 | 5 in stock | 90 °C | ||
| D050-23721 | DN125 | 16 bar | €436,00 | 5 in stock | 90 °C | ||
| D050-23722 | DN150 | 16 bar | €495,00 | 5 in stock | 90 °C |
