Water Butterfly Valve Elephant WBV1432N-2W-Fb-H DN40-300 16 bar body -
Elephant  |  SKU: D050-80071

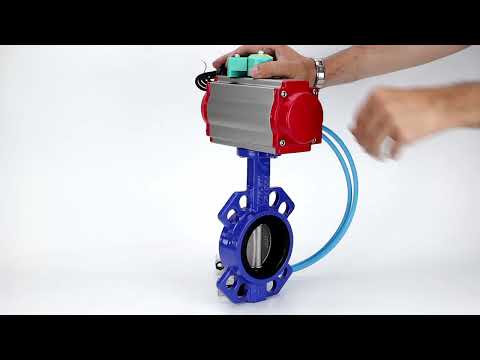

Water Butterfly Valve Elephant WBV1432N-2W-Fb-H DN40-300 16 bar body - GGG50 cast iron, disc - 316L stainless steel, seal - NBR, with pneumatic actuator PA-DA-XXX, pneumatic distributor 4V320-10 220V and ALS200D magnetic switch

€354,66
Tax included Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Specifications
  • Country of origin
    China
  • Body material
    Cast Iron
  • Maximum allowable temperature
    100 °C
  • Connection type
    Compact flanged
  • Control type
    Pneumatic drive
  • Operating environment
    Water, Oils, Carbohydrates, Animal fats
  • Applications
    Water Supply, Heat Supply, Chemical Industry, Oil and gas industry, Food industry, Pulp and paper industry
  • Nominal pressure
    16 bar
  • Type of seal
    NBR
  • Disc material
    Stainless Steel
  • Limit switches
    No

Reviews (0)

Documentation

Payment & Security

Payment methods

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    Available Variants

    SKUConnection sizePressurePrice AvailabilityQuantity Add to cart
    D050-80071DN10016 bar €354,66 Sold out
    D050-80072DN12516 bar €400,38 Sold out
    D050-80073DN15016 bar €433,31 Sold out
    D050-80074DN20016 bar €673,94 Sold out
    D050-80075DN25016 bar €856,38 Sold out
    D050-80076DN30016 bar €1.299,38 Sold out
    D050-80077DN4016 bar €243,96 Sold out
    D050-80078DN5016 bar €260,98 Sold out
    D050-80079DN6516 bar €274,43 Sold out
    D050-80080DN8016 bar €334,97 Sold out
