Water Butterfly Valve Elephant WBV1432E-2W-Fb-H, wafer, body - cast ir
Elephant  |  SKU: D050-62260

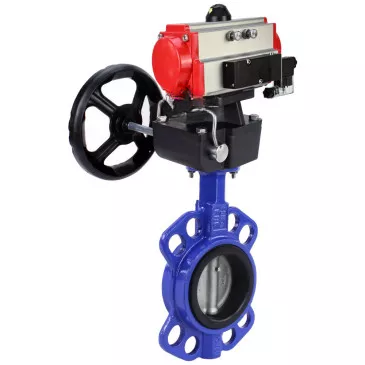

Water Butterfly Valve Elephant WBV1432E-2W-Fb-H, wafer, body - cast iron GGG50, disk - stainless steel 316L, seal - EPDM, with pneumatic drive PA-DA, with pneumatic distributor 4V320-10 220V, manual override MON

€241,22
Tax included Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Elephant WBV1432E-2W-Fb-H butterfly valves are designed for use as shut-off or regulating valves for flow control in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.

Pneumatic valve Elephant 4V320-10 220V is used to change the direction, start, stop the compressed air flow in the pneumatic system depending on the external control action.





Technical parameters Rotary disc gate valves Elephant WBV1432E-2W-Fb-H, wafer, body - cast iron GGG50, seal - EPDM

Parameter Value
Nominal Pressure PN, bar 16
Pipeline Connection Wafer Type
Valve Type Butterfly Valve
Control Type Pneumatic Actuator
Country of Manufacture China





Dimensions and dimensions of Butterfly valves Elephant WBV1432E-2W-Fb-H, wafer, body - cast iron GGG50, seal - EPDM

DN L D H F L1 E
40 33 75 160 98 153 120
50 43 84,5 241 115 174 120
65 45 104,5 264 115 174 120
80 45 123,5 276 135 216 133
100 52 139,5 314 135 216 133
125 55 169,5 340 135 216 133
150 55 196 365 160 279 180
200 60 247 435 193 308 180
250 68 304 495 210 405 195
300 78 358 579 210 405 195

Sketch of rotary disc gate valves Elephant WBV1432E-2W-Fb-H, wafer, body - cast iron GGG50, seal - EPDM





Table of parts and materials for butterfly disc gate valves Elephant WBV1432E-2W-Fb-H, wafer, body - cast iron GGG50, seal - EPDM

No. Part Name Material
1 Housing Cast iron GGG50
2 Disc Stainless steel 316L
3 Seat seal EPDM
4 Upper stem Stainless steel 316L
5 Lower stem Stainless steel 316L
6, 11 Retaining ring Stainless steel AISI 201
7 Dust cover NBR
8 Stem gasket NBR
9 Insert Stainless steel AISI 201
10 Plug Plastic
Sketch of parts and materials of butterfly disc gate valves Elephant WBV1432E-2W-Fb-H, wafer, body - cast iron GGG50, seal - EPDM





Technical parameters of pneumatic valve Elephant 4V320-10 220V

Name Value
Type of Pneumatic Valve Spool
Pneumatic Valve Model 4V320-10 220V
Operating Pressure, bar 1.5 ÷ 1.8
Supply Voltage, V 220 V
Actuation Frequency, cycles/sec 5


Specifications
  • Country of origin
    China
  • Body material
    grey cast iron GG25
  • Maximum allowable temperature
    120 °C
  • Connection type
    compact flanged
  • Type of seal
    EPDM
  • Disc material
    stainless steel AISI 316L
