Water Butterfly Valve Elephant WBV1432E-2W-Fb-H, body material - cast
Elephant  |  SKU: D050-37010

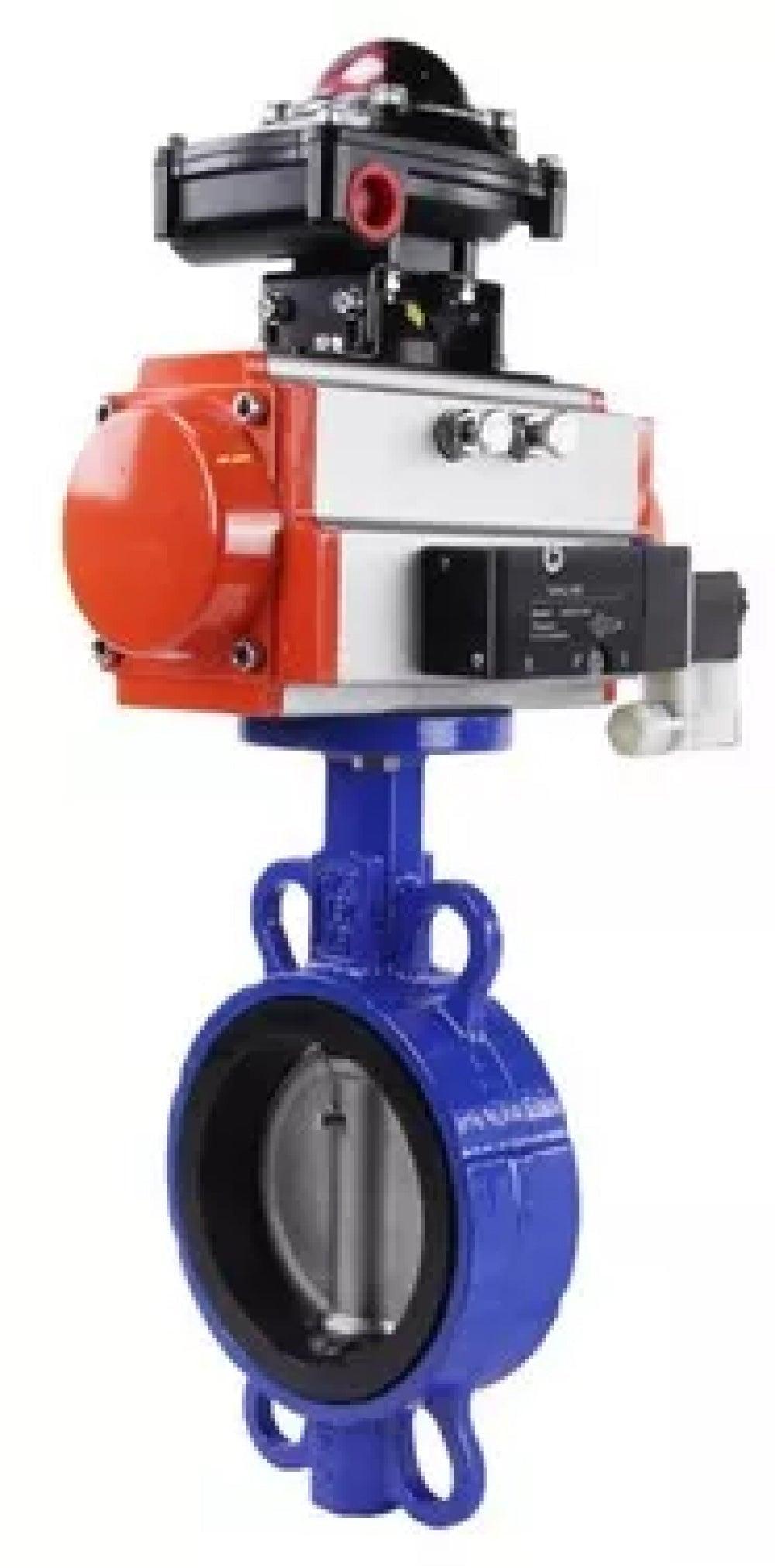

Water Butterfly Valve Elephant WBV1432E-2W-Fb-H, body material - cast iron GGG50, disk material - stainless steel AISI 316L, seal - EPDM, with pneumatic actuator with return springs PA-SA, 4M310-08 24V, LSU APL-510N-EX

€392,77
Tax included Shipping calculated at checkout.

Water Butterfly Valve Elephant WBV1432E-2W-Fb-H, body material - cast iron GGG50, disk material - stainless steel AISI 316L, seal - EPDM, with pneumatic actuator with return springs PA-SA, 4M310-08 24V, LSU APL-510N-EX - DN40 / 16 bar is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Butterfly valve model WBV1432E-2W-Fb PA-SA 4M310-08 APL-510N-EX 4M310-08 24V is designed for use as shut-off or regulating valves to control flows in heating systems, water supply, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.

PA-SA pneumatic actuators are designed for automation of industrial shut-off valves control process - gates, ball valves. Pneumatic actuators are designed for operation both indoors and outdoors. All internal and external parts are anticorrosive coated.

Pneumatic actuators 4m310-08 24 V are used for control in pneumatic systems having NAMUR docking surface, for installation of actuators through through holes in the body.

The APL-510N-EX limit switch box is an electrical device designed to open and close the working circuit and to visualize the positions of the shut-off body of pipeline valves. In a sealed box, as a rule, there are two mechanical switches designed for voltage up to 250 V, which monitor the position of the actuator stem and signalize in extreme positions. They are mounted on top of the actuator surface. In the upper part of the limit switch unit there is a two-color visual indicator hemisphere. If the connected pipe fitting is closed, only the red part of the hemisphere labeled CLOSED is visible; if it is open, only the yellow part labeled OPEN is visible. This visual indicator is clearly visible from a distance, which simplifies the inspection of the equipment, and the color difference between the open and closed position reduces the probability of misinterpretation of information. Due to the use of the BCV it becomes possible to transmit information on the position of pipeline valves (open/closed) to automated control systems, which allows to increase the reliability of the system as a whole and simplifies diagnostics in case of fault detection.





Technical parameters of Elephant WBV1432E-2W-Fb-H butterfly valves, body material - cast iron GGG50, disk material - stainless steel AISI 316L, seal - EPDM, with pneumatic actuator with return springs PA-SA, 4M310-08 24V, LSU APL-510N-EX:

Nominal diameter DN, mm 40 - 300
Working pressure PN, bar 16
Working medium temperature t, ⁰C -20 to +90
Working medium water, mineral oils, hydrocarbons, oils, fats
Flow direction double-sided
Connection to pipeline interflanged
Body material cast iron GGG50

Butterfly valves WBV1432E-2W-Fb-H, body material - cast iron GGG50, disk material - stainless steel AISI 316L, seal - EPDM, with pneumatic actuator with return springs PA-SA, 4M310-08 24V, LSU APL-510N-EX





Dimensions and dimensions of butterfly valves Elephant WBV1432E-2W-Fb-H, body material - cast iron GGG50, disk material - stainless steel AISI 316L, seal - EPDM, with pneumatic actuator with return springs PA-SA, 4M310-08 24V, LSU APL-510N-EX:

DN A B C ØD d G CH (rod)
mm
40 105 55 33 75 10 30 9x9
50 161 80 43 84.5 10 30 9x9
65 175 89 45 104.5 10 30 9x9
80 181 95 45 123.5 10 30 9x9
100 200 114 52 139.5 10 30 11x11
125 213 127 55 169.5 10 30 14x14
150 226 139 55 196 10 30 14x14
200 260 175 60 247 12 30 17x17
250 292 203 68 304 12 40 22x22
300 337 242 78 358 12 40 22x22

Sketch Butterfly valves WBV1432E-2W-Fb-H, body material - cast iron GGG50, disk material - stainless steel AISI 316L, seal - EPDM, with pneumatic actuator with return springs PA-SA, 4M310-08 24V, LSU APL-510N-EX





Materials of butterfly valves Elephant WBV1432E-2W-Fb-H, body material - cast iron GGG50, disk material - stainless steel AISI 316L, seal - EPDM, with pneumatic actuator with return springs PA-SA, 4M310-08 24V, LSU APL-510N-EX:

№ Name Material
1 Body Cast iron GGG50
2 Disk 316L steel
3 Seat seal EPDM
4 Upper stem 316L steel
5 Lower stem 316L steel
6, 11 Retaining ring AISI 201 steel
7 Duster NBR
8 Stem gasket NBR
9 Shaft gasket AISI 201 steel
10 Plug plastic

Sketch of parts and materials Butterfly valves WBV1432E-2W-Fb-H, body material - cast iron GGG50, disk material - stainless steel AISI 316L, seal - EPDM, with pneumatic actuator with return springs PA-SA, 4M310-08 24V, LSU APL-510N-EX





Technical data of SA pneumatic actuators with return springs:

Type of pneumatic actuator SA - with return springs
Nominal pressure PN, bar 12
Working pressure, bar 2...8
Working medium filtered compressed air
Maximum particle diameter of the working medium, µm2 ≤30
Ambient temperature, ⁰C -20 to +80
Swivel angle, ° 0 - 90
Swivel angle adjustment, % ±5
Position indicator open/closed
Top connection standard NAMUR
Air connection standard NAMUR
Average life, cycles closed/open 70 000 (for non-aggressive media and medium pressure and temperature values)


SA pneumatic actuators rotary with return springs




Dimensions and mounting dimensions of SA pneumatic actuators with return springs:

Model A, mm B, mm C, mm D, mm E, mm F, mm G, mm H, mm
PA-x-052 30 41,5 65,5 72 92 65 30 80
PA-x-065 36 47 81 88 108 72 30 80
PA-x-083 46 57 98,5 108,7 128,7 92 30 80
PA-x-105 57,5 64 122,5 133 153 109,5 30 80
PA-x-130 67,5 74,5 145,5 155 185 127,5 30 130
PA-x-140 75 77 161 172 202 137,5 30 130
PA-x-160 87 87 184 197 227 159 30 130
PA-x 210 113 113 235,5 255 285 210 30 130
PA-x-270 147 147 299 326 356 273 30 130
PA-x-300 162 174 330 350 380 312 30 130
PA-x-350 190 195 483 410 440 365 30 130



Model A, mm B, mm C, mm D, mm E, mm F, mm G, mm H, mm
PA-x-052 30 41,5 65,5 72 92 65 30 80
PA-x-065 36 47 81 88 108 72 30 80
PA-x-083 46 57 98,5 108,7 128,7 92 30 80
PA-x-105 57,5 64 122,5 133 153 109,5 30 80
PA-x-130 67,5 74,5 145,5 155 185 127,5 30 130
PA-x-140 75 77 161 172 202 137,5 30 130
PA-x-160 87 87 184 197 227 159 30 130
PA-x 210 113 113 235,5 255 285 210 30 130
PA-x-270 147 147 299 326 356 273 30 130
PA-x-300 162 174 330 350 380 312 30 130
PA-x-350 190 195 483 410 440 365 30 130

Sketch of dimensions of SA pneumatic actuators with return springs





Materials of parts of SA pneumatic actuators with return springs:

№ Part name Material
1 Indicator screw ABS plastic
2 Position indicator ABS plastic
3 Spring clip stainless steel 304
4 Metal washer stainless steel 304
5 Pressure washer engineering plastic
6 Housing hard anodized extruded aluminum alloy
7 Pressure washer engineering plastic
8 Limiter alloy steel
9 Shaft sealing ring upper NBR
10 Upper shaft sliding ring engineering plastic
11 Shaft nickel plated alloy steel
12 Shaft sliding ring lower engineering plastic
13 Shaft O-ring lower NBR
14 Plug NBR
15 Seal ring of adjusting screws NBR
16 Washer of adjusting screw stainless steel 304
17 Lock nut of adjusting screw stainless steel 304
18 Adjusting screw stainless steel 304
19 Piston die-cast aluminum alloy
20 Piston guide plate engineering plastic
21 Piston sliding ring engineering plastic
22 Piston O-ring NBR
23 Spring set spring steel
24 Cover O-ring NBR
25 End cap cast aluminum with polyester coating
26 Cover screw stainless steel 304
27 Stop screw stainless steel 304
28 Adapter carbon steel

Material sketch of SA pneumatic actuators with return springs





Technical characteristics of the pneumatic valve 4m310-08 24V:

Design spool type
Nominal pressure PN, MPa (kg/cm2) 1,2 (12)
Working pressure, bar 1,5...8
Working medium filtered compressed air
Ambient temperature t, ⁰C +5 to +50
Response frequency 5 cycles/s
Manual duplication is
Degree of protection IP 65
Mounting through holes in the housing
Enclosure material anodized aluminum
Response time 0.05 sec.





Characteristics of limit switch unit APL-510N-EX:

Parameter Significance
Enclosure all-weather IP67/ NEMA4 4X,7,9
explosion-proof E EX d IIC T6
Compatible devices quarter-turn pneumatic actuators;
- any actuators with shaft rotation by 90
Full rotation angle 90°
Cable glands 2 x NPT 3/4”
Electrical connection screw terminals 8 points (0.08 - 2.5) mm2
Cable gland thread 2 x NPT 3/4”
Type of visual indicator two-color hemisphere: OPEN (Open) - yellow CLOSED (Closed) - red
Switches/sensors two mechanical switches two proximity sensors
Rated voltage, V 250
Rated current, A 16
Permissible ambient temperature, °C -20 to +66
Average life, cycles 10 000 000
Weight, kg 1.8

Specifications
  • Country of origin
    China
  • Body material
    cast iron GGG50
  • Maximum allowable temperature
    120 °C
  • Connection type
    compact flanged
  • Control type
    Pneumatic actuator
  • Nominal pressure
    16 bar
  • Type of seal
    EPDM
  • Disc material
    stainless steel AISI 316L
  • Explosion-proof
    Yes
  • Torque
    20 Nm
  • Manual override
    No
  • Limit switches
    Yes
  • Feedback sensor
    Limit switches
  • Supply voltage
    24 V
  • Type of pneumatic actuator
    with return springs
  • Angle of rotation
    90°
