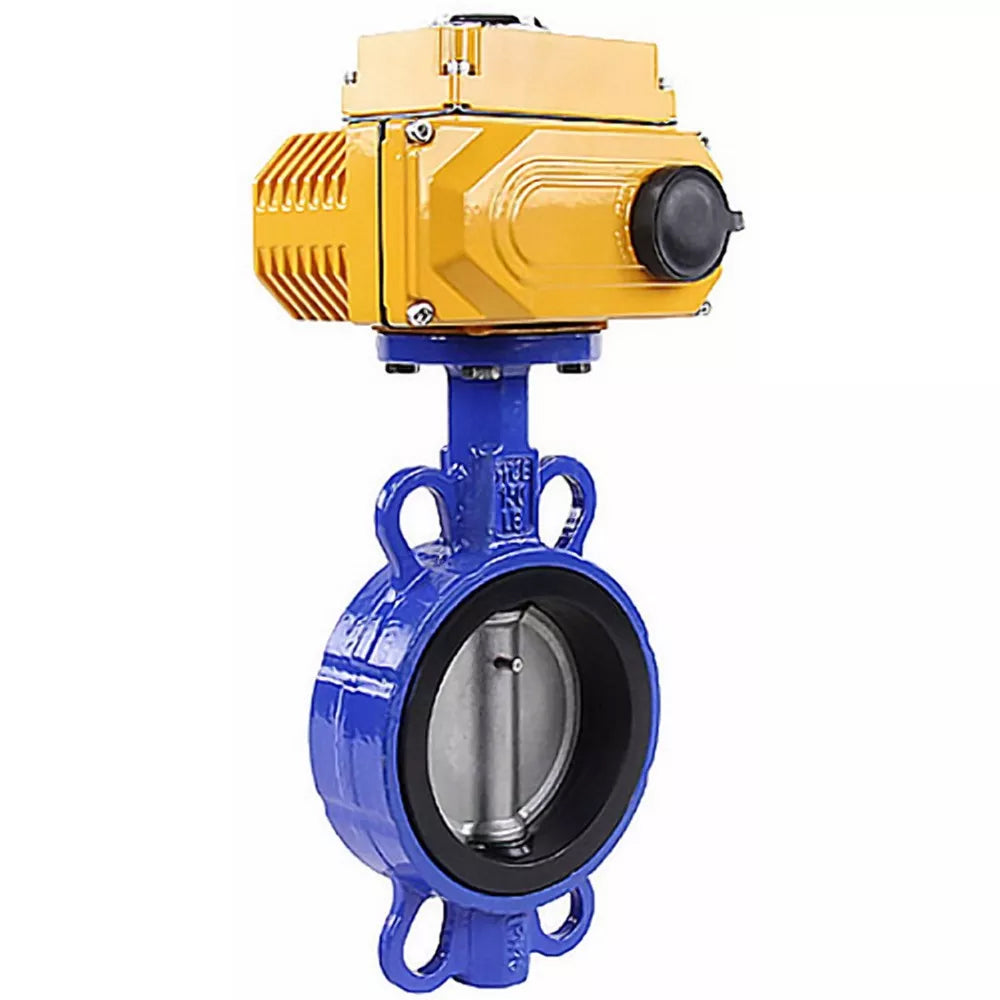

Water Butterfly Valve Elephant WBV1432E-2W-Fb-H, body material - cast iron GGG50, disk material - stainless steel AISI 316L, seal - EPDM, with electric actuator QT-N-EM-A1-220VAC-U1 220V (4-20mA)

€600,21
Tax included Shipping calculated at checkout.

Water Butterfly Valve Elephant WBV1432E-2W-Fb-H, body material - cast iron GGG50, disk material - stainless steel AISI 316L, seal - EPDM, with electric actuator QT-N-EM-A1-220VAC-U1 220V (4-20mA) - DN100 QT-008 / 16 bar is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Butterfly valves WBV1432E-2W-Fb QT-N-EM-A1-220VAC-U1 are designed for use as shut-off or regulating valves for flow control in heat and water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.
Butterfly valves should be installed only between collar flanges (type 11, row 1, version B according to GOST 33259).





Technical parameters of Elephant WBV1432E-2W-Fb-H butterfly valves, body material - cast iron GGG50, disk material - stainless steel AISI 316L, seal - EPDM, with electric actuator QT-N-EM-A1-220VAC-U1 220V (4-20mA):

Nominal diameter DN, mm 40 - 300
Working pressure PN, bar 16
Working medium temperature t, ⁰C -20 to +90
Working medium water, mineral oils, hydrocarbons, oils, fats
Flow direction double-sided
Connection to pipeline interflanged
Body material cast iron GGG50

Butterfly valves WBV1432E-2W-Fb-H, body material - cast iron GGG50, disk material - stainless steel AISI 316L, seal - EPDM, with electric actuator QT-N-EM-A1-220VAC-U1 220V (4-20mA)





Dimensions and dimensions of butterfly valves Elephant WBV1432E-2W-Fb-H, body material - cast iron GGG50, disk material - stainless steel AISI 316L, seal - EPDM, with electric actuator QT-N-EM-A1-220VAC-U1 220V (4-20mA):

DN A, mm B, mm C, mm ØD, mm d, mm G, mm CH (stem) ISO Torque, Nm Weight, kg
40 105 55 33 75 10 30 9x9 F05 20 1.6
50 161 80 43 84.5 10 30 9x9 F05 23 2.2
65 175 89 45 104.5 10 30 9x9 F05 29 2.5
80 181 95 45 123.5 10 30 9x9 F05 39 2.9
100 200 114 52 139.5 10 30 11x11 F07 59 3.8
125 213 127 55 169.5 10 30 14x14 F07 84 5.8
150 226 139 55 196 10 30 14x14 F07 86 7.4
200 260 175 60 247 12 30 17x17 F10 220 12.5
250 292 203 68 304 12 40 22x22 F10 350 18.9
300 337 242 78 358 12 40 22x22 F10 420 27

Water Butterfly Valve Elephant WBV1432E-2W-Fb-H, body material - cast iron GGG50, disk material - stainless steel AISI 316L, seal - EPDM, with electric actuator QT-N-EM-A1-220VAC-U1 220V (4-20mA)

Sketch Butterfly valves WBV1432E-2W-Fb-H, body material - cast iron GGG50, disk material - stainless steel AISI 316L, seal - EPDM, with electric actuator QT-N-EM-A1-220VAC-U1 220V (4-20mA)





Materials of butterfly valves Elephant WBV1432E-2W-Fb-H, body material - cast iron GGG50, disk material - stainless steel AISI 316L, seal - EPDM, with electric actuator QT-N-EM-A1-220VAC-U1 220V (4-20mA):

№ Name Material
1 Body Cast iron GGG50
2 Disk 316L steel
3 Seat seal EPDM
4 Upper stem 316L steel
5 Lower stem 316L steel
6, 11 Retaining ring AISI 201 steel
7 Duster NBR
8 Stem gasket NBR
9 Shaft gasket AISI 201 steel
10 Plug plastic

Water Butterfly Valve Elephant WBV1432E-2W-Fb-H, body material - cast iron GGG50, disk material - stainless steel AISI 316L, seal - EPDM, with pneumatic actuator double action PA-DA, 4M310-08 220V, BKV APL-510N-EX

Sketch of parts and materials Butterfly valves WBV1432E-2W-Fb-H, body material - cast iron GGG50, disk material - stainless steel AISI 316L, seal - EPDM, with electric actuator QT-N-EM-A1-220VAC-U1 220V (4-20mA)

Specifications
  • Country of origin
    China
  • Body material
    cast iron GGG50
  • Maximum allowable temperature
    120 °C
  • Connection type
    compact flanged
  • Control type
    Electric actuator
  • Nominal pressure
    16 bar
  • Type of seal
    EPDM
  • Disc material
    stainless steel AISI 316L
  • Actuator cycle time
    30 sec.
  • Explosion-proof
    No
  • Thermal protection
    Yes
  • Manual override
    Hexagon
  • Limit switches
    Yes
  • Type of electric actuator
    Quarter-turn
  • Feedback sensor
    4-20 mA
  • Control signal
    4-20 мА
  • Rated current consumption
    0.25 A
  • Supply voltage
    220 V
  • Angle of rotation
    90°
