Elephant  |  SKU: D050-26263

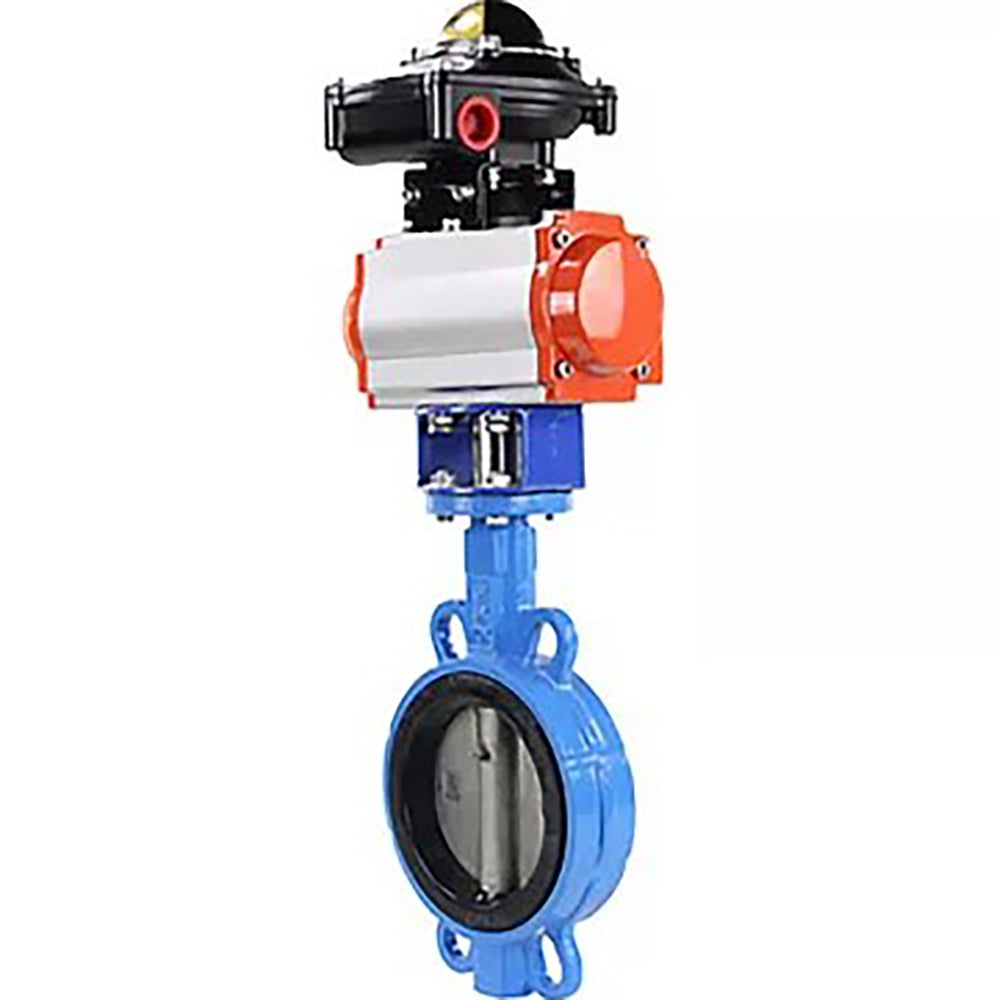

Water Butterfly Valve Elephant WBV1432E-2W-Fb body material - Cast iron GGG50, disk material - Stainless steel aisi 316l, seal - EPDM with double-acting pneumatic actuator DA and limit switch block APL-510N-EX

€209,17
Tax included Shipping calculated at checkout.

Water Butterfly Valve Elephant WBV1432E-2W-Fb body material - Cast iron GGG50, disk material - Stainless steel aisi 316l, seal - EPDM with double-acting pneumatic actuator DA and limit switch block APL-510N-EX - DN50 / 16 bar is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Butterfly valve Elephant is designed for use as shut-off or regulating valves for flow control in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.
DA pneumatic actuators are designed to automate the process of controlling industrial shut-off valves - gates, ball valves. Elephant pneumatic actuators are designed for operation both indoors and outdoors. All internal and external parts are anticorrosive coated.
Elephant APL-510N-EX limit switch unit is an electrical device designed to open and close the working circuit and to visualize the positions of the shut-off valve body. In a sealed box, as a rule, there are two mechanical switches designed for voltage up to 250 V, which monitor the position of the actuator stem and signalize in extreme positions. They are mounted on top of the actuator surface. In the upper part of the limit switch unit there is a two-color visual indicator hemisphere. If the connected pipe fitting is closed, only the red part of the hemisphere labeled CLOSED is visible; if it is open, only the yellow part labeled OPEN is visible. This visual indicator is clearly visible from a distance, which simplifies the inspection of the equipment, and the color difference between the open and closed position reduces the probability of misinterpretation of information.





Technical parameters of water butterfly valve Elephant WBV1432E-2W-Fb body material - Cast iron GGG50, disk material - Stainless steel aisi 316l, seal - EPDM with double-acting pneumatic actuator DA and limit switch block APL-510N-EX:

Parameter Value
Nominal diameter DN, mm 40 – 300
Working pressure PN, bar 16
Operating medium temperature t, ⁰C from -20 to +90
Operating medium water, mineral oils, hydrocarbons, oils, fats
Flow direction two-way
Pipeline connection interflanged
Body material cast iron GGG50


Materials of water butterfly valve Elephant WBV1432E-2W-Fb body material - Cast iron GGG50, disk material - Stainless steel aisi 316l, seal - EPDM with double-acting pneumatic actuator DA and limit switch block APL-510N-EX:

№ Name Material
1 Body Cast iron GGG50
2 Disk steel 316L
3 Seat seal EPDM
4 Upper stem steel 316L
5 Lower stem steel 316L
6, 11 Retaining ring steel AISI 201
7 Duster NBR
8 Stem gasket NBR
9 Insert steel AISI 201
10 Cork plastic





Overall and installation dimensions of water butterfly valve Elephant WBV1432E-2W-Fb body material - Cast iron GGG50, disk material - Stainless steel aisi 316l, seal - EPDM with double-acting pneumatic actuator DA and limit switch block APL-510N-EX:

DN A B C E G L M
40 298.4 55 72 153 71 33 121.4
50 371.4 80 89 174 82 43 121.4
65 385.4 89 89 174 82 45 121.4
80 391.4 95 89 174 82 45 121.4
100 430.4 114 109 216 101 52 121.4
125 443.4 127 109 216 101 55 121.4
150 481.4 139 134 279 119 55 121.4
200 538.4 175 157 308 137.5 60 121.4
250 587.4 203 174 405 153 68 121.4
300 632.4 242 174 405 153 78 121.4





Technical characteristics of DA pneumatic actuators:

Design Double-acting
Nominal pressure PN, bar 12
Operating pressure, bar 2…8
Operating medium Filtered compressed air or non-aggressive gases, oils
Maximum particle diameter less than 30 µm2
Operating temperature t, ⁰C • from -20 to +80
• from -40 to +80 (low-temperature version)
• from -20 to +160 (in dry air)
Adjustment range ± 5° for rotation at 0° and 90°
Manual duplication yes
Position indicator open/closed
Operating environment indoors and outdoors. (All internal and external parts have an anti-corrosion coating)




Pneumatic actuator component materials Elephant DA:

№ Name Material
1 Body extruded aluminum
2 Side caps cast aluminum
3 Gear stainless steel
4 Piston steel/aluminum
5 Plugs stainless steel
6 Piston ring NBR
7 Springs spring steel
8 Piston bearing engineering plastic
9 Piston ring NBR
10 Plug NBR
11 Thrust ring engineering plastic
12 Ring engineering plastic
13 Washer stainless steel
14 Spring clip stainless steel
15 Indicator plastic
16 Indicator body plastic
17 Bearing engineering plastic
18 Cam steel
19 Bearing NBR
20 Bearing engineering plastic
21 Bearing engineering plastic
22 O-ring NBR
23 O-ring NBR
24 Bearing stainless steel
25 Adjustment nut stainless steel
26 Adjustment screw stainless steel
27 Bushing aluminum





Characteristics of limit switch unit APL-510N-EX:

Parameter Value
Body weatherproof IP67/ NEMA4 4X,7,9
explosion-proof E EX d IIC T6
Compatible devices - quarter-turn pneumatic actuators;
- any actuators with a 90° shaft rotation
Full swivel angle 90°
Cable glands 2 x NPT 3/4”
Electrical connection Screw terminal clamps, 8 points (0.08 – 2.5 mm²)
Cable entry thread 2 x NPT 3/4”
Type of visual indicator two-color hemisphere: OPEN (Open) - yellow CLOSED (Closed) - red
Switches/sensors two mechanical switches two proximity sensors
Nominal voltage, V 250
Nominal current, A 16
Permissible ambient temperature, °С from -20 to +66
Average life, cycles 10 000 000
Weight, kg 1.8



Specifications
  • Country of origin
    China
  • Body material
    Cast iron GGG50/EN-GJS-500-7
  • Maximum allowable temperature
    120 °C
  • Connection type
    Compact flanged
  • Control type
    Pneumatic actuator
  • Nominal pressure
    16 bar
  • Type of seal
    EPDM
  • Disc material
    Stainless steel AISI 316L/1.4404
  • Valve feedback
    Limit switches
  • Explosion-proof
    Yes
  • Torque
    59 Nm
  • Pneumatic actuator
    No
  • Manual override
    No
  • Limit switches
    Yes

Reviews (0)

Payment & Security

Payment methods

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    Available Variants

    SKUConnection sizePressurePrice AvailabilityQuantity Add to cart
    D050-26263DN5016 bar €209,17 0 in stock
    D050-26265DN8016 bar €223,92 0 in stock
    D050-26266DN10016 bar €255,67 0 in stock
    D050-26267DN12516 bar €278,39 0 in stock
    D050-26268DN15016 bar €320,81 0 in stock
    D050-26269DN20016 bar €464,22 0 in stock
    D050-26270DN25016 bar €595,27 0 in stock
    D050-26271DN30016 bar €745,78 0 in stock
    D050-26262DN4016 bar €185,22 0 in stock
    D050-26264DN6516 bar €216,40 0 in stock
