Water Butterfly Valve Elephant WBV1413E-2W-Fb-H, wafer, body - cast ir
Elephant  |  SKU: D050-62380

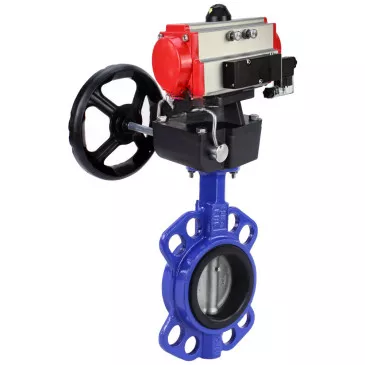

Water Butterfly Valve Elephant WBV1413E-2W-Fb-H, wafer, body - cast iron GGG50, disc - cast iron GGG40, seal - EPDM, with pneumatic drive PA-DA, with pneumatic distributor 4V320-10 220V, manual override MON

€236,85
Tax included Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Elephant WBV1413E-2W-Fb-H butterfly valves are designed for use as shut-off or regulating valves for flow control in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.

Pneumatic valve Elephant 4V320-10 220V is used to change the direction, start, stop the compressed air flow in the pneumatic system depending on the external control action.







Technical parameters Rotary disc gate valves Elephant WBV1413E-2W-Fb-H, wafer, body - cast iron GGG50, seal - EPDM

Parameter Value
Nominal Pressure PN, bar 16
Pipeline Connection Wafer Type
Valve Type Butterfly Valve
Control Type Pneumatic Actuator
Country of Manufacture China





Dimensions and dimensions of Butterfly valves Elephant WBV1413E-2W-Fb-H, wafer, body - cast iron GGG50, seal - EPDM

DN L D H F L1 E
40 43 75 193 98 153 120
50 43 84,5 193 115 174 120
65 46 104,5 211 115 174 120
80 46 123,5 236 135 216 133
100 52 139,5 261 135 216 133
125 56 169,5 304 135 216 133
150 56 196 335 160 279 180
200 60 247 393 193 308 180
250 68 304 470 210 405 195
300 78 358 634 210 405 195

Sketch of rotary disc gate valves Elephant WBV1413E-2W-Fb-H, wafer, body - cast iron GGG50, seal - EPDM





Table of parts and materials for butterfly disc gate valves Elephant WBV1413E-2W-Fb-H, wafer, body - cast iron GGG50, seal - EPDM

№ Part Name Material
1 Body Cast Iron GGG50
2 Disc High-Strength Cast Iron GGG40
3 Seat Seal EPDM
4 Upper Shaft Steel AISI 420
5 Lower Shaft Steel AISI 420
6,11 Retaining Ring Steel AISI 201
7 Dust Cover NBR
8 Shaft Gasket NBR
9 Insert Steel AISI 201
10 Plug Plastic
Sketch of parts and materials of butterfly disc gate valves Elephant WBV1413E-2W-Fb-H, wafer, body - cast iron GGG50, seal - EPDM





Technical parameters of pneumatic valve Elephant 4V320-10 220V

Name Value
Type of Pneumatic Valve Spool
Pneumatic Valve Model 4V320-10 220V
Operating Pressure, bar 1.5 ÷ 1.8
Supply Voltage, V 220 V
Actuation Frequency, cycles/sec 5



Specifications
  • Country of origin
    China
  • Body material
    Cast iron GGG50/EN-GJS-500-7
  • Maximum allowable temperature
    110 °C
  • Connection type
    compact flanged
  • Type of seal
    EPDM
  • Disc material
    Cast iron GGG40/EN-GJS-400-15

Reviews (0)

Documentation
nullPneumatic valve ELEPHANT 4V320-8 or 10 AC220V
nullButterfly valve Elephant WBV1413E-2W-Fb-H DN40-300
