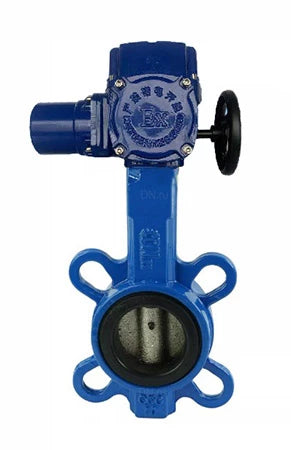

Water Butterfly Valve Elephant WBV1413E-2W-Fb-H DN40-300 16 bar, body
Elephant  |  SKU: D050-25167

Water Butterfly Valve Elephant WBV1413E-2W-Fb-H DN40-300 16 bar, body - cast iron GGG50, disc - cast iron GGG40, seal - EPDM, with 1/4-turn electric drive QT-N-M-O2-380VAC-U1 380V

€674,93
Tax included Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Elephant rotary disc valves are designed for use as shut-off or control valves for flow control in heating and water supply systems, as well as in technological processes in the food, chemical, oil and gas, pulp and paper, and other industries. Rotary valves should only be installed between collar flanges.

Elephant quarter-turn electric actuators are designed for remote and local control of shut-off pipeline valves with a quarter-turn shut-off mechanism. They are used in various sectors of the national economy: in the gas, oil, metallurgical, food industries, in housing and communal services, etc.





Technical data for valves Elephant WBV1413E-2W-Fb-H DN40-300 16 bar

Parameter Value
Nominal diameter DN, mm 40 – 300
Nominal pressure, MPa (kg/cm2) 1.6 (16)
Flow direction Double-sided
Maximum working fluid temperature t, ⁰C Up to +120
Valve tightness according to class A
Working fluid Cold and hot water, air free of oil and grease, stationary air conditioning, mildly aggressive environments, other environments neutral to the material
Control type Bare stem (without handle) / with handle / with electric drive / with gearbox





Materials of valve parts Elephant WBV1413E-2W-Fb-H DN40-300 16 bar

№ Name Material
1 Housing GGG50 cast iron
2 Cuff EPDM
3 Disc GGG40 cast iron
4 Rod SS 416/2Cr13 stainless steel
5 Pin AISI 316L stainless steel
6 Bushing NBR
7 Sealing ring NBR
8 Fixing plate Carbon steel
Sketch of valve detailing Elephant WBV1413E-2W-Fb-H DN40-300 16 bar





Overall and mounting dimensions of valves Elephant WBV1413E-2W-Fb-H DN40-300 16 bar

DN H, mm H1, mm L, mm Dм, mm Dk, mm D2, mm
DN40 146 74 43 73 75 50
DN50 146 74 43 73 84.5 50
DN65 156 80 46 86 104.5 65
DN80 163 100 46 103 123.5 80
DN100 180 116 52 131 139.5 100
DN125 189 123 56 155 169.5 125
DN150 206 137 56 183 196 150
DN200 232 165 60 235 247 200
DN250 275 203 68 286 304 250
DN300 314 235 78 338 358 300
Sketch of the shutters Elephant WBV1413E-2W-Fb-H DN40-300 16 bar





Specifications of Elephant QT-W (M) 380V electric drives

Model Torque,
Nm		 Cycle time,
seconds		 Power,
W
QT-W (M)-005 380V 50 30 25
QT-W (M)-010 380V 100 30 30
QT-W (M)-015 380V 150 30 40
QT-W (M)-020 380V 200 30 50
QT-W (M)-030 380V 300 30 60
QT-W (M)-040 380V 400 30 90
QT-W (M)-060 380V 600 30 120
QT-W (M)-120 380V 1200 30 180
QT-W (M)-180 380V 1800 30 250
QT-W (M)-300 380V 3000 60 370
QT-W (M)-500 380V 5000 60 550



Model Current,
A		 Weight,
kg		 Square rod size,
mm
QT-W (M)-005 380V 0,35 7,6 17x17
QT-W (M)-010 380V 0,48 7,8 17x17
QT-W (M)-015 380V 0,55 8 17x17
QT-W (M)-020 380V 0,65 12,7 22x22
QT-W (M)-030 380V 0,75 12,8 22x22
QT-W (M)-040 380V 0,95 13 22x22
QT-W (M)-060 380V 1,1 21,2 27x27
QT-W (M)-120 380V 1,3 23,2 27x27
QT-W (M)-180 380V 1,5 23,5 27x27
QT-W (M)-300 380V 1,6 37,5 36x36
QT-W (M)-500 380V 1,7 38 36x36



Connection diagram for Elephant QT-W (M) 380V electric drive

Specifications
  • Country of origin
    China
  • Body material
    Cast Iron
  • Maximum allowable temperature
    120 °C
  • Connection type
    Compact flanged
  • Control type
    Electric drive
  • Operating environment
    Water, Air, Slightly aggressive environment, Neutral environments
  • Applications
    Ventilation and stationary air conditioning, Water Supply, Heat Supply
  • Nominal pressure
    16 bar
  • Type of seal
    EPDM
  • Disc material
    Cast Iron
  • Limit switches
    Yes
