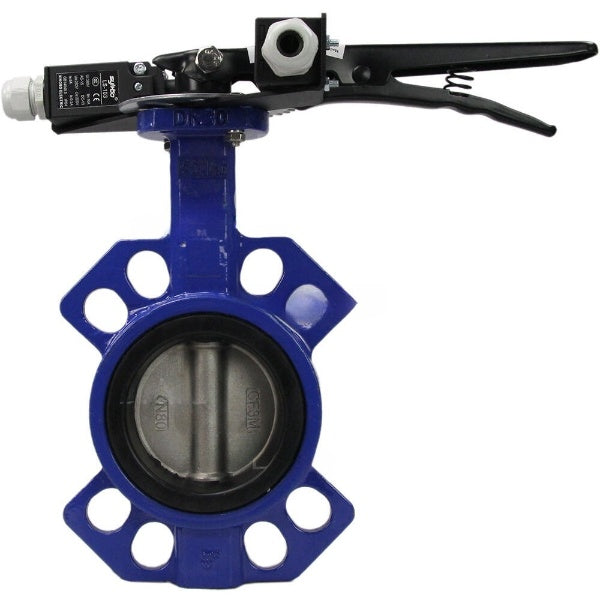

Water Butterfly Valve Elephant WBV1413E-2W-Fb-H, body material - Cast
Elephant  |  SKU: D050-44948

Water Butterfly Valve Elephant WBV1413E-2W-Fb-H, body material - Cast iron GGG50/EN-GJS-500-7, disk material - Cast iron GGG40/EN-GJS-400-15, seal - EPDM, handle, LSU LS-103

€69,80
Tax included Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

The butterfly valve is designed for use as shut-off or regulating valves for flow control in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.





Technical parameters of Water Butterfly Valve Elephant WBV1413E-2W-Fb-H, body material - Cast iron GGG50/EN-GJS-500-7, disk material - Cast iron GGG40/EN-GJS-400-15, seal - EPDM, handle, LSU LS-103:

Nominal diameter DN, mm 50 - 300
Nominal pressure PN, MPa (kg/cm2) 1,6 (16)
Flow direction double-sided
Ambient temperature t, ⁰C From -20 to +200: for VITON
Working medium VITON: mineral and vegetable oils, animal fats, greases and fuels, hot air, steam.
Connection to pipeline interflange

Butterfly valves WBV1413E-2W-Fb-H, body material - Cast iron GGG50/EN-GJS-500-7, disk material - Cast iron GGG40/EN-GJS-400-15, seal - EPDM, handle, LSU LS-103





Specifications of LS-103 250V 6A end sensors:

Characteristic Value
End sensor model LS-103
Rated voltage 250B
Maximum switched current 6A
Frequency 50 Hz
Contact configuration Instantaneous NC + NC/O
Ambient temperature -5℃ to +65℃
Degree of protection IP64
Enclosure material plastic
Head movement linear (plunger)
Permissible humidity 95%
Contact resistance 25 megohms (initial value)
Rated insulation resistance 100 MOhm (500V DC)
Cable gland max. Ø12 mm





Dimensions and dimensions of butterfly valves Elephant WBV1413E-2W-Fb-H, body material - Cast iron GGG50/EN-GJS-500-7, disk material - Cast iron GGG40/EN-GJS-400-15, seal - EPDM, handle, LSU LS-103:

DN A, mm B, mm C, mm ØD, mm Ød, mm G, mm CH, mm
40 105 55 33 75 10 30 9x9
50 161 80 43 84.5 10 30 9x9
65 175 89 45 104.5 10 30 9x9
80 181 95 45 123.5 10 30 9x9
100 200 114 52 139.5 10 30 11x11
125 213 127 55 169.5 10 30 14x14
150 226 139 55 196 10 30 14x14
200 260 175 60 247 12 30 17x17
250 292 203 68 304 12 40 22x22
300 337 242 78 358 12 40 22x22

Sketch Butterfly valves WBV1413E-2W-Fb-H, body material - Cast iron GGG50/EN-GJS-500-7, disk material - Cast iron GGG40/EN-GJS-400-15, seal - EPDM, handle, LSU LS-103





Overall and installation dimensions of end sensors LS-103 250V 6A:

Model A, mm B, mm C, mm D, mm E, mm
LS-103 30 30 53 30.5 24

Sketch of dimensions of LS-103 250V 6A limit sensors





Materials of butterfly valves Elephant WBV1413E-2W-Fb-H, body material - Cast iron GGG50/EN-GJS-500-7, disk material - Cast iron GGG40/EN-GJS-400-15, seal - EPDM, handle, LSU LS-103:

№ Part name Material
1 Body Cast iron GGG50
2 Disk High-strength cast iron GGG40
3 Seat seal EPDM
4 Upper stem AISI 420 steel
5 Lower stem AISI 420 steel
6, 11 Retaining ring AISI 201 steel
7 Duster NBR
8 Stem gasket NBR
9 Shaft gasket AISI 201 steel
10 Plug plastic

Specifications
  • Country of origin
    China
  • Body material
    Cast iron GGG50/EN-GJS-500-7
  • Maximum allowable temperature
    110 °C
  • Connection type
    compact flanged
  • Control type
    Handle
  • Operating environment
    Water, Air, Slightly Aggressive Environment
  • Applications
    Water Supply, Heating, Chemical Industry, Oil And Gas Industry, Food Industry, Pulp And Paper Industry
  • Nominal pressure
    16 bar
  • Type of seal
    EPDM
  • Coating type
    epoxy powder
  • Disc material
    Cast iron GGG40/EN-GJS-400-15
  • Limit switches
    Yes
