Water Butterfly Valve Elephant WBV1413E-2W-Fb-H, body material - cast
1 10
Elephant  |  SKU: D050-35064

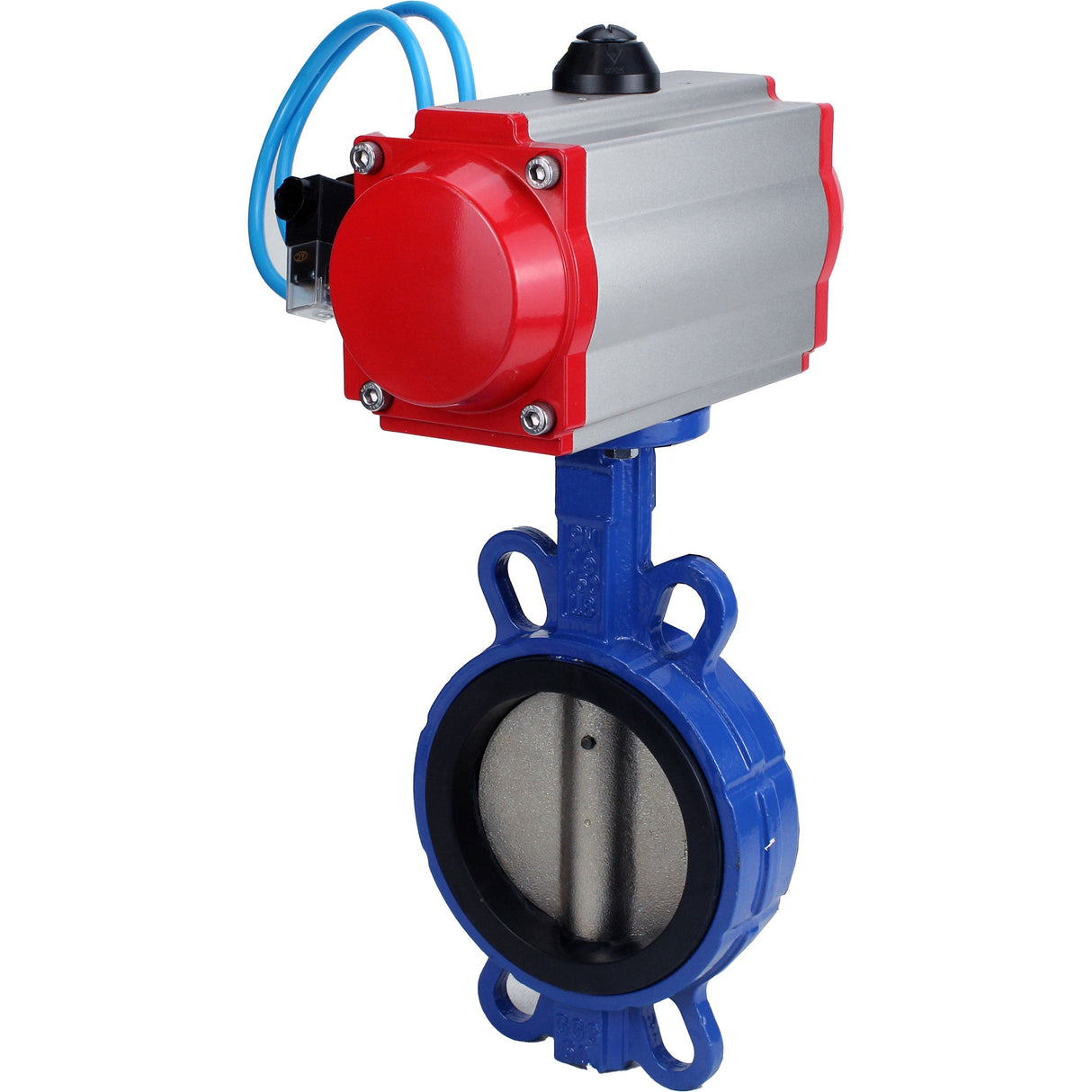

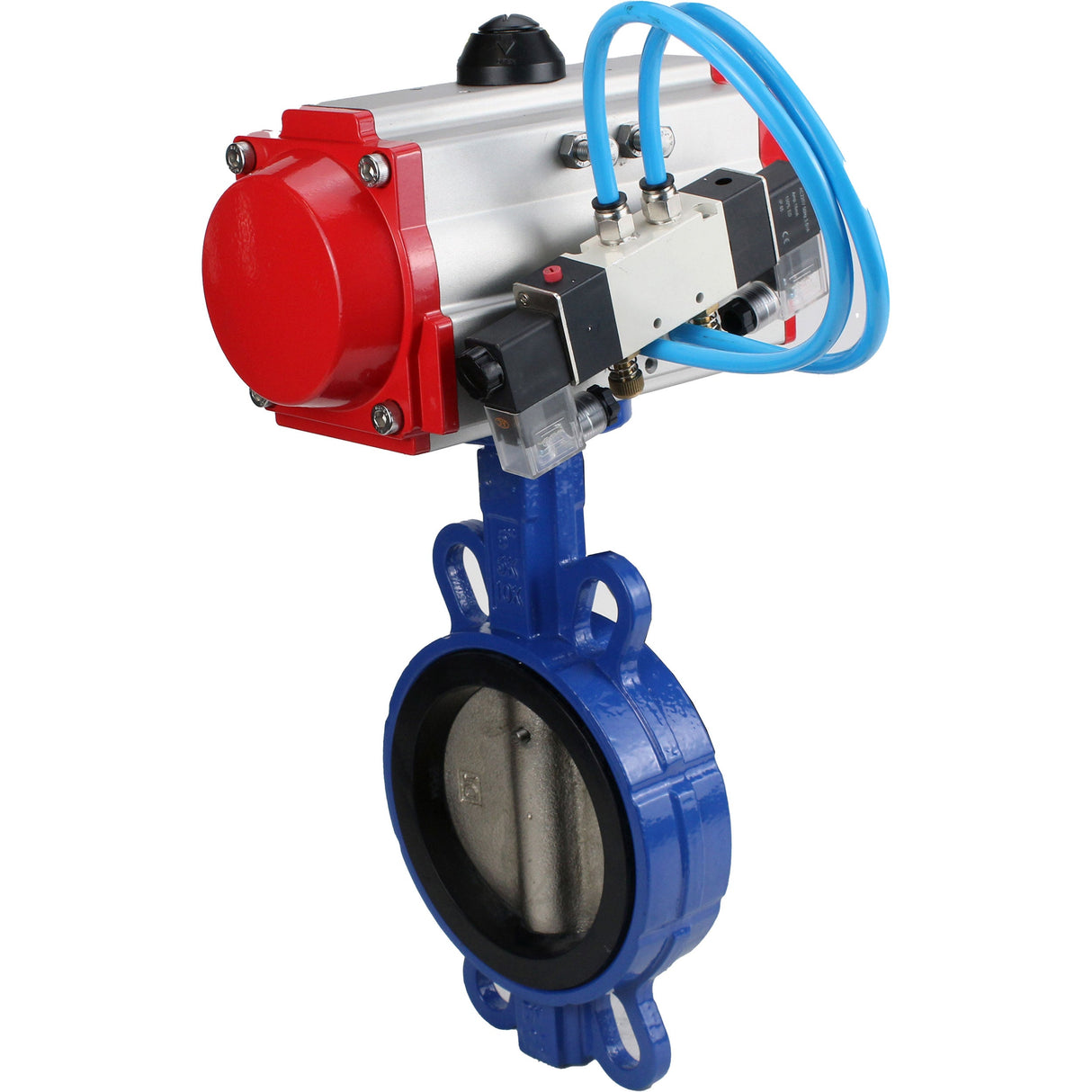

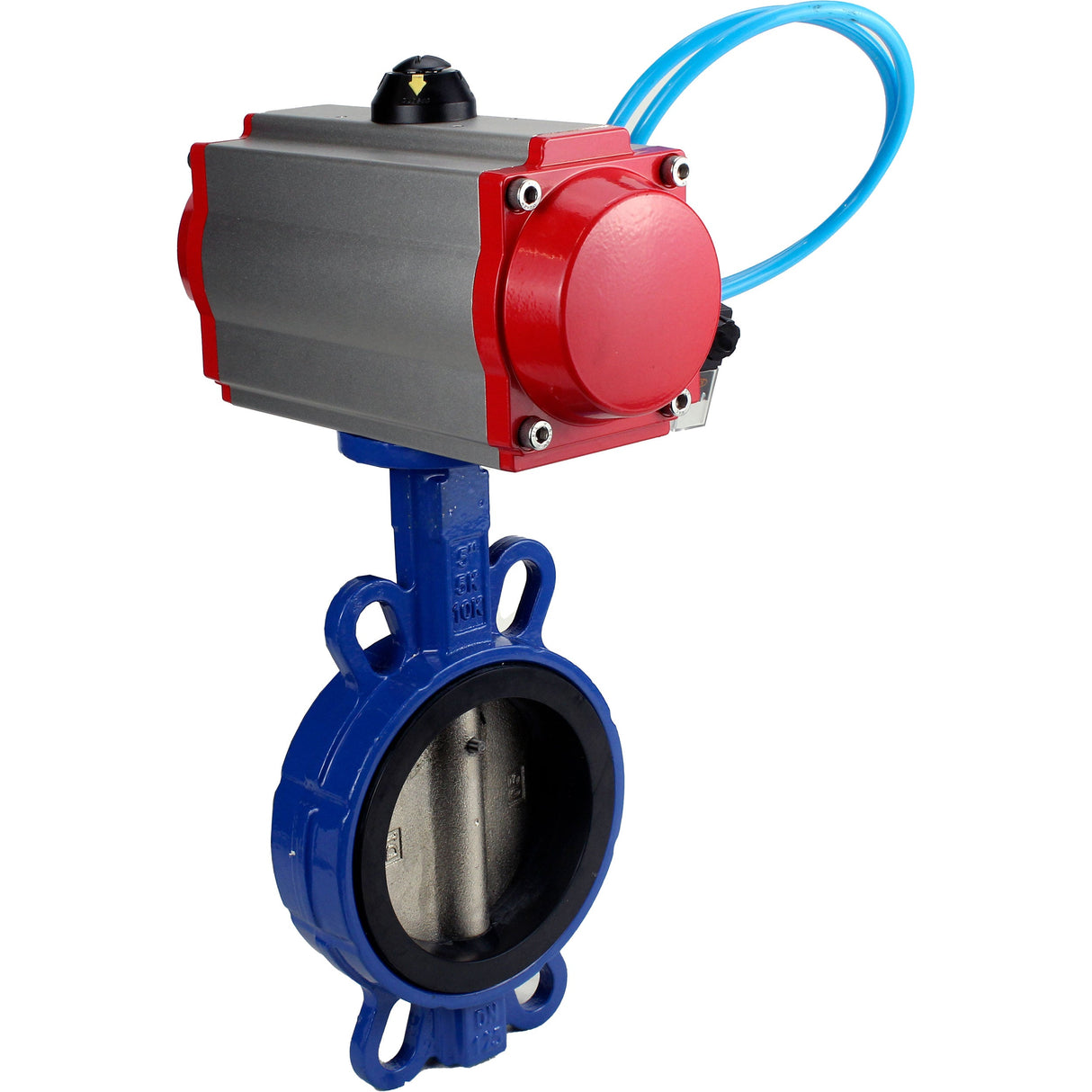

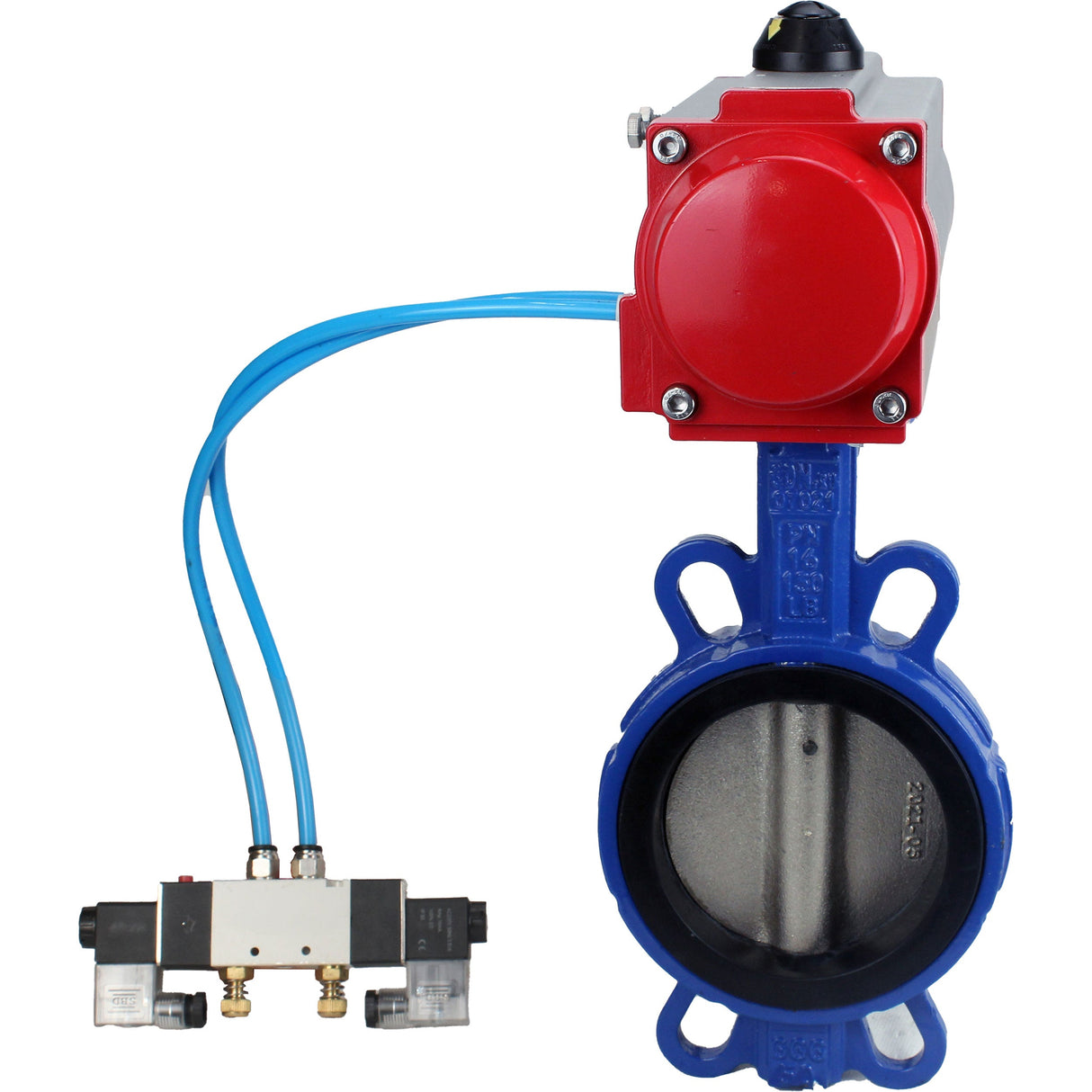

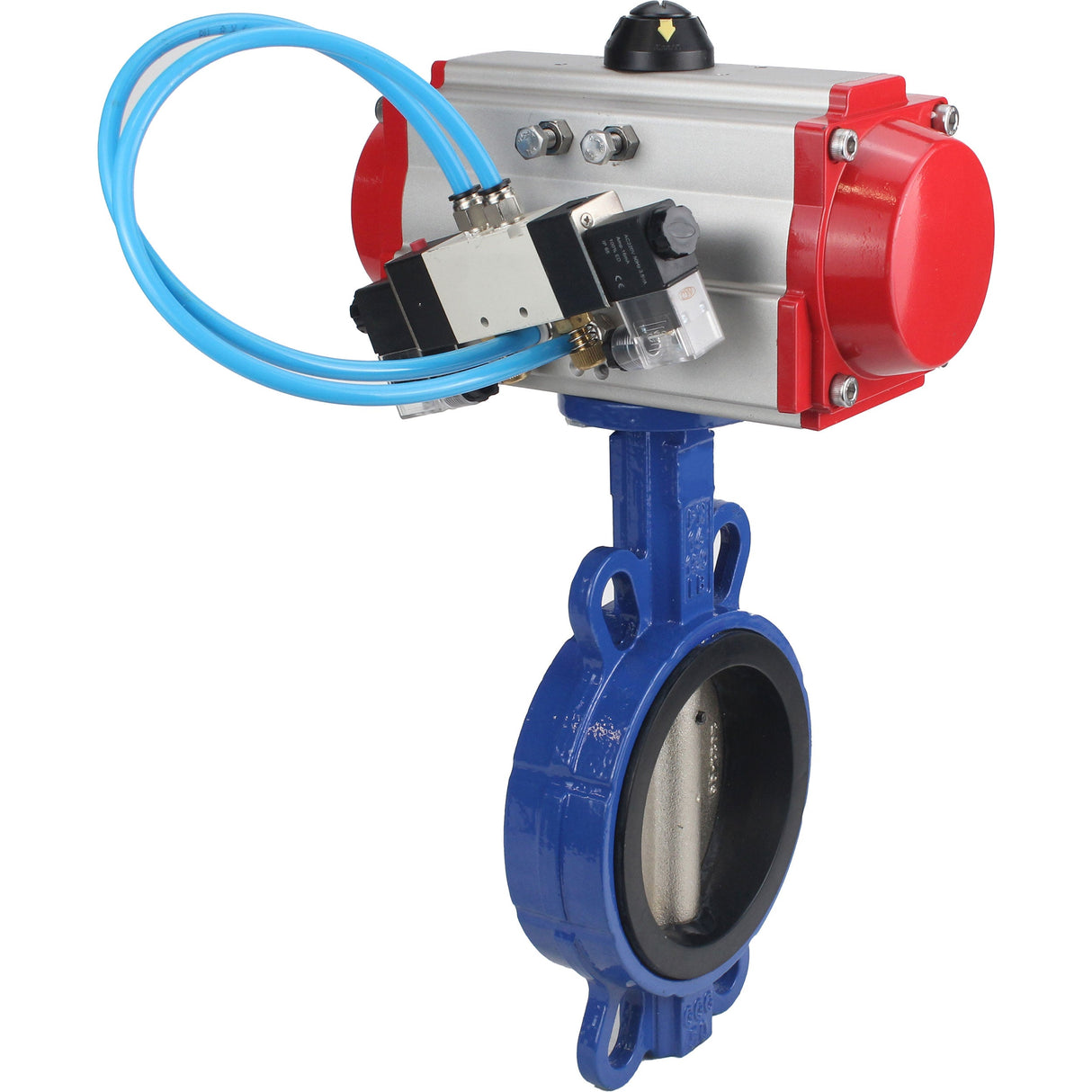

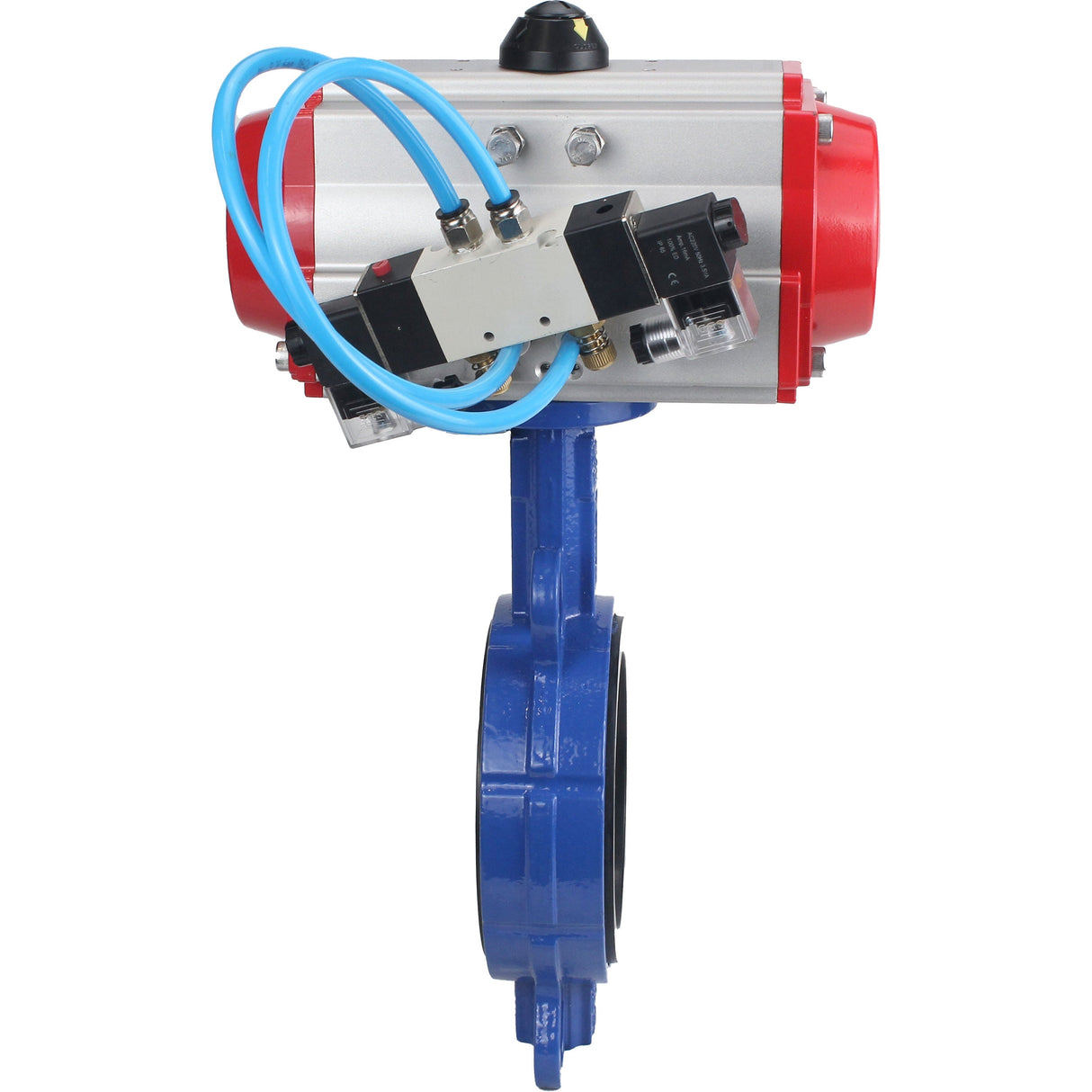

Water Butterfly Valve Elephant WBV1413E-2W-Fb-H, body material - cast iron GGG50, disk material - cast iron GGG40, seal - EPDM, with pneumatic actuator with return springs PA-SA, 4V320-08 220V

€441,07
Tax included Shipping calculated at checkout.

Water Butterfly Valve Elephant WBV1413E-2W-Fb-H, body material - cast iron GGG50, disk material - cast iron GGG40, seal - EPDM, with pneumatic actuator with return springs PA-SA, 4V320-08 220V - DN125 / 16 bar is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

The butterfly valve is designed for use as shut-off or regulating valves for flow control in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.

Pneumatic double-acting rotary actuators PA-DA and pneumatic rotary actuators with return spring PA-SA are designed for automation of industrial valve control process with maximum torque up to 2128 Nm.

The pneumatic valve is used to change the direction, start, stop the compressed air flow in the pneumatic system depending on the external control action.





Technical parameters of Elephant WBV1413E-2W-Fb-H, body material - cast iron GGG50, disk material - cast iron GGG40, seal - EPDM, with pneumatic actuator with return springs PA-SA, 4V320-08 220V:

Name Significance
Working pressure, bar 16
Working medium temperature, °C from -20 to 120
Application water supply, heating
Connection to pipeline interflanged
Gate type swivel disk
Control type pneumatic actuator
Manufacturer's country China
Butterfly valves WBV1413E-2W-Fb-H, body material - cast iron GGG50, disk material - cast iron GGG40, seal - EPDM, with pneumatic actuator with return springs PA-SA, 4V320-08 220V





Gate dimensions Elephant Water Butterfly Valve Elephant WBV1432E-2W-Fb-H

DN H H1 H2 L L1 ØDm ØDk D2
(flow section)
mm
40 146 74 25 43 216 73 75 50



DN H H1 H2 L L1 ØDm ØDk
mm
50 146 74 25 43 216 73 84.5
65 156 80 25 46 216 86 104.5
80 163 100 25 46 216 103 123.5
100 180 116 25 52 255 131 139.5
125 189 123 25 56 255 155 169.5
150 206 137 25 56 255 183 196
200 232 165 35 60 370 235 247
250 275 203 35 68 370 286 304
300 314 235 35 78 370 338 358

Sketch of gates Elephant Water Butterfly Valve Elephant WBV1432E-2W-Fb-H





Materials of parts of rotary disc valves Elephant Water Butterfly Valve Elephant WBV1432E-2W-Fb-H

№ Name Material
1 Body cast iron GGG50
2 Cuff EPDM
3 Disk cast iron GGG40
4 Stock stainless steel SS 416/2Cr13
5 Hairpin stainless steel AISI 316L
6 Sleeve NBR
7 Sealing ring NBR
8 Fixing plate carbon steel
9 Handle with lock carbon steel

Sketch of materials for rotary disc valves Elephant Water Butterfly Valve Elephant WBV1432E-2W-Fb-H



Technical data of SA pneumatic actuators

Design with return springs
Nominal pressure PN, bar 12
Working pressure, bar 2...8
Working medium Filtered compressed air or non-aggressive gases, oils
Maximum particle diameter less than 30 µm2
Operating temperature t, ⁰C - 20 to +80 - 40 to +80 (low temperature version) - 20 to +160 (in dry air)
Adjustment range ± 5 ° for rotation at 0 ° and 90 °
Manual override is
Position indicator open/closed
Operating environment indoors and outdoors. (All internal and external parts are anti-corrosion coated)





Materials of SA pneumatic actuator parts:

№ Name Material
1 Enclosure extruded aluminum
2 Side plugs cast aluminum
3 Gear stainless steel
4 Piston steel/aluminum
5 Plugs stainless steel
6 Piston ring NBR
7 Springs spring steel
8 Piston bearing engineering plastic
9 Piston ring NBR
10 Plug NBR
11 Thrust ring engineering plastic
12 Ring engineering plastic
13 Washer stainless steel
14 Spring clip stainless steel
15 Indicator plastic
16 Indicator housing plastic
17 Bearing engineering plastic
18 Cam steel
19 Bearing NBR
20 Bearing engineering plastic
21 Bearing engineering plastic
22 Sealing ring NBR
23 Sealing ring NBR
24 Bearing stainless steel
25 Adjustment nut stainless steel
26 Adjustment screw stainless steel
27 Sleeve aluminum

Material sketch of SA pneumatic actuator





Technical parameters of pneumatic valve 4V320-08 220V:

Name meaning
Type of pneumatic valve slide valve
Working pressure, bar 1.5 ÷ 8
Supply voltage, V 220 V
Total power, Va 4.5
Control double-sided electromagnetic
Frequency of operation, cycle/sec 5

Pneumatic valve 4V320-08 220V





Dimensions and dimensions of pneumatic valve 4V320-08 220V:

Pneumatic valve model 4V320-08
A, mm 71.9
B, mm 45
C, mm 94.4
D, mm 27
E, mm 69
F, mm 40
I, mm 24
K, mm 40
L, mm 188.8
M, mm 69.4
N, mm 50
O, mm 82.4
P, mm 24
S, mm 20
T, mm 6.5
U, mm 2.4
V, mm 4
H, mm 82.4

Sketch of dimensions and dimensions of pneumatic valve 4V320-08 220V

Specifications
  • Country of origin
    China
  • Body material
    cast iron GGG50
  • Maximum allowable temperature
    110 °C
  • Connection type
    compact flanged
  • Control type
    Pneumatic actuator
  • Nominal pressure
    16 bar
  • Type of seal
    EPDM
  • Coating type
    uncoated
  • Disc material
    cast iron GGG40
  • Torque
    59 Nm
  • Manual override
    No
  • Limit switches
    No
  • Feedback sensor
    No
  • Supply voltage
    220 V
  • Type of pneumatic actuator
    with return springs
  • Angle of rotation
    90°

Reviews (0)

Documentation
nullPneumatic valve ELEPHANT 4V320-8 or 10 AC220V
nullButterfly valve Elephant WBV1413E-2W-Fb-H DN40-300
nullPneumatic rotary actuator ELEPHANT PA-x-x double-acting and with return springs

Payment & Security

Payment methods

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    Available Variants

    SKUConnection sizePressurePrice AvailabilityQuantity Add to cart
    D050-35034DN10016 bar €288,82 Sold out
    D050-35064DN12516 bar €441,07 0 In stock
    D050-35094DN15016 bar €440,42 0 In stock
    D050-35124DN20016 bar €871,38 0 In stock
    D050-35154DN25016 bar €1.156,63 0 In stock
    D050-35183DN30016 bar €1.294,86 0 In stock
    D050-35212DN4016 bar €246,96 0 In stock
    D050-35243DN5016 bar €247,96 0 In stock
    D050-35272DN6516 bar €334,14 0 In stock
    D050-35301DN8016 bar €341,65 0 In stock
