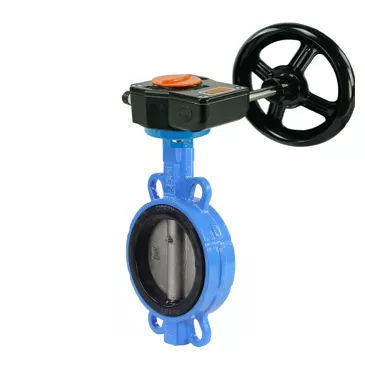

Water Butterfly Valve Elephant WBV1332N-2W-Fb-H body material - Cast i
Elephant  |  SKU: D050-26105

Water Butterfly Valve Elephant WBV1332N-2W-Fb-H body material - Cast iron GGG50, disk material - Stainless steel 316L, seal - NBR with gear Elephant HAM

€95,57
Tax included Shipping calculated at checkout.

Water Butterfly Valve Elephant WBV1332N-2W-Fb-H body material - Cast iron GGG50, disk material - Stainless steel 316L, seal - NBR with gear Elephant HAM - DN50 / 16 bar is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Butterfly valves are designed for use as shut-off or regulating valves for flow control in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.
Elephant gearbox allows to manually set the required positioning of the shut-off valve by a quarter turn, acting as an alternative to pneumatic, electric or hydraulic quarter-turn actuators.





Technical parameters water butterfly valve Elephant WBV1332N-2W-Fb-H body material - Cast iron GGG50, disk material - Stainless steel 316L, seal - NBR with gear Elephant HAM:

Nominal diameter DN, mm 40 - 300
Working pressure PN, bar 16
Working medium temperature t, ⁰C from -20 to +120
Operating medium water, mineral oils, hydrocarbons, oils, fats
Flow direction two-way
Control type handle
Pipeline connection interflanged
Body material cast iron GGG50
Service life, years 10





Dimensional parameters of water butterfly valve Elephant WBV1332N-2W-Fb-H body material - Cast iron GGG50, disk material - Stainless steel 316L, seal - NBR with gear Elephant HAM:

DN Dimensions
A, mm B, mm D1, mm L, mm I, mm R, mm D, mm
40 105 55 75 33 48 140 80
50 161 80 84.5 43 48 140 80
65 175 89 104.5 45 48 140 80
80 181 95 123.5 45 48 140 80
100 200 114 139.5 52 48 140 80
125 213 127 169.5 55 48 140 80
150 226 139 196 55 48 140 80
200 260 175 247 60 58 250 100
250 292 203 304 68 58 250 100
300 337 242 358 78 58 250 100







Materials of parts water butterfly valve Elephant WBV1332N-2W-Fb-H body material - Cast iron GGG50, disk material - Stainless steel 316L, seal - NBR with gear Elephant HAM:

№ Name Material
1 Body cast iron GGG50
2 Seat seal NBR
3 Disk stainless steel 316L
4 Stem stainless steel AISI 416
5 Pin stainless steel AISI 420
6 Bushing PTFE
7 O-ring NBR
8 Plate carbon steel






Main technical data and characteristics HAM RQNx-xZ-x gearboxes:

Ambient temperature, ⁰C -30 to +120
Enclosure protection class IP67
Application for various industries where fluid flow control is required
Mounting horizontal/vertical
Stroke adjustment 0 - 90° (adjustable ±5°)
Connection standard ISO 5211

HAM gearboxes





Basic materials of HAM gearbox components:

№ Name Material
1 Bolt stainless steel 304
2 Index ABS plastic
3 Cover aluminum alloy
4 Sealing ring NBR70
5 Pin black steel
6 Worm gear ductile iron
7 Seal NBR70
8 Housing aluminum alloy
9 Adjusting bolt black steel
10 Gasket stainless steel 304
11 Adjusting nut stainless steel 304
12 Nut cover NBR70
13 Bearing powder steel
14 Worm shaft steel 45
15 Seal NBR70
16 Drive shaft stainless steel 304
17 Handwheel polyester coated carbon steel
18 Pin black steel

HAM sketch RQNx-xZ-x





Overall and mounting dimensions of HAM RQNx-xZ-x gearboxes:

Model HAM
RQN1-180Z-T40		 HAM
RQN2-300Z- T37		 HAM
RQN3-540Z- T36		 HAM
RQN4-675Z- T36		 HAM
RQN5-1500Z- T50
D, mm 80 100 120 142 175
D1, mm 70 90 102 125 140
D2, mm 50 70 70 102 102
n-M1 4-M6x10 4-M8x12 4-M8x10 4-M8x10 4-M8x10
n-M2 4-M8x12 4-M10x12 4-M10x15 4-M12x18 4-M16x24
S, mm 17x17 17x17 22x22 24x24 27x27
L, mm 115 130 150 180 220
L1, mm 50 58 65 80 95
L2, mm 42 50 60 60 78
H, mm 48 58 58 74 84
H1, mm 19 18 18 21 51
d1, mm 20 20 20 20 25
L3, mm 160 160 215 225 325
W, mm 140 200 250 300 400

HAM sketch RQNx-xZ-x





Technical data of HAM RQNx-xZ-x gearboxes:

Model HAM
RQN1-180Z-T40		 HAM
RQN2-300Z- T37		 HAM
RQN3-540Z- T36		 HAM
RQN4-675Z- T36		 HAM
RQN5-1500Z- T50
Gear ratio 40:1 37:1 36:1 36:1 50:1
Torque, Nm 180 300 540 675 1500
ISO flange type F05/F07 F07/F09 F07/F10 F10/F12 F10/F14
Weight, kg 1.2 2

Specifications
  • Country of origin
    China
  • Body material
    Cast iron GGG50/EN-GJS-500-7
  • Maximum allowable temperature
    120 °C
  • Connection type
    Compact flanged
  • Control type
    Gear
  • Nominal pressure
    16 bar
  • Type of seal
    NBR
  • Disc material
    Stainless steel AISI 316L/1.4404
  • Explosion-proof
    No
  • Thermal protection
    No
  • Torque
    68 Nm
  • Pneumatic actuator
    No
  • Manual override
    Yes
  • Limit switches
    No

Reviews (0)

Documentation
nullQuarter turn gearbox ELEPHANT HAM RQNx-xZ-x

Payment & Security

Payment methods

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    Available Variants

    SKUConnection sizePressurePrice AvailabilityQuantity Add to cart
    D050-26105DN5016 bar €95,57 0 In stock
    D050-26107DN8016 bar €114,27 Sold out
    D050-26108DN10016 bar €123,60 Sold out
    D050-26109DN12516 bar €139,23 Sold out
    D050-26110DN15016 bar €161,56 Sold out
    D050-26111DN20016 bar €279,35 Sold out
    D050-26112DN25016 bar €379,73 Sold out
    D050-26113DN30016 bar €577,39 Sold out
    D050-26104DN4016 bar €90,65 Sold out
    D050-26106DN6516 bar €105,58 Sold out
