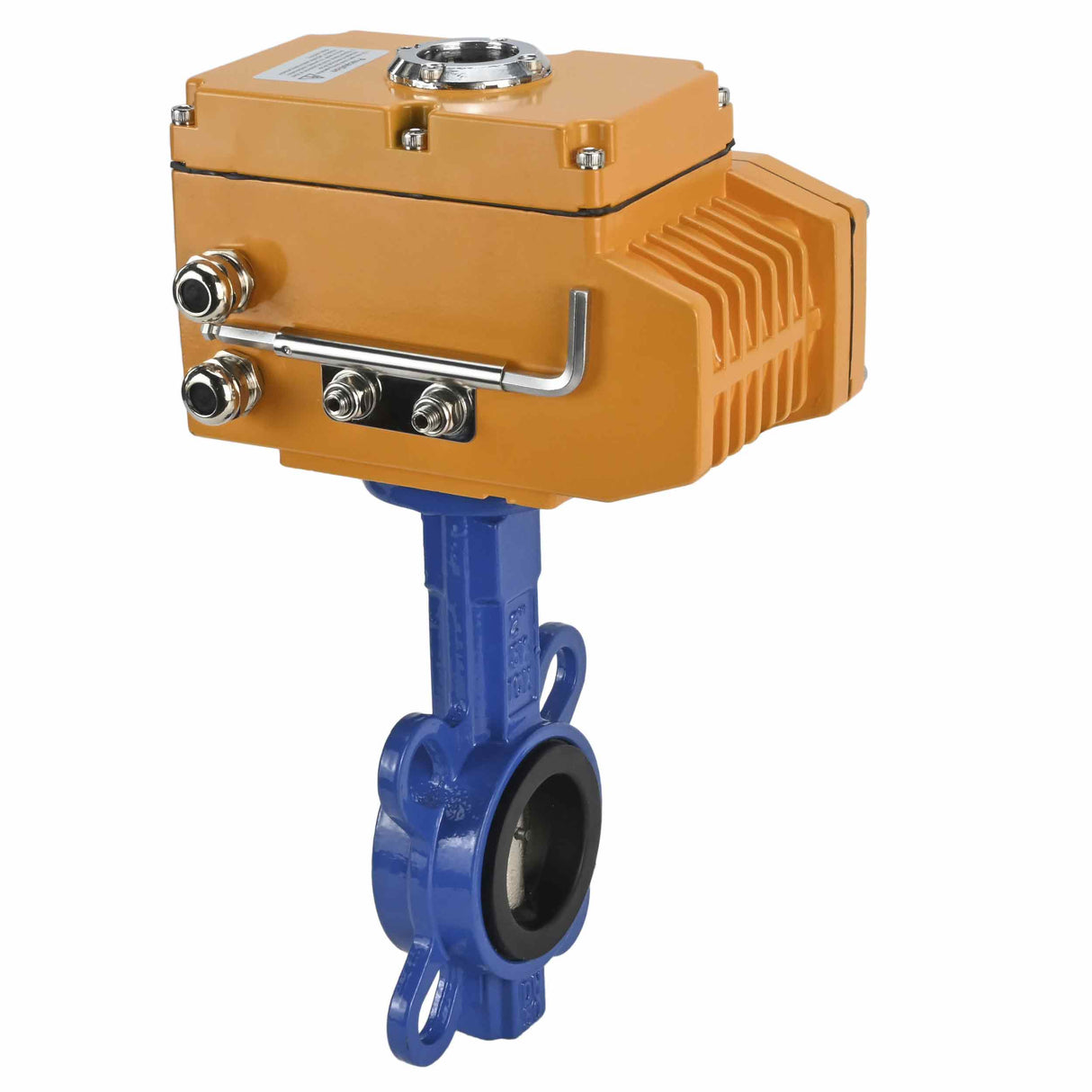

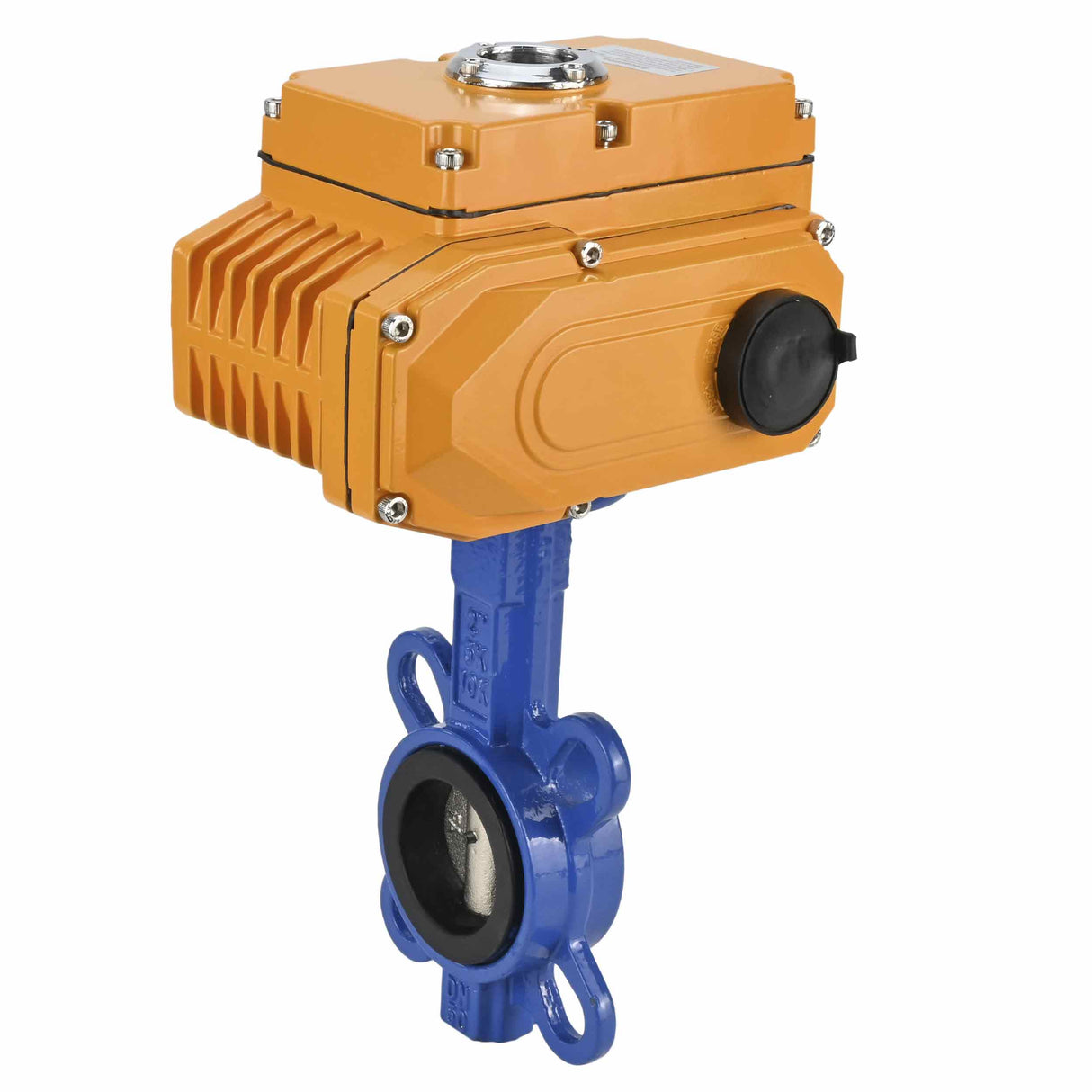

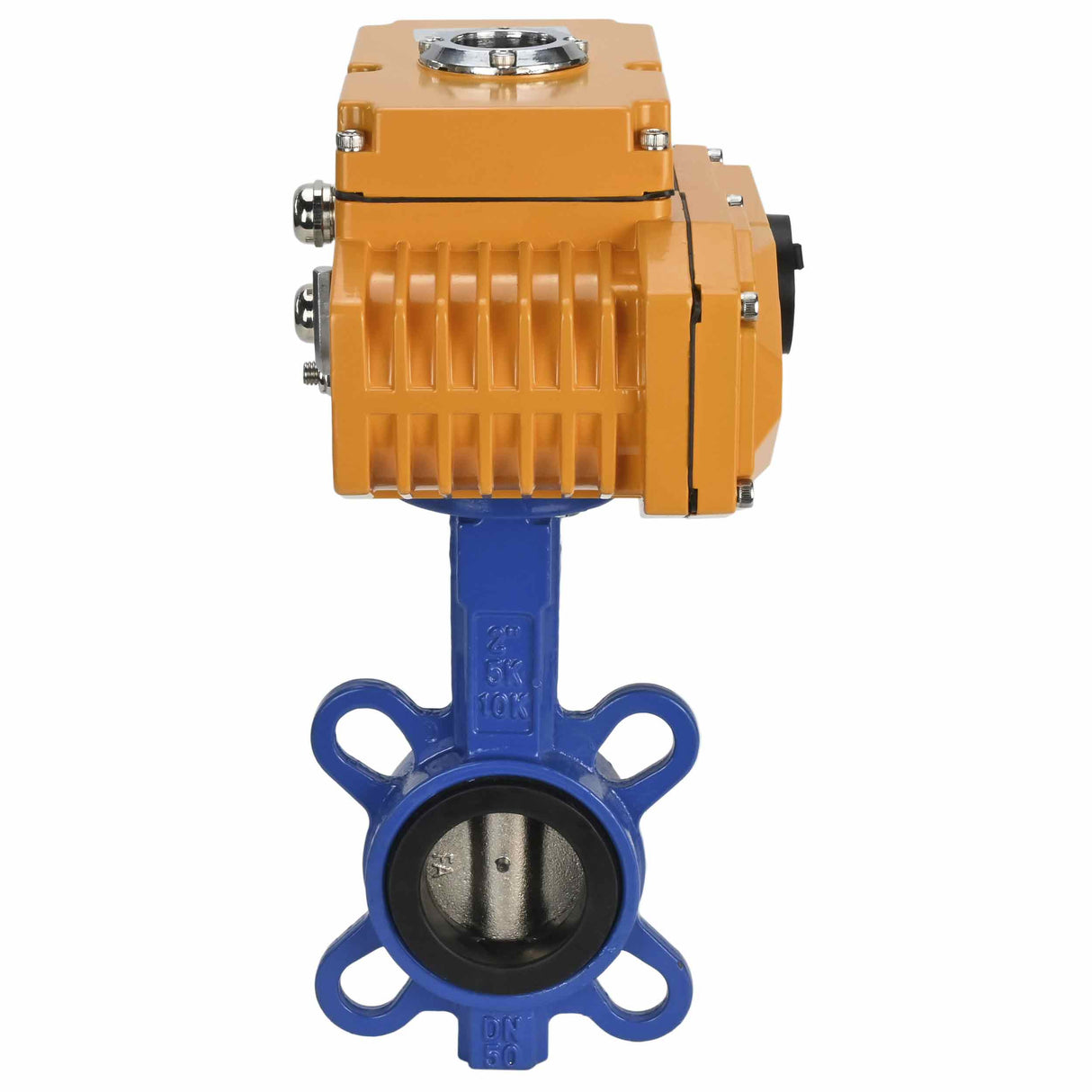

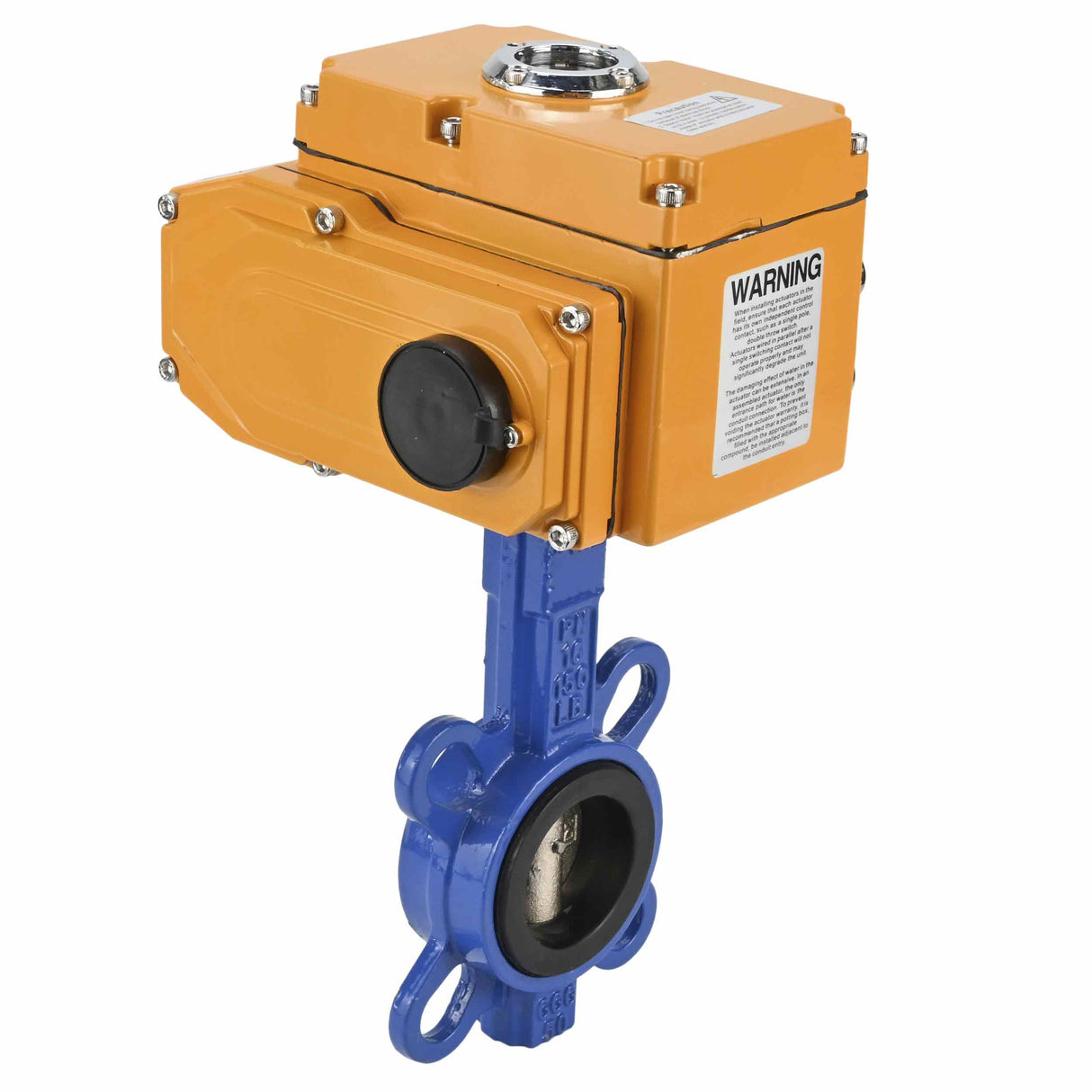

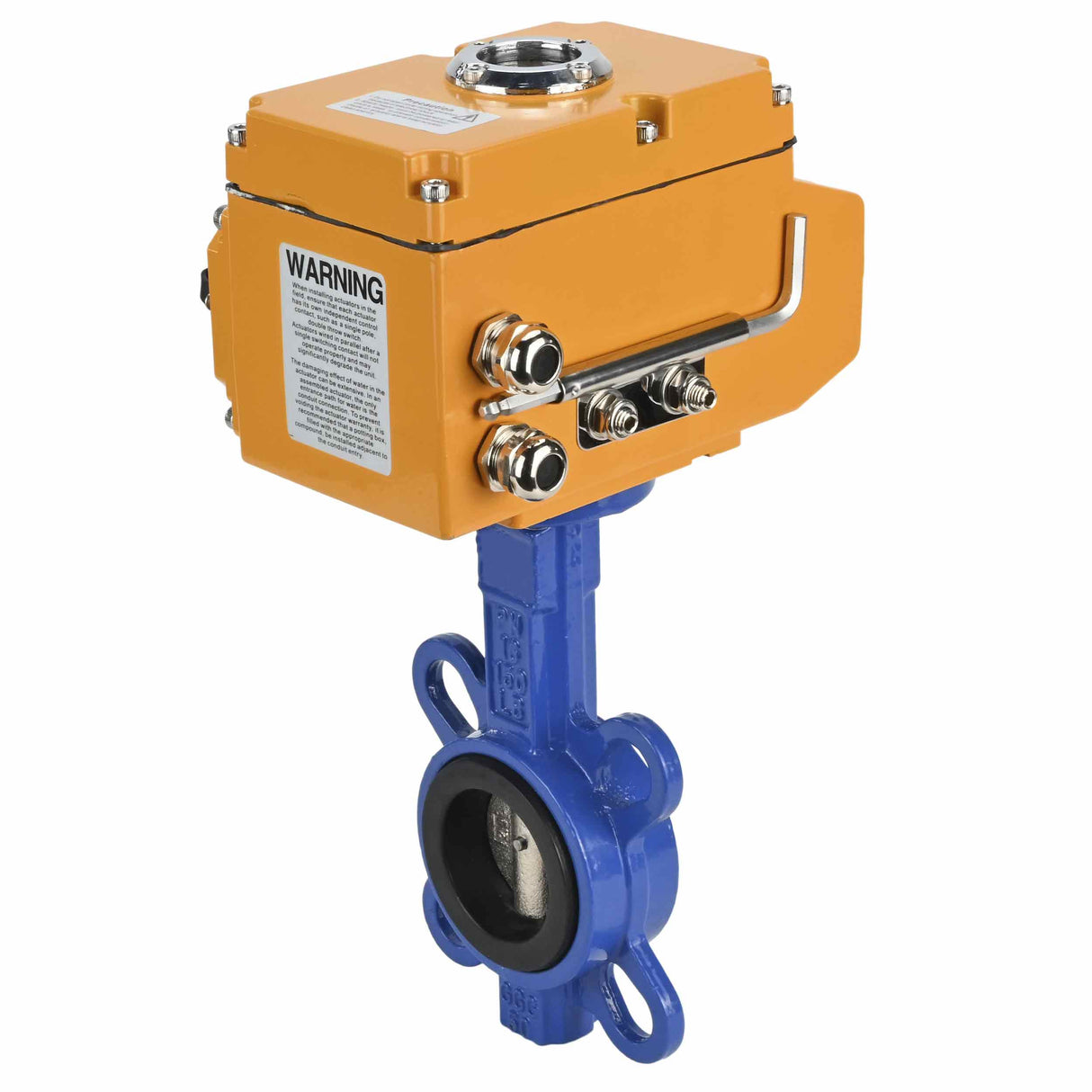

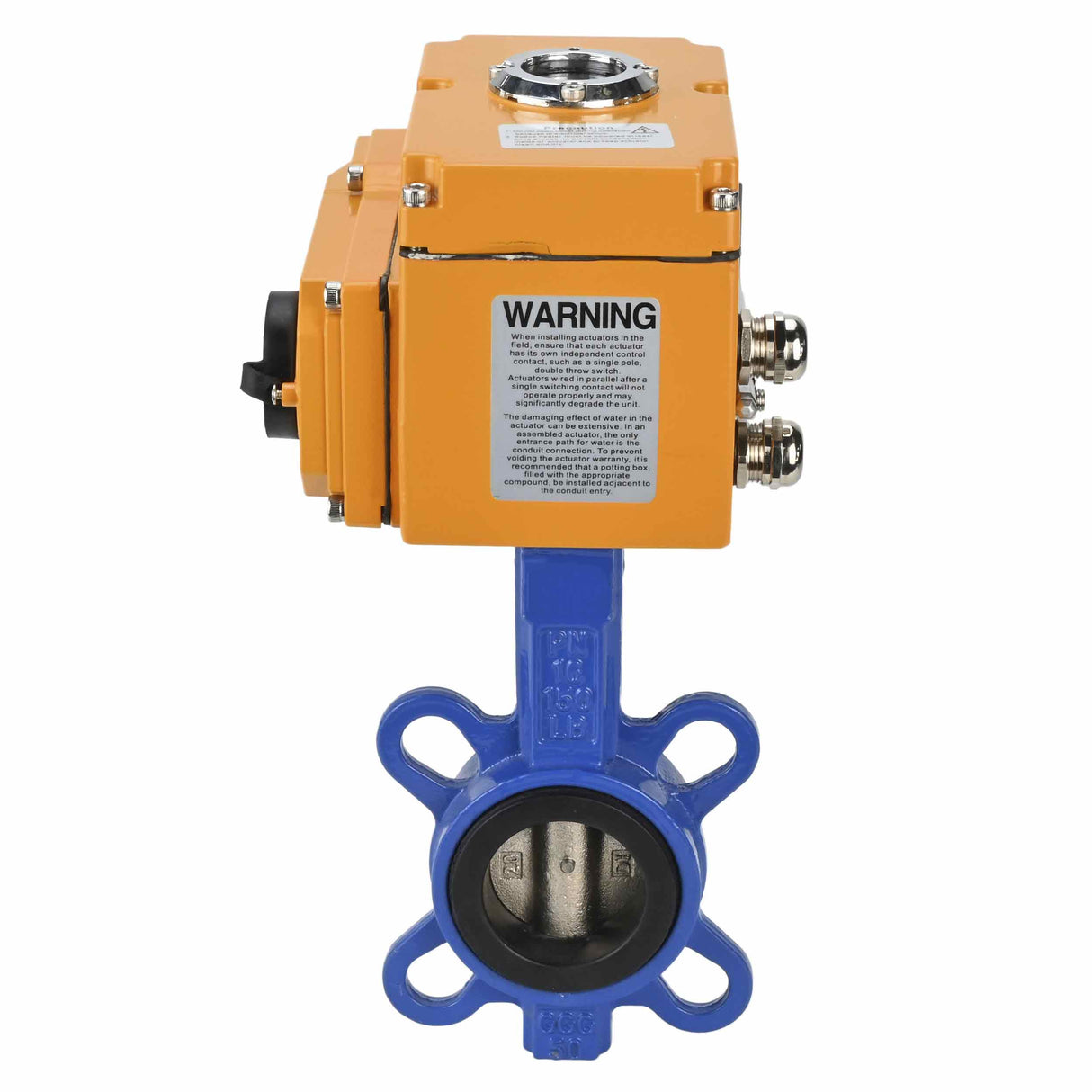

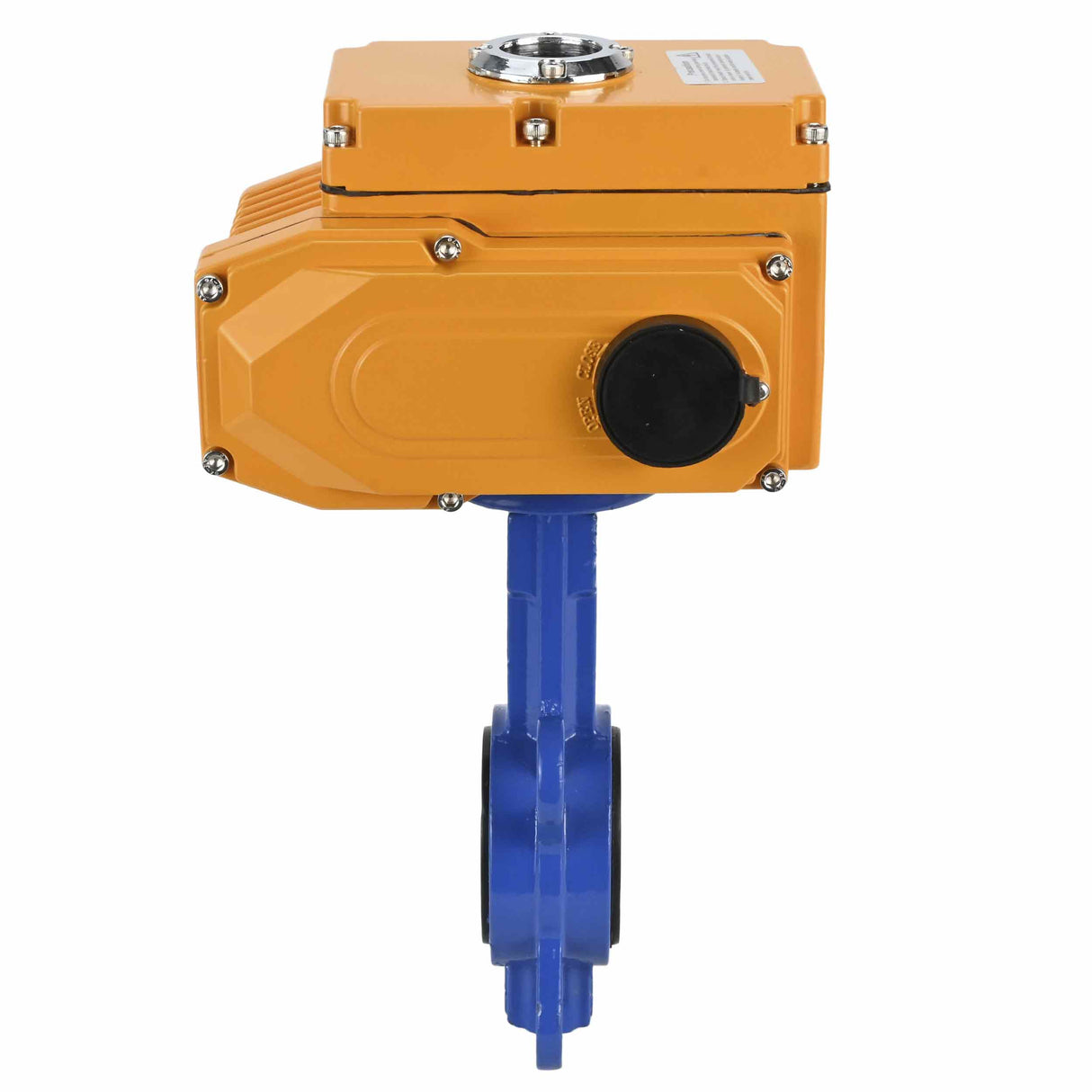

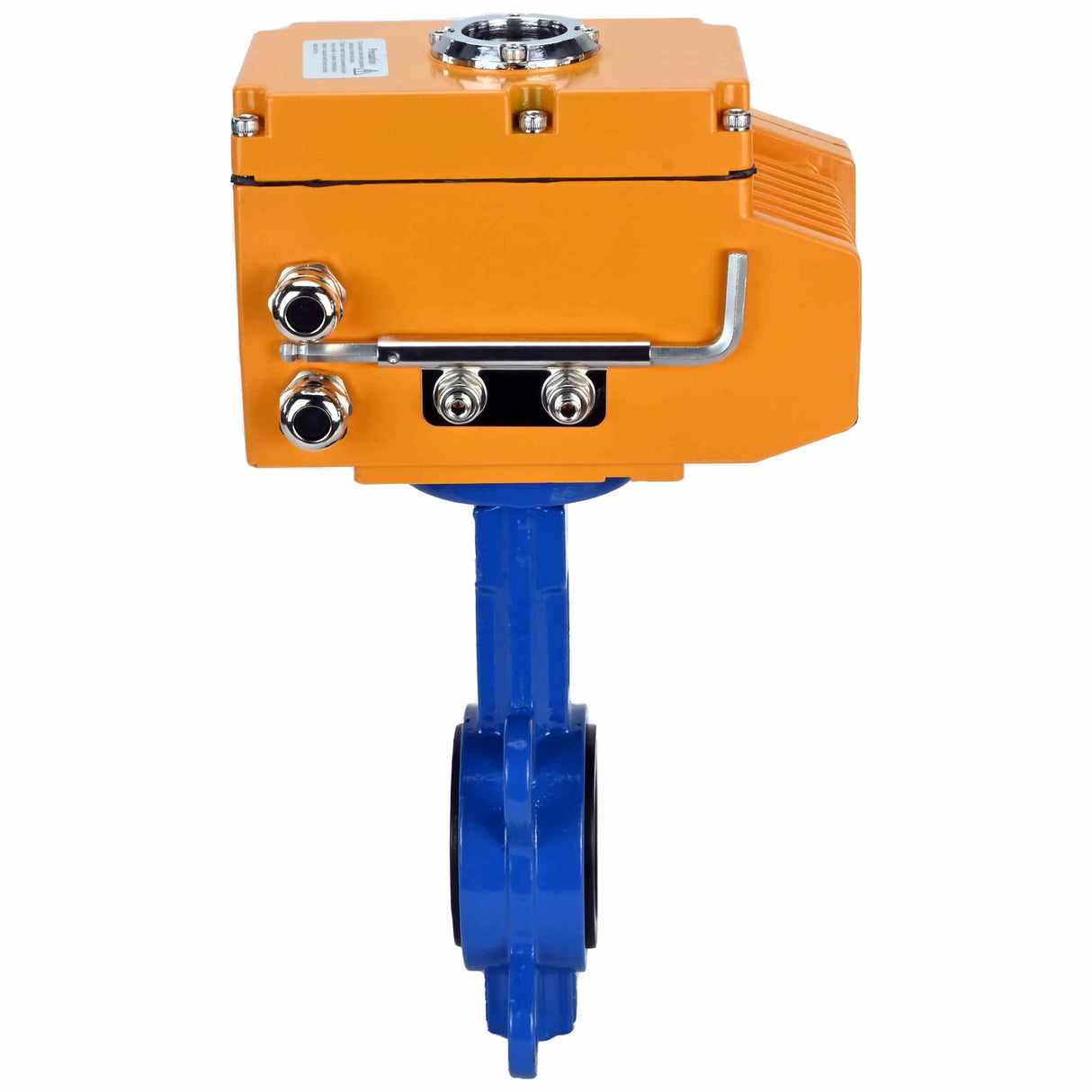

Water Butterfly Valve Elephant WBV1332N-2W-Fb-H body material - Cast iron GGG50, disk material - Stainless steel 316L, seal - NBR with electric actuator Elephant 380V

€245,14
Tax included Shipping calculated at checkout.

Water Butterfly Valve Elephant WBV1332N-2W-Fb-H body material - Cast iron GGG50, disk material - Stainless steel 316L, seal - NBR with electric actuator Elephant 380V - DN50 / 16 bar is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Butterfly valves are designed for use as shut-off or regulating valves for flow control in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.
Electric quarter-turn actuators Elephant are designed for remote and local control of shut-off valves. They are widely used in gas, oil, metallurgical and food industries, in housing and communal services, etc. with ambient temperature from -20°...+70°C.
The enclosure is equipped with a heater (7-10W 220V) and has the following degrees of protection: IP67, NEME 4 and 6, anti-corrosion coating. Installation dimensions comply with the international standard ISO05211 / DIN3337. The actuator is equipped with a squirrel cage asynchronous motor, auto-locking of the actuator position, mechanical handle, thermal protection, X Y Z 10g vibration protection (0,2-34 Hz, 30 minutes) and is designed for repeated-short-time operation S2. The actuator stroke is 90° with an adjustment range of ±10°. The actuator stroke is limited by limit switches. Cable connection 2 x M18. Power supply is carried out by 3-phase alternating voltage 380 V with frequency 50 Hz.







Technical characteristics of water butterfly valve Elephant WBV1332N-2W-Fb-H body material - Cast iron GGG50, disk material - Stainless steel 316L, seal - NBR with electric actuator Elephant 380V:

Nominal diameter DN, mm 40 - 300
Operating pressure PN, bar 16
Working medium temperature t, °C from -20 to +120
Working medium water, mineral oils, hydrocarbons, oils, fats
Flow direction two-way
Type of control handle
Pipeline connection interflanged
Body material cast iron GGG50
Service life, years 10



Overall and installation dimensions of water butterfly valve Elephant WBV1332N-2W-Fb-H body material - Cast iron GGG50, disk material - Stainless steel 316L, seal - NBR with electric actuator Elephant 380V:

DN Electric actuator model Dimensions
E, mm L1, mm A, mm C, mm
40 Elephant-003 220V 34 123 114 113
50 Elephant-003 220V 43 123 131 113
65 Elephant-005 220V 46 160 140 146
80 Elephant-005 220V 46 160 150 146
100 Elephant-008 220V 52 160 163 146
125 Elephant-015 220V 56 189 178 163
150 Elephant-015 220V 56 189 191 163
200 Elephant-030 220V 60 268 238 212
250 Elephant-040 220V 68 268 285 212
300 Elephant-060 220V 78 268 315 212





Materials of water butterfly valve Elephant WBV1332N-2W-Fb-H body material - Cast iron GGG50, disk material - Stainless steel 316L, seal - NBR with electric actuator Elephant 380V:

№ Name Material
1 Body cast iron GGG50
2 Seat seal NBR
3 Disk stainless steel 316L
4 Stem stainless steel AISI 416
5 Pin stainless steel AISI 420
6 Bushing PTFE
7 O-ring NBR
8 Plate carbon steel




Main technical specifications of  Elephant series QT electric actuators:

Power supply 220 VAC, 380 VAC, 24 VDC
Limit switches 2-Open/Closed 250V 10A
Additional limit switches 2 2-Open/Closed 250V 10A
Angle of rotation, ° 90±5
Internal thermal protection Switching off at 110°C ± 5°C, switching on at 97°C ± 5°C
Visual position indicator is
Ambient temperature, °C -20 to +65
Manual doubler Hexagon (included)
Self-locking device self-locking with worm and worm gears
Mechanical limiter 2 external adjustable stops
Cable glands 2xM18
Enclosure protection class IP67
Lubrication aluminum-based (type EP)
Body material aluminum alloy with epoxy powder coating
Average life, closing/opening cycles 30 000





Main parameters of Elephant series QT electric actuators:

Actuator model QT-005 QT-008 QT-015 QT-030 QT-040 QT-060
Torque, Nm 50 80 150 300 400 600
Cycle time, sec. (rotation 90°) 20 25 25 45 45 45
Maximum reinforcement square size, mm 14x14 17x17 17x17 27x27 27x27 27x27
Degree of enclosure protection IP67
Material aluminum alloy with epoxy powder coating
Type ISO flange F05/ F07 F05/ F07 F05/ F07 F10/ F12 F10/ F12 F10/ F12
Weight, kg 3,26 4,6 4,6 10 10 10



Dimensions of Elephant electric actuators of QT 380 V series:

Actuator model Sizes
L, mm H, mm A, mm
QT-003 140 118 109
QT-005 166 122 118
QT-008 200 128 133
QT-015 200 128 133
QT-030 269 155 174
QT-040 269 155 174
QT-060 269 155 174



Specifications
  • Country of origin
    China
  • Body material
    Cast iron GGG50/EN-GJS-500-7
  • Maximum allowable temperature
    120 °C
  • Connection type
    Compact flanged
  • Control type
    Electric actuator
  • Nominal pressure
    16 bar
  • Type of seal
    NBR
  • Disc material
    Stainless steel AISI 316L/1.4404
  • Voltage
    380V
  • Actuator cycle time
    30s
  • Valve feedback
    Limit switches
  • Explosion-proof
    No
  • Thermal protection
    No
  • Pneumatic actuator
    No
  • Manual override
    No
  • Limit switches
    No
