Water Butterfly Valve Elephant WBV1332N-2W-Fb-H body material - Cast i
Elephant  |  SKU: D050-39551

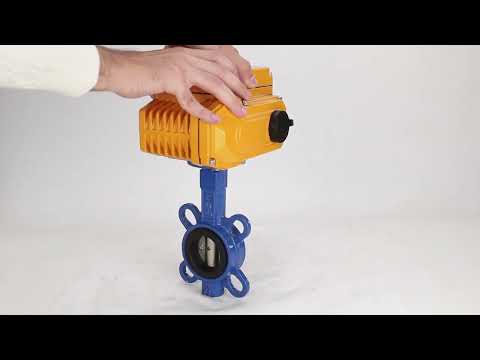

Water Butterfly Valve Elephant WBV1332N-2W-Fb-H body material - Cast iron GGG50, disk material - Stainless steel 316L, seal - NBR with electric actuator Elephant 220V

€179,26
Tax included Shipping calculated at checkout.

Water Butterfly Valve Elephant WBV1332N-2W-Fb-H body material - Cast iron GGG50, disk material - Stainless steel 316L, seal - NBR with electric actuator Elephant 220V - DN50 / 16 bar / Elephant-003 blue is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

A water butterfly valve is a type of valve used to control the flow of water or other fluids through a pipeline. It gets its name from the butterfly-shaped disc inside the valve that rotates to open or close the flow. When the valve is fully open, the disc is positioned parallel to the flow direction, allowing unobstructed passage of water. When the valve is closed, the disc is turned perpendicular to the flow, effectively blocking the flow of water. Water butterfly valves are commonly used in various industries and applications, including water treatment plants, sewage systems, irrigation systems, and industrial processes. They are known for their compact design, lightweight construction, and ease of installation. These valves are often preferred for their quick operation, as the disc can be opened or closed with a simple quarter-turn motion. Butterfly valves can be operated manually with a handle or lever, or they can be automated using electric, pneumatic, or hydraulic actuators to control the valve remotely. They are known for their low-pressure drop and relatively low cost compared to other types of valves. It's worth noting that water butterfly valves are specifically designed for use with water and compatible fluids. Different materials and designs may be required for valves intended for use with corrosive or high-pressure fluids. It's important to select the appropriate type of butterfly valve based on the specific application and fluid requirements.





Dimensions of water butterfly valve Elephant WBV1332N-2W-Fb-H body material - Cast iron GGG50, disk material - Stainless steel 316L, seal - NBR with electric actuator Elephant 220V:

DN A B C ØD d G CH (stem) ISO Torque Weight
mm Nm kg
40 105 55 33 75 10 30 9x9 F05 20 1.6
50 161 80 43 84.5 10 30 9x9 F05 23 2.2
65 175 89 45 104.5 10 30 9x9 F05 29 2.5
80 181 95 45 123.5 10 30 9x9 F05 39 2.9
100 200 114 52 139.5 10 30 11x11 F07 59 3.8
125 213 127 55 169.5 10 30 14x14 F07 84 5.8
150 226 139 55 196 10 30 14x14 F07 86 7.4
200 260 175 60 247 12 30 17x17 F10 220 12.5
250 292 203 68 304 12 40 22x22 F10 350 18.9
300 337 242 78 358 12 40 22x22 F10 420 27.0





Materials of water butterfly valve  Elephant WBV1332N-2W-Fb-H body material - Cast iron GGG50, disk material - Stainless steel 316L, seal - NBR with electric actuator Elephant 220V:

Name Material
1 Body Cast iron GGG50
2 Disk Steel 316L
3 Seat seal EPDM
4 Upper stem Steel 316L
5 Lower stem Steel 316L
6, 11 Retaining ring Steel AISI 201
7 Duster NBR
8 Stem gasket NBR
9 Insert Steel AISI 201
10 Cork Plastic



Description of Elephant 24V actuators:

Elephant electric quarter-turn actuators are designed for remote and local control of shut-off valves. Widely used in gas, oil, metallurgical and food industries, housing and communal services, etc. with ambient temperature from -20°...+70°C.



Main technical specifications of  Elephant series QT electric actuators:

Power supply 220 VAC, 380 VAC, 24 VDC
Limit switches 2-Open/Closed 250V 10A
Additional limit switches 2 2-Open/Closed 250V 10A
Angle of rotation, ° 90±5
Internal thermal protection Switching off at 110°C ± 5°C, switching on at 97°C ± 5°C
Visual position indicator is
Ambient temperature, °C -20 to +65
Manual doubler Hexagon (included)
Self-locking device self-locking with worm and worm gears
Mechanical limiter 2 external adjustable stops
Cable glands 2xM18
Enclosure protection class IP67
Lubrication aluminum-based (type EP)
Body material aluminum alloy with epoxy powder coating
Average life, closing/opening cycles 30 000





Main parameters of Elephant series QT electric actuators:

Actuator model QT-003 QT-005 QT-008 QT-015 QT-030 QT-040 QT-060
Torque, Nm 30 50 80 150 300 400 600
Cycle time, sec. (rotation 90°) 10 20 25 25 45 45 45
Maximum reinforcement square size, mm 11x11 14x14 17x17 17x17 27x27 27x27 27x27
Degree of enclosure protection IP67
Material aluminum alloy with epoxy powder coating
Type ISO flange F03/ F05 F05/ F07 F05/ F07 F05/ F07 F10/ F12 F10/ F12 F10/ F12
Weight, kg 2,35 3,26 4,6 4,6 10 10 10



Dimensions of Elephant electric actuators of QT 220 V series:

Actuator model Sizes
L, mm H, mm A, mm
QT-003 140 118 109
QT-005 166 122 118
QT-008 200 128 133
QT-015 200 128 133
QT-030 269 155 174
QT-040 269 155 174
QT-060 269 155 174



Specifications

  • Country of origin
    China
  • Body material
    Cast iron GGG50/EN-GJS-500-7
  • Maximum allowable temperature
    120 °C
  • Connection type
    Compact flanged
  • Control type
    Electric actuator
  • Nominal pressure
    16 bar
  • Type of seal
    NBR
  • Disc material
    Stainless steel AISI 316L/1.4404
  • Voltage
    110/220V
  • Actuator cycle time
    30s
  • Valve feedback
    Limit switches
  • Explosion-proof
    No
  • Thermal protection
    No
  • Pneumatic actuator
    No
  • Manual override
    No
  • Limit switches
    No
