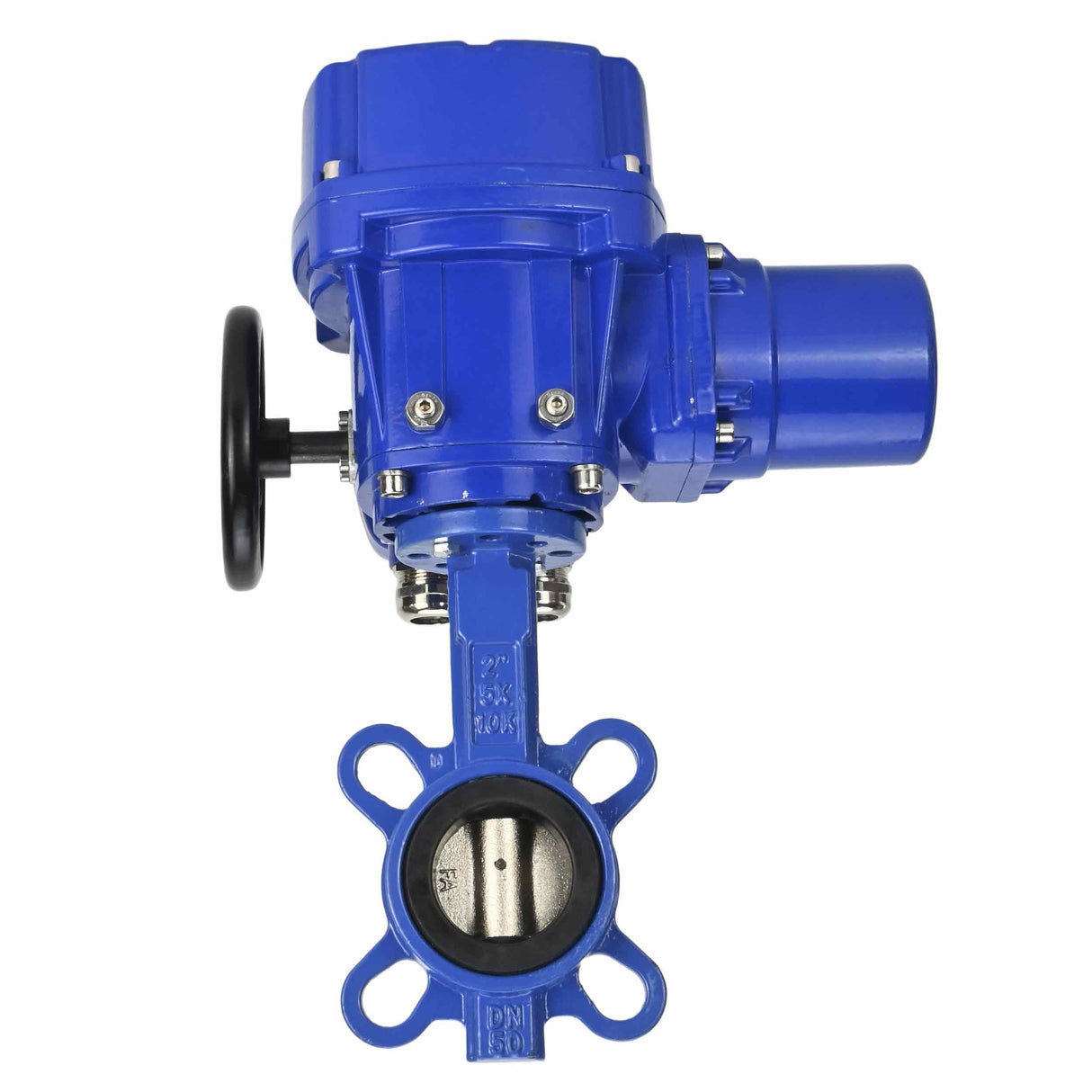

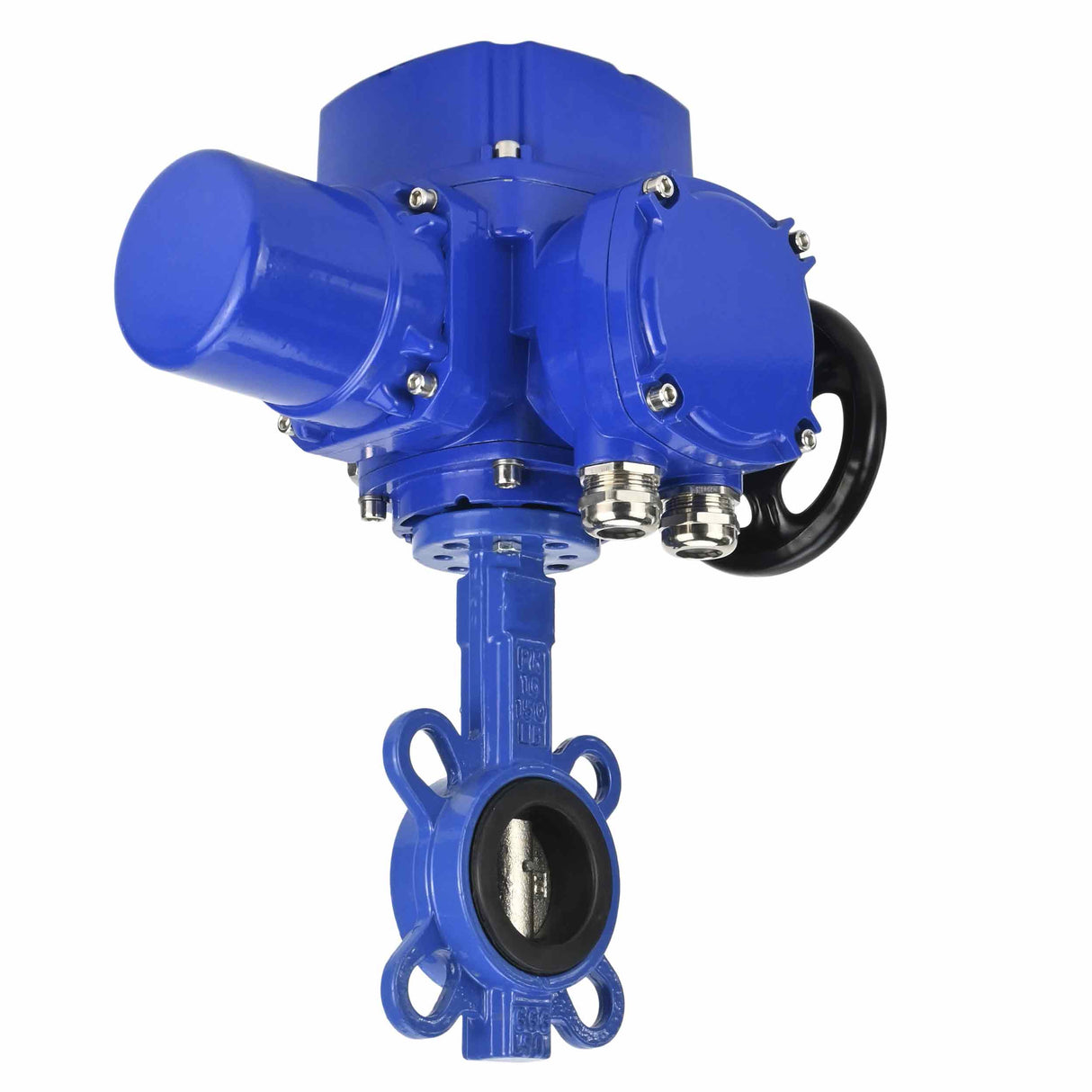

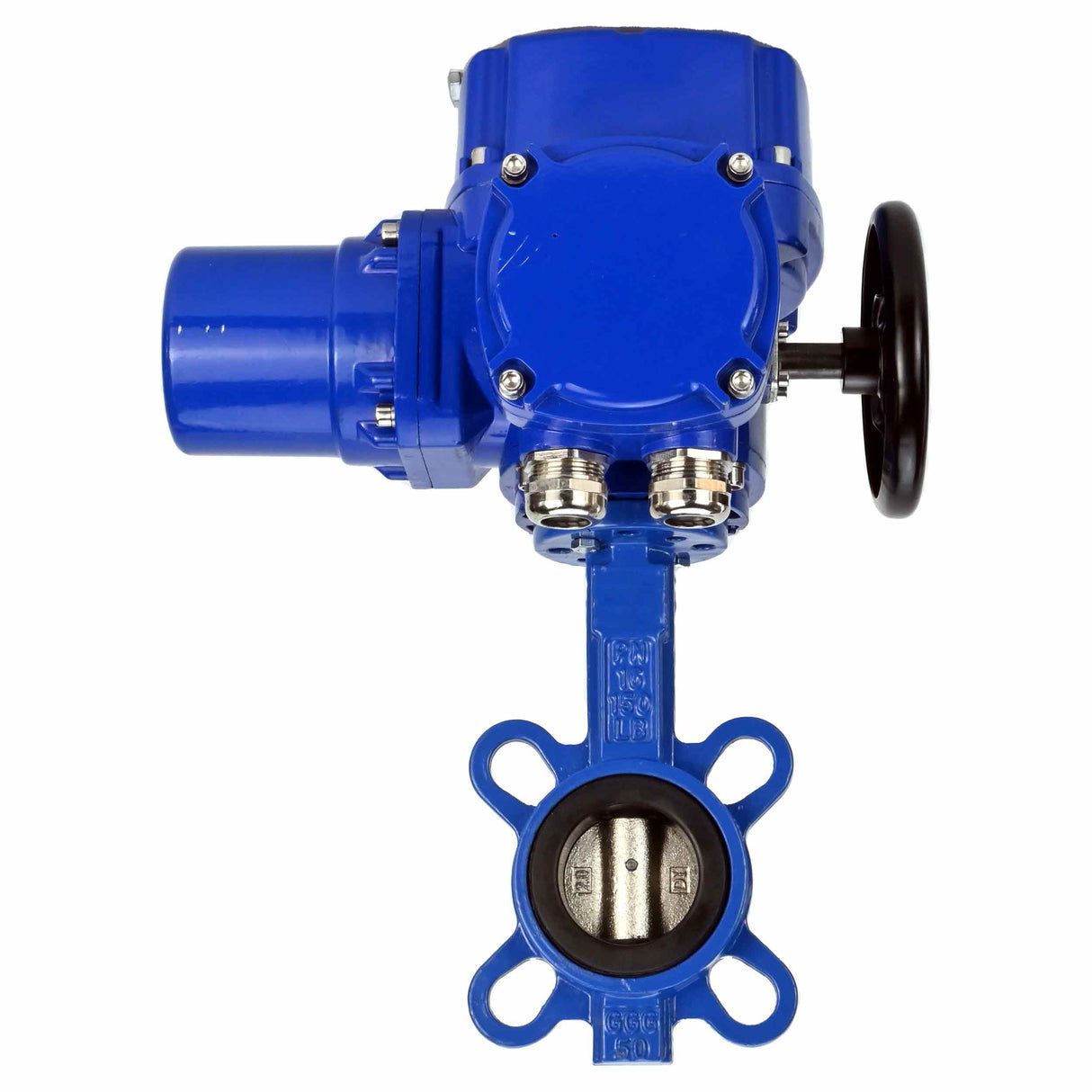

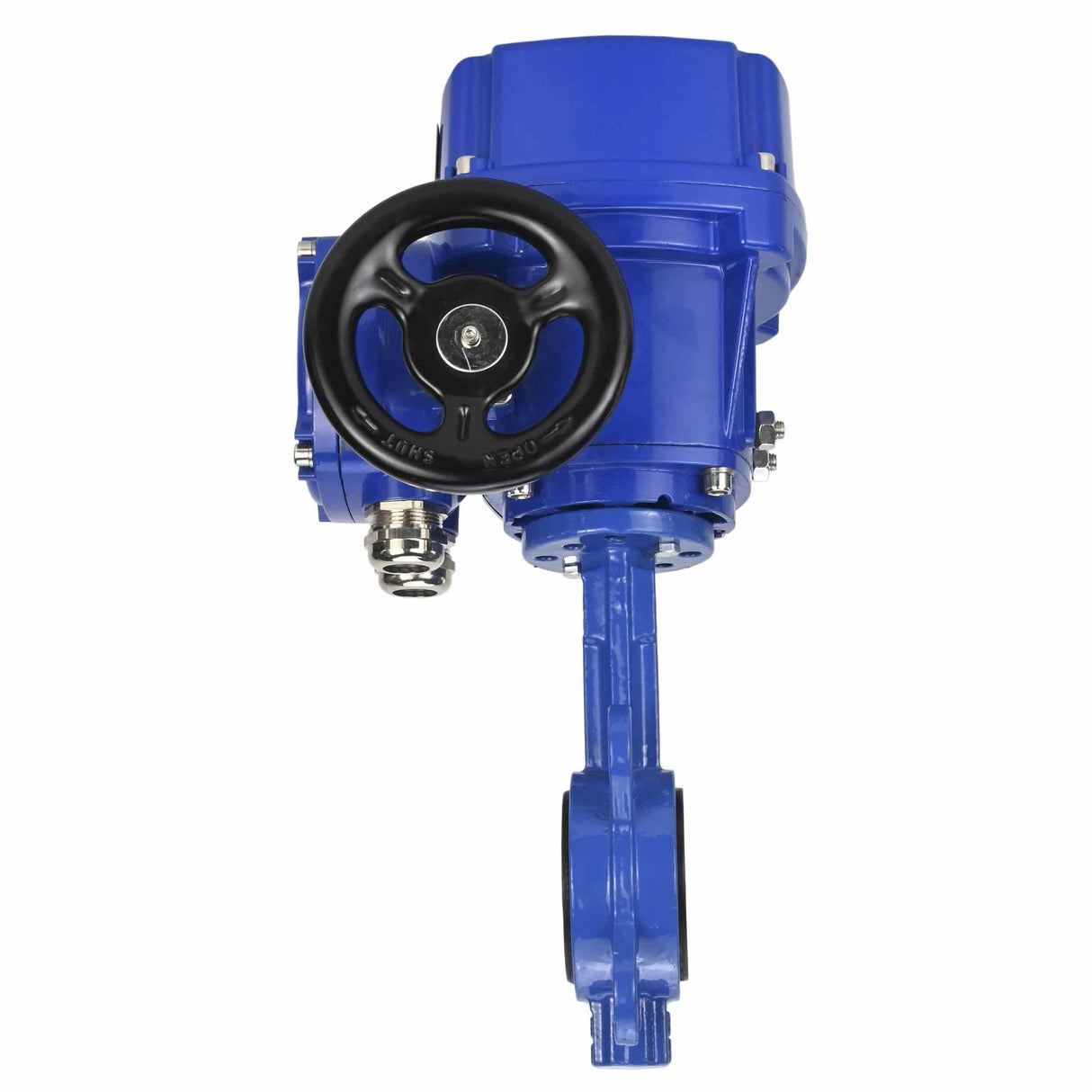

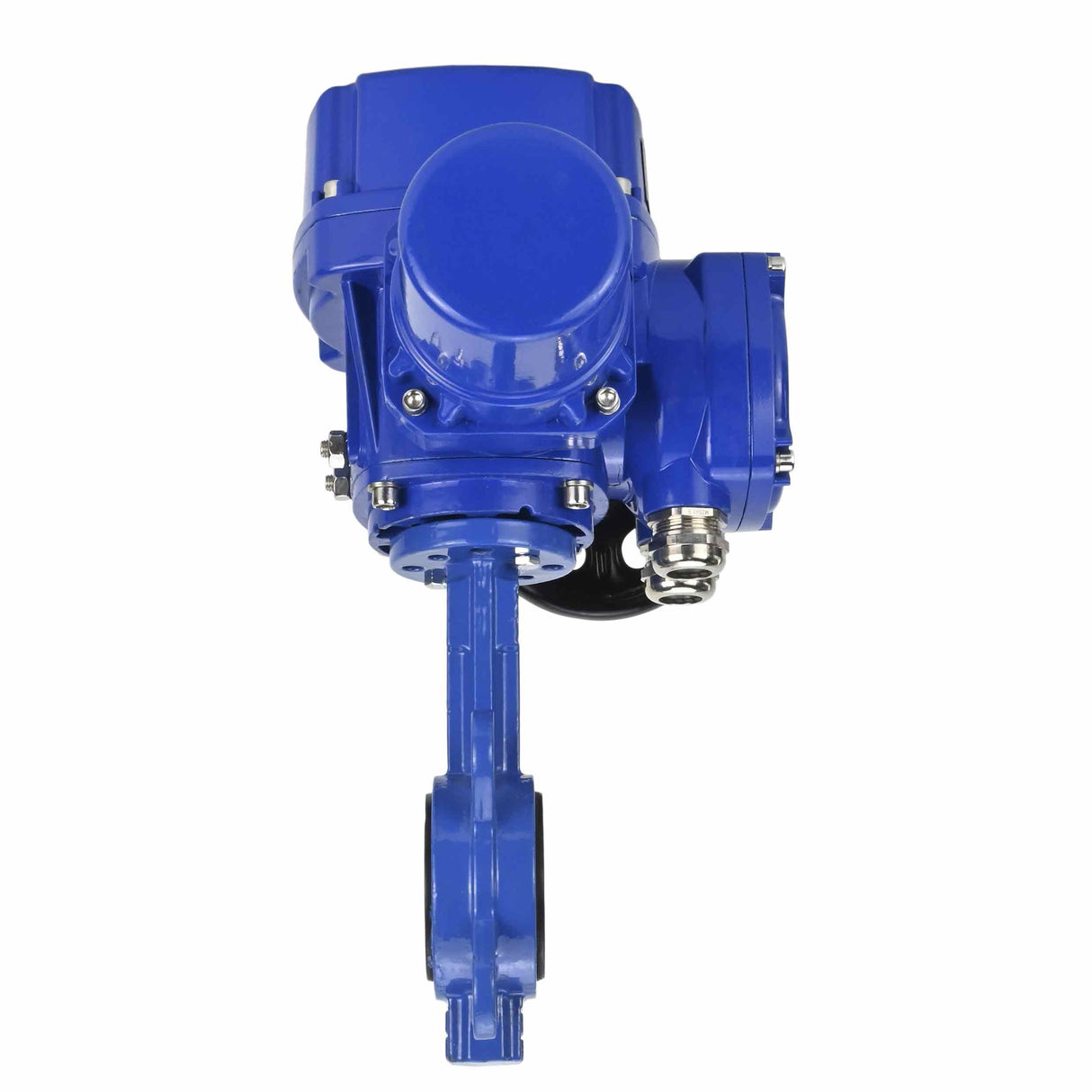

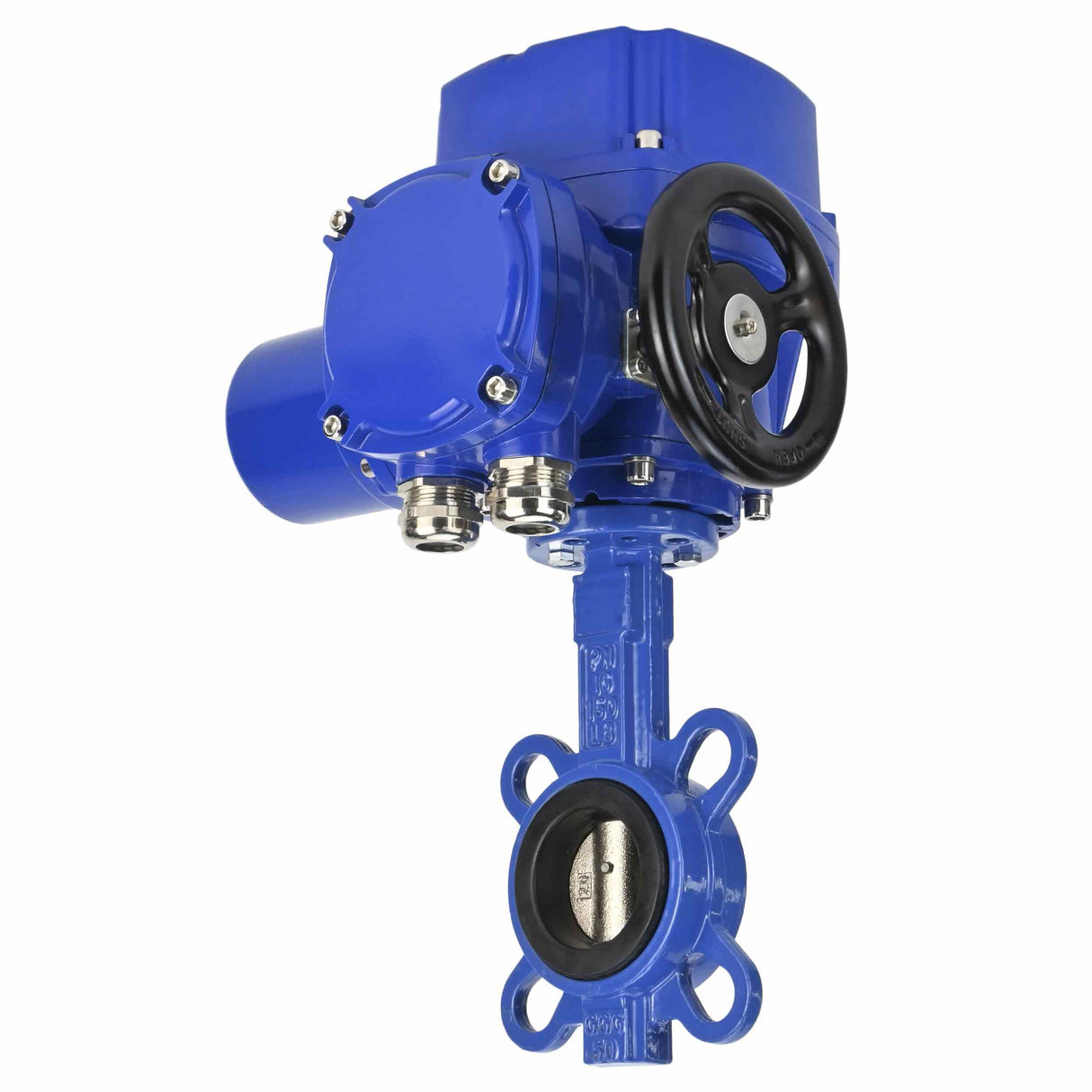

Water Butterfly Valve Elephant WBV1332N-2W-Fb-H body material - Cast i
1 9
Elephant  |  SKU: D050-39609

Water Butterfly Valve Elephant WBV1332N-2W-Fb-H body material - Cast iron GGG50, disk material - Stainless steel 316L, seal - NBR with 1/4-turn electric actuator Elephant QT-W (M) EX 220V

€695,93
Tax included Shipping calculated at checkout.

Water Butterfly Valve Elephant WBV1332N-2W-Fb-H body material - Cast iron GGG50, disk material - Stainless steel 316L, seal - NBR with 1/4-turn electric actuator Elephant QT-W (M) EX 220V - DN50 / 16 bar is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Butterfly valves are designed for use as shut-off or regulating valves for flow control in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.
Electric quarter-turn actuators Elephant are designed for remote and local control of shut-off pipeline valves having a quarter-turn shut-off valve. They are used in various branches of national economy: in gas, oil, metallurgical, food industries, housing and utilities, etc.







Technical characteristics of water butterfly valve Elephant WBV1332N-2W-Fb-H body material - Cast iron GGG50, disk material - Stainless steel 316L, seal - NBR with 1/4-turn electric actuator Elephant QT-W (M) EX 220V:

Nominal diameter DN, mm

40 - 300

Operating pressure PN, bar

16

Operating medium temperature t, °C

from -20 to +120

Operating Medium

water, mineral oils, hydrocarbons, oils, fats

Flow direction

two-way

Control type

handle

Pipeline connection

flanged

Body material

cast iron GGG50

Service life, years

10



Dimensional parameters of water butterfly valve Elephant WBV1332N-2W-Fb-H body material - Cast iron GGG50, disk material - Stainless steel 316L, seal - NBR with 1/4-turn electric actuator Elephant QT-W (M) EX 220V:

DN Electric actuator model Sizes
A, mm L, mm H, mm L1, mm D, mm
40 QT-W (M) EX-005 220V 114 215 281 310 120
50 QT-W (M) EX-005 220V 131 215 281 310 120
65 QT-W (M) EX-005 220V 140 215 281 310 120
80 QT-W (M) EX-005 220V 150 215 281 310 120
100 QT-W (M) EX-010 220V 163 215 281 310 120
125 QT-W (M) EX-015 220V 178 215 281 310 120
150 QT-W (M) EX-015 220V 191 215 281 310 120
200 QT-W (M) EX-030 220V 238 270 276 350 180
250 QT-W (M) EX-040 220V 285 270 276 350 180
300 QT-W (M) EX-060 220V 315 311 300 410 250





Materials of water butterfly valve Elephant WBV1332N-2W-Fb-H body material - Cast iron GGG50, disk material - Stainless steel 316L, seal - NBR with 1/4-turn electric actuator Elephant QT-W (M) EX 220V:

№ Name Material
1 Body cast iron GGG50
2 Seat seal NBR
3 Disk stainless steel 316L
4 Stem stainless steel AISI 416
5 Pin stainless steel AISI 420
6 Bushing PTFE
7 O-ring NBR
8 Plate carbon steel




Main parameters of actuator Elephant QT-W (M) EX 220V:

Electric drive type

quarter-turn

Motor type

asynchronous

Angle of rotation, °

90

Supply voltage

220V/AC, 50Hz, 1 phase

Cable entry

watertight G1/2

Mounting type

ISO 5211

Automatic shut-off in open, closed and jammed positions

yes (torque clutch)

Housing protection rating

IP67

Ambient temperature, °C

from -30 to +70

Ambient humidity

≤95% (at 25°C)

Explosion protection of housing

yes



Technical characteristics of Elephant QT-W (M) 220V actuators:

Model

Torque, Nm

Cycle time, sec

Voltage, V

Power, W

Nominal current, A

Gear ratio

Weight, kg

QT-W (M)-005

50

30

220

25

0,35

70:1

7,6

QT-W (M)-010

100

30

220

30

0,48

70:1

7,8

QT-W (M)-015

150

30

220

40

0,55

70:1

8

QT-W (M)-030

300

30

220

60

0,75

95:1

12,8

QT-W (M)-040

400

30

220

90

0,95

95:1

13

QT-W (M)-060

600

30

220

120

1,1

89:1

21,2


Dimensions of actuators Elephant QT-W (M) EX 220V:

Model Size, mm
H H1 H2 D L L1 L2 L3
QT-W (M)-005 281 170 77 120 215 310 170 121
QT-W (M)-010 281 170 77 120 215 310 170 121
QT-W (M)-015 281 170 77 120 215 310 170 121
QT-W (M)-030 276 197 99 180 270 350 191 160
QT-W (M)-040 276 197 99 180 270 350 191 160
QT-W (M)-060 300 240 112 250 311 410 252 186



Specifications
  • Country of origin
    China
  • Body material
    Cast iron GGG50/EN-GJS-500-7
  • Maximum allowable temperature
    120 °C
  • Connection type
    Compact flanged
  • Control type
    Electric actuator
  • Nominal pressure
    16 bar
  • Type of seal
    NBR
  • Disc material
    Stainless steel AISI 316L/1.4404
  • Voltage
    110/220V
  • Actuator cycle time
    30s
  • Explosion-proof
    Yes
  • Thermal protection
    No
  • Torque
    68 Nm
  • Pneumatic actuator
    No
  • Manual override
    Yes
  • Limit switches
    No

Reviews (0)

Documentation

Payment & Security

Payment methods

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    Available Variants

    SKUConnection sizePressurePrice AvailabilityQuantity Add to cart
    D050-39609DN5016 bar €695,93 0 in stock
    D050-39611DN8016 bar €714,63 Out of stock
    D050-39612DN10016 bar €908,35 Out of stock
    D050-39613DN12516 bar €940,34 Out of stock
    D050-39614DN15016 bar €962,67 Out of stock
    D050-39615DN20016 bar €1.297,74 Out of stock
    D050-39616DN25016 bar €1.732,01 Out of stock
    D050-39617DN30016 bar €1.910,85 Out of stock
    D050-39608DN4016 bar €691,01 Out of stock
    D050-39610DN6516 bar €705,94 Out of stock
