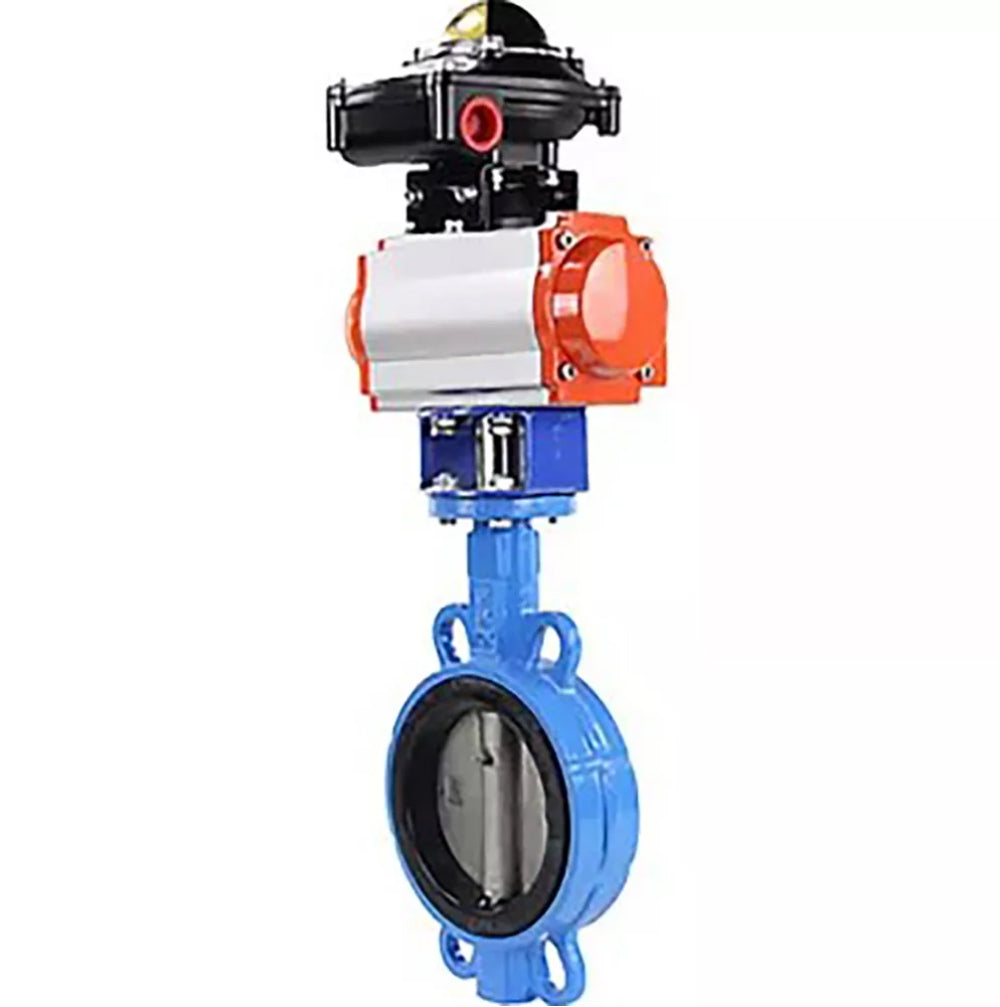

Water Butterfly Valve Elephant WBV1132N-2W-Fb-H, body material - grey
Elephant  |  SKU: D050-26354

Water Butterfly Valve Elephant WBV1132N-2W-Fb-H, body material - grey cast iron GG25, disk material - stainless steel AISI 316L, seal - NBR, with pneumatic actuator with return springs PA-SA, LSU APL-510N-EX

€392,47
Tax included Shipping calculated at checkout.

Water Butterfly Valve Elephant WBV1132N-2W-Fb-H, body material - grey cast iron GG25, disk material - stainless steel AISI 316L, seal - NBR, with pneumatic actuator with return springs PA-SA, LSU APL-510N-EX - DN40 / 16 bar is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Butterfly valve WBV1132N-2W-Fb PA-SA APL-510N-EX is designed for use as shut-off or regulating valves for flow control in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.

SA pneumatic actuators are designed for automation of industrial shut-off valves control process - gates, ball valves. Pneumatic actuators are designed for operation both indoors and outdoors. All internal and external parts are anticorrosive coated.

APL-510N-EX limit switch unit is an electrotechnical device designed for opening and closing of the working circuit and for visualization of the positions of the shut-off body of pipeline valves. In a sealed box, as a rule, there are two mechanical switches designed for voltage up to 250 V, which monitor the position of the actuator stem and signalize in extreme positions. They are mounted on top of the actuator surface. In the upper part of the limit switch unit there is a two-color visual indicator hemisphere. If the connected pipe fitting is closed, only the red part of the hemisphere labeled CLOSED is visible; if it is open, only the yellow part labeled OPEN is visible. This visual indicator is clearly visible from a distance, which simplifies the inspection of the equipment, and the color difference between the open and closed position reduces the probability of misinterpretation of information. Due to the use of the BCV it becomes possible to transmit information on the position of pipeline valves (open/closed) to automated control systems, which allows to increase the reliability of the system as a whole and simplifies diagnostics in case of fault detection.





Technical parameters of Elephant WBV1132N-2W-Fb-H water disc gate valves, body material - gray cast iron GG25, disc material - stainless steel AISI 316L, sealing - NBR, with pneumatic actuator with return springs PA-SA, LSU APL-510N-EX:

Nominal diameter DN, mm 40-200
Working pressure PN, bar 16
Working medium temperature t, ⁰C -20 to +120
Working medium cold and hot water, air without oil and grease impurities, other media neutral to the material
Flow direction double-sided
Body material cast iron GG25
Control type manual (handle)
Supplement electric or pneumatic actuator possible (ISO 5211-2001)

Gate WBV1132N-2W-Fb PA-SA APL-510N-EX





Dimensions and dimensions of the Water Disc ValvesElephant WBV1132N-2W-Fb-H, body material - gray cast iron GG25, disc material - stainless steel AISI 316L, sealing - NBR, with pneumatic actuator with return springs PA-SA, LSU APL-510N-EX:

DN A B C E L ØD Ød 4-Ødo HxH (bolt stem square)
mm
40 114 66 26 34 210 65 50 4-7 9х9
50 131 72 26 43 220 65 50 4-7 9х9
65 140 83 26 46 220 65 50 4-7 9х9
80 150 95 26 46 220 65 50 4-7 9х9
100 163 112 28 52 264 90 70 4-10 11х11
125 178 125 28 56 264 90 70 4-10 14х14
150 191 140 28 56 264 90 70 4-10 14х14
200 238 172 34 60 364 125 102 4-12 17х17
250 285 205 36 68 504 125 102 4-12 22х22
300 315 245 36 78 504 150 125 4-14 22х22

Sketch of gates WBV1132N-2W-Fb PA-SA APL-510N-EX





Materials Elephant WBV1132N-2W-Fb-H water disc gate valve, body material - gray cast iron GG25, disc material - stainless steel AISI 316L, seal - NBR, with pneumatic actuator with return springs PA-SA, LSU APL-510N-EX:

№ Part name Material
1 Body cast iron GG25
2 Seat seal NBR
3 Disk stainless steel 316L
4 Rod SS AISI 416
5 Pin SS AISI 420
6 Sleeve PTFE
7 O-ring NBR
8 Plate carbon steel
9 Handle ductile iron

Detail sketch of gate valve WBV1132N-2W-Fb PA-SA APL-510N-EX



Technical data of SA pneumatic actuators with return springs:

Type of pneumatic actuator SA - with return springs
Nominal pressure PN, bar 12
Working pressure, bar 2...8
Working medium filtered compressed air
Maximum particle diameter of the working medium, µm2 ≤30
Ambient temperature, ⁰C -20 to +80
Swivel angle, ° 0 - 90
Swivel angle adjustment, % ±5
Position indicator open/closed
Top connection standard NAMUR
Air connection standard NAMUR
Average life, cycles closed/open 70 000 (for non-aggressive media and medium pressure and temperature values)


SA pneumatic actuators rotary with return springs




Dimensions and mounting dimensions of SA pneumatic actuators with return springs:

Model A, mm B, mm C, mm D, mm E, mm F, mm G, mm H, mm
PA-x-052 30 41,5 65,5 72 92 65 30 80
PA-x-065 36 47 81 88 108 72 30 80
PA-x-083 46 57 98,5 108,7 128,7 92 30 80
PA-x-105 57,5 64 122,5 133 153 109,5 30 80
PA-x-130 67,5 74,5 145,5 155 185 127,5 30 130
PA-x-140 75 77 161 172 202 137,5 30 130
PA-x-160 87 87 184 197 227 159 30 130
PA-x 210 113 113 235,5 255 285 210 30 130
PA-x-270 147 147 299 326 356 273 30 130
PA-x-300 162 174 330 350 380 312 30 130
PA-x-350 190 195 483 410 440 365 30 130



Model A, mm B, mm C, mm D, mm E, mm F, mm G, mm H, mm
PA-x-052 30 41,5 65,5 72 92 65 30 80
PA-x-065 36 47 81 88 108 72 30 80
PA-x-083 46 57 98,5 108,7 128,7 92 30 80
PA-x-105 57,5 64 122,5 133 153 109,5 30 80
PA-x-130 67,5 74,5 145,5 155 185 127,5 30 130
PA-x-140 75 77 161 172 202 137,5 30 130
PA-x-160 87 87 184 197 227 159 30 130
PA-x 210 113 113 235,5 255 285 210 30 130
PA-x-270 147 147 299 326 356 273 30 130
PA-x-300 162 174 330 350 380 312 30 130
PA-x-350 190 195 483 410 440 365 30 130

Sketch of dimensions of SA pneumatic actuators with return springs





Materials of parts of SA pneumatic actuators with return springs:

№ Part name Material
1 Indicator screw ABS plastic
2 Position indicator ABS plastic
3 Spring clip stainless steel 304
4 Metal washer stainless steel 304
5 Pressure washer engineering plastic
6 Housing hard anodized extruded aluminum alloy
7 Pressure washer engineering plastic
8 Limiter alloy steel
9 Shaft sealing ring upper NBR
10 Upper shaft sliding ring engineering plastic
11 Shaft nickel plated alloy steel
12 Shaft sliding ring lower engineering plastic
13 Shaft O-ring lower NBR
14 Plug NBR
15 Seal ring of adjusting screws NBR
16 Washer of adjusting screw stainless steel 304
17 Lock nut of adjusting screw stainless steel 304
18 Adjusting screw stainless steel 304
19 Piston die-cast aluminum alloy
20 Piston guide plate engineering plastic
21 Piston sliding ring engineering plastic
22 Piston O-ring NBR
23 Spring set spring steel
24 Cover O-ring NBR
25 End cap cast aluminum with polyester coating
26 Cover screw stainless steel 304
27 Stop screw stainless steel 304
28 Adapter carbon steel

Material sketch of SA pneumatic actuators with return springs



Characteristics of limit switch unit APL-510N-EX:

Parameter Significance
Enclosure all-weather IP67/ NEMA4 4X,7,9
explosion-proof E EX d IIC T6
Compatible devices quarter-turn pneumatic actuators;
- any actuators with shaft rotation by 90
Full rotation angle 90°
Cable glands 2 x NPT 3/4”
Electrical connection screw terminals 8 points (0.08 - 2.5) mm2
Cable gland thread 2 x NPT 3/4”
Type of visual indicator two-color hemisphere: OPEN (Open) - yellow CLOSED (Closed) - red
Switches/sensors two mechanical switches two proximity sensors
Rated voltage, V 250
Rated current, A 16
Permissible ambient temperature, °C -20 to +66
Average life, cycles 10 000 000
Weight, kg 1.8

Wiring diagram of limit switch unit APL-510N-EX

Specifications
  • Country of origin
    China
  • Body material
    grey cast iron GG25
  • Maximum allowable temperature
    120 °C
  • Connection type
    compact flanged
  • Control type
    Pneumatic actuator
  • Nominal pressure
    16 bar
  • Type of seal
    NBR
  • Disc material
    stainless steel AISI 316L
  • Explosion-proof
    Yes
  • Torque
    20 Nm
  • Manual override
    No
  • Limit switches
    Yes
  • Feedback sensor
    Limit switches
  • Type of pneumatic actuator
    with return springs
  • Angle of rotation
    90°

Reviews (0)

Documentation
nullLimit switch unit ELEPHANT APL-510N EX explosion-proof
nullButterfly valve Elephant WBV1132N-2W-Fb-H DN40-300 16 Bar
nullPneumatic rotary actuator ELEPHANT PA-x-x double-acting and with return springs

Payment & Security

Payment methods

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    Available Variants

    SKUConnection sizePressurePrice AvailabilityQuantity Add to cart
    D050-26354DN4016 bar €392,47 0 In stock
    D050-26355DN5016 bar €399,56 Sold out
    D050-26356DN6516 bar €501,77 Sold out
    D050-26357DN8016 bar €512,27 Sold out
    D050-26358DN10016 bar €399,74 Sold out
    D050-26359DN12516 bar €815,75 Sold out
    D050-26360DN15016 bar €848,05 Sold out
    D050-26361DN20016 bar €1.193,33 Sold out
    D050-26362DN25016 bar €1.650,69 Sold out
    D050-26363DN30016 bar €1.857,00 Sold out
