Water Butterfly Valve Elephant ggg50-316l-epdm-elephant-12, body mater
1 9
Elephant  |  SKU: D050-24861

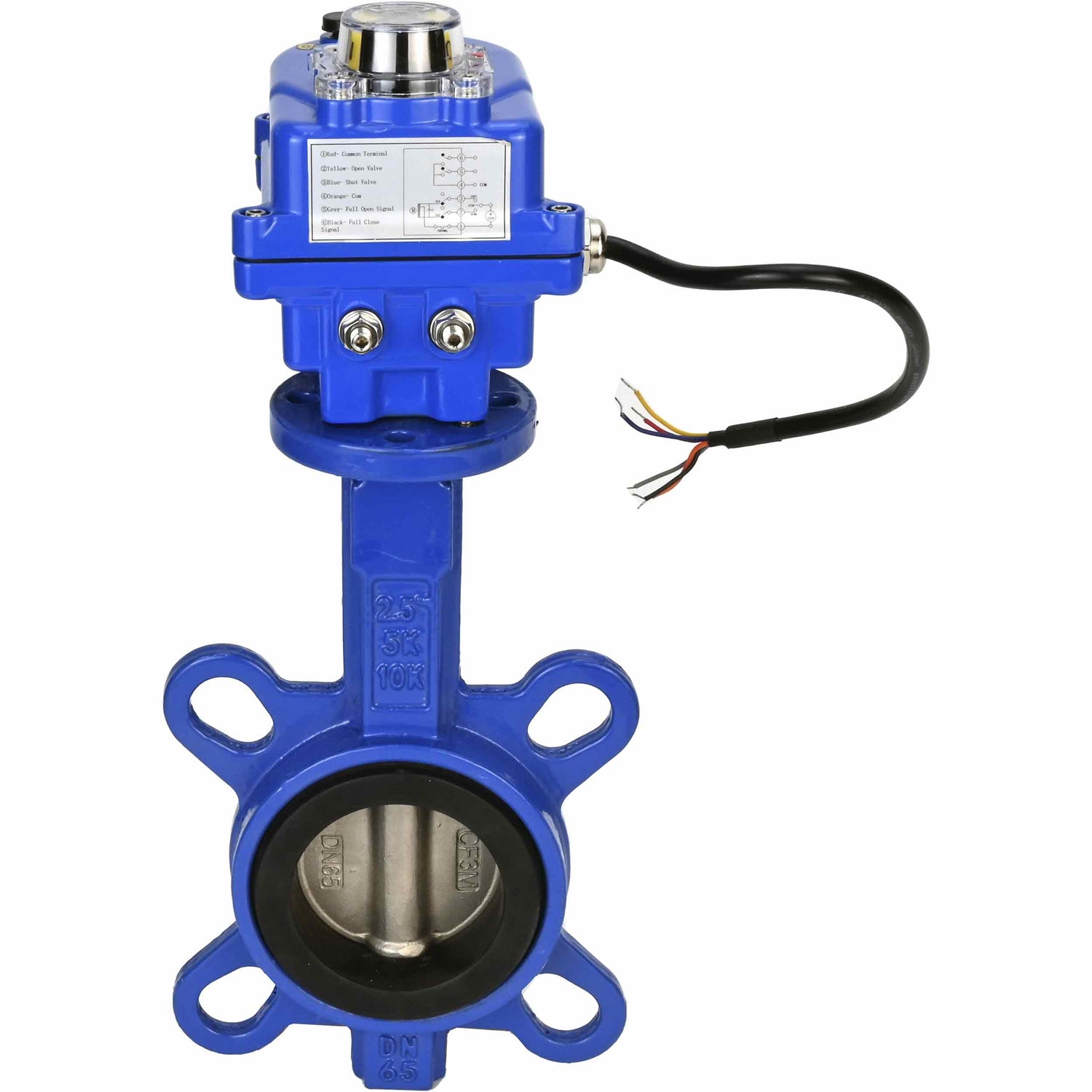

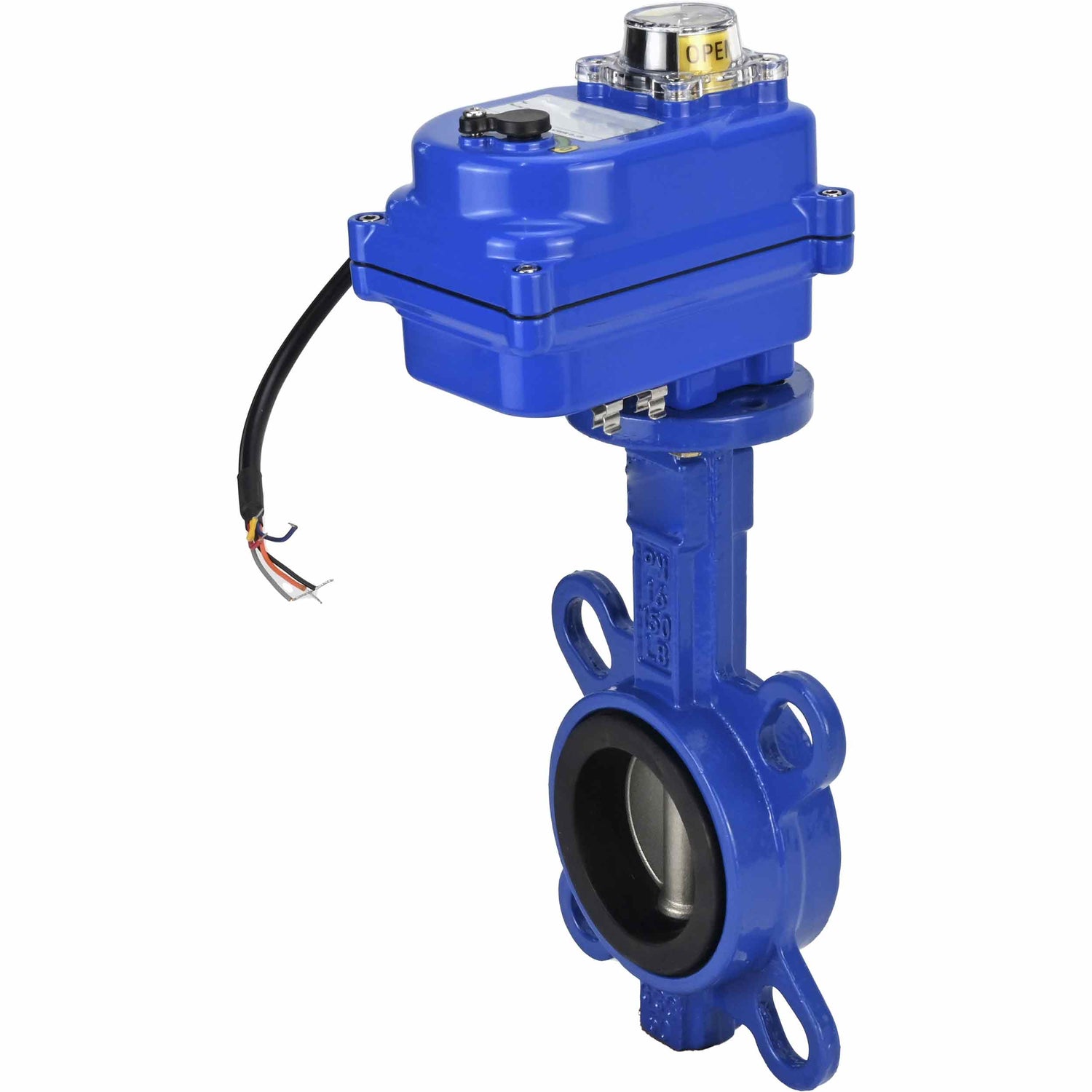

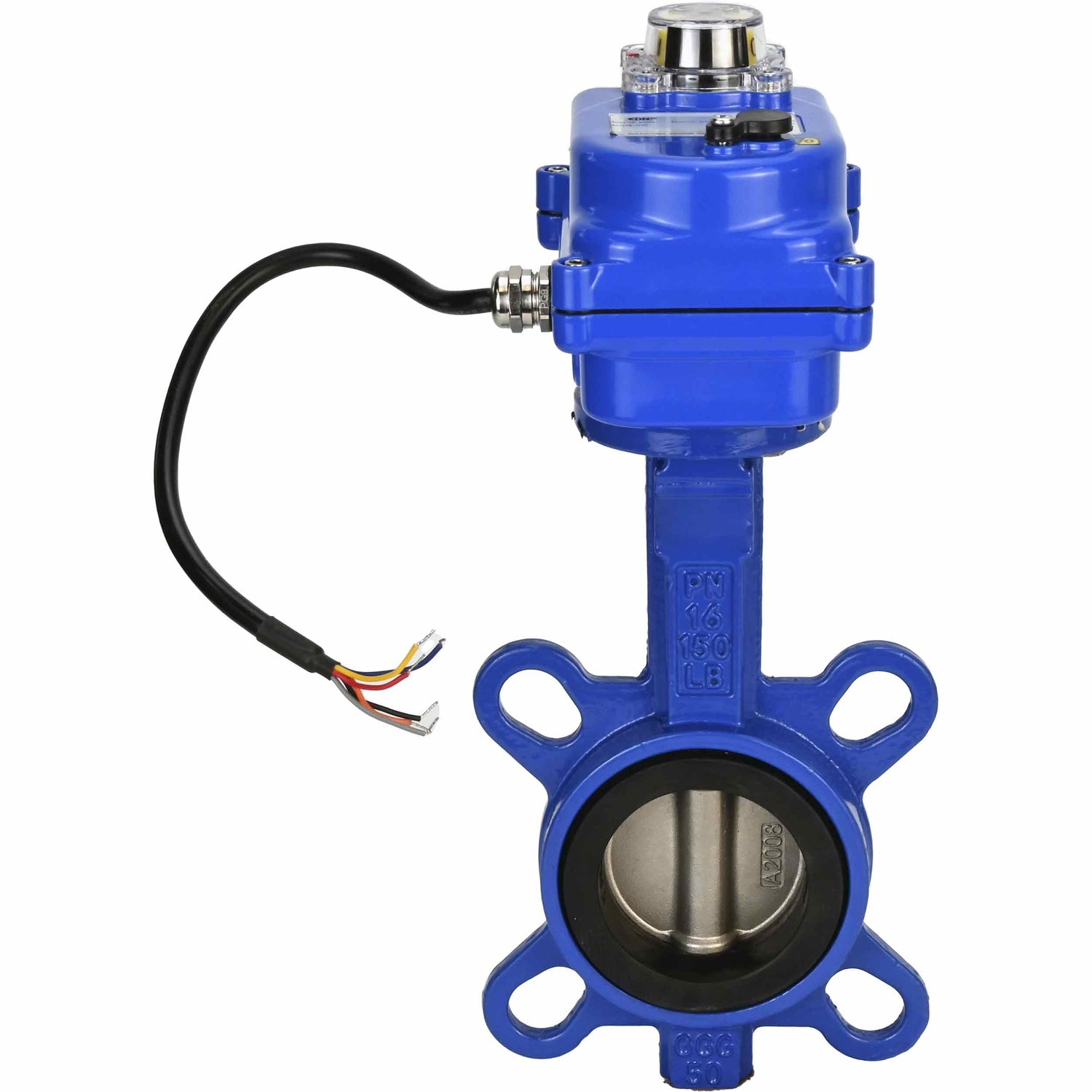

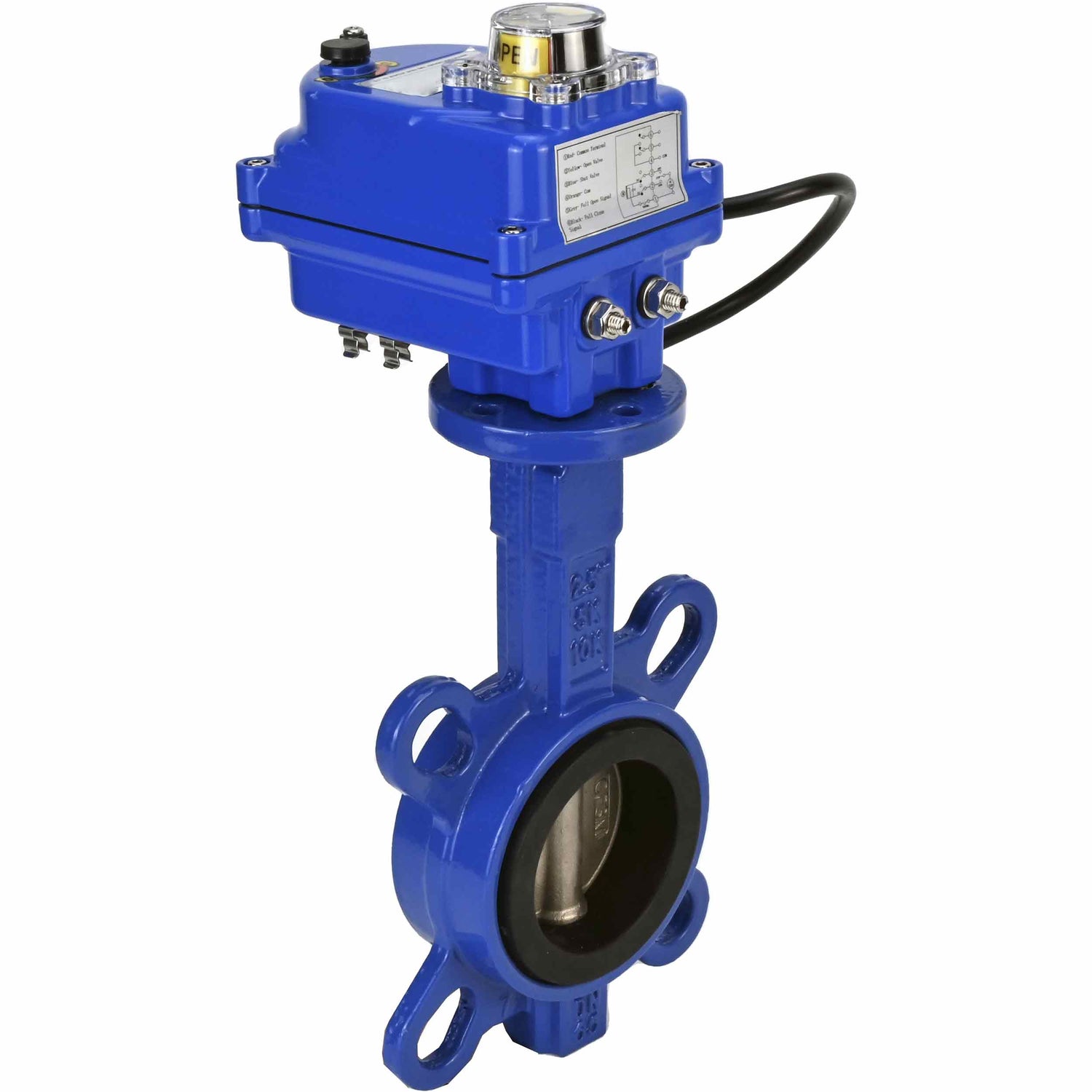

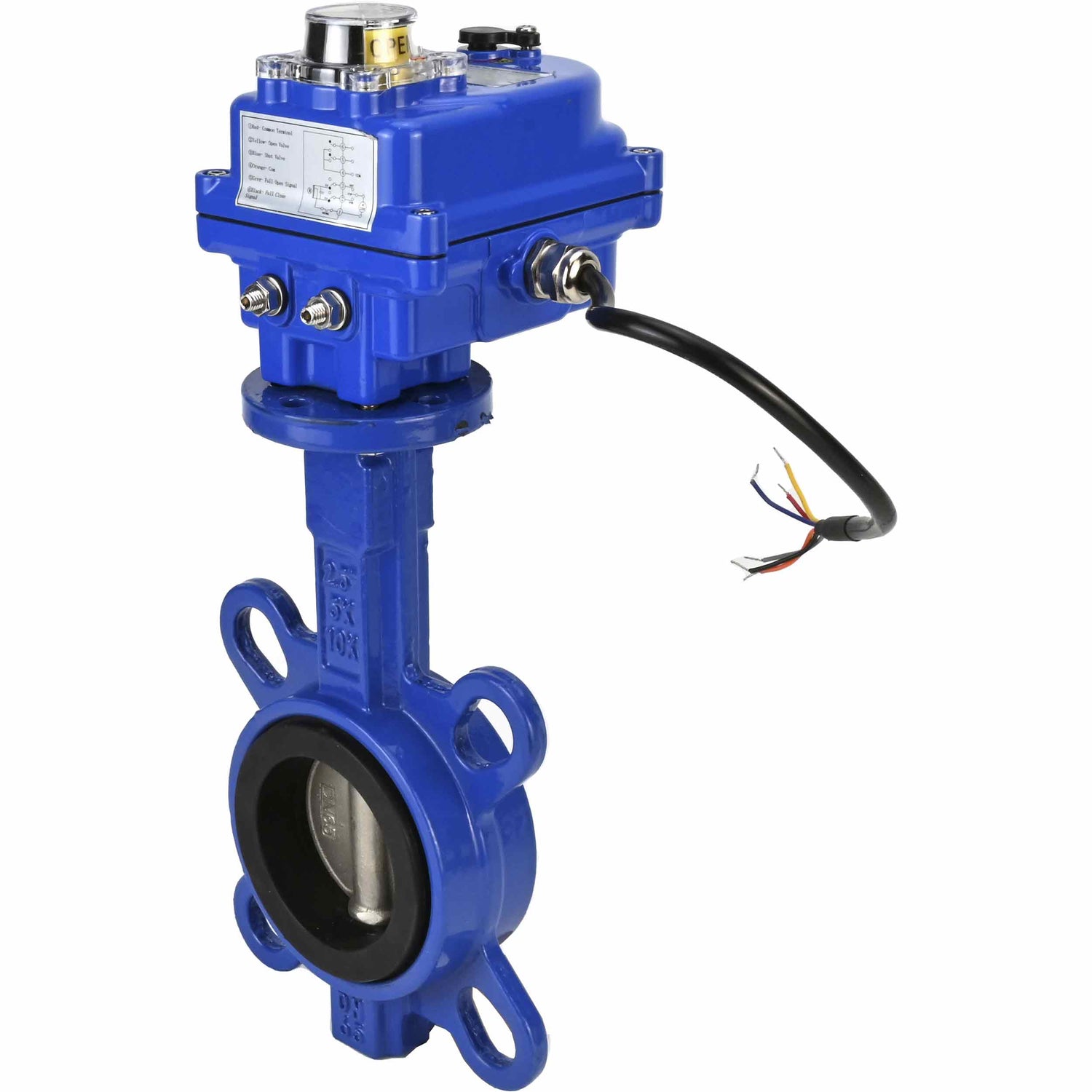

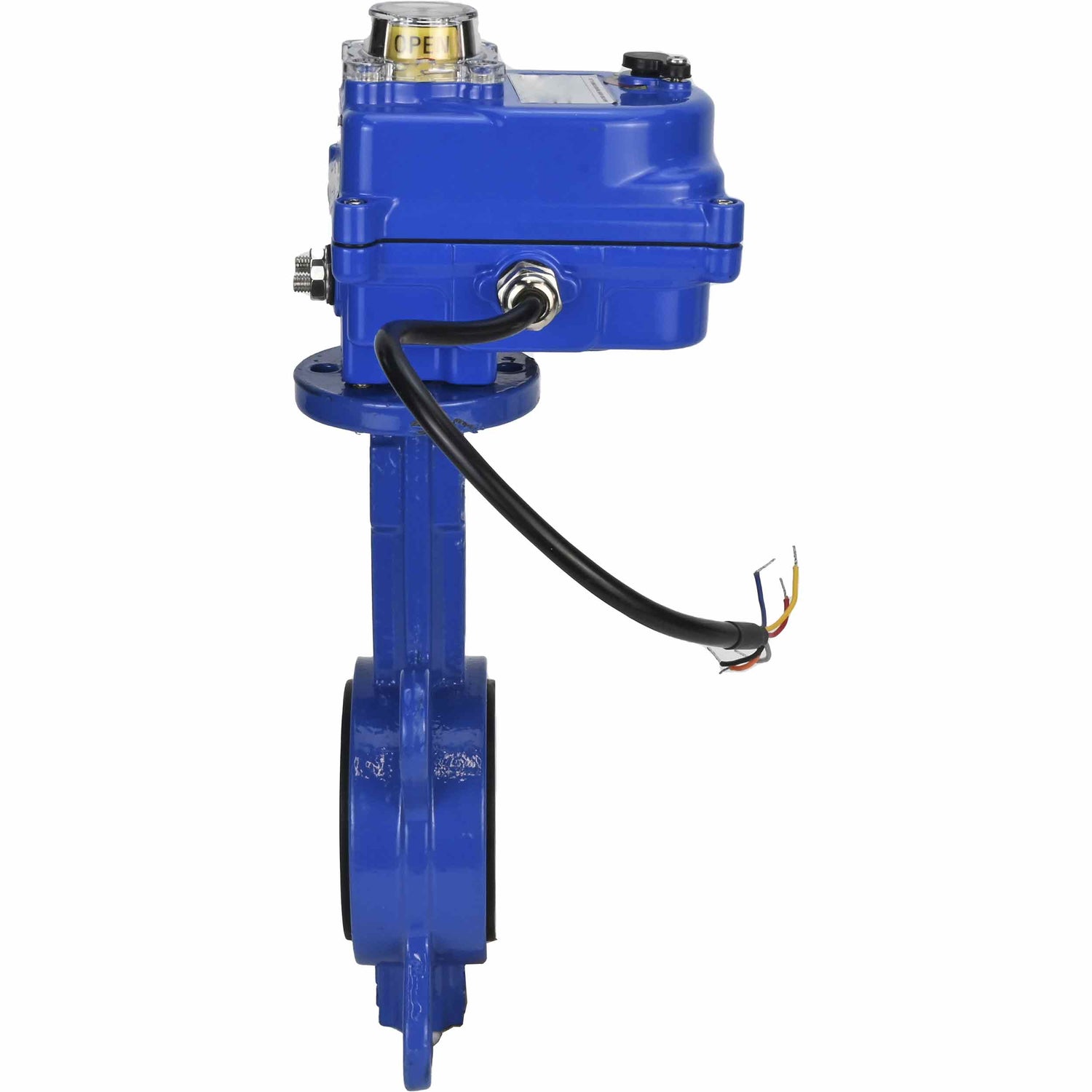

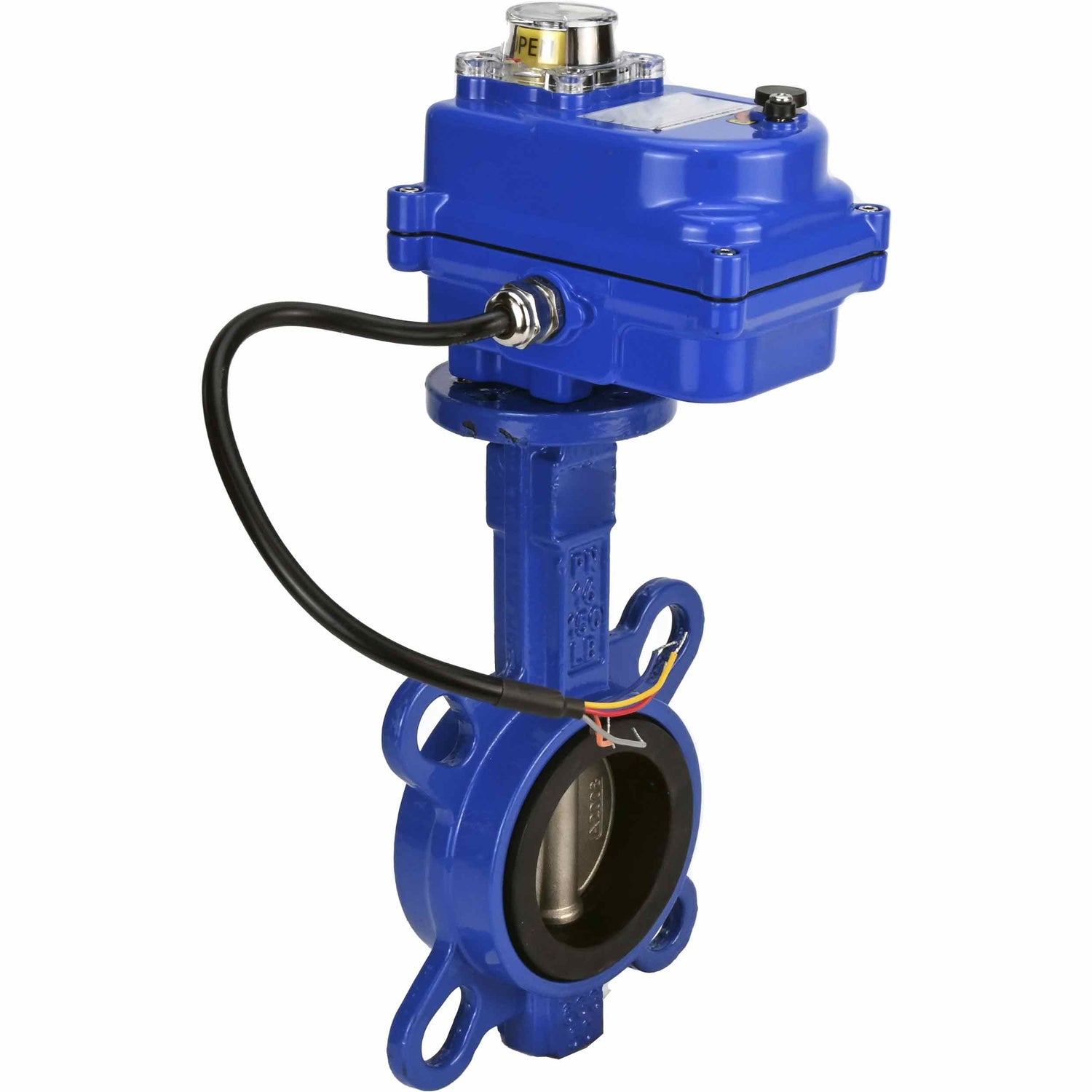

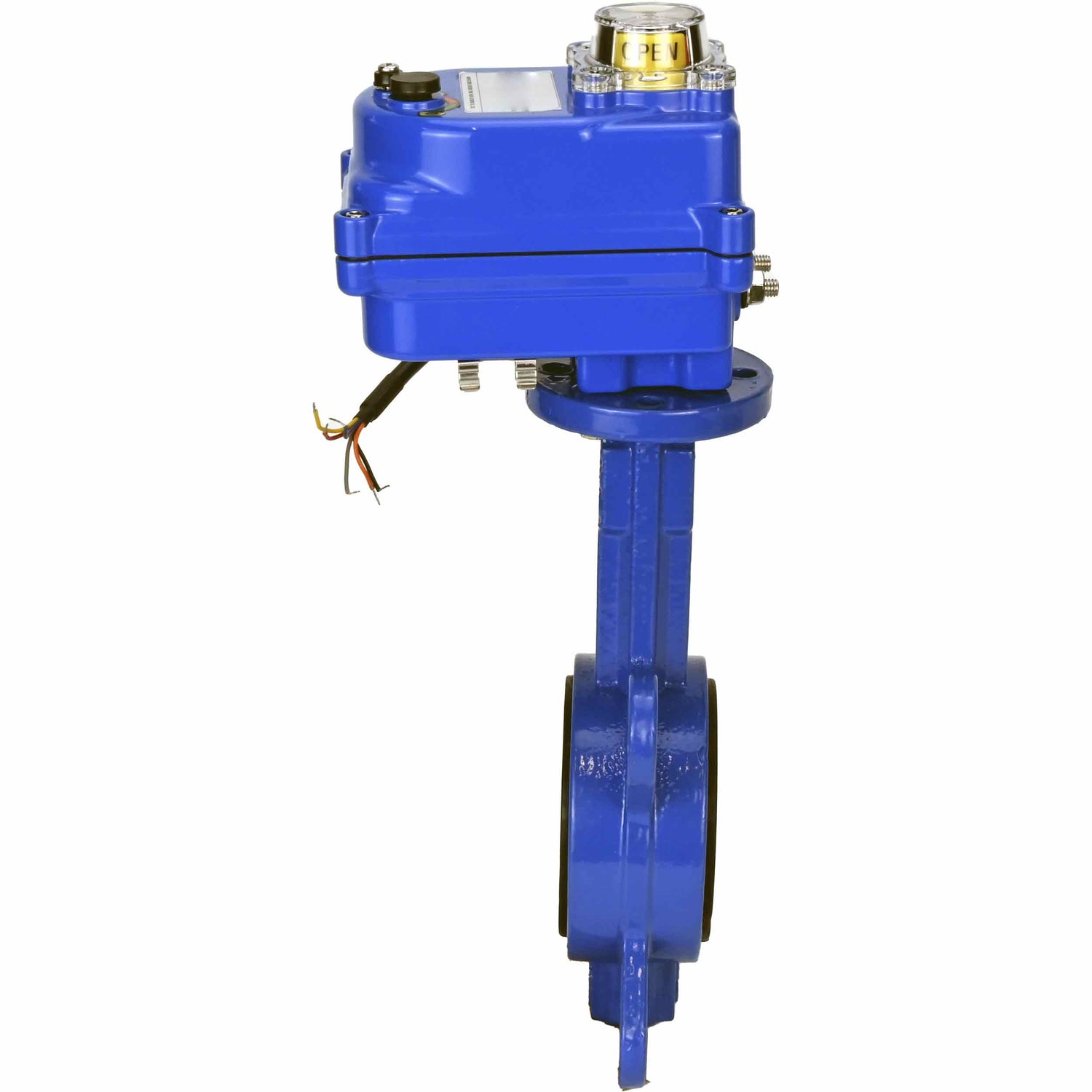

Water Butterfly Valve Elephant ggg50-316l-epdm-elephant-12, body material - cast iron GGG50, disk material - stainless steel AISI 316L, seal - EPDM, electric actuator operated

€181,14
Tax included Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Butterfly valves Elephant ggg50-316l-epdm are designed for use as shut-off or regulating valves for flow control in heat and water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.
Butterfly valves should be installed only between collar flanges.






Technical characteristics of water butterfly valve Elephant ggg50-316l-epdm-elephant-12, body material - cast iron GGG50, disk material - stainless steel AISI 316L, seal - EPDM, electric actuator operated:

Nominal diameter DN, mm

40–300

Operating pressure PN, bar

16

Working medium temperature t, °C

From -20 to +90

Working medium

Water, mineral oils, hydrocarbons, oils, fats

Flow direction

Two-way

Connection to pipeline

Interflange

Body material

Cast iron GGG50


Dimensions of water butterfly valve Elephant ggg50-316l-epdm-elephant-12, body material - cast iron GGG50, disk material - stainless steel AISI 316L, seal - EPDM, electric actuator operated:

DN

A

B

C

ØD

d

G

CH (stem)

ISO

Torque

Weight

mm

Nm

kg

40

105

55

33

75

10

30

9x9

F05

20

1.6

50

161

80

43

84.5

10

30

9x9

F05

23

2.2

65

175

89

45

104.5

10

30

9x9

F05

29

2.5

80

181

95

45

123.5

10

30

9x9

F05

39

2.9

100

200

114

52

139.5

10

30

11x11

F07

59

3.8

125

213

127

55

169.5

10

30

14x14

F07

84

5.8

150

226

139

55

196

10

30

14x14

F07

86

7.4

200

260

175

60

247

12

30

17x17

F10

220

12.5

250

292

203

68

304

12

40

22x22

F10

350

18.9

300

337

242

78

358

12

40

22x22

F10

420

27.0





Material specification of water butterfly valve Elephant ggg50-316l-epdm-elephant-12, body material - cast iron GGG50, disk material - stainless steel AISI 316L, seal - EPDM, electric actuator operated:

№

Name

Material

1

Body

Cast iron GGG50

2

Disc

Steel 316L

3

Seat seal

EPDM

4

Upper stem

Steel 316L

5

Lower stem

Steel 316L

6, 11

Retaining ring

Steel AISI 201

7

Duster

NBR

8

Stem gasket

NBR

9

Bushing

Steel AISI 201

10

Plug

Plastic




Description of Elephant 220V actuators:

Electric quarter-turn actuators Elephant are designed for remote and local control of shut-off valves. Widely used in gas, oil, metallurgical and food industries, housing and communal services, etc. with ambient temperature from -20°...+70°C.



Parameters of actuators Elephant 220V:

Actuator model

Maximum torque, Nm

Working time, sec

Power, W

Current, A

Weight, kg

Stem size square, mm

Elephant-003

30

20

8

0,15

2,1

9 or 11

Elephant 003 blue

30

25

25

0,1

1,2

11

Elephant-005

50

30

10

0,25

3,6

11 or 14

Elephant-008

80

30

10

0,25

3,6

11 or 14

Elephant-010

100

30

15

0,35

4,6

14 or 17

Elephant-030

300

30

45

0,31

13,4

22

Elephant-040

400

30

60

0,33

13,8

22

Elephant-060

600

30

90

0,33

14

27



Specifications
  • Country of origin
    China
  • Body material
    Cast iron GGG50/EN-GJS-500-7
  • Maximum allowable temperature
    120 °C
  • Connection type
    Compact flanged
  • Control type
    Electric actuator
  • Nominal pressure
    16 bar
  • Type of seal
    EPDM
  • Disc material
    Stainless steel AISI 316L/1.4404
  • Voltage
    12V
  • Actuator cycle time
    25s
  • Valve feedback
    Limit switches
  • Explosion-proof
    No
  • Thermal protection
    Yes
  • Torque
    23 Nm
  • Pneumatic actuator
    No
  • Manual override
    Yes
  • Limit switches
    No
