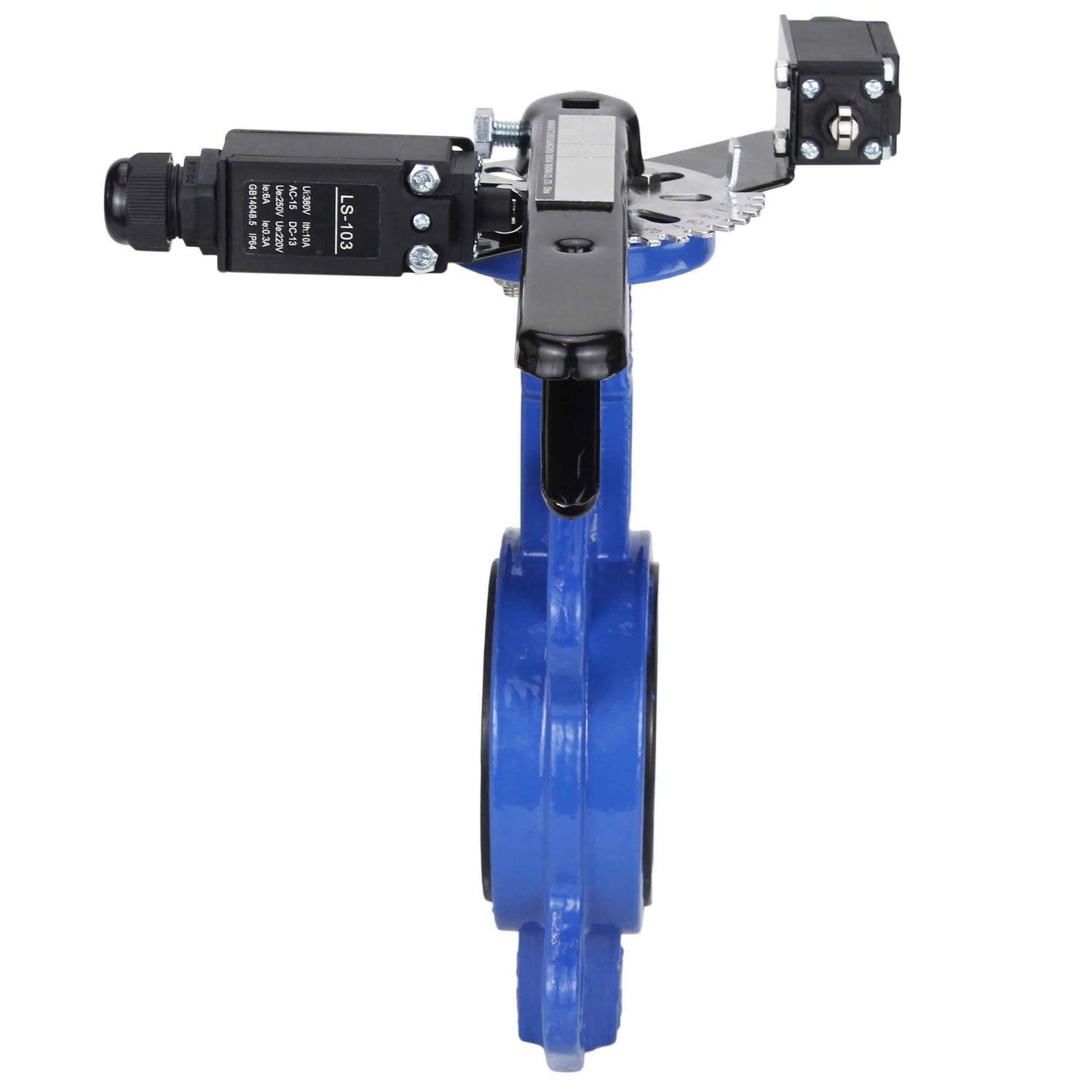

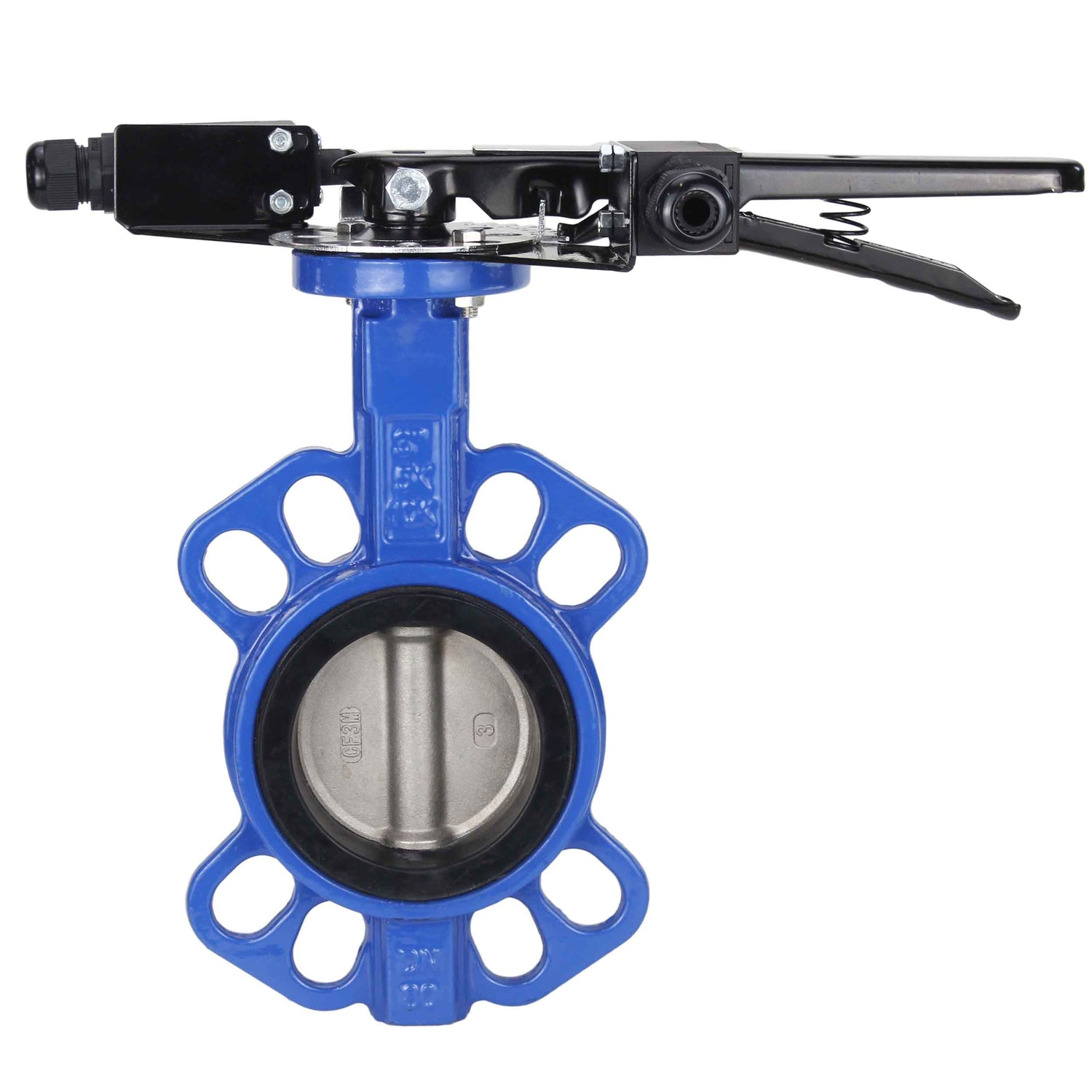

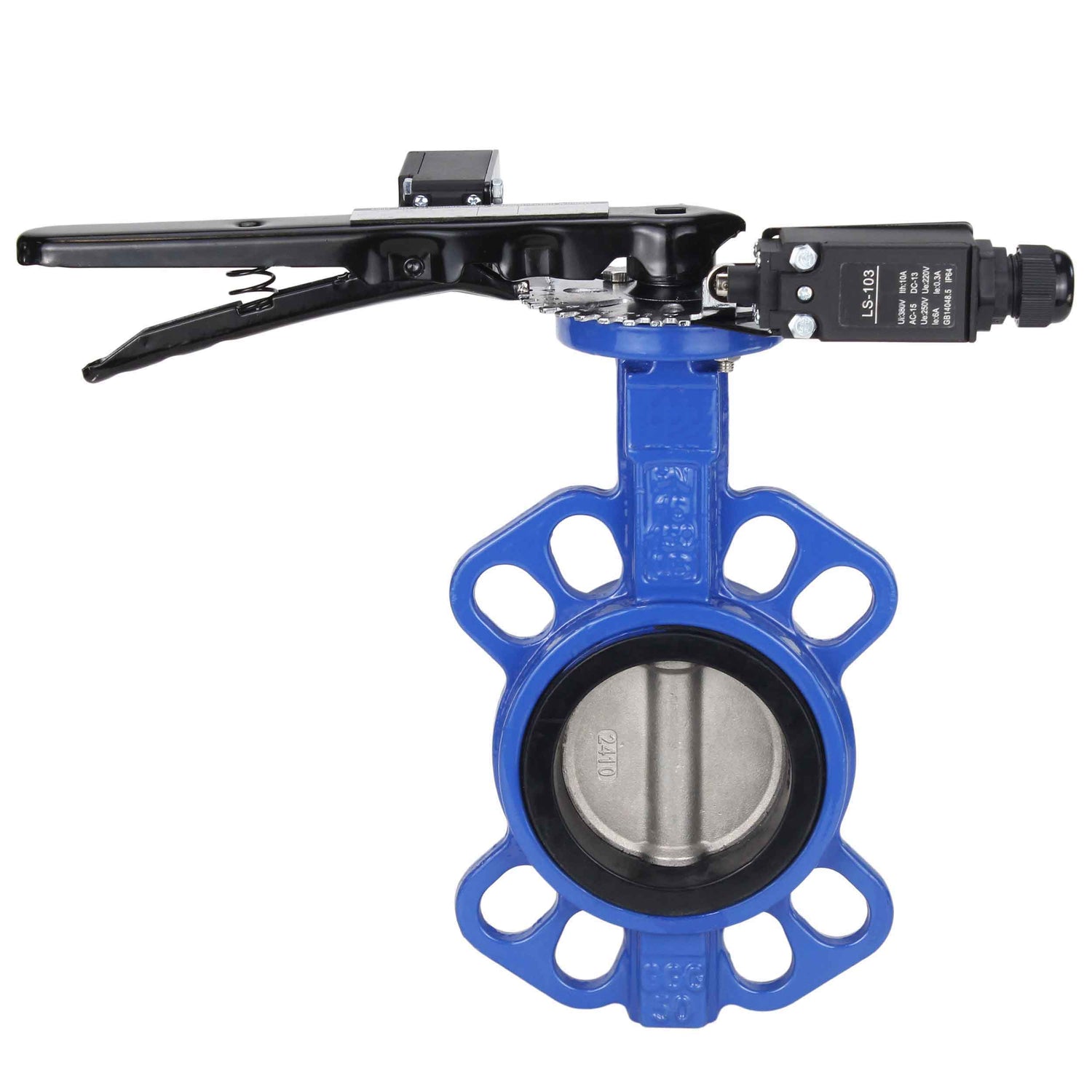

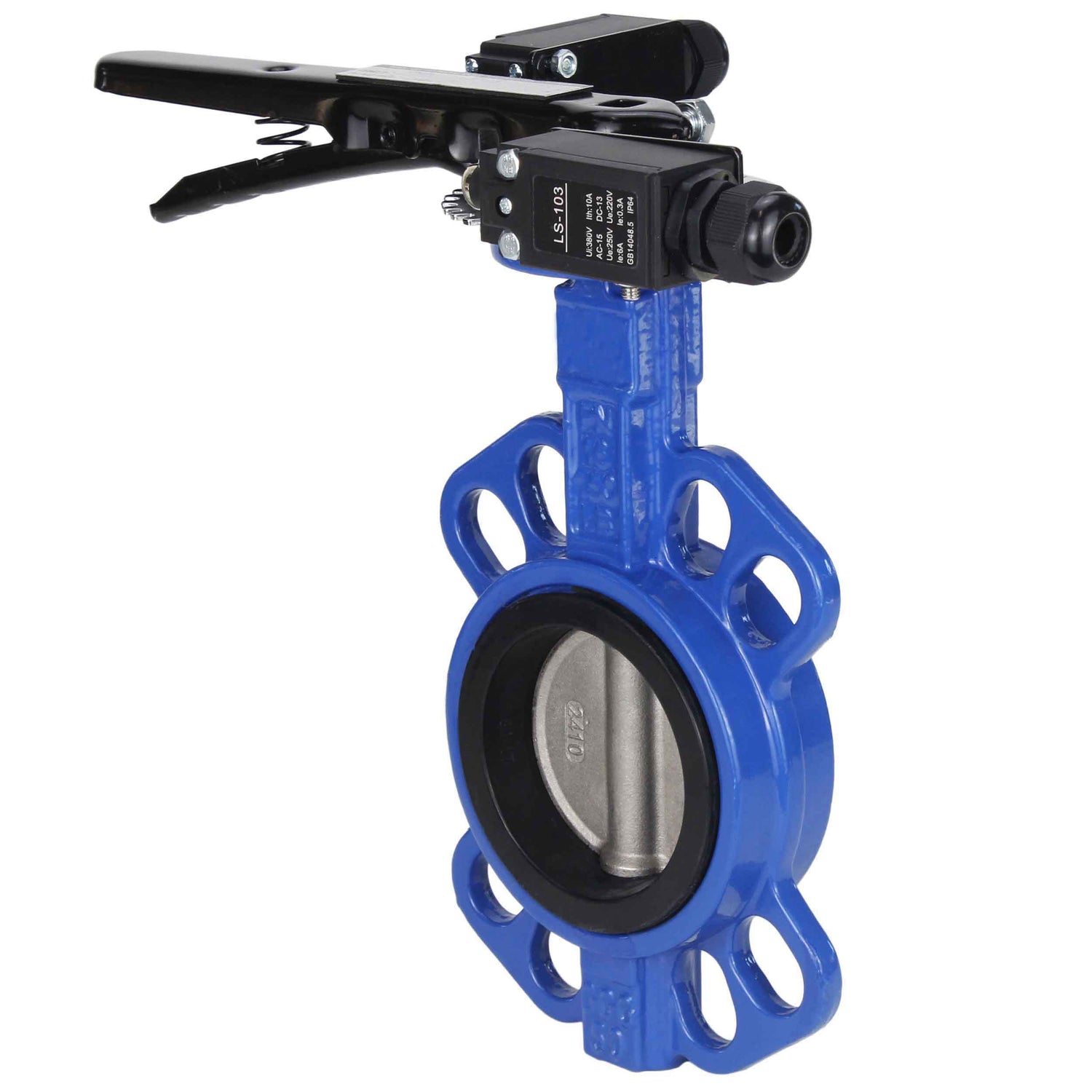

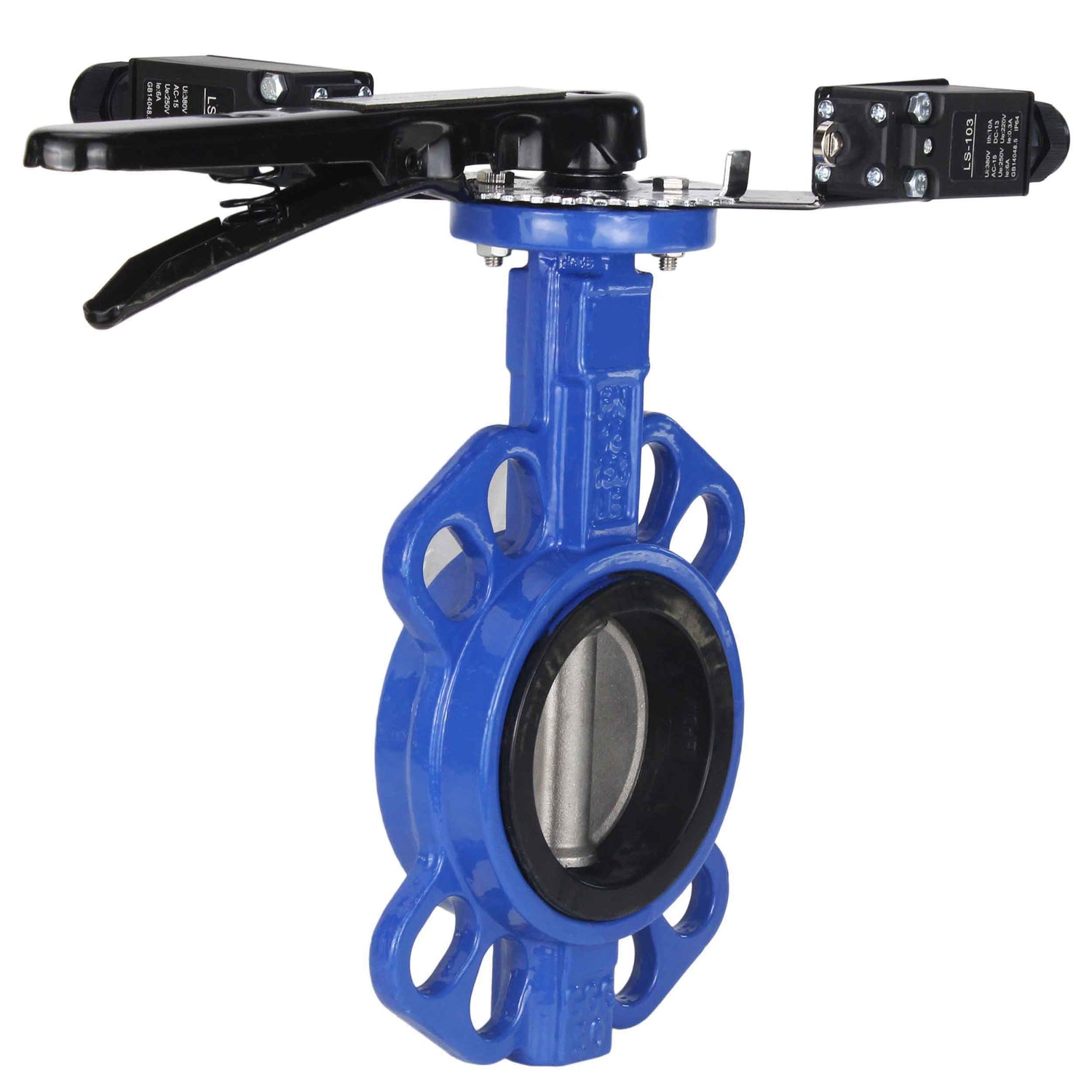

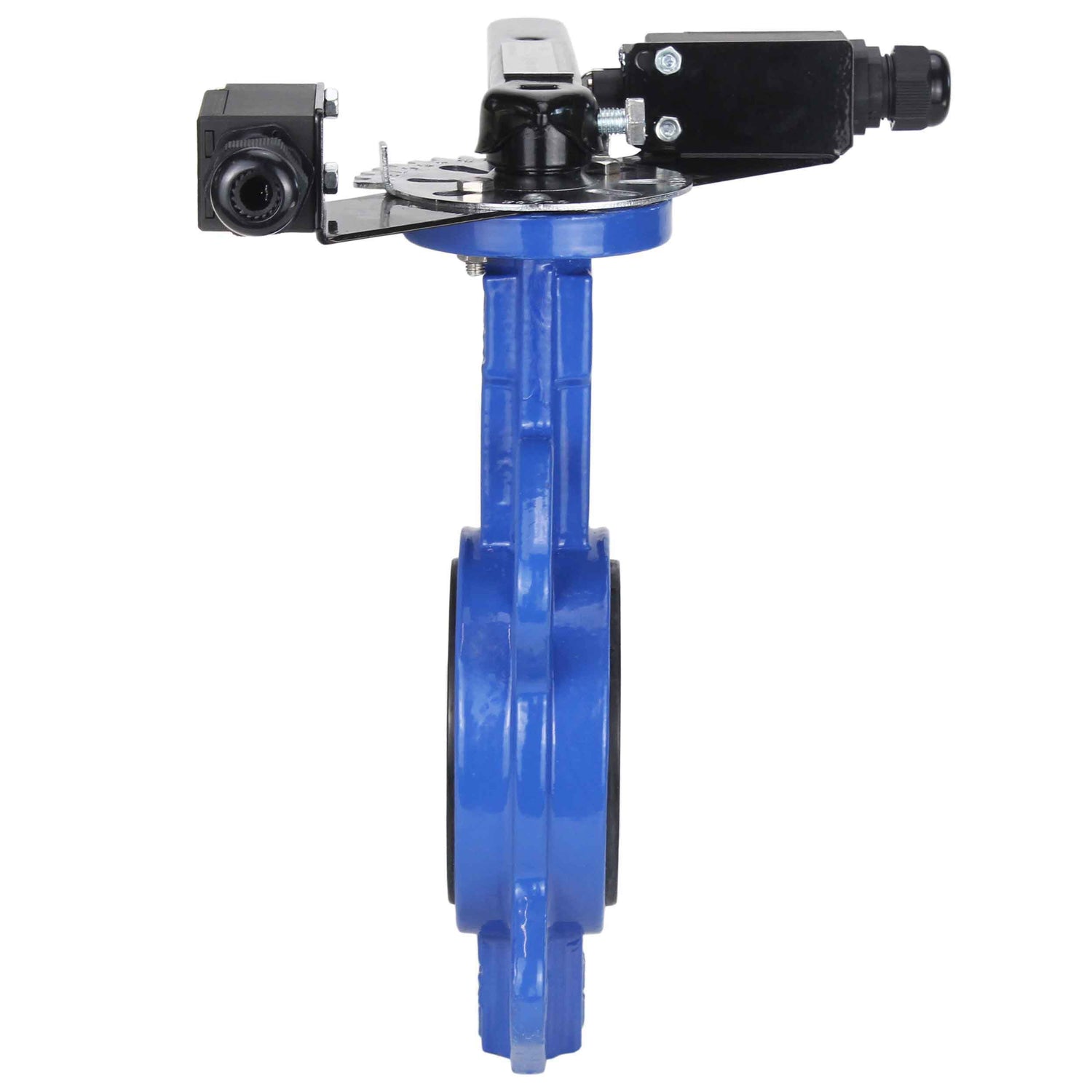

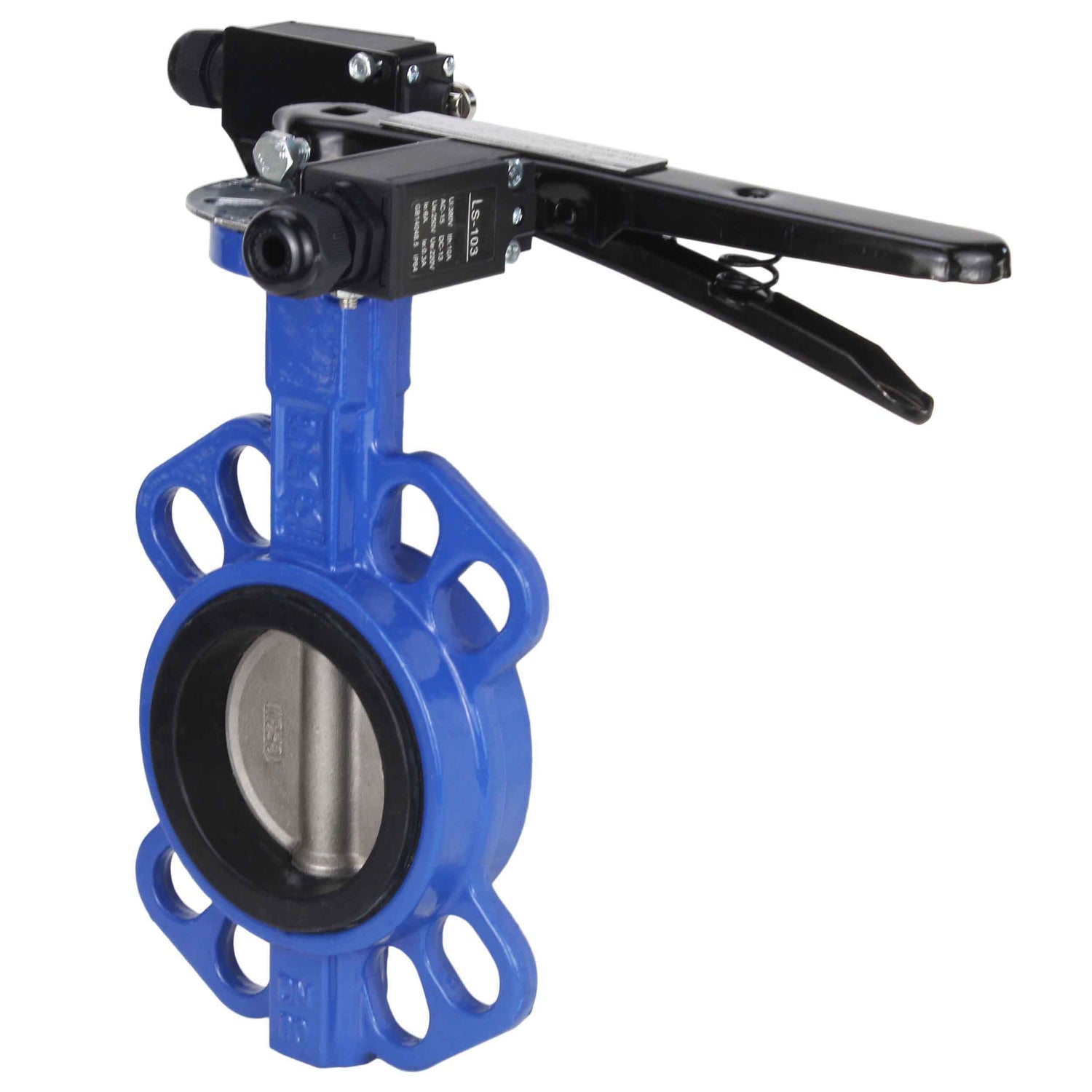

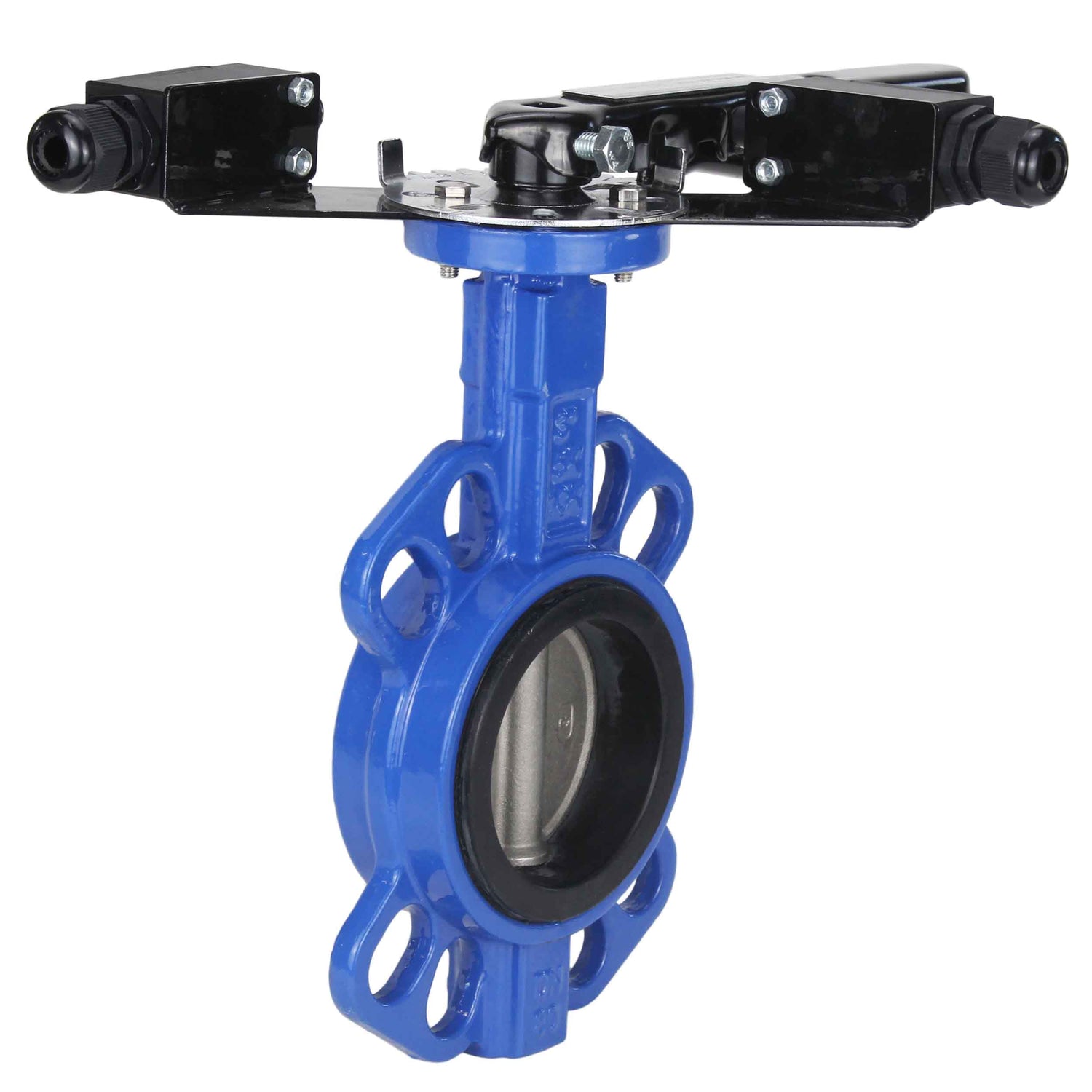

Water butterfly valve Elephant GGG50-316L-EPDM body material - cast iron GGG50, disk material - stainless steel AISI 316L, seal - EPDM with handle, with two LS-103 250V limit switches and a bracket for mounting the limit switches
Water butterfly valve Elephant GGG50-316L-EPDM body material - cast iron GGG50, disk material - stainless steel AISI 316L, seal - EPDM with handle, with two LS-103 250V limit switches and a bracket for mounting the limit switches - DN50 / 16 bar is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.
Description
Description
Butterfly valves Elephant GGG50-316L-EPDM and bracket are designed for use as shut-off or regulating valves for flow control in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.
Butterfly valves should be installed only between collar flanges.
Technical characteristics of water butterfly valve Elephant GGG50-316L-EPDM body material - cast iron GGG50, disk material - stainless steel AISI 316L, seal - EPDM with handle, with two LS-103 250V limit switches and a bracket for mounting the limit switches:
|
Nominal diameter DN, mm |
40–300 |
|
Operating pressure PN, bar |
16 |
|
Working medium temperature t, °C |
From -20 to +90 |
|
Working medium |
Water, mineral oils, hydrocarbons, oils, fats |
|
Flow direction |
Two-way |
|
Connection to pipeline |
Interflange |
|
Body material |
Cast iron GGG50 |
Dimensions of water butterfly valve Elephant 316L-316L-EPDM body material - stainless steel aisi 316l, disk material - stainless steel AISI 316L, seal - EPDM with electric actuator GZ-OF 220V:
|
DN |
A |
B |
C |
ØD |
d |
G |
CH (stem) |
ISO |
Torque |
Weight |
|
mm |
Nm |
kg |
||||||||
|
40 |
105 |
55 |
33 |
75 |
10 |
30 |
9x9 |
F05 |
20 |
1.6 |
|
50 |
161 |
80 |
43 |
84.5 |
10 |
30 |
9x9 |
F05 |
23 |
2.2 |
|
65 |
175 |
89 |
45 |
104.5 |
10 |
30 |
9x9 |
F05 |
29 |
2.5 |
|
80 |
181 |
95 |
45 |
123.5 |
10 |
30 |
9x9 |
F05 |
39 |
2.9 |
|
100 |
200 |
114 |
52 |
139.5 |
10 |
30 |
11x11 |
F07 |
59 |
3.8 |
|
125 |
213 |
127 |
55 |
169.5 |
10 |
30 |
14x14 |
F07 |
84 |
5.8 |
|
150 |
226 |
139 |
55 |
196 |
10 |
30 |
14x14 |
F07 |
86 |
7.4 |
|
200 |
260 |
175 |
60 |
247 |
12 |
30 |
17x17 |
F10 |
220 |
12.5 |
|
250 |
292 |
203 |
68 |
304 |
12 |
40 |
22x22 |
F10 |
350 |
18.9 |
|
300 |
337 |
242 |
78 |
358 |
12 |
40 |
22x22 |
F10 |
420 |
27.0 |
Material specification of water butterfly valve Elephant GGG50-316L-EPDM body material - cast iron GGG50, disk material - stainless steel AISI 316L, seal - EPDM with handle, with two LS-103 250V limit switches and a bracket for mounting the limit switches:
|
№ |
Name |
Material |
|
1 |
Body |
Cast iron GGG50 |
|
2 |
Disc |
Steel 316L |
|
3 |
Seat seal |
EPDM |
|
4 |
Upper stem |
Steel 316L |
|
5 |
Lower stem |
Steel 316L |
|
6, 11 |
Retaining ring |
Steel AISI 201 |
|
7 |
Duster |
NBR |
|
8 |
Stem gasket |
NBR |
|
9 |
Bushing |
Steel AISI 201 |
|
10 |
Plug |
Plastic |
