Elephant  |  SKU: D050-13757

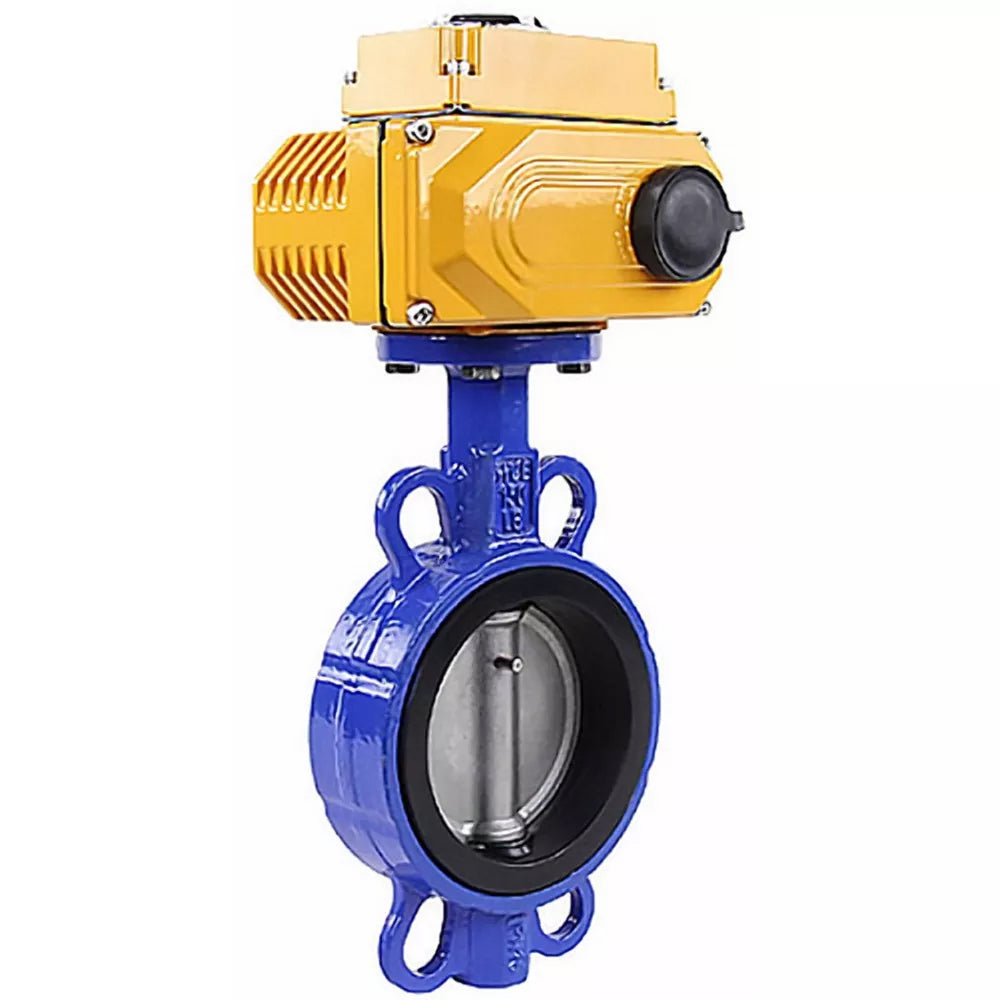

Water Butterfly Valve Elephant GGG50-316L-EPDM, body material - cast iron GGG50, disk material - stainless steel AISI 316L, seal - EPDM, with electric actuator QT-040 24V

€735,04
Tax included Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Butterfly valves GGG50-316L-EPDM with 24V are designed for use as shut-off or regulating valves for flow control in heat and water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.
Butterfly valves should be installed only between collar flanges (type 11, row 1, version B according to GOST 33259)





Technical parameters of Elephant GGG50-316L-EPDM water disc gate valves, body material - cast iron GGG50, disc material - stainless steel AISI 316L, seal - EPDM, with electric actuator QT-040 24 V:

Nominal diameter DN, mm 40 - 150
Working pressure PN, bar 16
Working medium temperature t, ⁰C -20 to +90
Working medium water, mineral oils, hydrocarbons, oils, fats
Flow direction double-sided
Connection to pipeline interflanged
Body material cast iron GGG50

Затворы дисковые поворотные DN.ru GG25-316L-NBR Ду40-300 Ру16 с 1/4-оборотным электроприводом DN.RU 24В

GGG50-316L-EPDM electric actuated butterfly valves 24V






Overall and installation dimensions of Elephant GGG50-316L-EPDM water disk gate valves, body material - cast iron GGG50, disk material - stainless steel AISI 316L, seal - EPDM, with electric actuator QT-040 24V:

DN A B C ØD d G CH (stem) ISO Torque Weight
mm Nm kg
40 105 55 33 75 10 30 9x9 F05 20 1.6
50 161 80 43 84.5 10 30 9x9 F05 23 2.2
65 175 89 45 104.5 10 30 9x9 F05 29 2.5
80 181 95 45 123.5 10 30 9x9 F05 39 2.9
100 200 114 52 139.5 10 30 11x11 F07 59 3.8
125 213 127 55 169.5 10 30 14x14 F07 84 5.8
150 226 139 55 196 10 30 14x14 F07 86 7.4
200 260 175 60 247 12 30 17x17 F10 220 12.5
250 292 203 68 304 12 40 22x22 F10 350 18.9
300 337 242 78 358 12 40 22x22 F10 420 27
Затворы дисковые поворотные DN.ru GGG50-316L-EPDM Ду40-300 Ру16 корпус - чугун GGG50, диск - нержавеющая сталь 316L, уплотнение – EPDM, с электроприводом DN.ru 24В

Sketch of dimensions of D GGG50-316L-EPDM disc gate valves with 24V electric actuator




Materials of parts Elephant GGG50-316L-EPDM water disc gate valves, body material - cast iron GGG50, disc material - stainless steel AISI 316L, seal - EPDM, with electric actuator QT-040 24 V:

№ Name Material
1 Body Cast iron GGG50
2 Disk 316L steel
3 Seat seal EPDM
4 Upper stem 316L steel
5 Lower stem 316L steel
6, 11 Retaining ring AISI 201 steel
7 Duster NBR
8 Stem gasket NBR
9 Shaft gasket AISI 201 steel
10 Plug plastic
Затворы дисковые поворотные DN.ru GGG50-316L-EPDM Ду40-300 Ру16 корпус - чугун GGG50, диск - нержавеющая сталь 316L, уплотнение – EPDM, с электроприводом DN.ru 24В

Material sketch of GGG50-316L-EPDM disc gate valves with 24V electric actuator



Characteristics of 24 V actuators

Actuator model Torque Working time
Nm sec
003 blue 30 25
003 24В 30 20
005 24В 50 30
008 24В 80 30
015 24В 150 30
060 24В 600 30


Actuator model Power Current Weight Stem size square
W А kg mm
003 blue 25 0,1 1,2 11
003 24В 9 0,5 2,1 11
005 24В 10 0,5 3,6 14
008 24В 10 0,5 3,6 14
015 24В 15 0,8 4,6 17
060 24В 60 3 14 27

Specifications
  • Country of origin
    China
  • Body material
    cast iron GGG50
  • Maximum allowable temperature
    120 °C
  • Connection type
    compact flanged
  • Control type
    Electric actuator
  • Nominal pressure
    16 bar
  • Type of seal
    EPDM
  • Disc material
    stainless steel AISI 316L
  • Actuator cycle time
    30 sec.
  • Explosion-proof
    No
  • Thermal protection
    Yes
  • Manual override
    Hexagon
  • Type of electric actuator
    Quarter-turn
  • Feedback sensor
    Limit switches
  • Control signal
    ON/OFF
  • Rated current consumption
    0.33 A
  • Supply voltage
    24 V
  • Angle of rotation
    90°
