Elephant | SKU: D050-08976

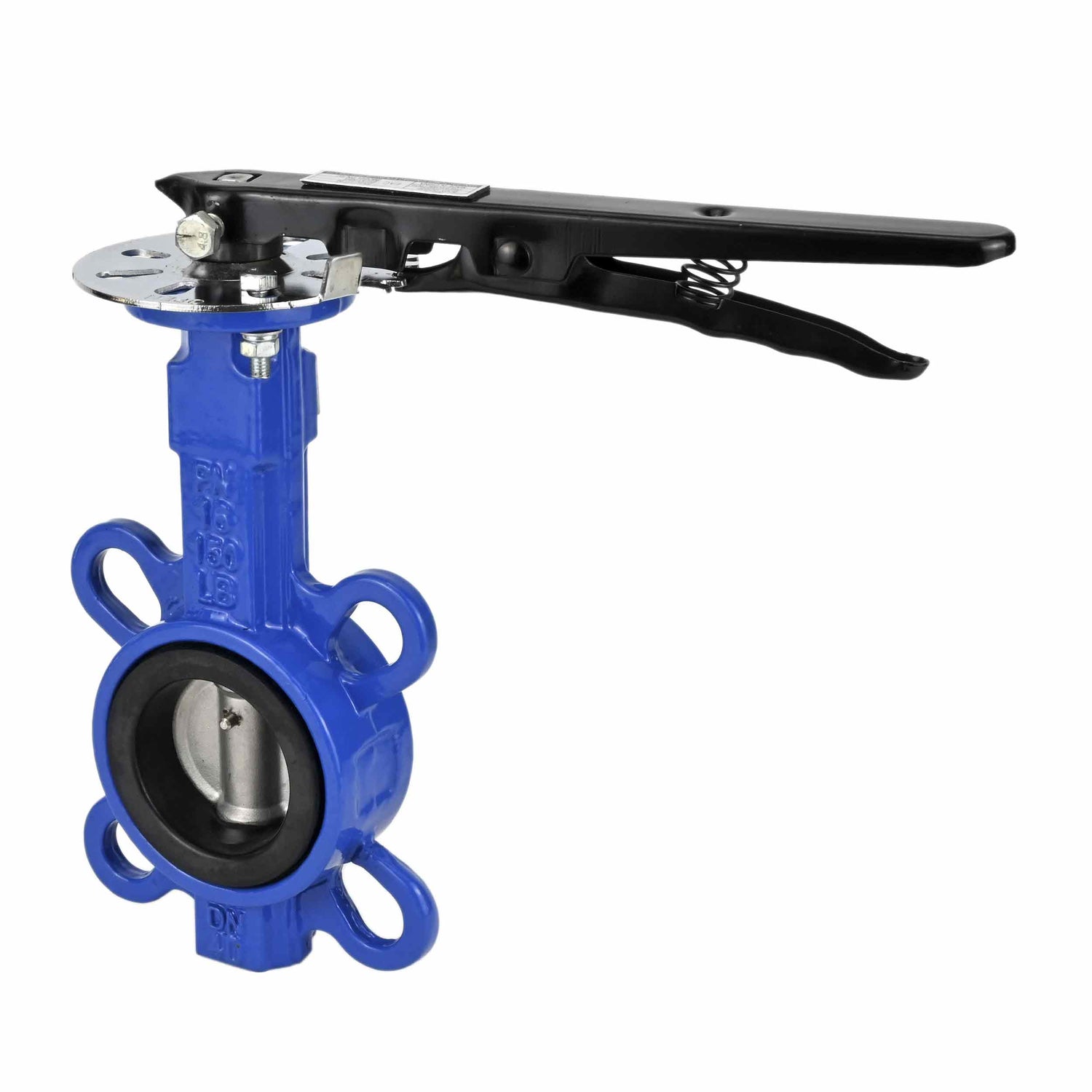

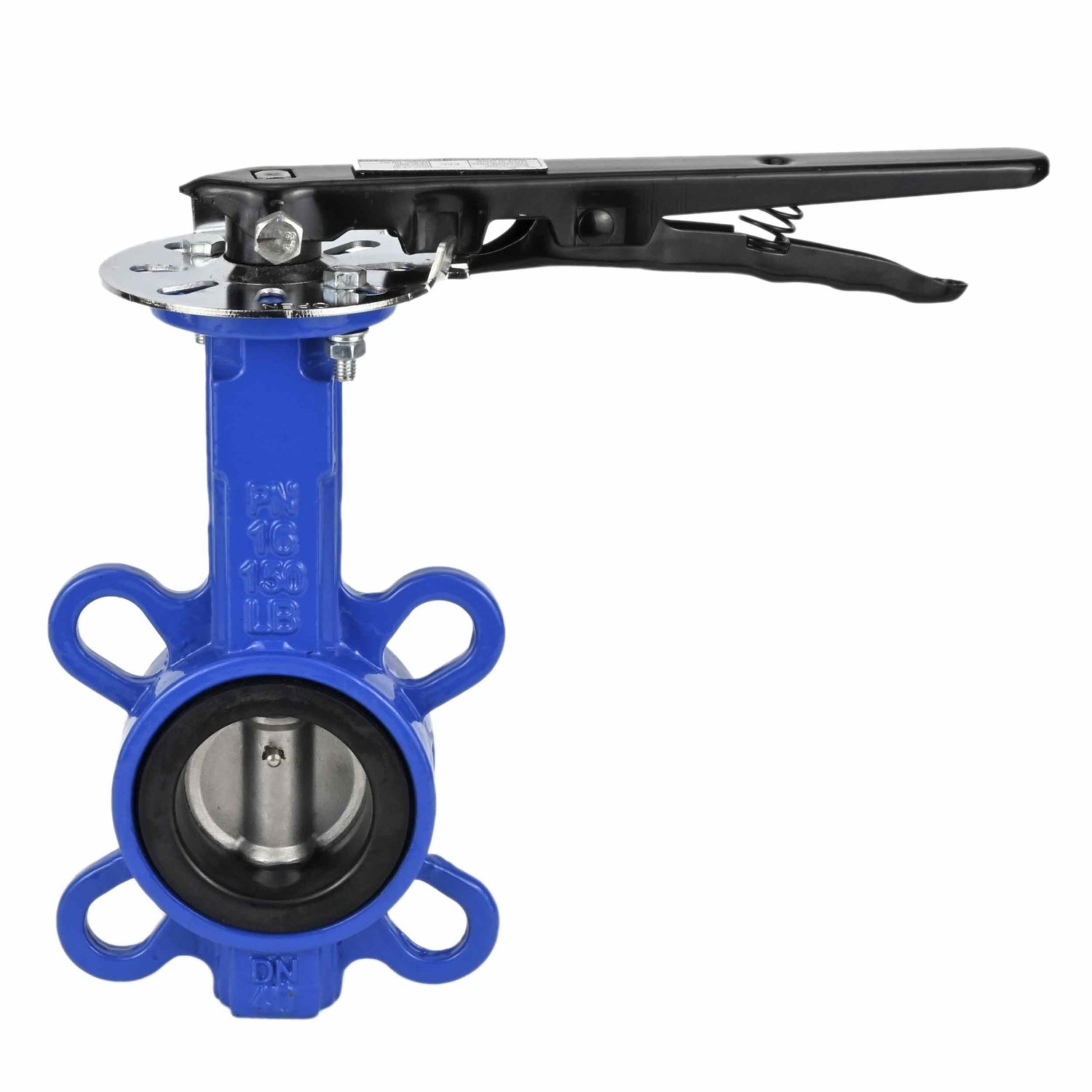

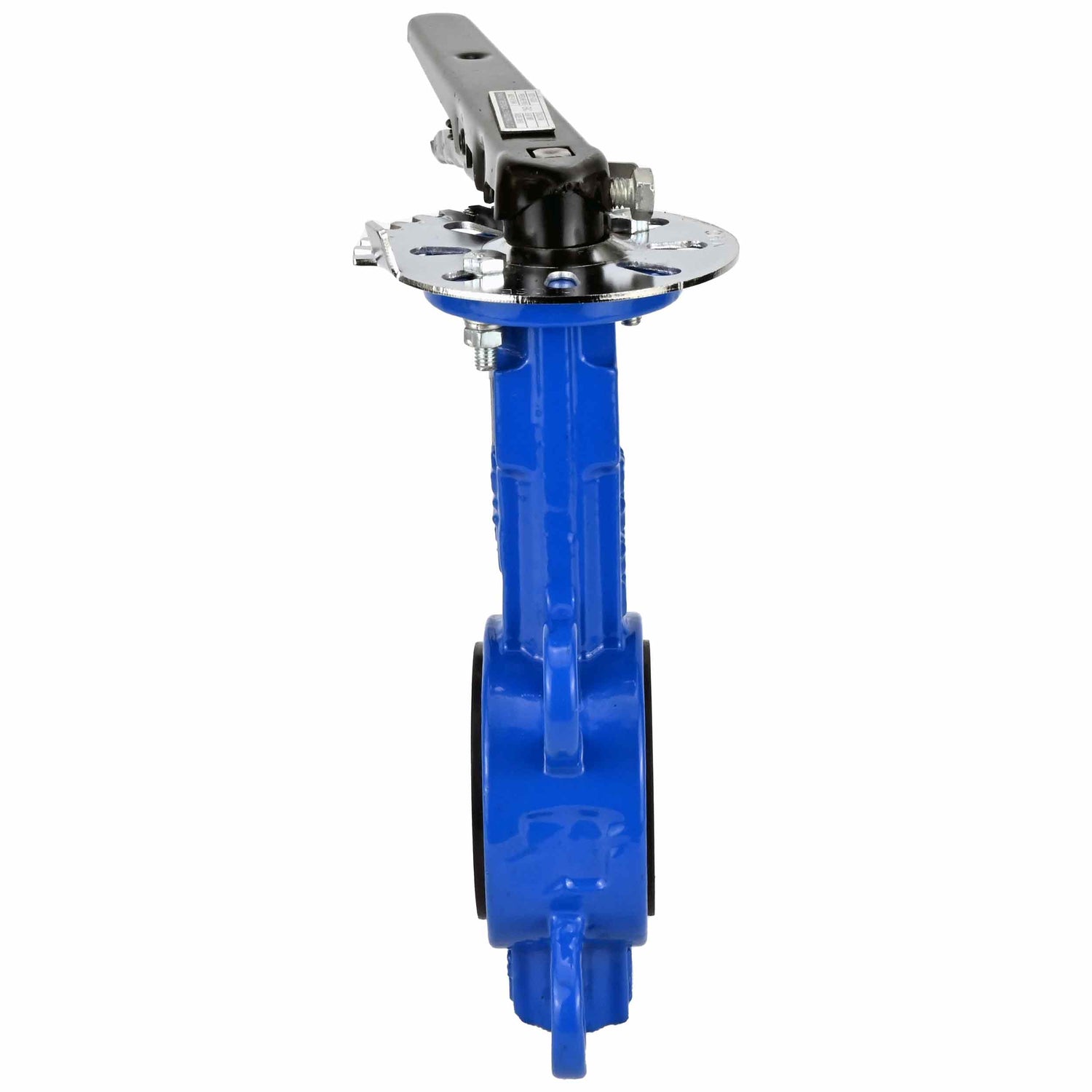

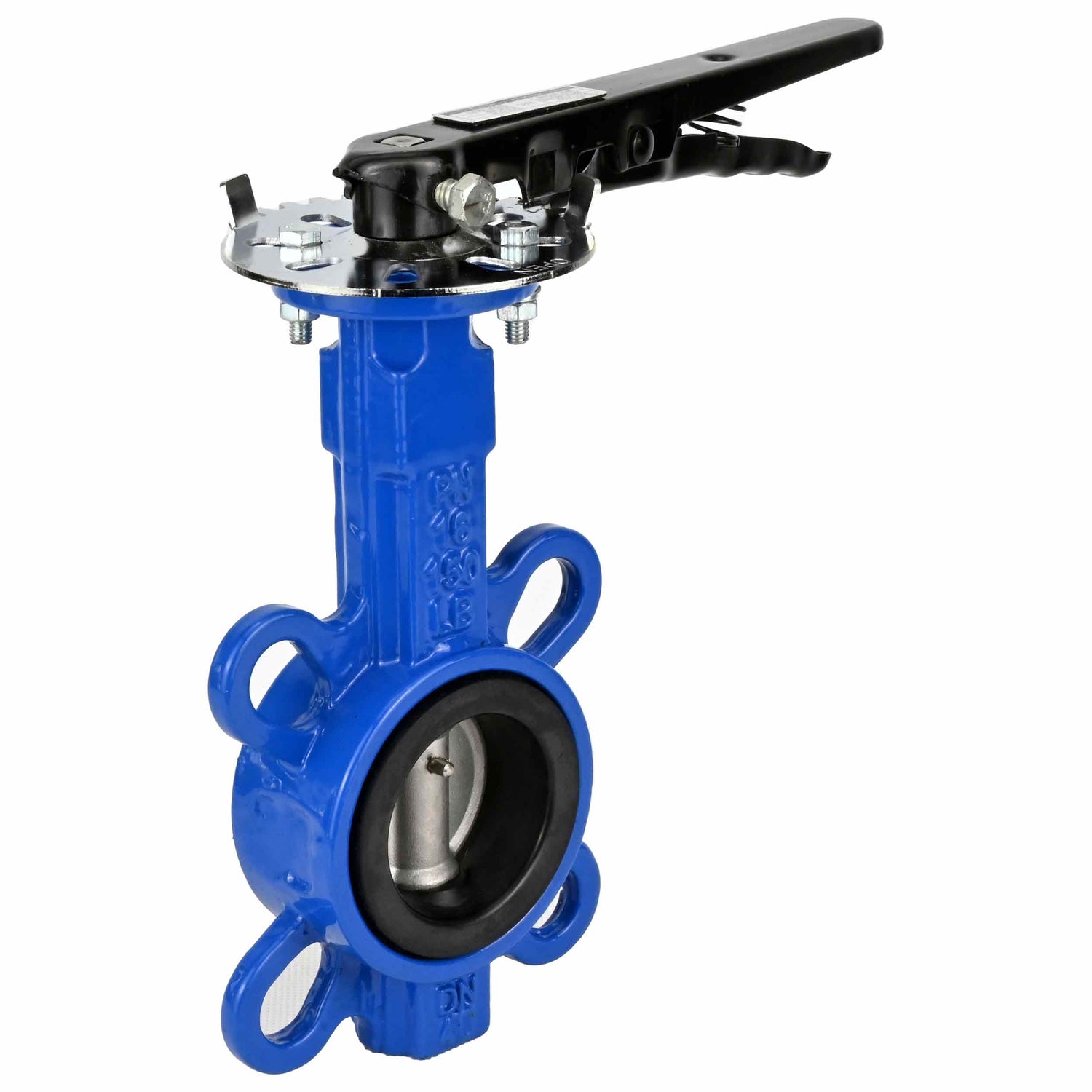

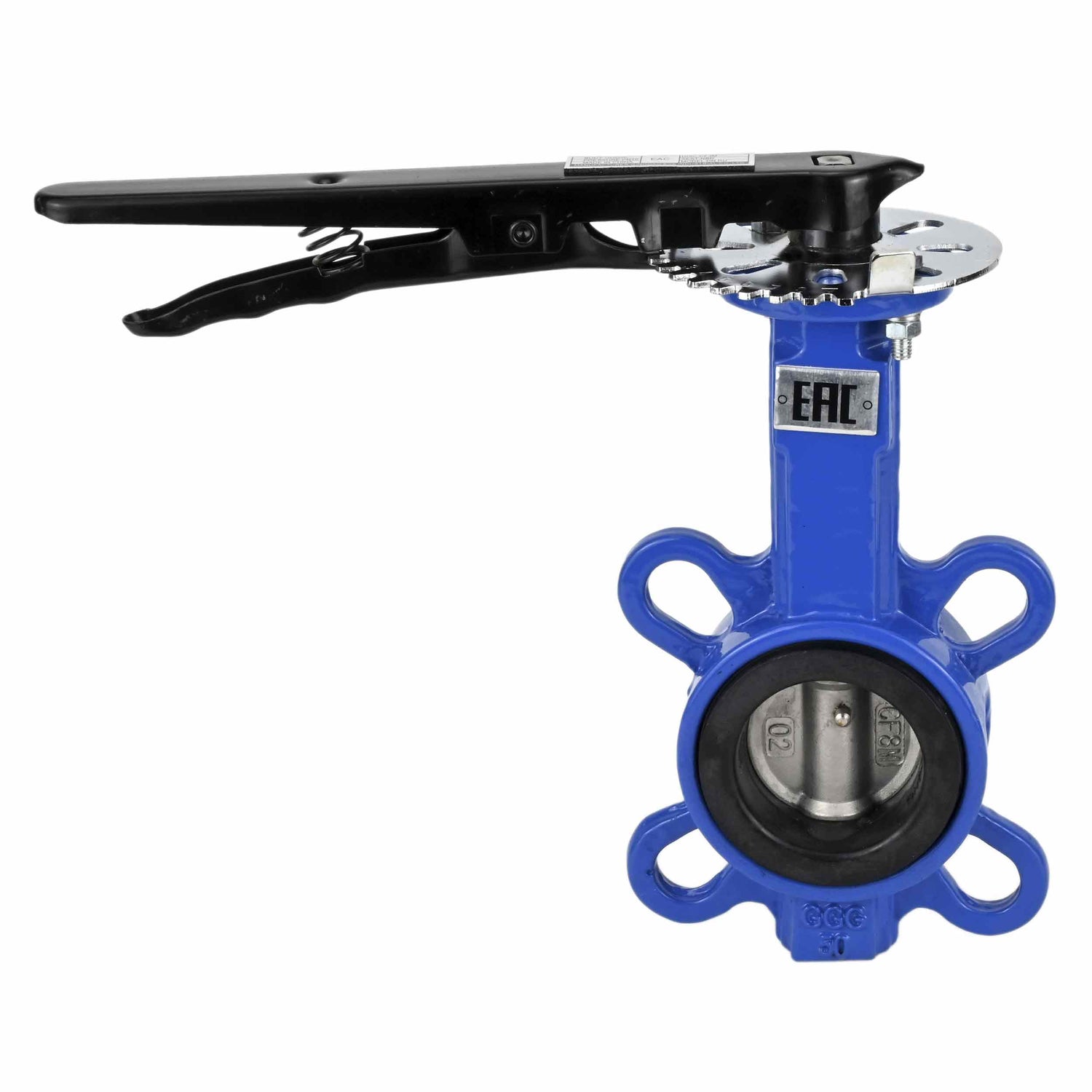

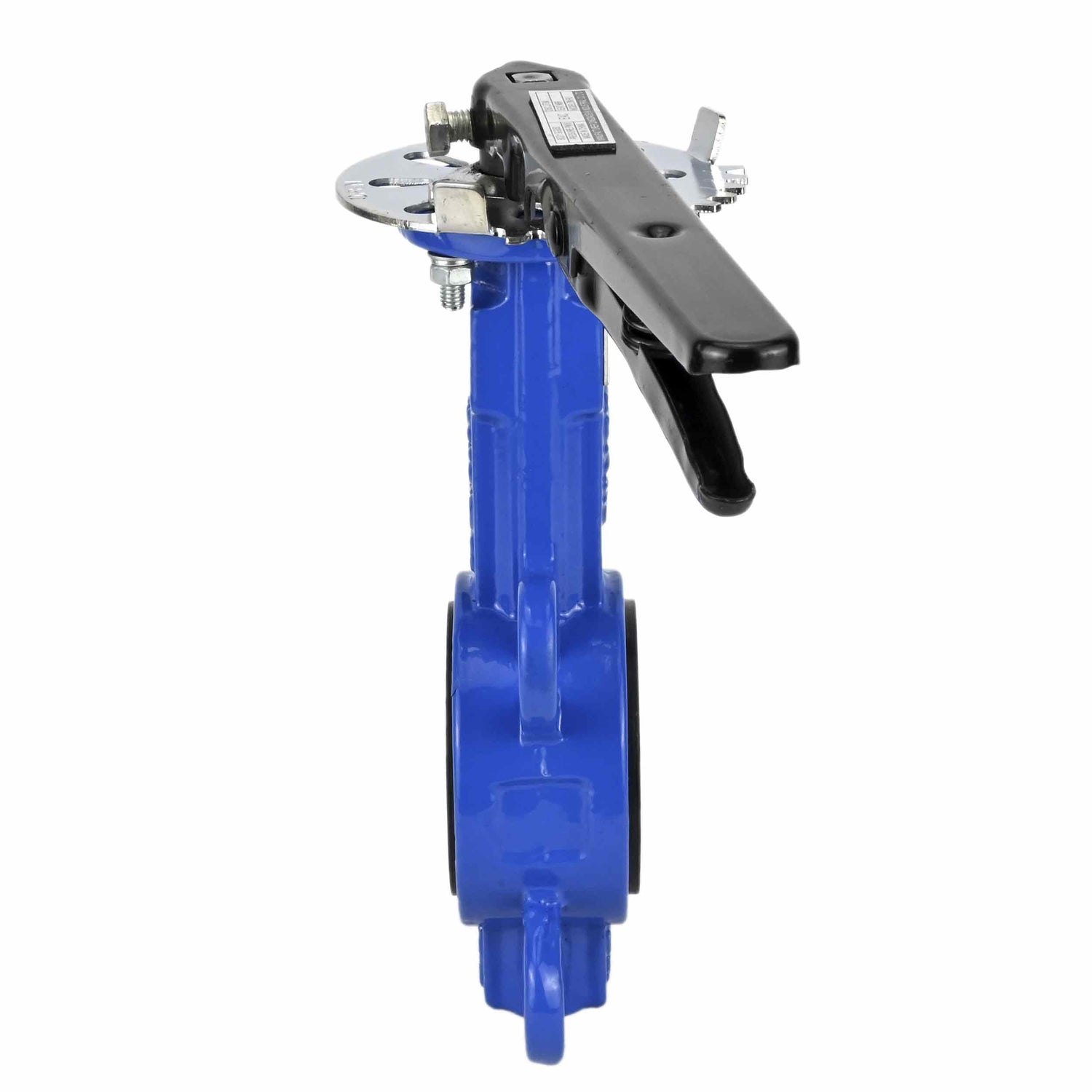

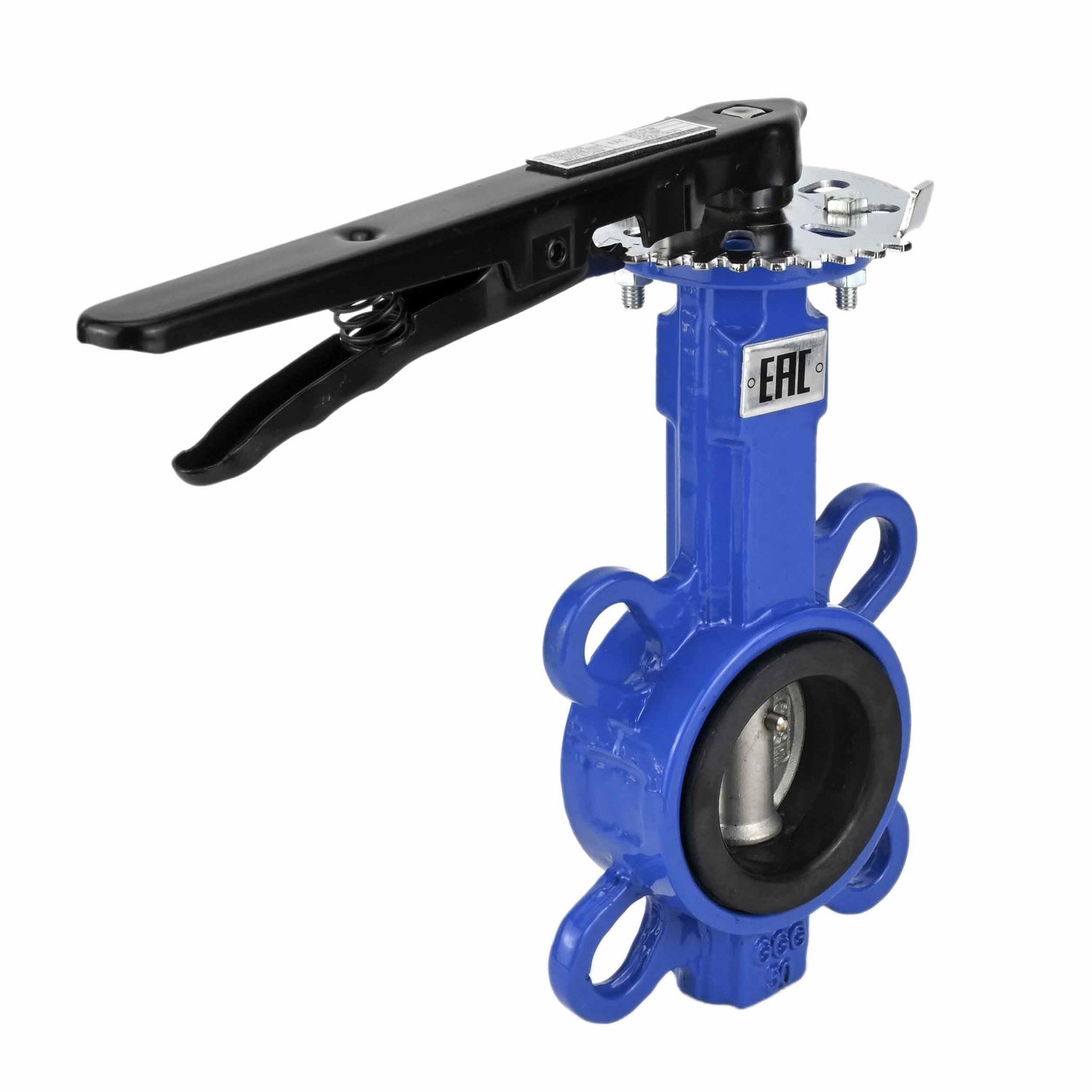

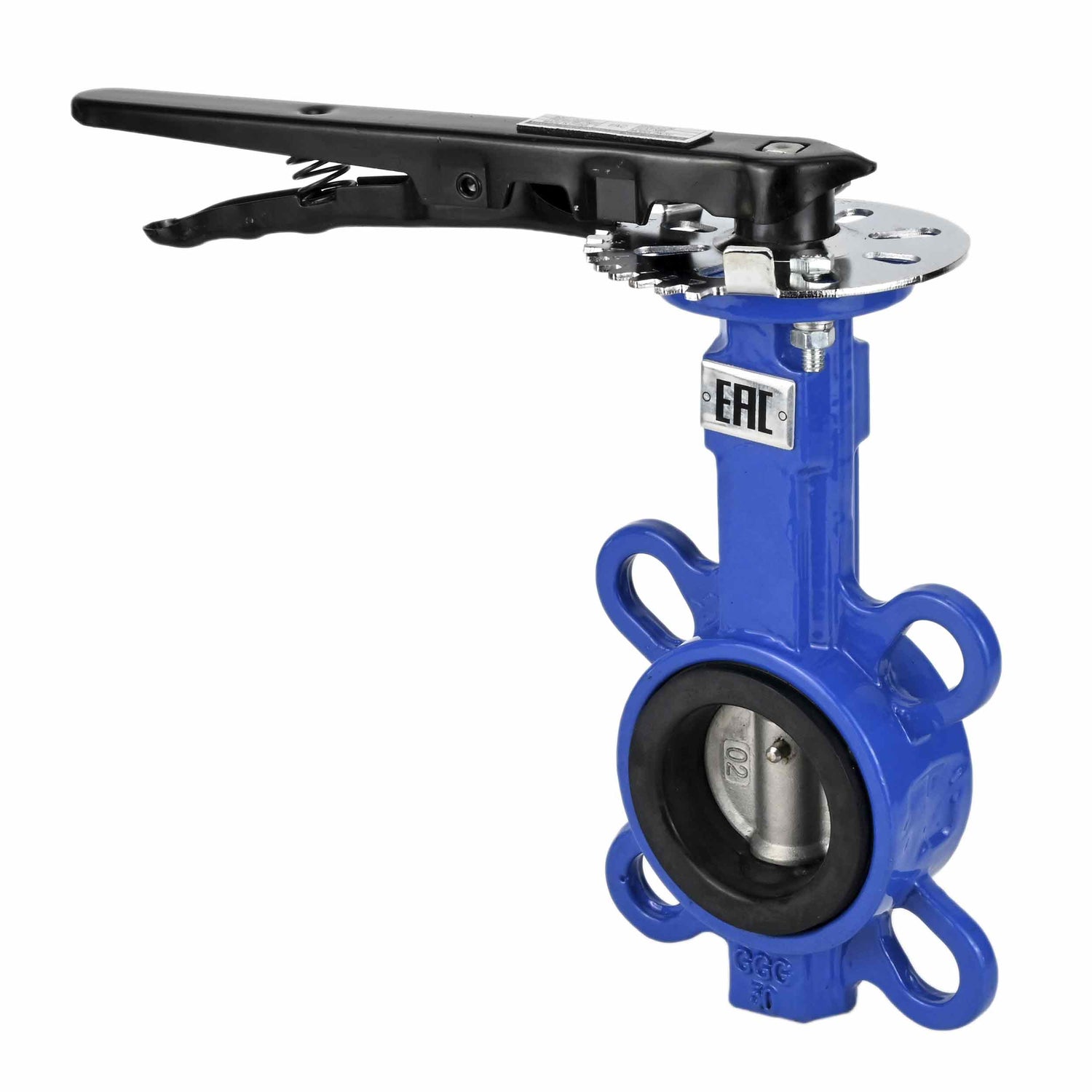

Water Butterfly Valve Elephant GG25-316L-NBR 232PSI, body material - cast iron GG25, disk material - stainless steel 316L, seal - NBR, handwheel operated

€7,00

Shipping calculated at checkout.

Connection size

Pressure

Product variants

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Water Butterfly Valve Elephant is intended for use as shut-off or control valves for flow control in heat supply systems, water supply systems, in technological processes in the food, chemical, oil and gas, pulp and paper and other industries.

Overall and installation dimensions of the gate valve Elephant GG25-316L-NBR 232PSI, body material - cast iron GG25, disk material - stainless steel 316L, seal - NBR, handwheel operated

Shutter sketch Elephant GG25-316L-NBR 232PSI, body material - cast iron GG25, disk material - stainless steel 316L, seal - NBR, handwheel operated

DN	A	B	C	E	L	ØD	Ød	4-Ødo	HxH	ISO 5211	Weight
40	114	66	26	34	210	65	50	4-7	9х9	F05	1 872
50	131	72	26	43	220	65	50	4-7	9х9	F05	1 956
65	140	83	26	46	220	65	50	4-7	9х9	F05	2 333
80	150	95	26	46	220	65	50	4-7	9х9	F05	2 577
100	163	112	28	52	264	90	70	4-10	11х11	F07	4.12
125	178	125	28	56	264	90	70	4-10	14х14	F07	5.29
150	191	140	28	56	264	90	70	4-10	14х14	F07	6.63
200	238	172	34	60	364	125	102	4-12	17х17	F10	11.67
250	285	205	36	68	504	125	102	4-12	22х22	F10	17.42
300	315	245	36	78	504	150	125	4-14	22х22	F12	27.83

Materials of bolt parts Elephant GG25-316L-NBR 232PSI, body material - cast iron GG25, disk material - stainless steel 316L, seal - NBR, handwheel operated

Sketch of bolt detailing Elephant GG25-316L-NBR 232PSI, body material - cast iron GG25, disk material - stainless steel 316L, seal - NBR, handwheel operated

№	Part name	Material
1	Body	Cast iron GG25
2	Malleable iron	NBR
3	Disk	316L stainless steel
4	Stem	SS AISI 416
5	pin	SS AISI 420
6	bushing	PTFE
7	O-ring	NBR
8	Plate	Carbon steel

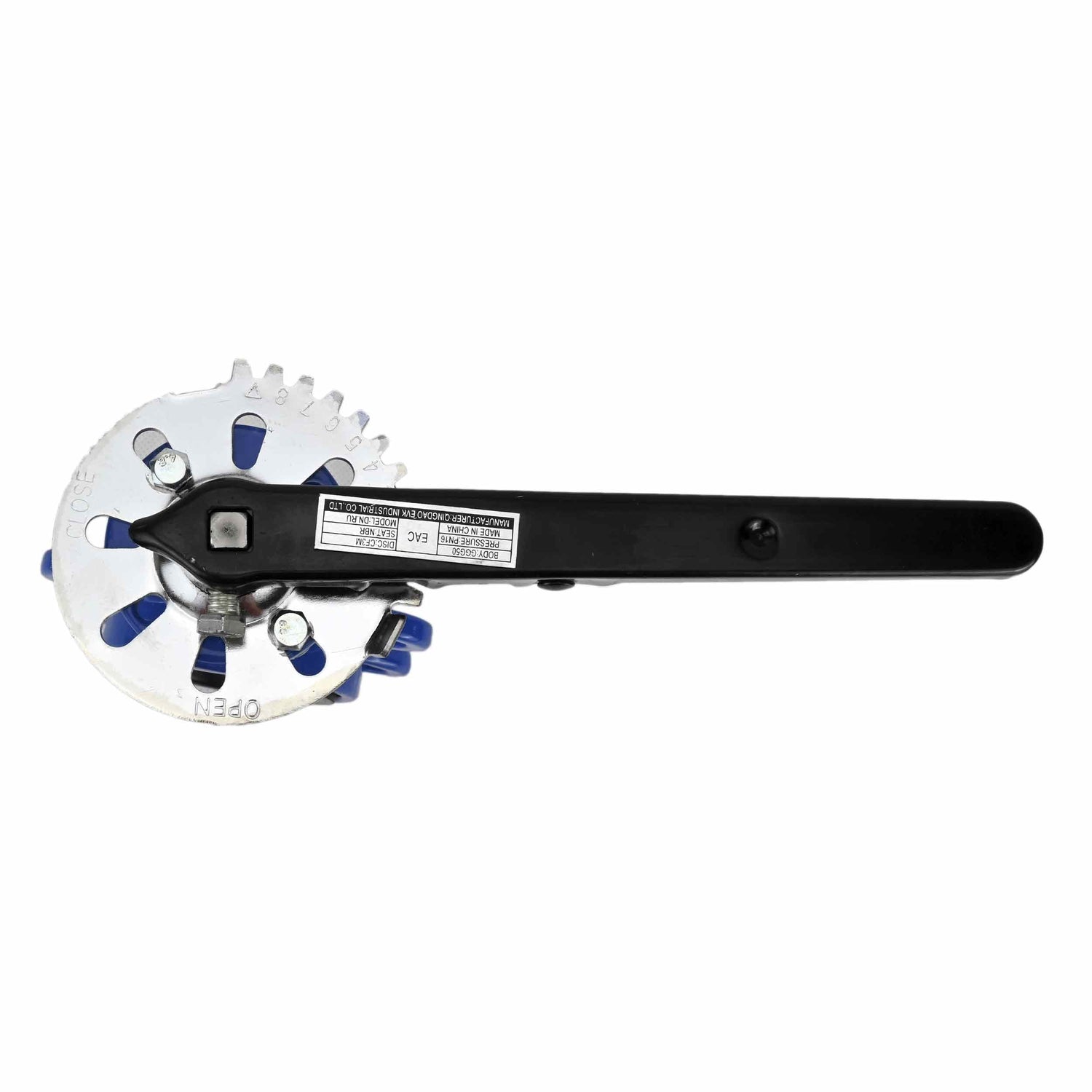

9	Handle	Malleable iron

Specifications

Country of origin

China
Body material

Cast iron GG25/EN-GJL-250
Maximum allowable temperature

90 °C
Connection type

Compact flanged
Control type

Handle
Nominal pressure

16 bar
Type of seal

NBR
Disc material

Stainless steel AISI 316L/1.4404
