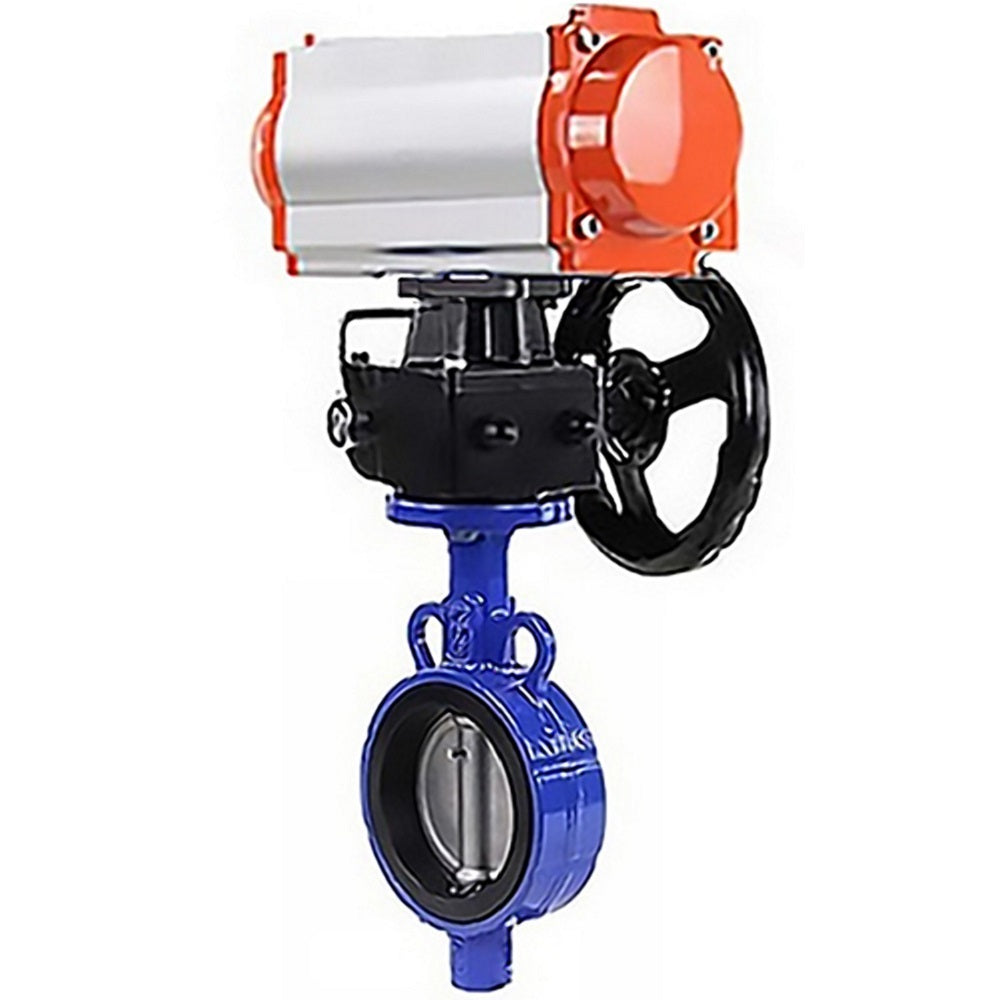

Water Butterfly Valve Elephant al-316l-epdm-elephant-da-hdm, body mate
Elephant  |  SKU: D050-25594

Water Butterfly Valve Elephant al-316l-epdm-elephant-da-hdm, body material - aluminium alloy, disk material - stainless steel AISI 316L, seal - EPDM, pneumatic actuator operated

€201,51
Tax included Shipping calculated at checkout.

Water Butterfly Valve Elephant al-316l-epdm-elephant-da-hdm, body material - aluminium alloy, disk material - stainless steel AISI 316L, seal - EPDM, pneumatic actuator operated - DN25 / 16 bar is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Butterfly valves Elephant al-316l-epdm are designed for use as shut-off or regulating valves for flow control in heat and water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries. Butterfly valves should be installed only between collar flanges.
Pneumatic double-acting rotary actuators and pneumatic rotary actuators with return springs are designed for automation of control process of industrial shut-off valves - gates, ball valves. Elephant pneumatic actuators are designed for operation both indoors and outdoors. All internal and external parts are anticorrosive coated.
Manual doubleturn actuator with disengaging clutch Elephant enables manual adjustment of the required positioning of valves, dampers and other quarter-turn devices when replacing pneumatic, electric or hydraulic quarter-turn actuators. Suitable for both indoor and outdoor installation. The modular design of the manual override is intended to provide the most efficient and effective solution to the full range of manual override applications.







Technical parameters of water butterfly valve Elephant al-316l-epdm-elephant-da-hdm, body material - aluminium alloy, disk material - stainless steel AISI 316L, seal - EPDM, pneumatic actuator operated:

Nominal diameter DN, mm

25–32

Operating pressure PN, bar

16

Working medium temperature t, °C

From -20 to +120

Working medium

Cold and hot water, oil-free and grease-free air, other media neutral to the material

Flow direction

Two-way

Body material

Aluminum alloy

Type of control

Manual (handle)

Additional option

Electric or pneumatic actuator installation possible (ISO 5211-2001)



Nominal pressure PN, MPa (kg/cm²)

1.2 (12)

Operating pressure, bar

2...8

Working medium

Filtered compressed air or non-aggressive gases, oils

Maximum particle diameter

Less than 30 µm²

Operating temperature, °C

-20 to +80
-40 to +80 (low-temperature version)
-20 to +160 (for dry air)

Adjustment range

5° for rotation at 0° and 90°

Manual duplication

Yes

Position indicator

Open/closed

Operating environment

Indoors and outdoors (all internal and external parts are anti-corrosion coated)



Main parameters of manual doublers:

Model Gear ratio Torque, Nm Weight, kg
HDM-1 26:1 250 3,0
HDM-2 28:1 450 4,5
HDM-3 38:1 700 6,9



Specifications

  • Country of origin
    China
  • Body material
    Aluminium alloy
  • Maximum allowable temperature
    120 °C
  • Connection type
    Compact flanged
  • Control type
    Pneumatic actuator
  • Nominal pressure
    16 bar
  • Type of seal
    EPDM
  • Disc material
    Stainless steel AISI 316L/1.4404
  • Explosion-proof
    No
  • Torque
    25 Nm
  • Pneumatic actuator
    No
  • Manual override
    Yes
  • Limit switches
    No

Reviews (0)

Documentation

Payment & Security

Payment methods

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    Available Variants

    SKUConnection sizePressurePrice AvailabilityQuantity Add to cart
    D050-25594DN2516 bar €201,51 0 in stock
    D050-25595DN3216 bar €201,51 0 in stock
