Water butterfly valve Elephant AL-316L-EPDM body material - aluminium – Valve Elephant
Elephant  |  SKU: D050-32518

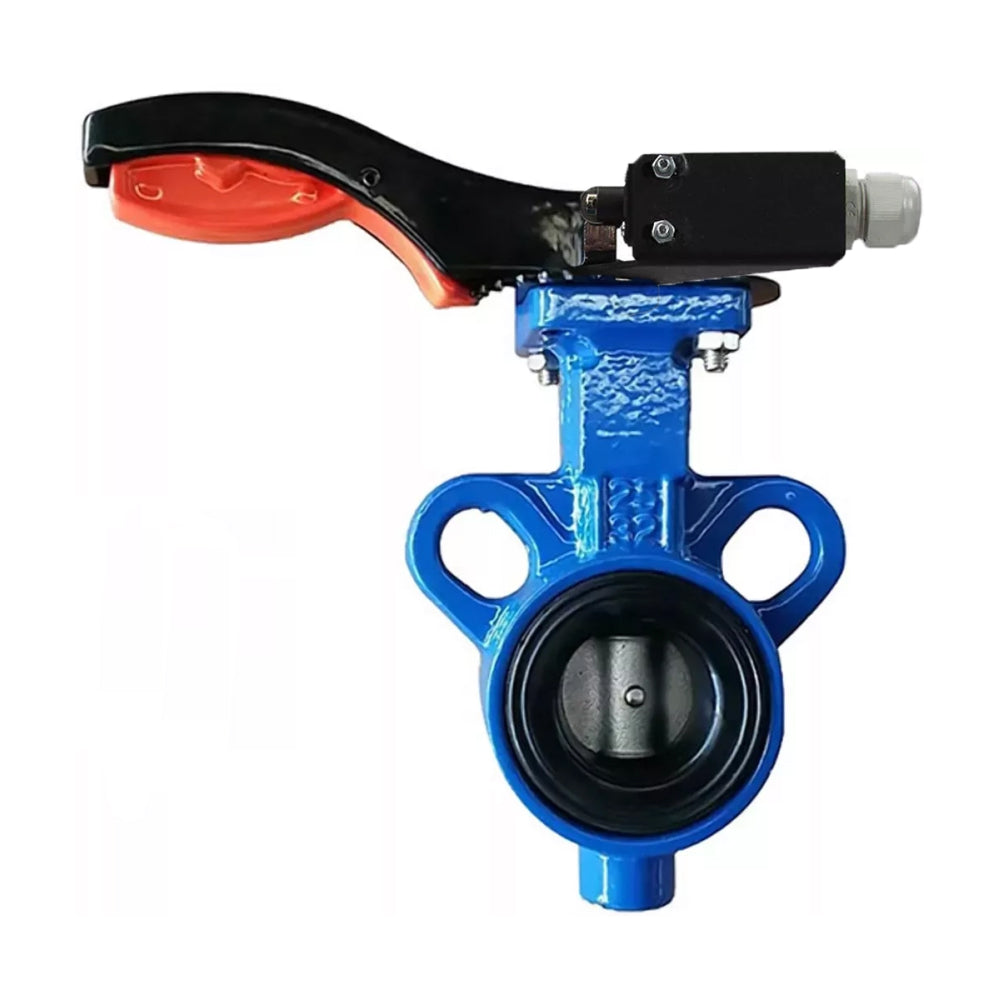

Water butterfly valve Elephant AL-316L-EPDM body material - aluminium alloy, disk material - stainless steel AISI 316L, seal - EPDM with handle, with two LS-103 250V limit switches and a bracket for mounting the limit switches

€76,58
Tax included Shipping calculated at checkout.

Water butterfly valve Elephant AL-316L-EPDM body material - aluminium alloy, disk material - stainless steel AISI 316L, seal - EPDM with handle, with two LS-103 250V limit switches and a bracket for mounting the limit switches - DN25 / 16 bar is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Butterfly valves Elephant AL-316L-EPDM are designed for use as shut-off or regulating valves for flow control in heat and water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries. Butterfly valves should be installed only between collar flanges.






Technical characteristics of water butterfly valve Elephant AL-316L-EPDM body material - aluminium alloy, disk material - stainless steel AISI 316L, seal - EPDM with handle, with two LS-103 250V limit switches and a bracket for mounting the limit switches:

Nominal diameter DN, mm

25–32

Operating pressure PN, bar

16

Working medium temperature t, °C

From -20 to +120

Working medium

Cold and hot water, air without oil and grease, other media neutral to the material

Flow direction

Two-way

Body material

Aluminum alloy

Type of control

Manual (handle)

Additional option

Electric or pneumatic actuator installation possible


Dimensions of water butterfly valve Elephant AL-316L-EPDM body material - aluminium alloy, disk material - stainless steel AISI 316L, seal - EPDM with handle, with two LS-103 250V limit switches and a bracket for mounting the limit switches:

DN A, mm B, mm L, mm C, mm D1, mm b, mm
25 93 44,5 36 10 50 8
32 93 44,5 36 10 50 8





Materials of water butterfly valve Elephant AL-316L-EPDM body material - aluminium alloy, disk material - stainless steel AISI 316L, seal - EPDM with handle, with two LS-103 250V limit switches and a bracket for mounting the limit switches:

№

Part name

Material

1

Body

Aluminum alloy

2

Seat seal

EPDM

3

Pin

Stainless steel SS304

4

Disc

Stainless steel 316L

5

Stem

Stainless steel SS410

6

Sealing ring

EPDM

7

Plate

Steel

8

Handle

Ductile iron

9

Bolt

Stainless steel SS201

10

Gasket

Stainless steel SS201

11

Nut

Stainless steel SS201

12

Gasket

Stainless steel SS201



Specifications
  • Country of origin
    China
  • Body material
    Aluminium alloy
  • Maximum allowable temperature
    120 °C
  • Connection type
    Compact flanged
  • Nominal pressure
    16 bar
  • Type of seal
    EPDM
  • Disc material
    Stainless steel AISI 316L/1.4404
  • Pneumatic actuator
    No
  • Limit switches
    Yes

Reviews (0)

Documentation

Payment & Security

Payment methods

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    Available Variants

    SKUConnection sizePressurePrice AvailabilityQuantity Add to cart
    D050-32518DN2516 bar €76,58 0 in stock
    D050-32519DN3216 bar €76,58 0 in stock
