Water Butterfly Valve Elephant 316L-EPDM-HAM, body material - stainles
Elephant  |  SKU: D050-25612

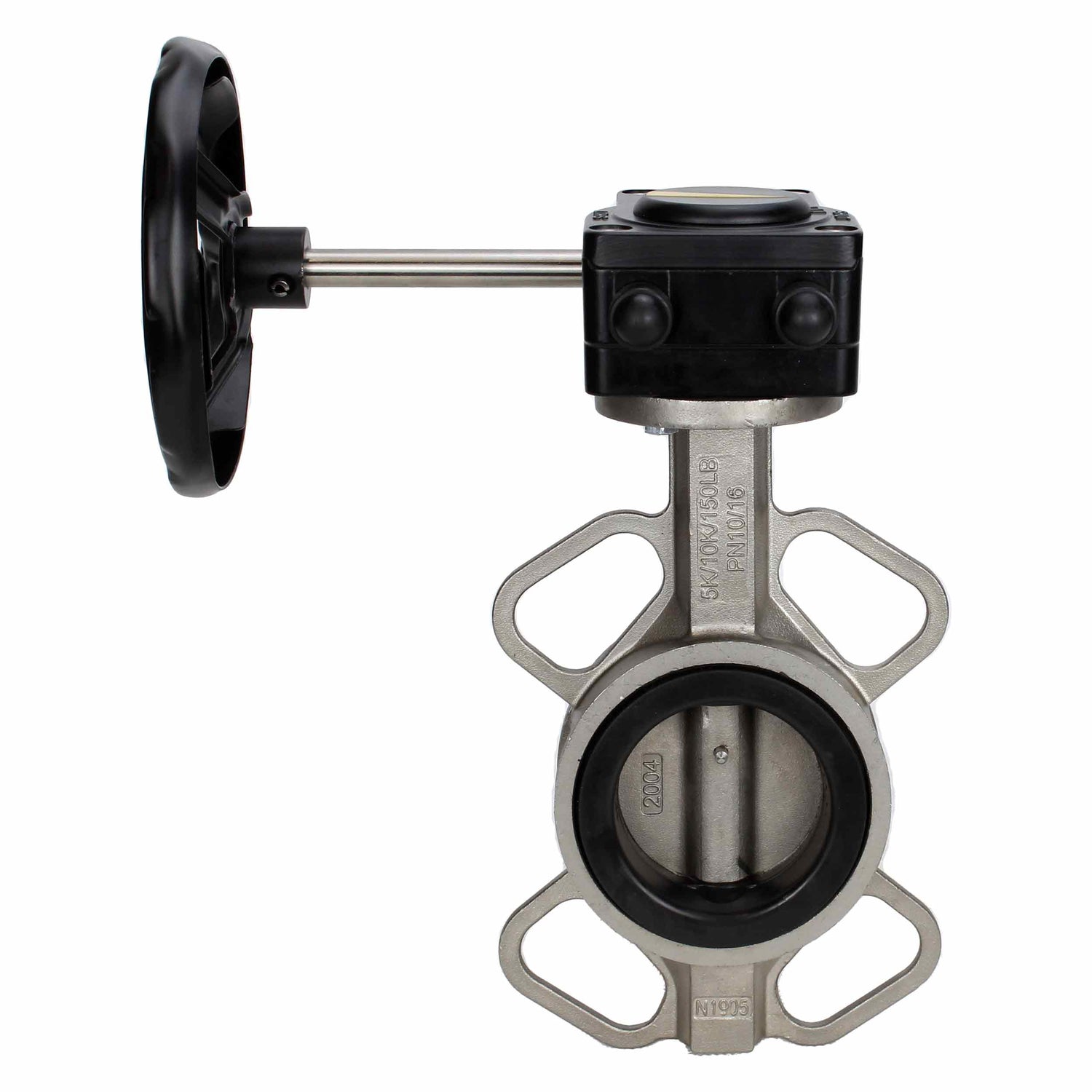

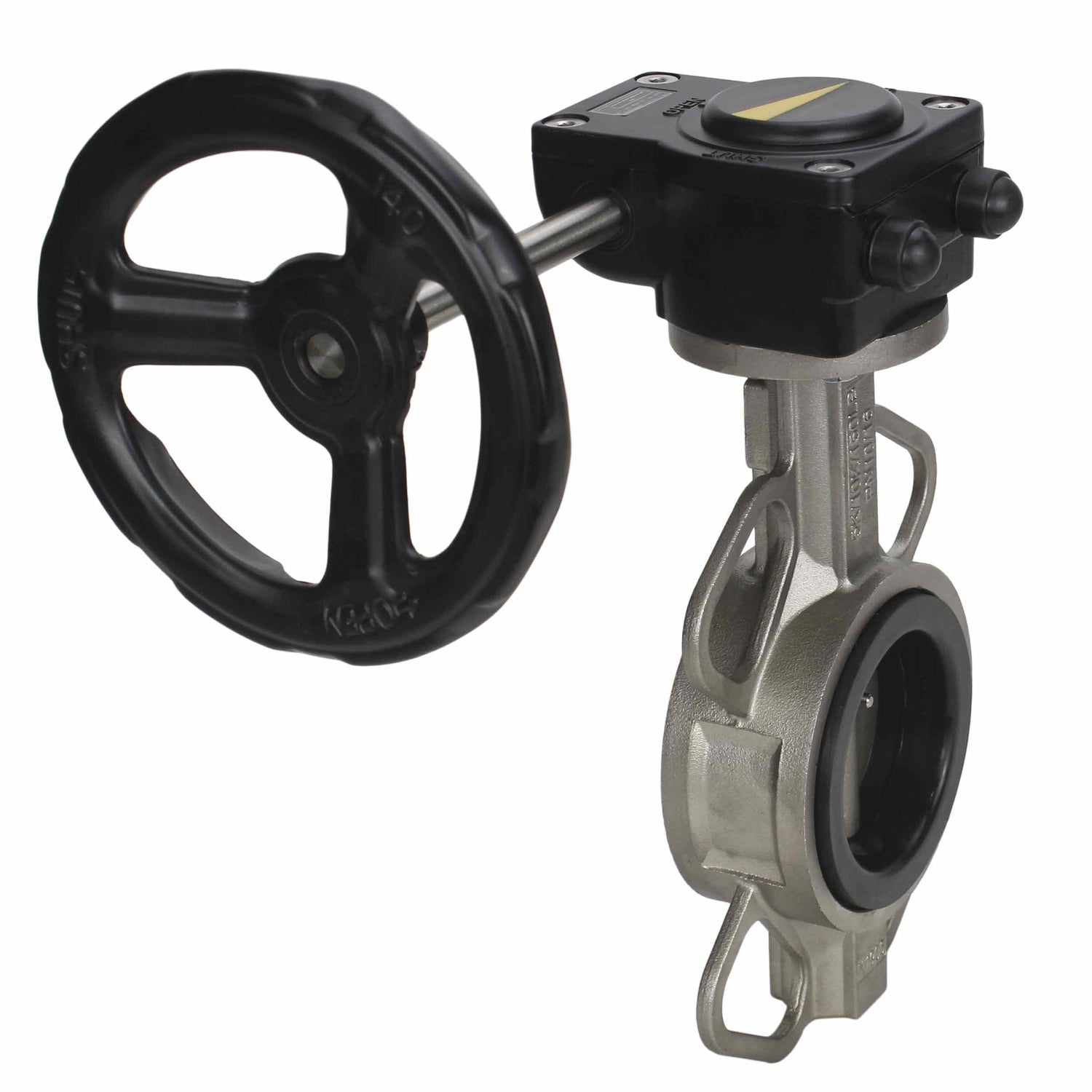

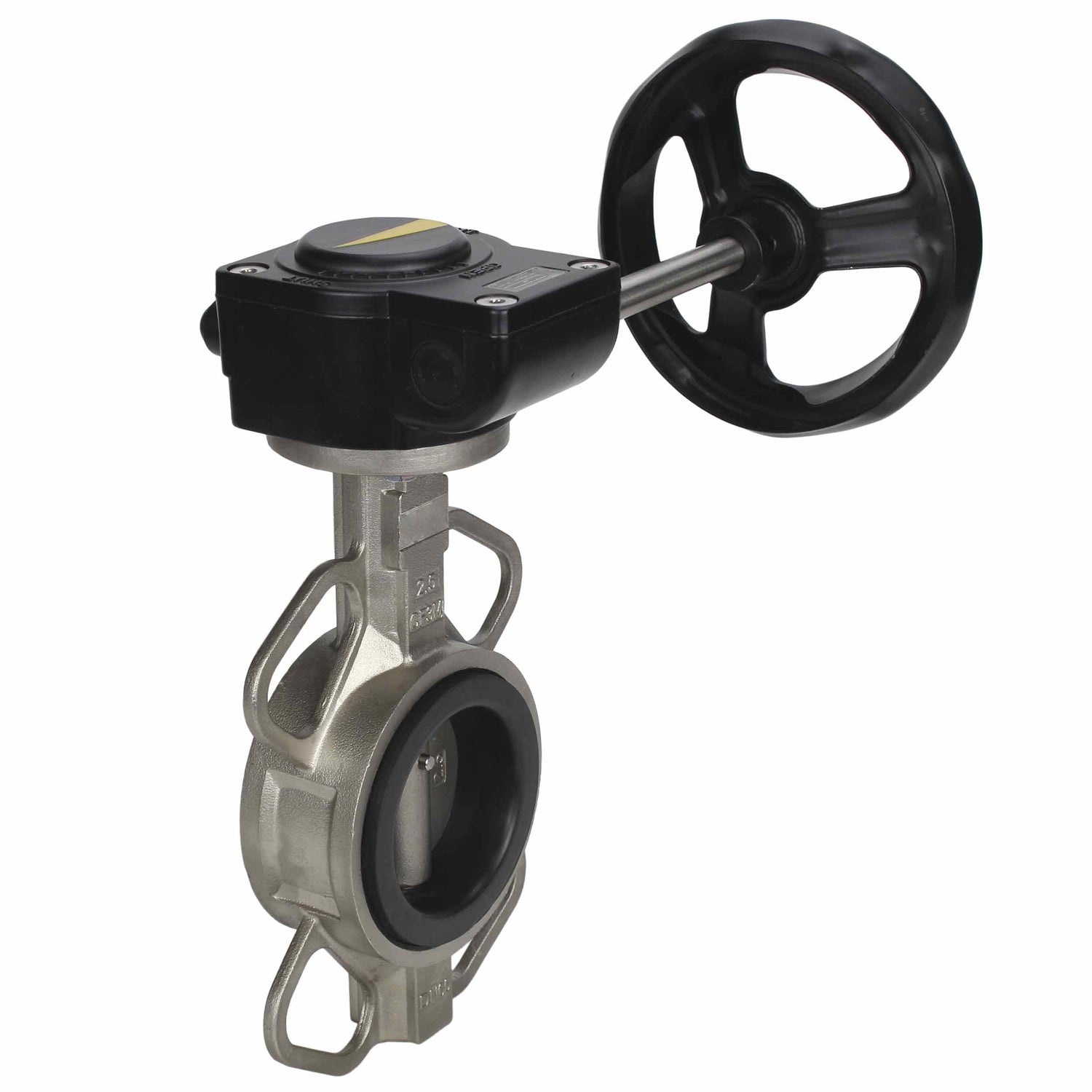

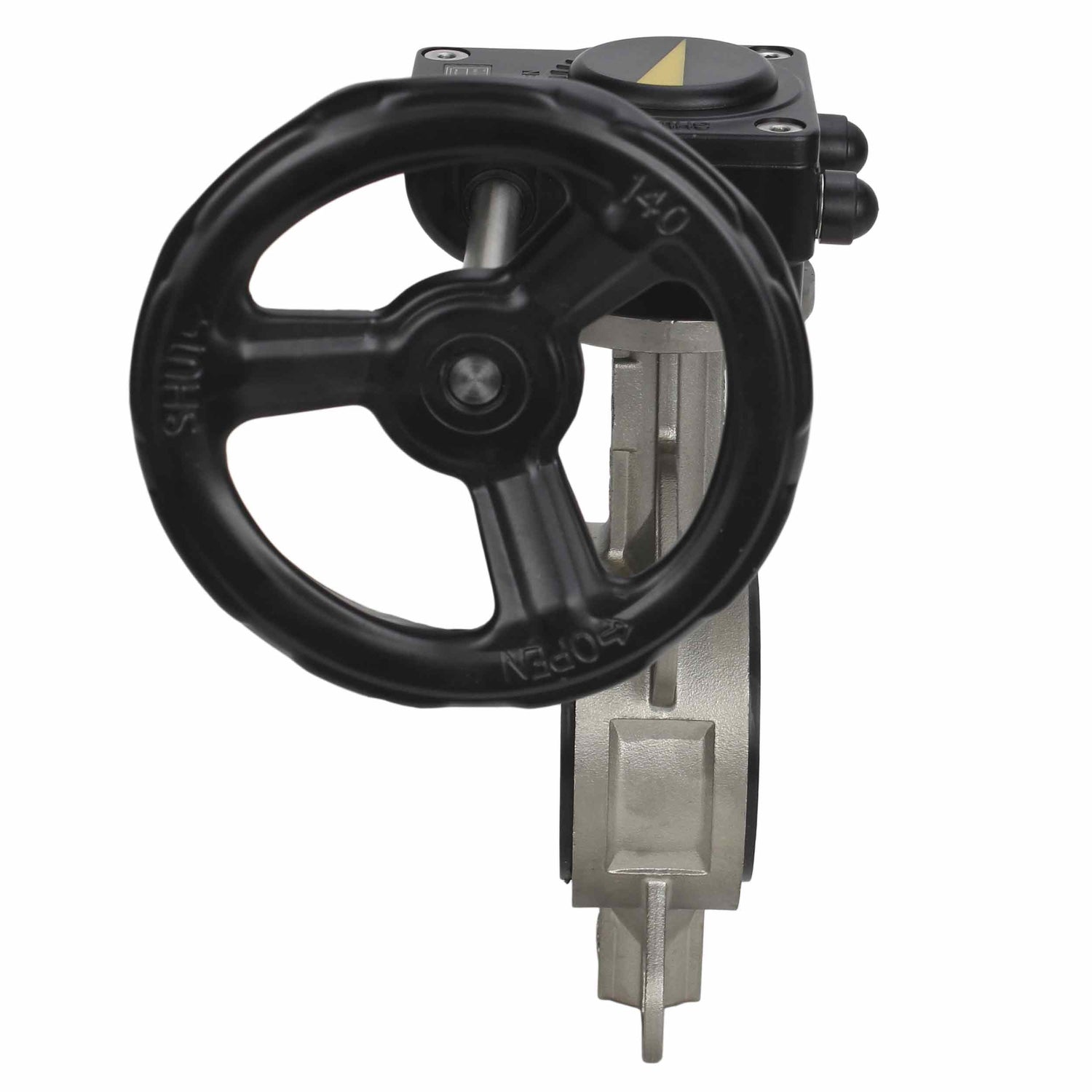

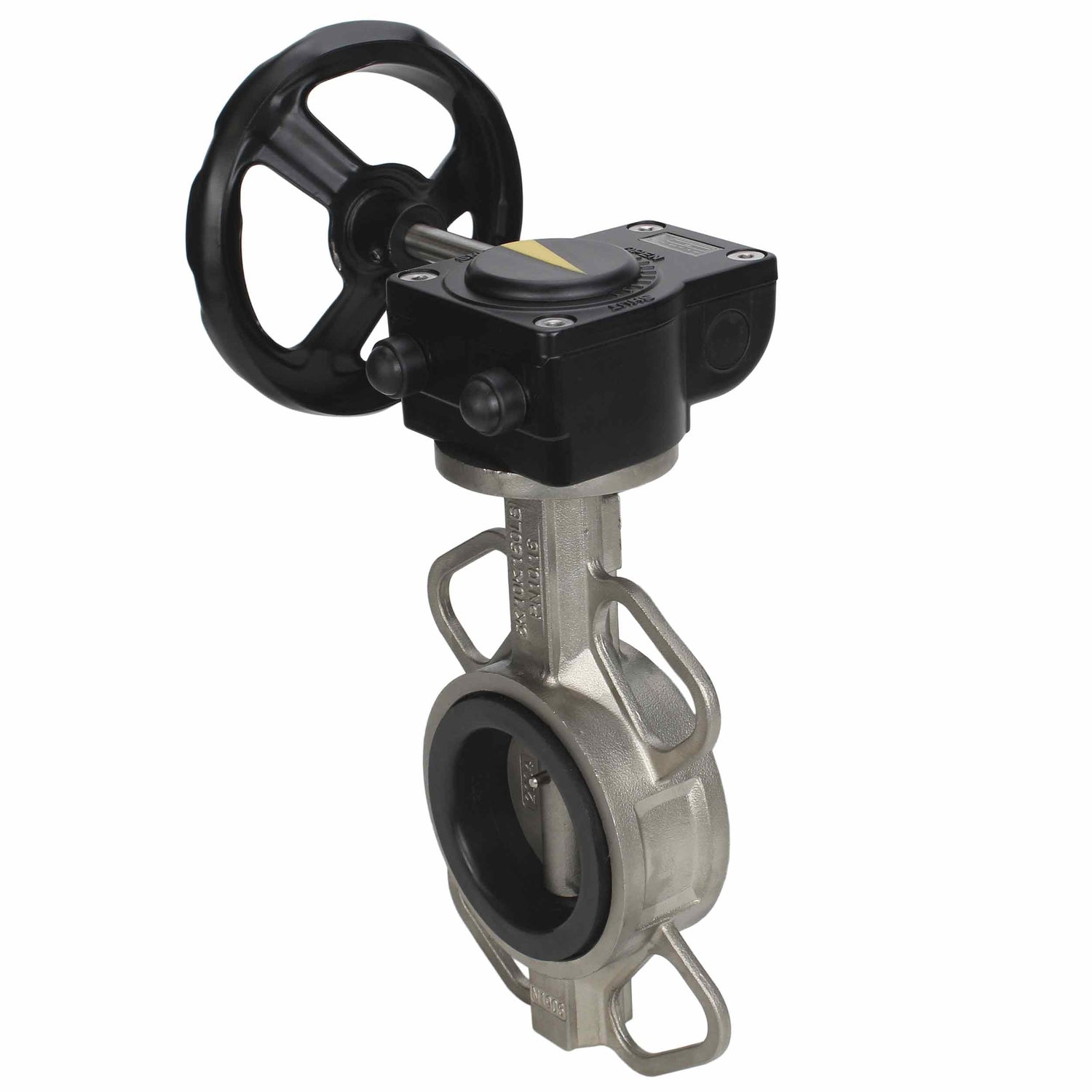

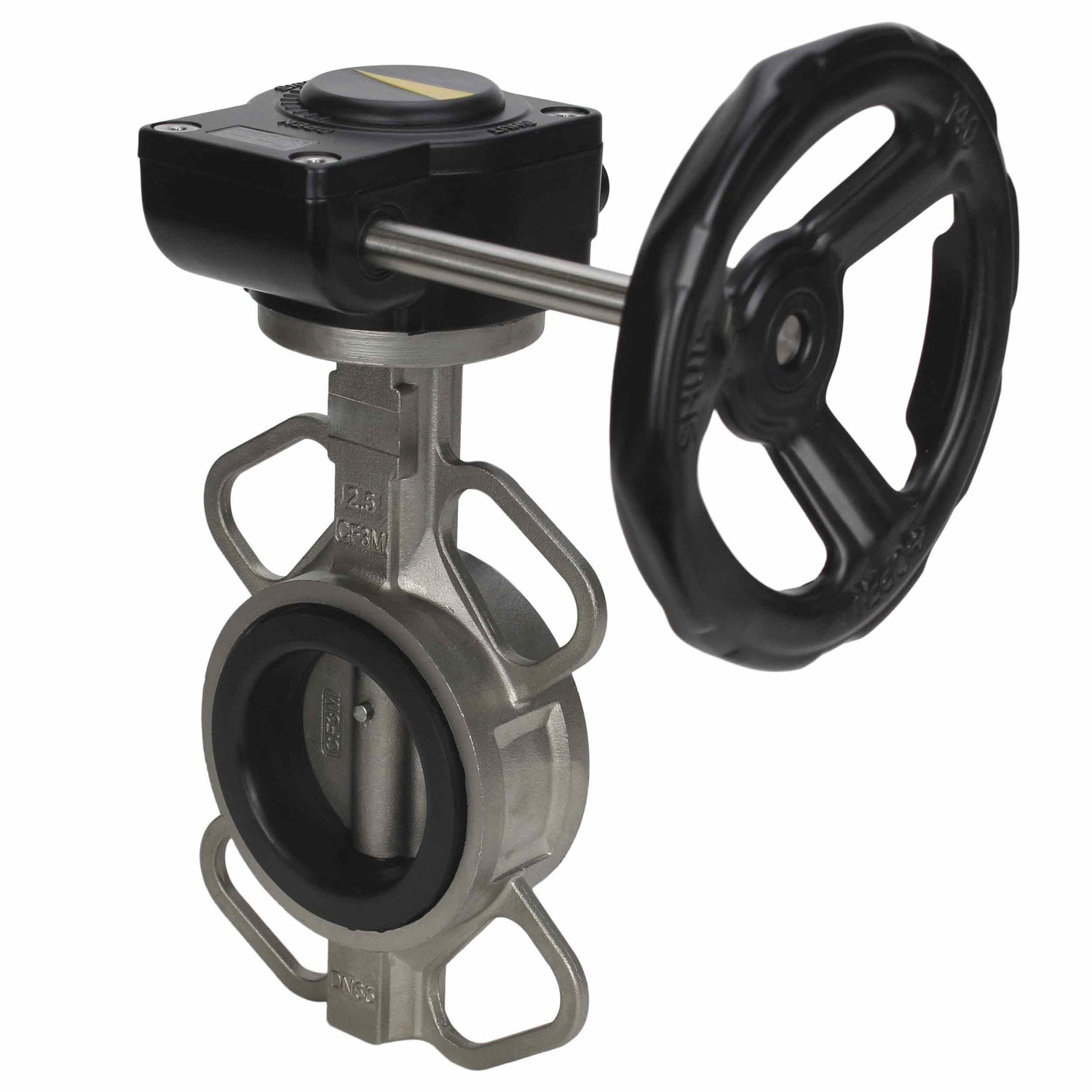

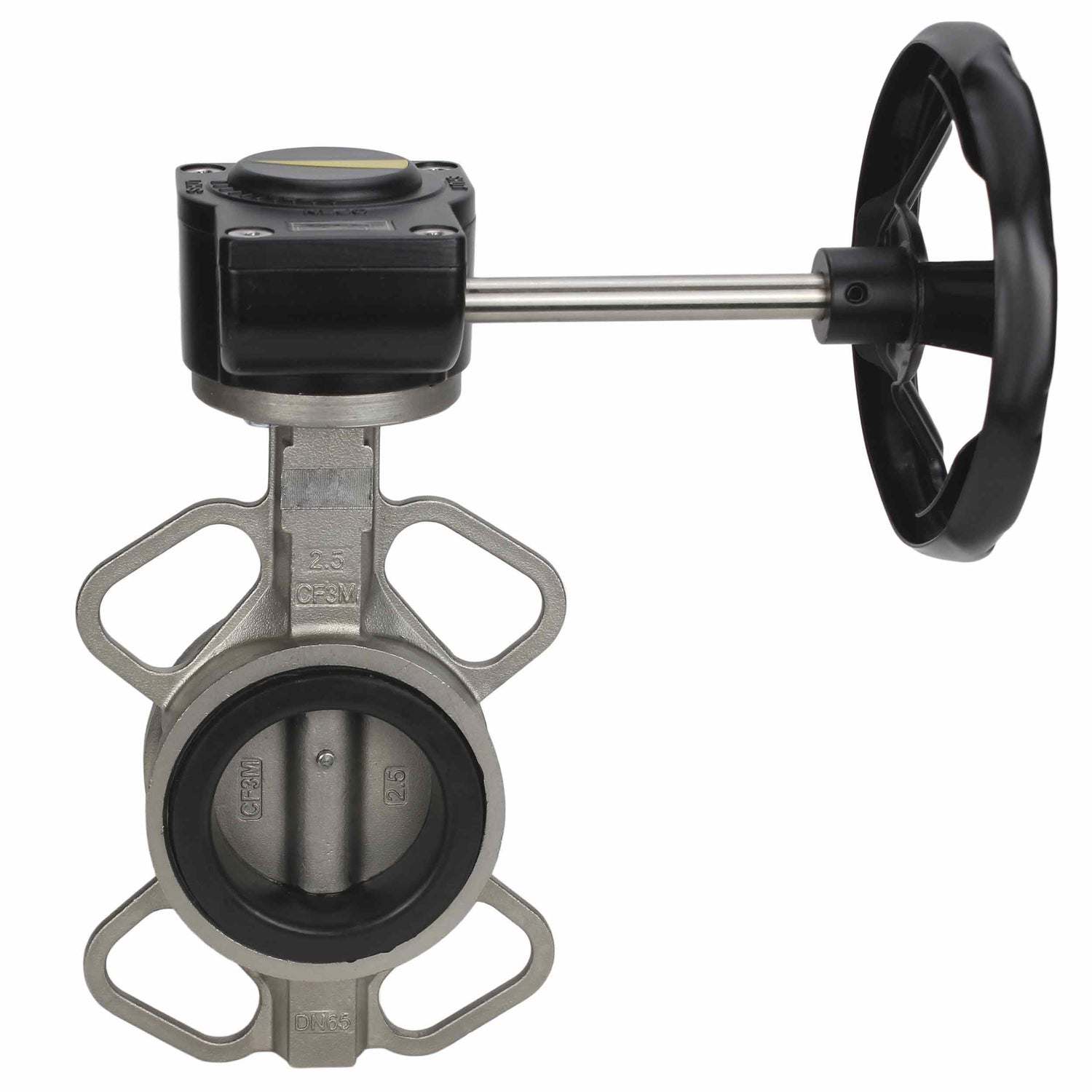

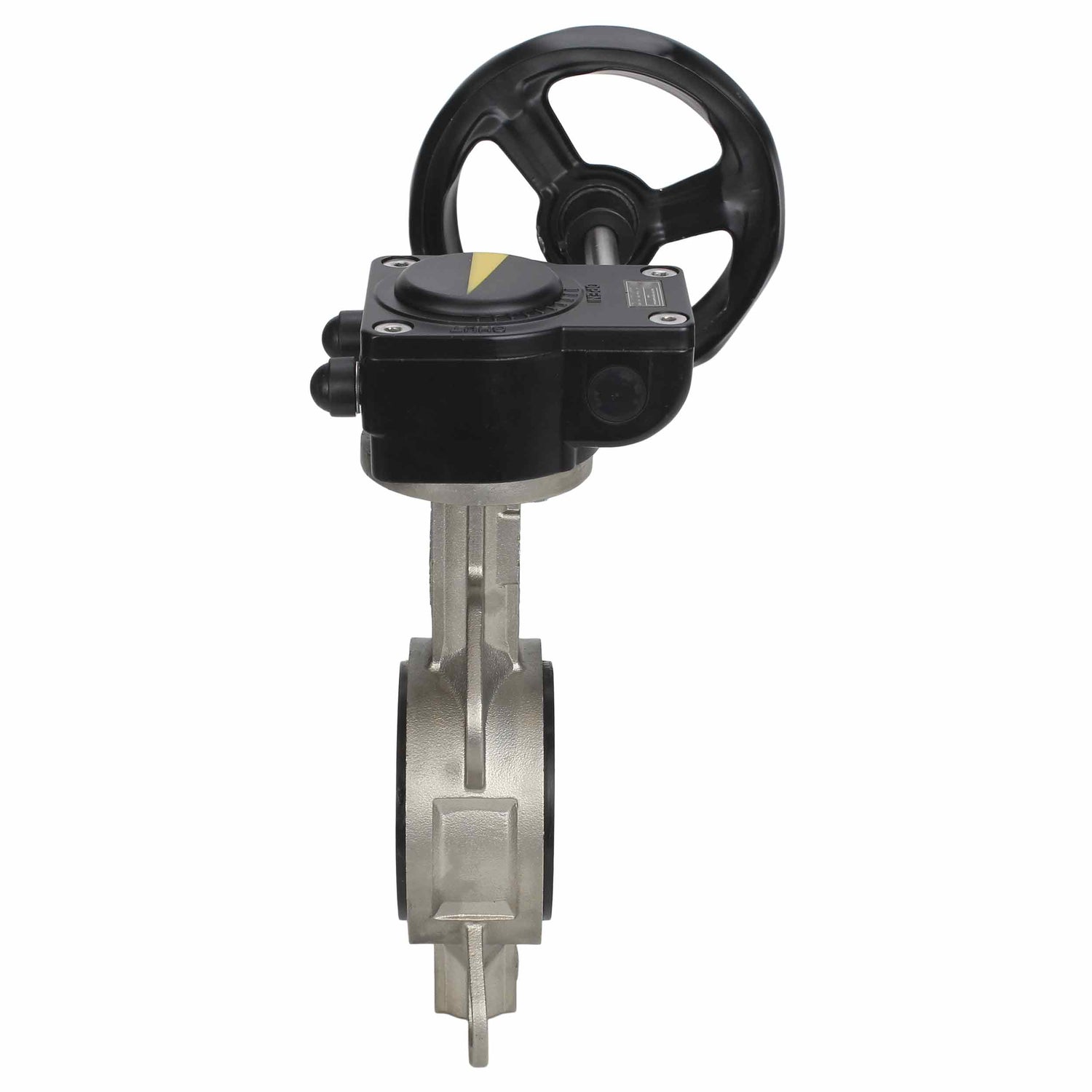

Water Butterfly Valve Elephant 316L-EPDM-HAM, body material - stainless steel AISI 316L, disk material - stainless steel AISI 316L, seal - EPDM, gear operated

€147,13
Tax included Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

The Elephant butterfly valve is used as shut-off and regulating valves for flow control in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper industries.



Dimensions and dimensions of water butterfly valves Elephant 316L-PTFE-HAM, body material - stainless steel AISI 316L, disk material - stainless steel AISI 316L, seal - PTFE, gear operated:

DN Size, mm
H1 H2 Dm Dk L S ØK ØC n - Ød C D
40 56 110 71 88 33 9 50 110 4 - 18 48 80
50 76 162 73 90 45 9 50 125 4 - 18 48 80
65 89 175 85 103 48 9 50 145 4 - 18 48 80
80 95 181 100 116 49 9 50 160 8 - 18 48 80
100 114 200 131 151 55 11 50 180 4 - 18 48 80
125 127 213 155 174 58 14 70 210 4 - 18 48 80
150 140 225 184 205 59 14 70 240 4 - 23 48 80
200 177 260 234 255 64 17 102 295 4 - 23 58 120
250 203 292 288 315 70 22 102 355 4 - 27 58 120
300 242 337 340 375 80 22 125 410 4 - 27 58 120



Sketch Butterfly valves Elephant 316L-EPDM-HAM, body material - stainless steel AISI 316L, disk material - stainless steel AISI 316L, seal - EPDM, gear operated





Materials of  water butterfly valves Elephant 316L-EPDM-HAM, body material - stainless steel AISI 316L, disk material - stainless steel AISI 316L, seal - EPDM, gear operated:

Name

Material

1

Body

Stainless steel AISI 316L/03Х16Н15М3

2

Cuff

EPDM

3

Disc

Stainless steel AISI 316L

4

Stem

Stainless steel AISI 316L

5

Stud

Stainless steel AISI 316L

6

Bushing

PTFE

7

Ring

NBR (nitrile)

8

Handle

Carbon steel

Specifications

  • Country of origin
    China
  • Body material
    Stainless steel AISI 316
  • Maximum allowable temperature
    120 °C
  • Connection type
    Compact flanged
  • Control type
    Gear
  • Nominal pressure
    16 bar
  • Type of seal
    EPDM
  • Disc material
    Stainless steel AISI 316L/1.4404
  • Explosion-proof
    No
  • Thermal protection
    No
  • Torque
    420 Nm
  • Electropneumatic positioner
    No
  • Pneumatic actuator
    No
  • Manual override
    Yes
  • Limit switches
    No

Reviews (0)

Documentation

Payment & Security

Payment methods

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    Available Variants

    SKUConnection sizePressurePrice AvailabilityQuantity Add to cart
    D050-25612DN4016 bar €147,13 2 in stock
    D050-25613DN5016 bar €151,86 2 in stock
    D050-25614DN6516 bar €175,90 2 in stock
    D050-25615DN8016 bar €184,22 2 in stock
    D050-25616DN10016 bar €258,16 2 in stock
    D050-25617DN12516 bar €346,24 2 in stock
    D050-25618DN15016 bar €333,40 2 in stock
    D050-25619DN20016 bar €599,20 2 in stock
    D050-25620DN25016 bar €858,24 2 in stock
    D050-25621DN30016 bar €1.263,47 Out of stock
