Water butterfly valve Elephant 316L-316L-VITON body material - stainle – Valve Elephant
Elephant  |  SKU: D050-08638

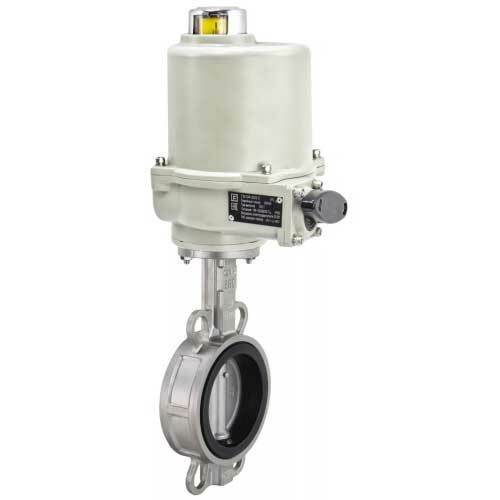

Water butterfly valve Elephant 316L-316L-VITON body material - stainless steel aisi 316l, disk material - stainless steel, seal - Viton with explosion-proof electric actuator GZ-OFV(K) 380V

€872,48
Tax included Shipping calculated at checkout.

Water butterfly valve Elephant 316L-316L-VITON body material - stainless steel aisi 316l, disk material - stainless steel, seal - Viton with explosion-proof electric actuator GZ-OFV(K) 380V - DN50 / 16 bar is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Butterfly valves Elephant 316L-316L-VITON are designed for use as shut-off or regulating valves for flow control in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.
Butterfly valves should be installed only between collar flanges.





General parameters of water butterfly valve Elephant 316L-316L-VITON body material - stainless steel aisi 316l, disk material - stainless steel, seal - Viton with explosion-proof electric actuator GZ-OFV(K) 380V:

Nominal diameter DN, mm

50–300

Nominal pressure PN, MPa (kg/cm²)

1.6 (16)

Flow direction

Two-way

Ambient temperature t, °C

From -20 to +200: for VITON

Working medium

VITON: mineral and vegetable oils, animal fats, plastic lubricants and fuel, hot air, steam

Connection to pipeline

Interflange


Material specification of water butterfly valve Elephant 316L-316L-VITON body material - stainless steel aisi 316l, disk material - stainless steel, seal - Viton with explosion-proof electric actuator GZ-OFV(K) 380V:

Name

Material

Body

Stainless steel AISI 316L/03X16H15M3

Cuff

VITON

Disc

Steel AISI 316L

Stem

Steel AISI 316L

Stud

Steel AISI 316L

Bushing

PTFE

Sealing ring

Nitrile NBR

Plate, handle

Carbon steel


Maximum torques of water butterfly valve Elephant 316L-316L-VITON body material - stainless steel aisi 316l, disk material - stainless steel, seal - Viton with explosion-proof electric actuator GZ-OFV(K) 380V:

DN Torque at 16 bar, Nm
50 50
65 50
80 50
100 50
125 80
150 100
200 300
250 400
300 400



Description of electric actuators GZ-OFV(K) 380V:


Explosion-protected quarter-turn actuators GZ-OFV(K) 380V with explosion protection marking 1ExdllBT4 (type of connection to the valve - according to ISO 5211) are used for controlling pipeline shut-off valves in chemical, oil, gas and power industries.
Explosion-proof actuators can be installed in explosion hazardous areas of IIB class indoors, outdoors under a canopy for equipment with explosion protection marking 1ExdllBT4.
The actuators are designed for remote and local control of shut-off valves. Installation position of actuators is any, except for the position with terminal box downwards.
The actuators are designed for operation in repeated-short-time mode S2 with the duration of switching on 15 min. with the frequency of switching on - up to 60 times per hour, for operation in the mode of automatic regulation - up to 600 switching on per hour (in S4 mode).

Operating conditions of GZ-OFV(K) actuators:

environment - air;
possible installation locations - fixed installations indoors and outdoors;
operating temperature range: - 30 ºC to + 40 ºC;
relative humidity (upper value) - 100% at 25 ºC;
enclosure protection - IP67



Main technical data of electric actuators GZ-OFV(K) 380V:

Model

Output torque, Nm

Operating time, sec./90°

Power, W

Current, A

Maximum stem diameter, mm

Number of flywheel revolutions

Weight, kg

GZ-OFV(K) Group I

25

5.5

20

0.2

22

14

14

45

11

80

21


Structure of electric actuators GZ-OFV(K) 380V:

1 - cover 13b - output shaft worm wheel
2 - manual drive shaft 14 - mechanical stops
3 - manual drive coupling spring 15 - aluminum housing
4 - coupling 16 - terminal blocks
5 - power transmission worm shaft 17 - limit microswitches
6 - motor worm gear 18 - cams of limit microswitches
7 - mode switch lever 19 - position indicator
8 - operating mode switch shaft 20 - position indicator window
9 - torsion spring 21 - capacitor (only for 220V)
10 - eccentric 22 - heating element
11 - connecting sleeve of actuator with armature 23 - electric motor
12 - cable gland 24 - electric motor worm shaft
13a - output shaft 25 - position indicator shaft



Specifications

  • Country of origin
    China
  • Body material
    Stainless steel AISI 316
  • Maximum allowable temperature
    200 °C
  • Connection type
    Compact flanged
  • Control type
    Electric actuator
  • Nominal pressure
    16 bar
  • Type of seal
    VITON
  • Disc material
    Stainless steel
  • Voltage
    380V
  • Actuator cycle time
    21s
  • Valve feedback
    Limit switches
  • Explosion-proof
    Yes
  • Thermal protection
    Yes
  • Torque
    59 Nm
  • Pneumatic actuator
    No
  • Manual override
    Yes
  • Limit switches
    No

Reviews (0)

Documentation

Payment & Security

Payment methods

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    Available Variants

    SKUConnection sizePressurePrice AvailabilityQuantity Add to cart
    D050-08638DN5016 bar €872,48 0 in stock
    D050-08640DN8016 bar €901,82 0 in stock
    D050-08405DN10016 bar €1.233,43 0 in stock
    D050-08639DN6516 bar €1.004,37 0 in stock
