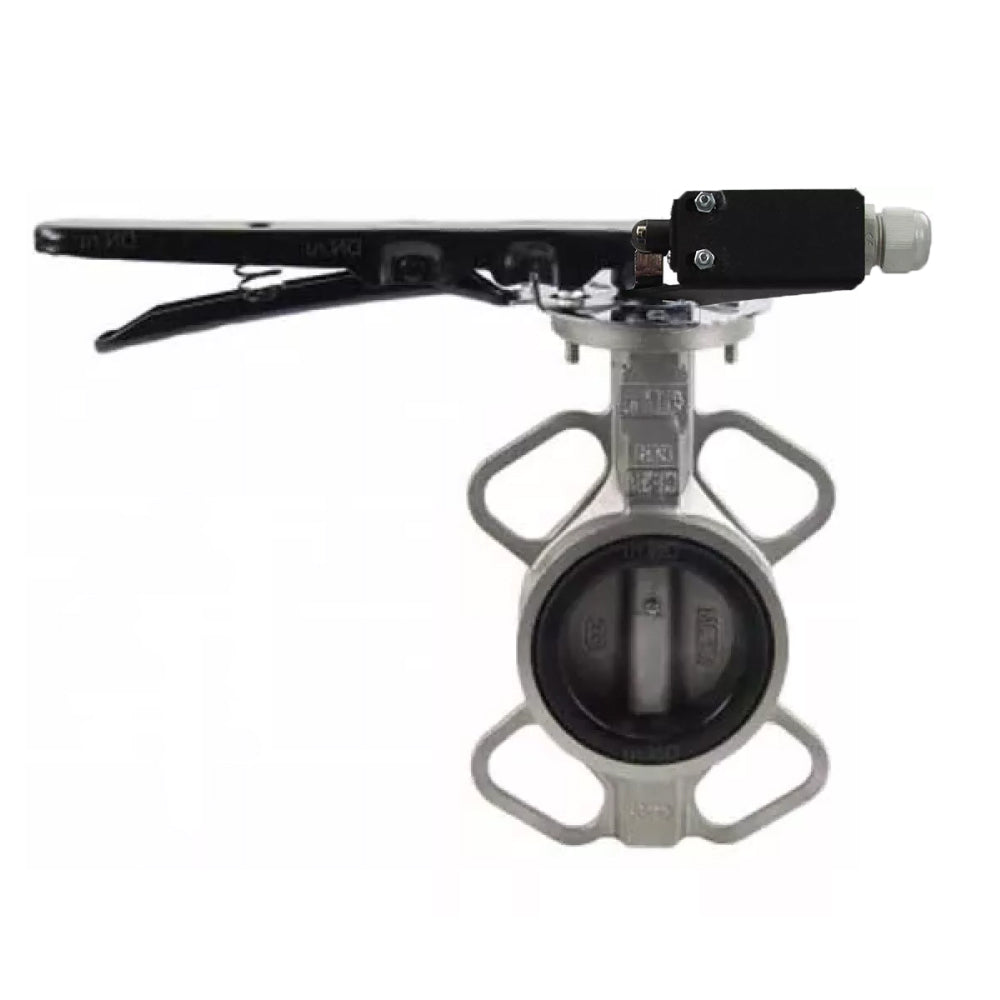

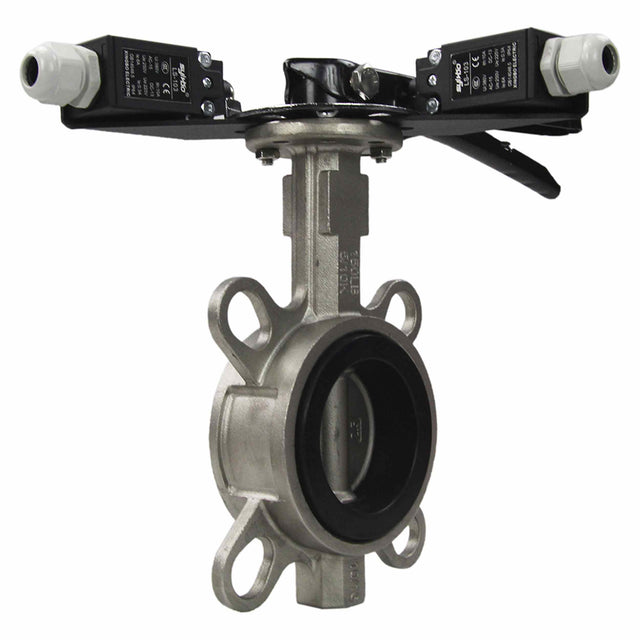

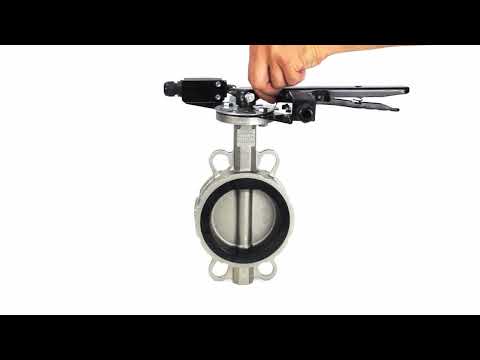

Water butterfly valve Elephant 316L-316L-VITON body material - stainless steel AISI 316L, disk material - stainless steel AISI 316L, seal - Viton with handle, with two LS-103 250V limit switches and a bracket for mounting the limit switches

€232,61
Tax included Shipping calculated at checkout.

Water butterfly valve Elephant 316L-316L-VITON body material - stainless steel AISI 316L, disk material - stainless steel AISI 316L, seal - Viton with handle, with two LS-103 250V limit switches and a bracket for mounting the limit switches - DN50 / 16 bar is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Butterfly valves Elephant 316L-316L-VITON and bracket are designed for use as shut-off or regulating valves for flow control in heat and water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.
Butterfly valves should be installed only between collar flanges.







General parameters of Elephant 316L-316L-VITON body material - stainless steel AISI 316L, disk material - stainless steel AISI 316L, seal - Viton with handle, with two LS-103 250V limit switches and a bracket for mounting the limit switches:

Range of sizes DN, mm

50–150

Nominal pressure PN, bar

16

Flow direction

Two-way

Ambient temperature t, °C

From -20 to +200

Connection to pipeline

Interflange



Technical characteristics of Elephant 316L-316L-VITON body material - stainless steel AISI 316L, disk material - stainless steel AISI 316L, seal - Viton with handle, with two LS-103 250V limit switches and a bracket for mounting the limit switches:

DN, mm Torque, Nm ISO 5211 Weight, kg
50 50 F05 2
65 50 F05 2.3
80 50 F05 2.6
100 50 F07 4.1
125 80 F07 5.2
150 100 F07 6.6




Dimensions of Elephant 316L-316L-VITON body material - stainless steel AISI 316L, disk material - stainless steel AISI 316L, seal - Viton with handle, with two LS-103 250V limit switches and a bracket for mounting the limit switches:

DN H1, mm H2, mm H3, mm Dm, mm Dk, mm L, mm ØC, mm
DN50 62 126 25 73 90 43 125
DN65 72 133 25 85 103 46 145
DN80 91 142 25 100 116 46 160
DN100 107 165 25 131 151 52 180
DN125 121 183 25 155 174 56 210
DN150 134 195 25 184 205 56 240
DN200 171 236 35 234 255 60 295
DN250 197 276 35 288 315 68 355
DN300 240 315 35 340 375 78 410



Table of parts and materials of Elephant 316L-316L-VITON body material - stainless steel AISI 316L, disk material - stainless steel AISI 316L, seal - Viton with handle, with two LS-103 250V limit switches and a bracket for mounting the limit switches:

№ Name Material
1 Body WCB steel or AISI 316L stainless steel
2 Cuff VITON
3 Disc AISI 316L stainless steel
4 Stem SS 416/2Cr13 stainless steel
5 Pin AISI 316L stainless steel
6 Bushing EPDM
7 Sealing ring EPDM
8 Fixing plate Carbon steel
9 Handle with lock Carbon steel

Specifications
  • Country of origin
    China
  • Body material
    Stainless steel AISI 316
  • Maximum allowable temperature
    200 °C
  • Connection type
    Compact flanged
  • Operating environment
    Mineral And Vegetable Oils, Animal Fats, Greases And Fuels, Hot Air
  • Nominal pressure
    16 bar
  • Type of seal
    VITON
  • Disc material
    Stainless steel AISI 316L/1.4404
  • Explosion-proof
    No
  • Torque
    59 Nm
  • Pneumatic actuator
    No
  • Manual override
    Yes
  • Limit switches
    Yes
