Elephant  |  SKU: D050-25869

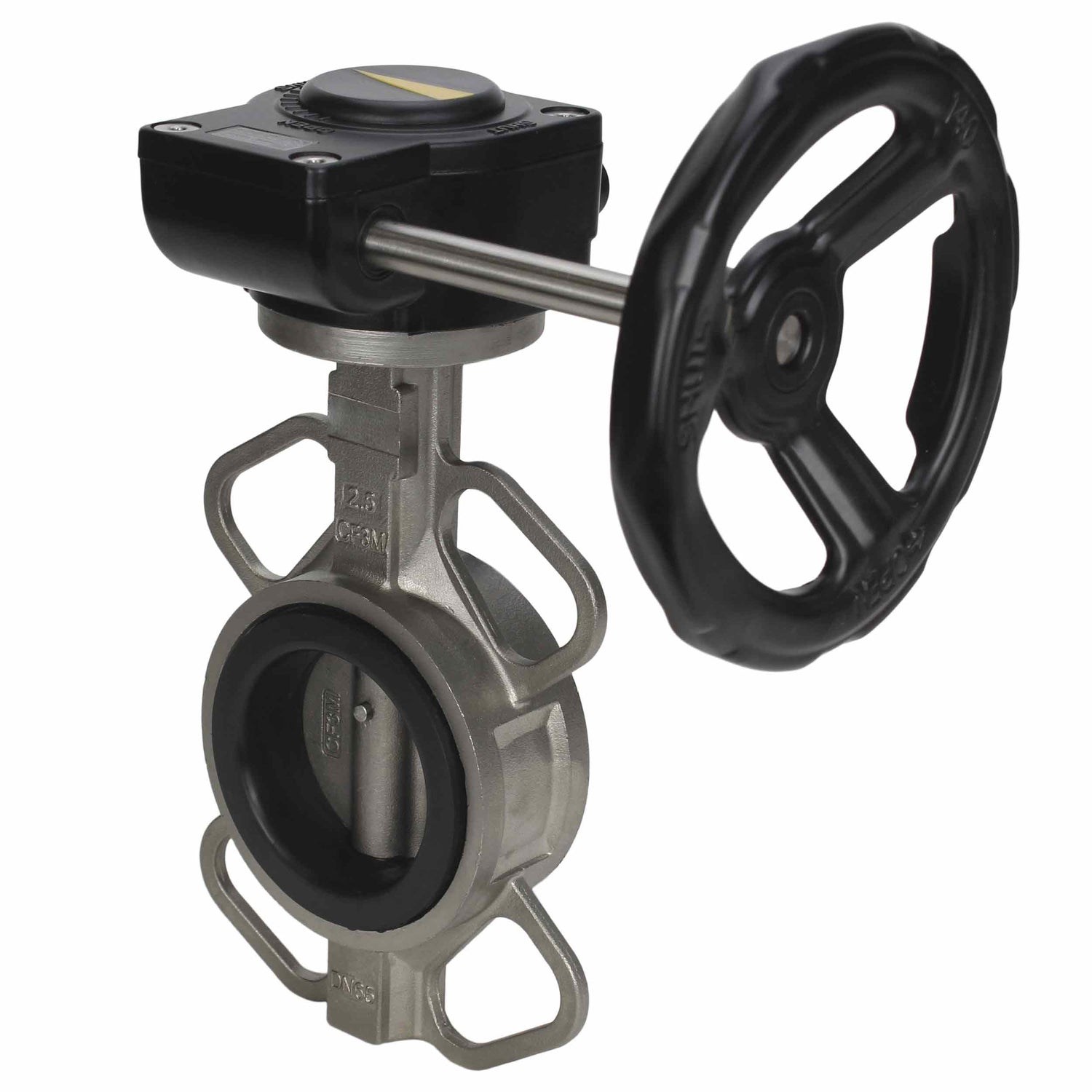

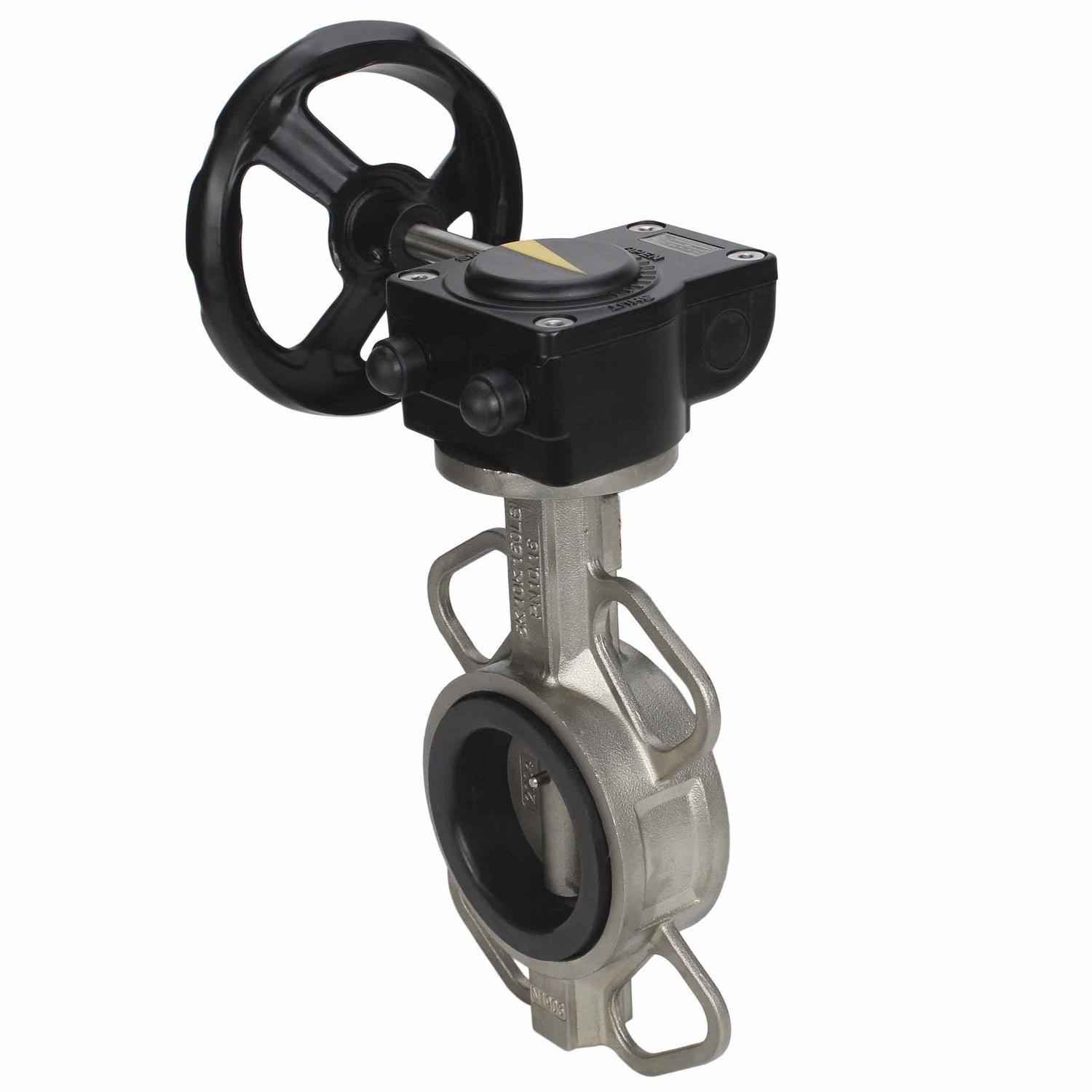

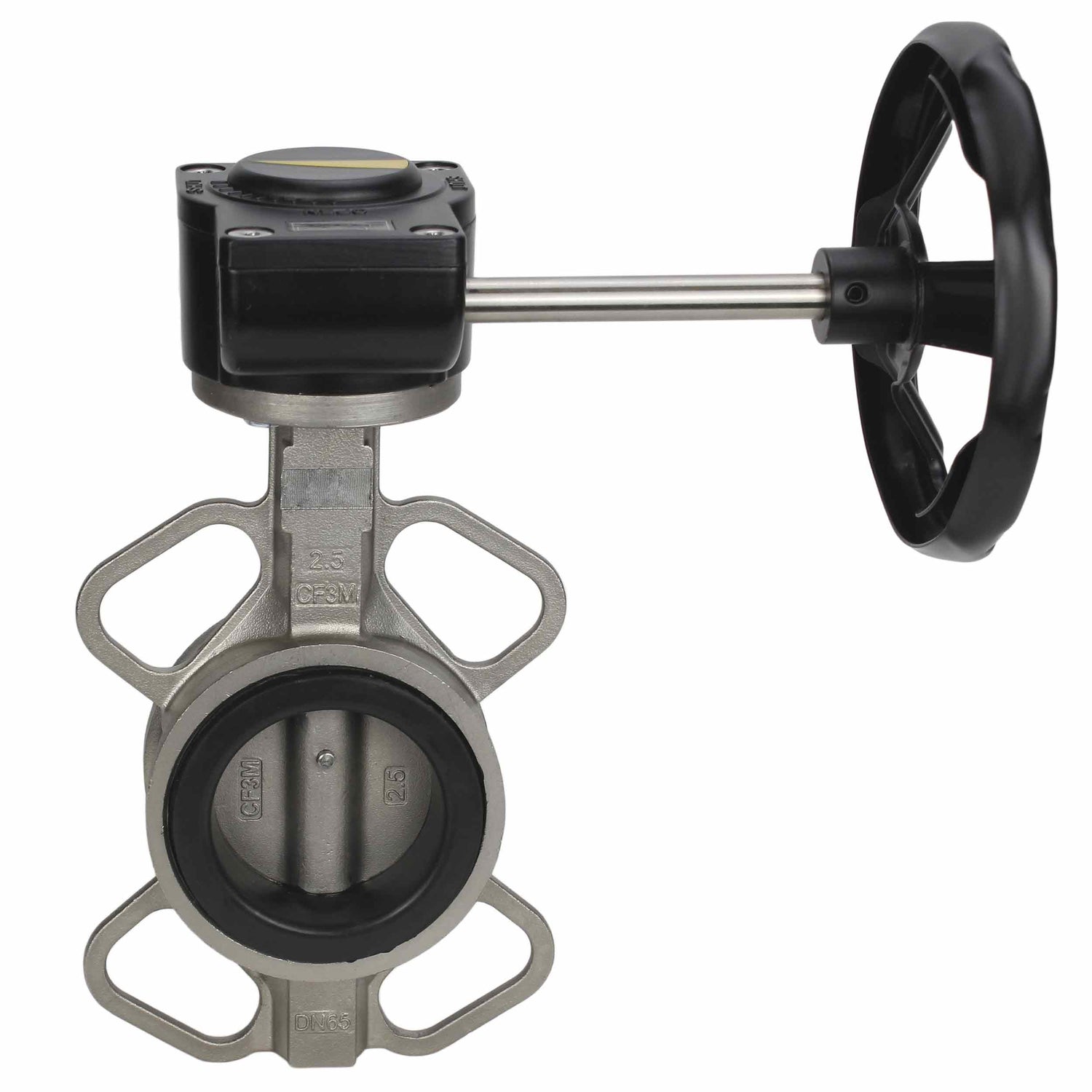

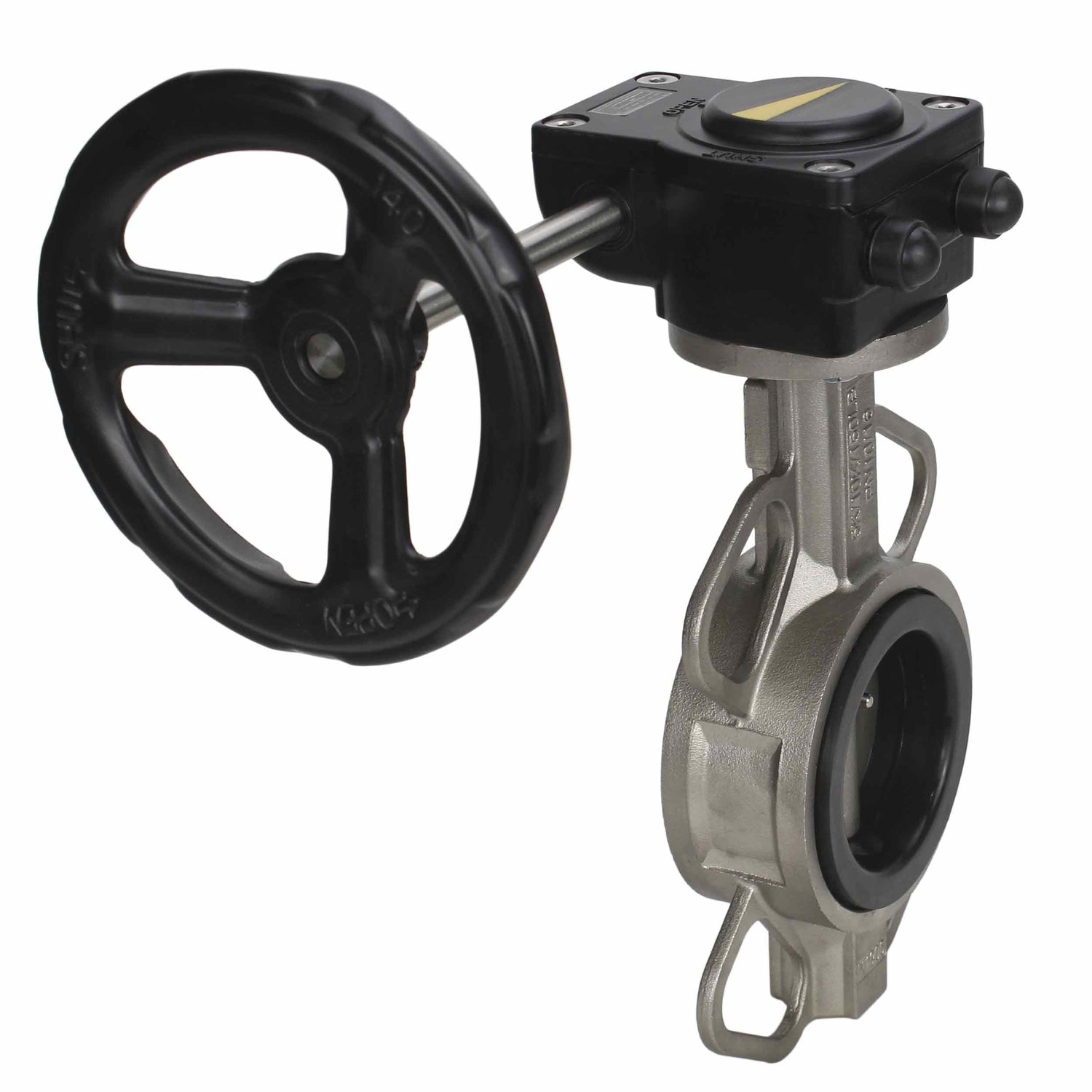

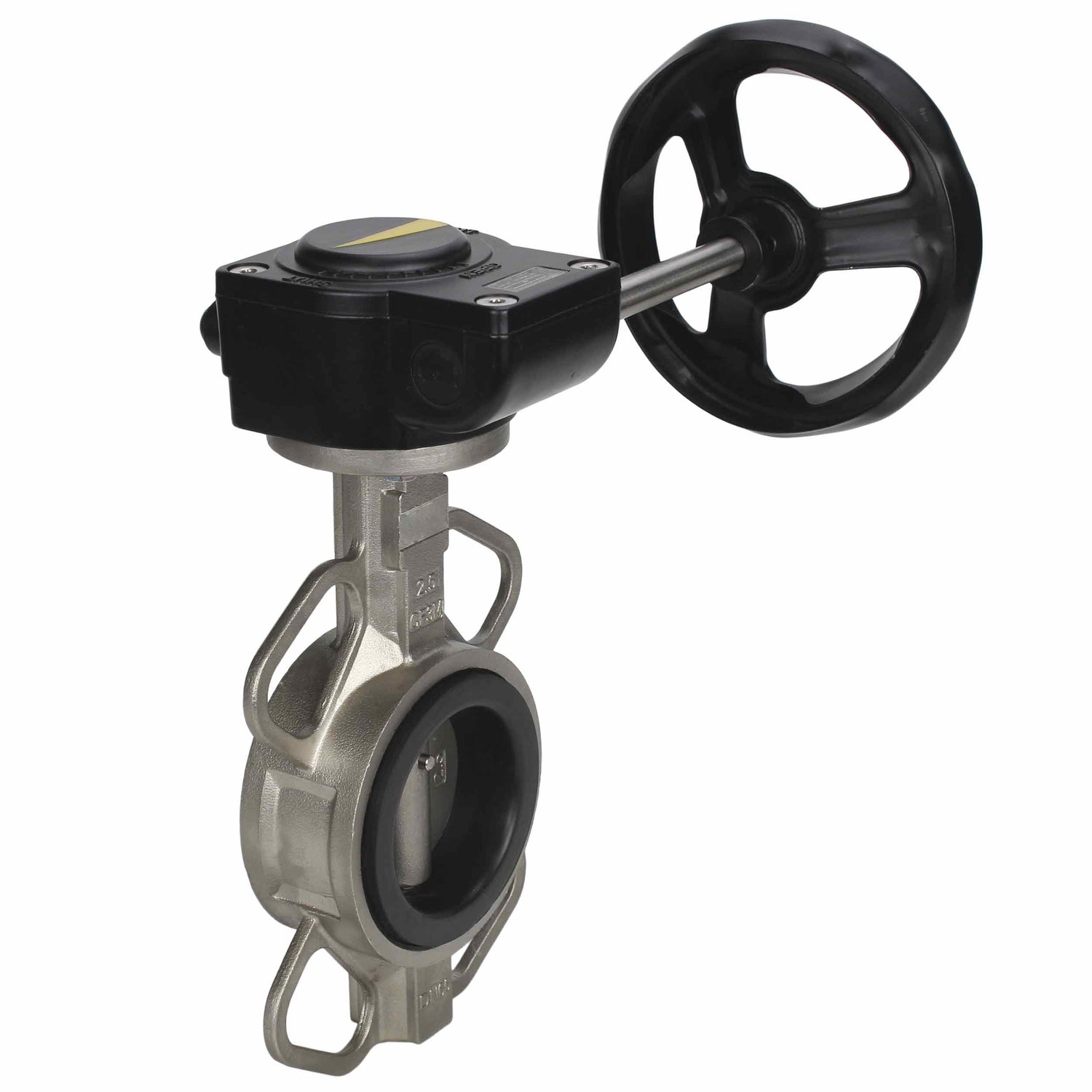

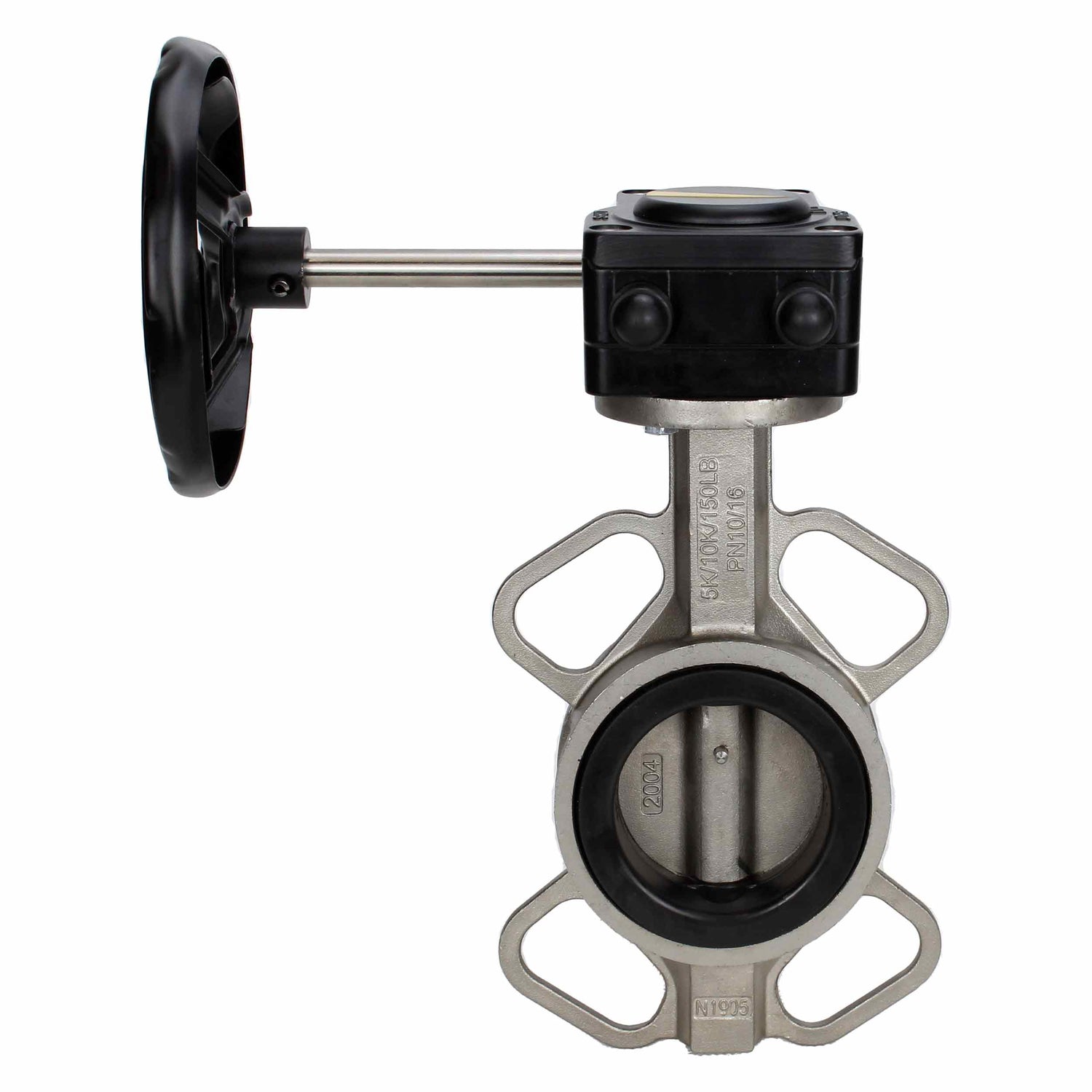

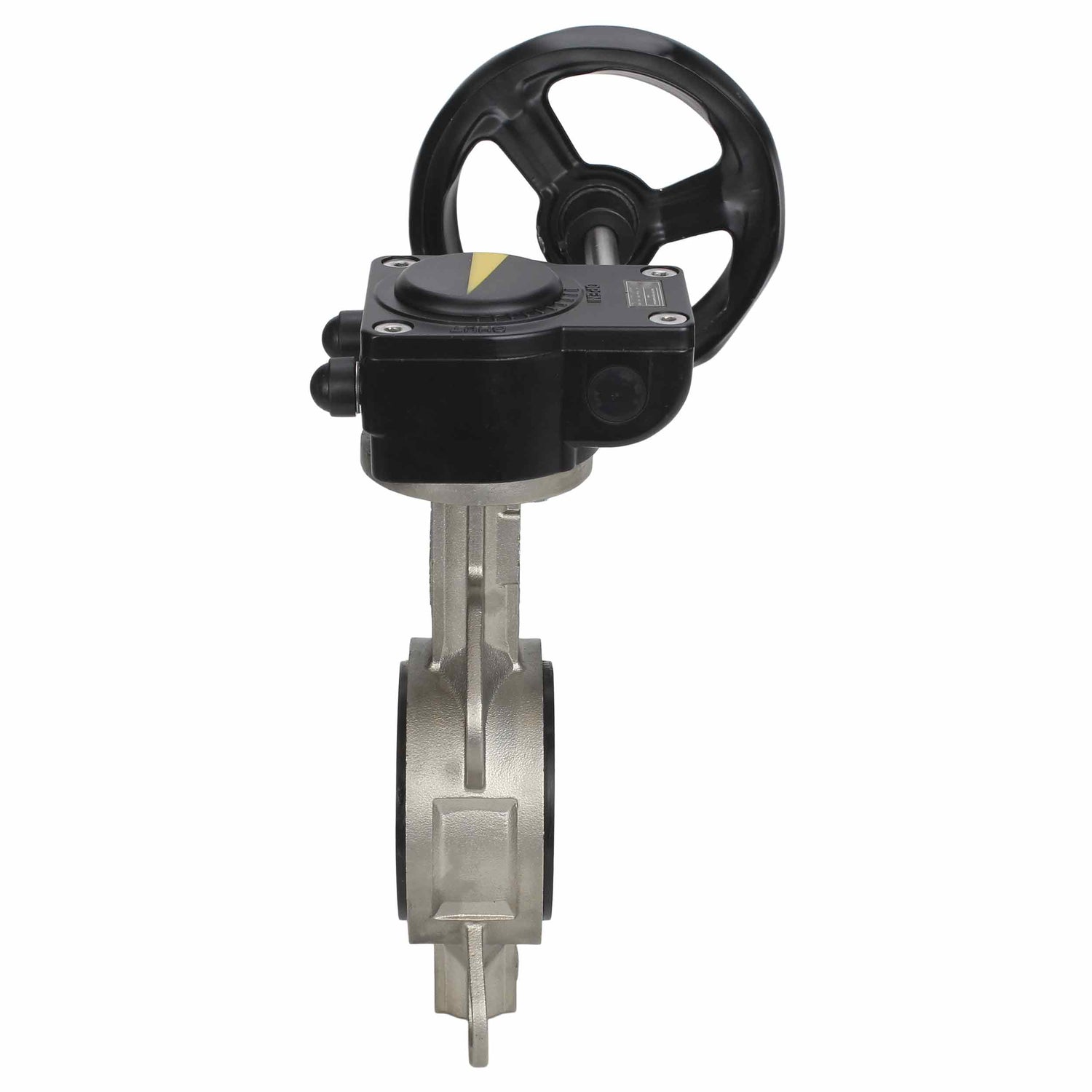

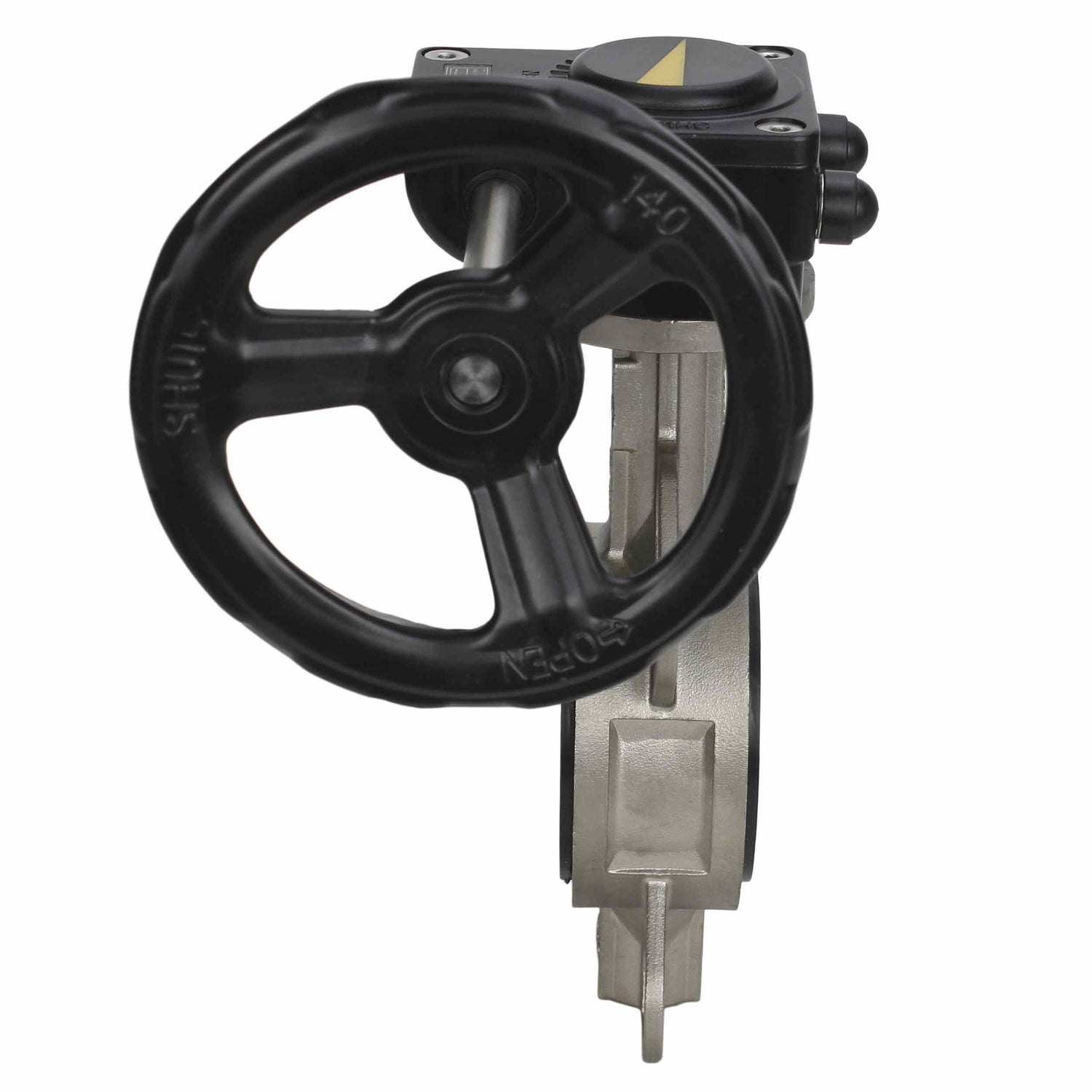

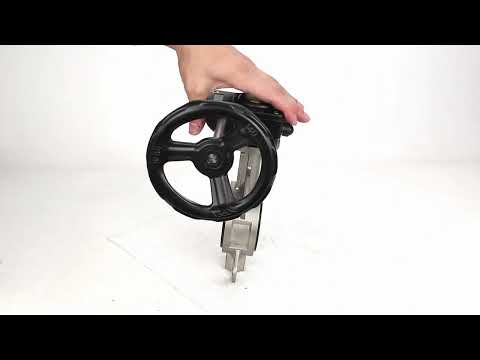

Water butterfly valve Elephant 316L-316L-VITON body material - stainless steel AISI 316L, disk material - stainless steel AISI 316L, seal - Viton with gear Elephant HAM

€266,34
Tax included Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Butterfly valves Elephant are used as shut-off and regulating valves for flow control in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper industries.



Dimensions and dimensions of water butterfly valves Elephant 316L-316L-VITON body material - stainless steel AISI 316L, disk material - stainless steel AISI 316L, seal - Viton with gear Elephant HAM:

DN H1, mm H2, mm Dm, mm Dk, mm L, mm ØC, mm
DN50 62 126 73 90 43 125
DN65 72 133 85 103 46 145
DN80 91 142 100 116 46 160
DN100 107 165 131 151 52 180
DN125 121 183 155 174 56 210
DN150 134 195 184 205 56 240
DN200 171 236 234 255 60 295
DN250 197 276 288 315 68 355
DN300 240 315 340 375 78 410


Sketch Butterfly valves Elephant 316L-316L-VITON body material - stainless steel AISI 316L, disk material - stainless steel AISI 316L, seal - Viton with gear Elephant HAM





Materials of  water butterfly valves Elephant 316L-316L-VITON body material - stainless steel AISI 316L, disk material - stainless steel AISI 316L, seal - Viton with gear Elephant HAM:

№ Name Material
1 Body WCB steel or AISI 316L stainless steel
2 Cuff VITON
3 Disc AISI 316L stainless steel
4 Stem SS 416/2Cr13 stainless steel
5 Pin AISI 316L stainless steel
6 Bushing EPDM
7 Sealing ring EPDM
8 Fixing plate Carbon steel
Эскиз Затворы дисковые поворотные DN.ru WBV3232V-2W-Fb Ду50-250 Ру16, нержавеющая сталь 316L, уплотнение - Viton, с пневмоприводом PA-DA двойного действия, с пневмораспределителем 4M310-08 220В, с БКВ APL-410N EX, с ручным дублером MON

Sketch Butterfly valves Elephant Water Butterfly Valve Elephant

Specifications
  • Country of origin
    China
  • Body material
    Stainless steel AISI 316
  • Maximum allowable temperature
    200 °C
  • Connection type
    Compact flanged
  • Control type
    Gear
  • Operating environment
    Mineral And Vegetable Oils, Animal Fats, Greases And Fuels, Hot Air
  • Nominal pressure
    16 bar
  • Type of seal
    VITON
  • Disc material
    Stainless steel AISI 316L/1.4404
  • Explosion-proof
    No
  • Thermal protection
    No
  • Torque
    59 Nm
  • Electropneumatic positioner
    No
  • Pneumatic actuator
    No
  • Manual override
    Yes
  • Limit switches
    No

Reviews (0)

Documentation

Payment & Security

Payment methods

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    Available Variants

    SKUConnection sizePressurePrice AvailabilityQuantity Add to cart
    D050-25869DN5016 bar €266,34 2 In stock
    D050-25871DN8016 bar €291,73 Sold out
    D050-25872DN10016 bar €699,45 Sold out
    D050-25873DN12516 bar €866,08 Sold out
    D050-25874DN15016 bar €588,43 Sold out
    D050-25875DN20016 bar €979,32 Sold out
    D050-25876DN25016 bar €1.269,94 Sold out
    D050-25877DN30016 bar €1.933,63 Sold out
    D050-25870DN6516 bar €427,41 Sold out
