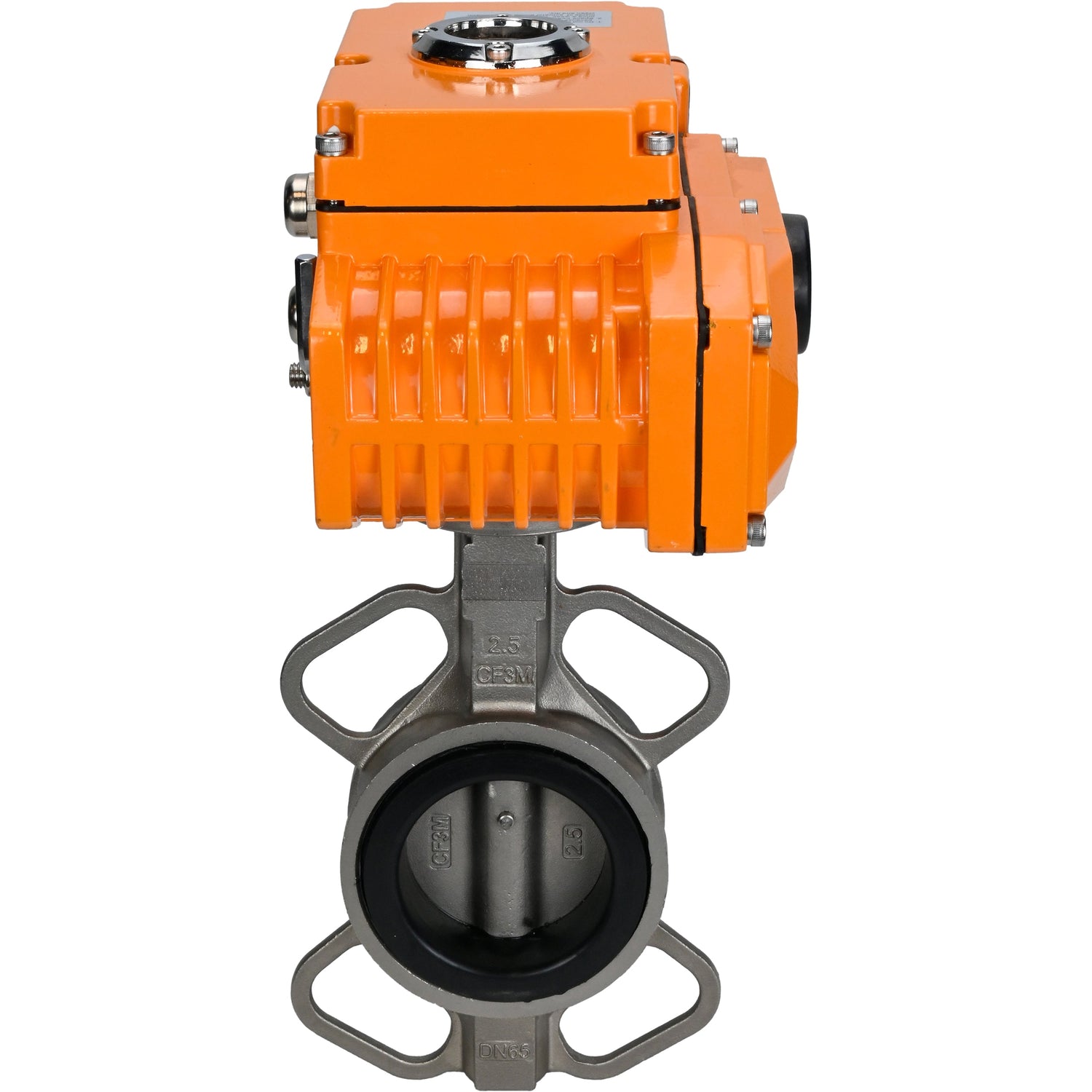

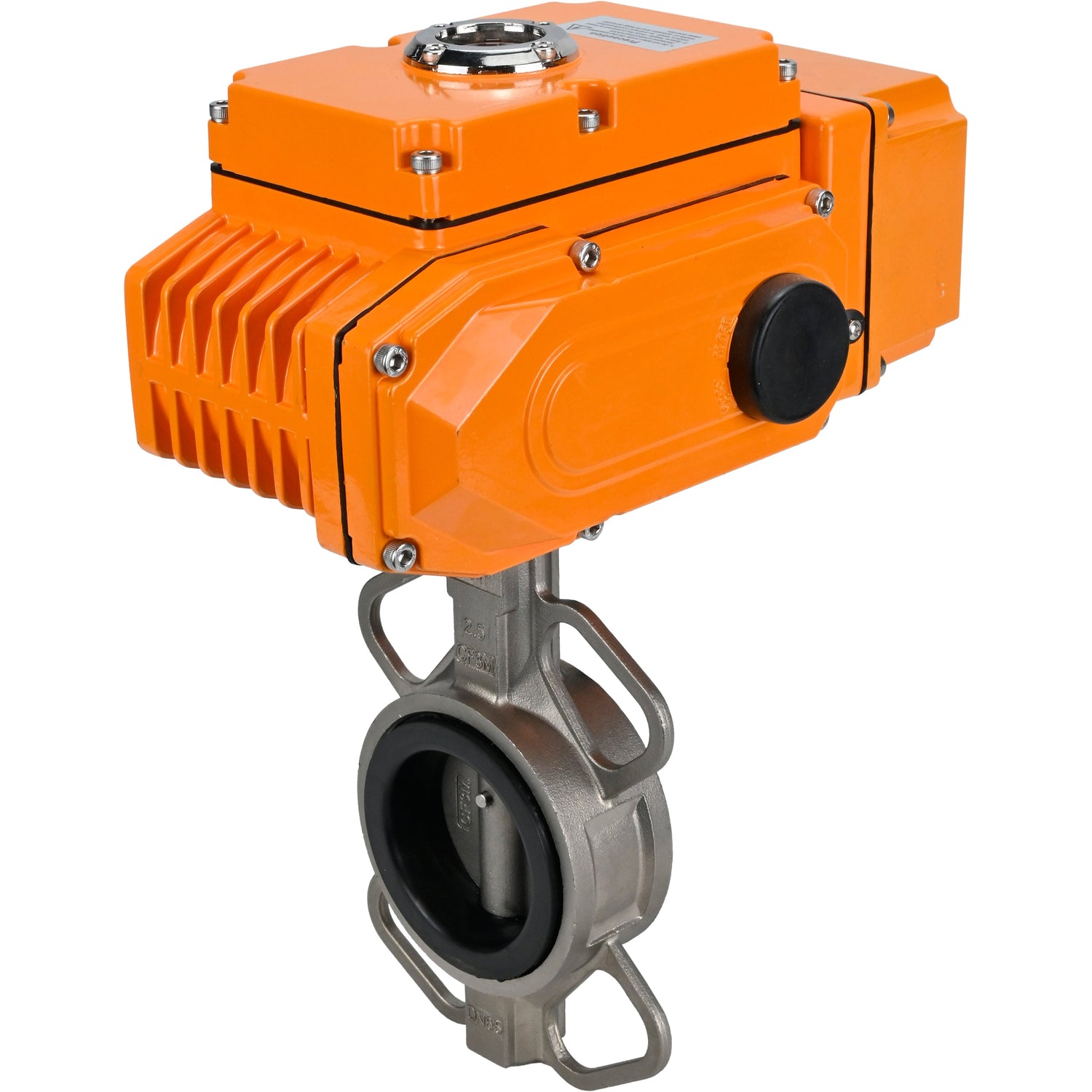

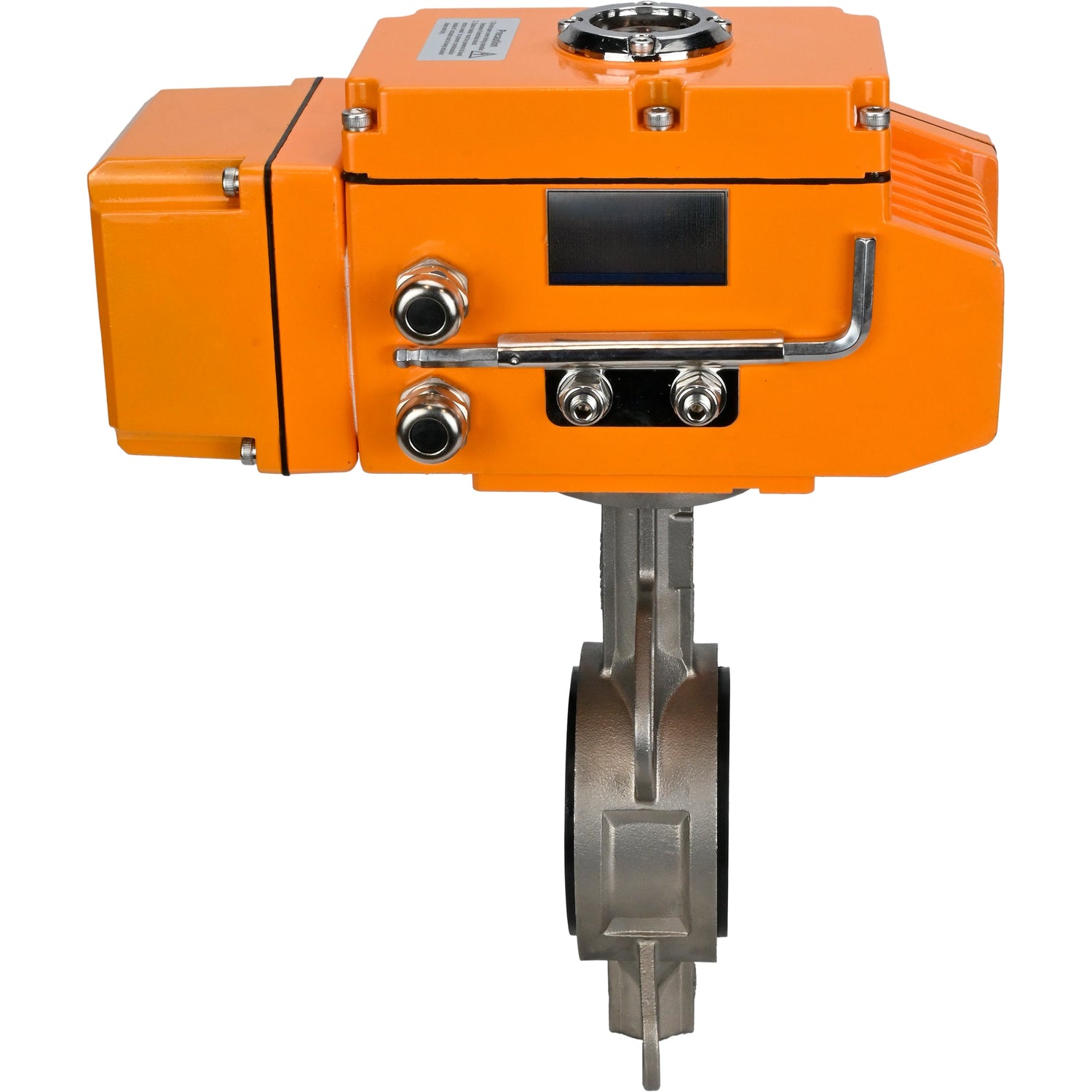

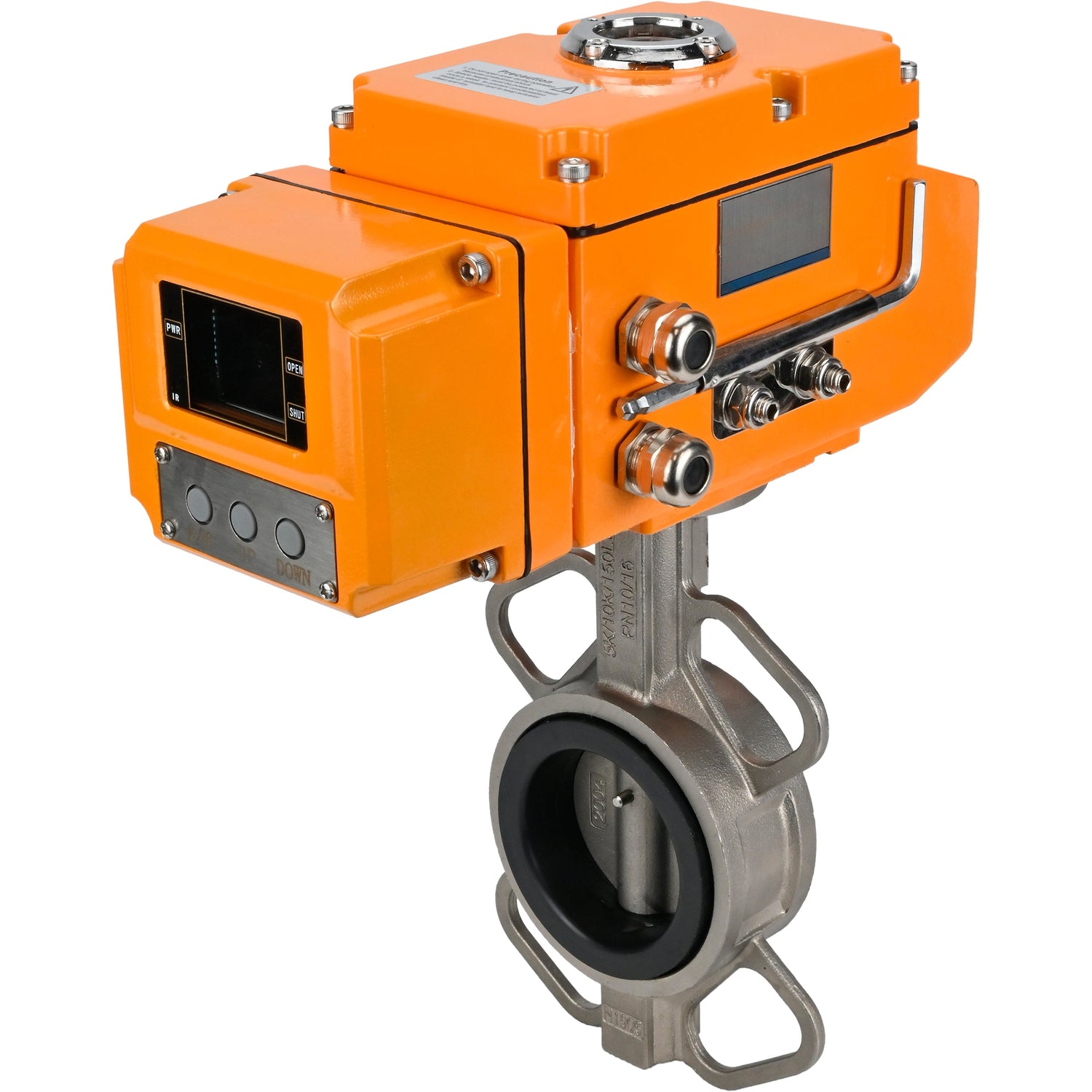

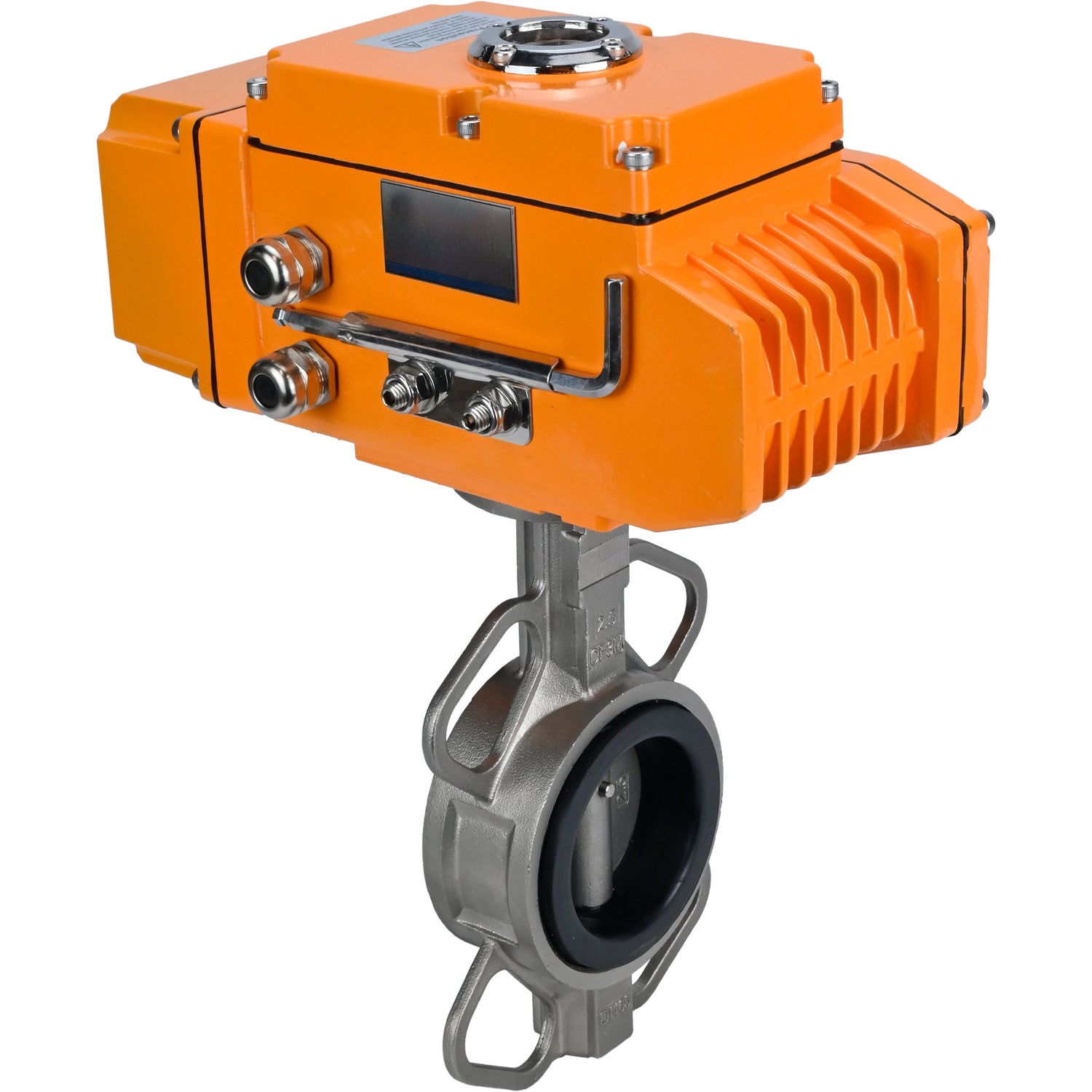

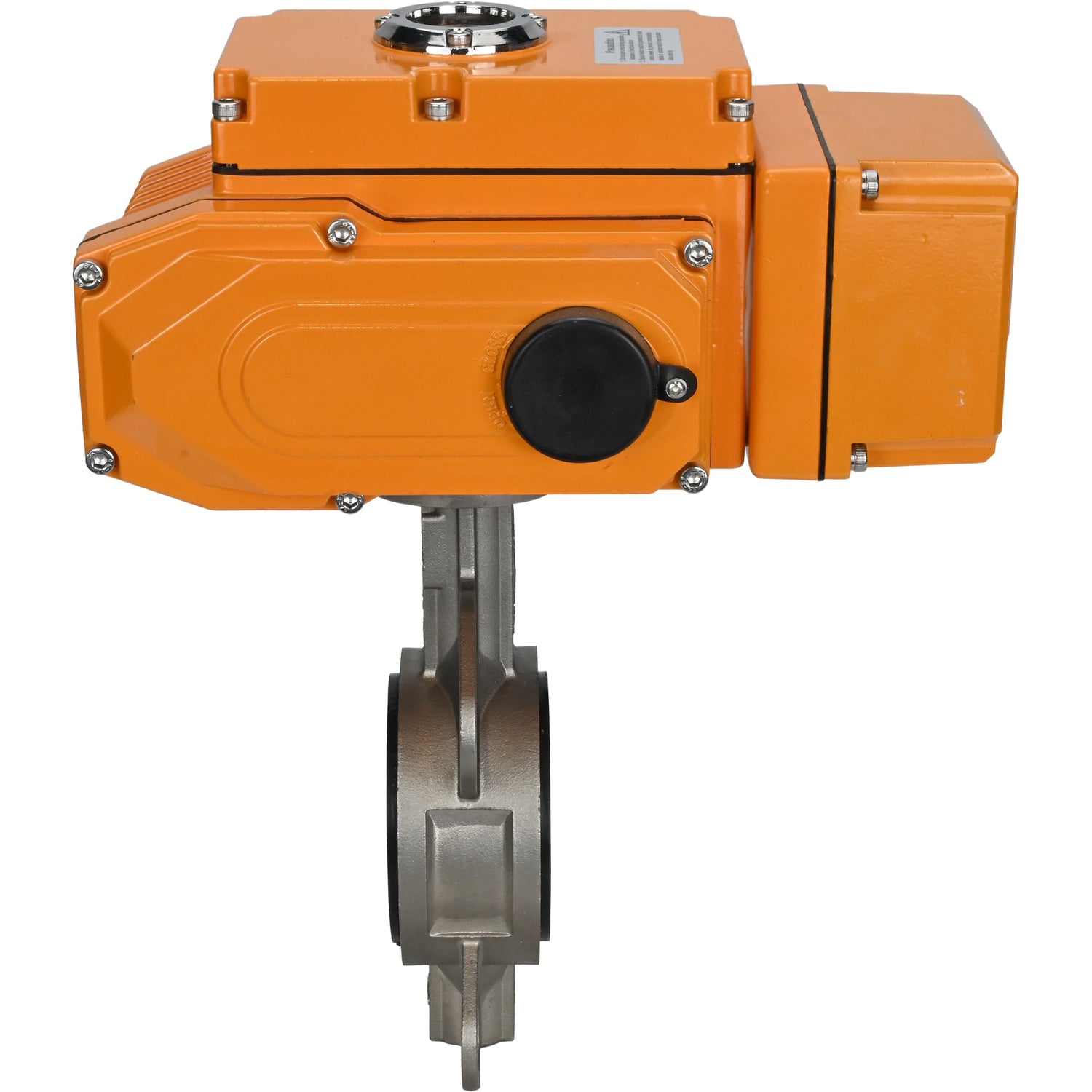

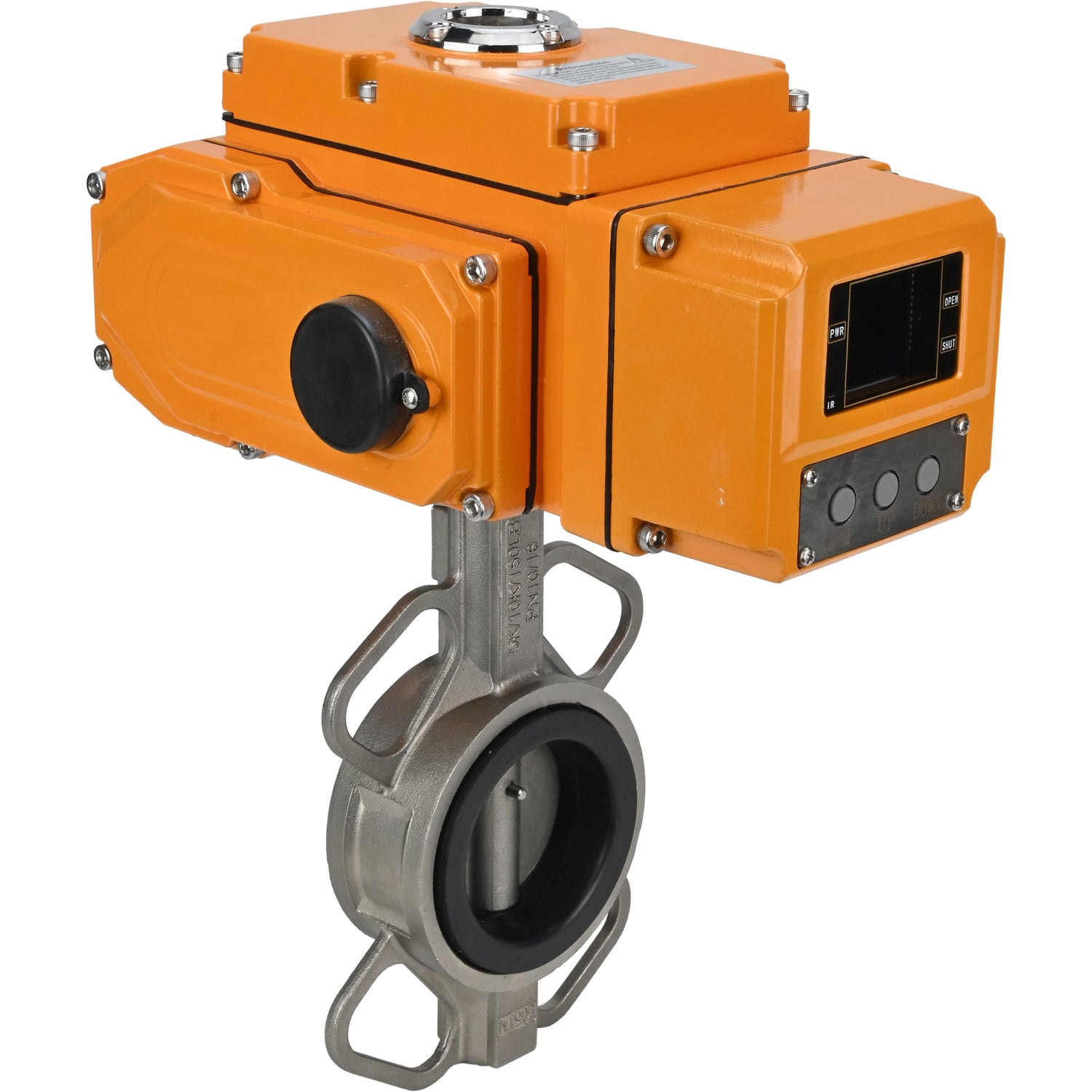

Water Butterfly Valve Elephant 316L-316L-VITON body material - stainless steel aisi 316l, disk material - stainless steel aisi 316l, seal - Viton with electric actuator Elephant 220V, feedback sensor and input control signal 0-10V
Water Butterfly Valve Elephant 316L-316L-VITON body material - stainless steel aisi 316l, disk material - stainless steel aisi 316l, seal - Viton with electric actuator Elephant 220V, feedback sensor and input control signal 0-10V - DN50 / 16 bar is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.
Description
Description
Butterfly valves are designed to be used as shut-off or control valves for managing flows in heating systems, water supply systems, and technological processes in the food, chemical, oil and gas, pulp and paper, and other industries.
Quarter-turn electric actuators of the Elephant QT series are designed for remote and local control of the rotation of the shut-off element from 0° to 270°, for types such as ball valves, etc. They are widely used in various sectors of the economy: gas, oil, metallurgy, food industry, housing, and utilities, etc.
The electric actuators are installed directly on pipeline fittings. The installation dimensions comply with the international standard ISO 05211 / DIN3337. Four micro switches are used to limit the stroke of the output shaft at the end positions of the working element of the fittings. The electric actuators are designed to operate in an intermittent duty cycle S2.
Technical parameters water butterfly valve Elephant 316L-316L-VITON body material - stainless steel aisi 316l, disk material - stainless steel aisi 316l, seal - Viton with electric actuator Elephant 220V, feedback sensor and input control signal 0-10V:
| Nominal diameter DN, mm | 50 – 300 |
| Nominal pressure PN, bar | 16 |
| Flow direction | two-way |
| Ambient temperature t, ⁰C | from -20 to +200 |
| Working media | mineral and vegetable oils, animal fats, greases and fuels, hot air and steam |
| Pipeline connection | interflanged |
Dimensions and dimensions of butterfly valve Elephant 316L-316L-VITON body material - stainless steel aisi 316l, disk material - stainless steel aisi 316l, seal - Viton with electric actuator Elephant 220V, feedback sensor and input control signal 0-10V:
| DN | H1 | H2 | H3 | ØDm | ØDk | L | ØC |
| mm | |||||||
| 50 | 62 | 126 | 25 | 73 | 90 | 43 | 125 |
| 65 | 72 | 133 | 25 | 85 | 103 | 46 | 145 |
| 80 | 91 | 142 | 25 | 100 | 116 | 46 | 160 |
| 100 | 107 | 165 | 25 | 131 | 151 | 52 | 180 |
| 125 | 121 | 183 | 25 | 155 | 174 | 56 | 210 |
| 150 | 134 | 195 | 25 | 184 | 205 | 56 | 240 |
| 200 | 171 | 236 | 35 | 234 | 255 | 60 | 295 |
| 250 | 197 | 276 | 35 | 288 | 315 | 68 | 355 |
| 300 | 240 | 315 | 35 | 340 | 375 | 78 | 410 |
Sketch butterfly valve Elephant 316L-316L-VITON body material - stainless steel aisi 316l, disk material - stainless steel aisi 316l, seal - Viton with electric actuator Elephant 220V, feedback sensor and input control signal 0-10V
Dimensions and dimensions of butterfly valve Elephant 316L-316L-VITON body material - stainless steel aisi 316l, disk material - stainless steel aisi 316l, seal - Viton with electric actuator Elephant 220V, feedback sensor and input control signal 0-10V
| № | Name | Material |
| 1 | Body | WCB steel or AISI 316L stainless steel |
| 2 | Cuff | VITON |
| 3 | Disc | AISI 316L stainless steel |
| 4 | Stem | SS 416/2Cr13 stainless steel |
| 5 | Pin | AISI 316L stainless steel |
| 6 | Bushing | EPDM |
| 7 | Sealing ring | EPDM |
| 8 | Fixing plate | Carbon steel |
Sketch Butterfly valves Elephant Water Butterfly Valve Elephant
Main parameters of electric actuators:
| Power supply | 220 V, 50 Hz, 1 phase | |
| Limit switches | 2-Open/Closed 250V 10A | |
| Additional limit switches | 2-Open/Closed 250V 10A | |
| Output shaft rotation angle | Standard: 90˚, on request 90˚-270˚ ±10˚ | |
| Overheating protection / Motor operating temperature | Integrated thermal protection, opening at 120°C ± 5°C / closing at 97°C ± 5°C | |
| Operating temperature range, °C | -20 ... +40 | |
| Ambient temperature, °C | –20 …+70 | |
| Manual doubler | Hexagon (included) | |
| Self-locking device | Self-locking with worm and worm gears | |
| Mechanical limiter | 2 external adjustable stops | |
| Cable glands | 2 pcs, M18 | |
| External coating | Dry powder. Epoxy polyester | |
Main technical data and characteristics of Elephant 316L-316L-VITON 220V (0-10V) actuators:
| Model | QT-005 | QT-010 | QT-030 | QT-040 | QT-060 |
| Supply voltage | 220 V | 220 V | 220 V | 220 V | 220 V |
| Electric motor power, W | 10 | 15 | 45 | 60 | 90 |
| Electric motor current, A | 0,25 | 0,35 | 0,31 | 0,33 | 0,33 |
| Torque, Nm | 50 | 100 | 300 | 400 | 600 |
| Cycle time, sec. (rotation 90°) | 30 | 30 | 30 | 30 | 30 |
| Maximum valve stem diameter, mm | 14x14 | 17x17 | 22x22 | 22x22 | 27x27 |
| Enclosure protection rating | IP67 (on request - IP68) | ||||
| Material | steel, aluminum alloy, aluminum bronze, polycarbonate | ||||
| Height of connecting protrusion, mm | 89 | 107 | 152 | 152 | |
| Type ISO flange | F05/ F07 | F05/ F07 | F10/ F12 | F10/ F12 | F10/ F12 |
| Weight, kg | 3,6 | 4,6 | 13,4 | 13,8 | 14, |
Design of electric actuators:
| № | Name |
| 1 | Output shaft |
| 2 | Cable lock |
| 3 | Mechanical limiter |
| 4 | Manual wrench |
| 5 | Body |
| 6 | Modular box |
| 7 | Cover |
| 8 | Viewing window |
| 9 | Dust protection |
Dimensions of Elephant 316L-316L-VITON 220V (0-10V) actuators:
| Dimensions, mm | QT-005 | QT-010 | QT-030 | QT-040 | QT-060 |
| X | 160 | 189 | 268 | 268 | 268 |
| Y | 146 | 163 | 212 | 212 | 255 |
| Z | 121 | 129 | 164 | 164 | 164 |
| FA | F70 | F70 | F125 | F125 | F125 |
| N-B | 4-M8 | 4-M8 | 4-M12 | 4-M12 | 4-M12 |
| FS | F50 | F50 | F102 | F102 | F102 |
| N-D | 4-M6 | 4-M6 | 8-M10 | 8-M10 | 4-M10 |
| E | 66 | 100 | 140 | 140 | 140 |
| F | 66 | 90 | 130 | 130 | 130 |
| G | 114 | 114 | 114 | 114 | 114 |
| H | 40 | 40 | 40 | 40 | 40 |
| I | 100 | 100 | 100 | 100 | 150 |
| M x M | 14 x 14 | 17 x 17 | 22 x 22 | 22 x 22 | 27 x 27 |
Specifications
Specifications
-
Country of origin
-
Body material
-
Maximum allowable temperature
-
Connection type
-
Control type
-
Nominal pressure
-
Type of seal
-
Disc material
-
Voltage
-
Actuator cycle time
-
Valve feedback
-
Explosion-proof
-
Thermal protection
-
Torque
-
Electropneumatic positioner
-
Pneumatic actuator
-
Manual override
-
Limit switches
