Elephant  |  SKU: D050-32502

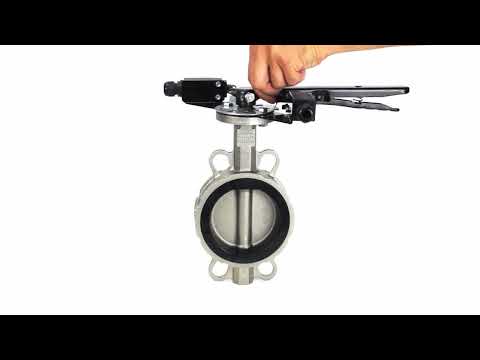

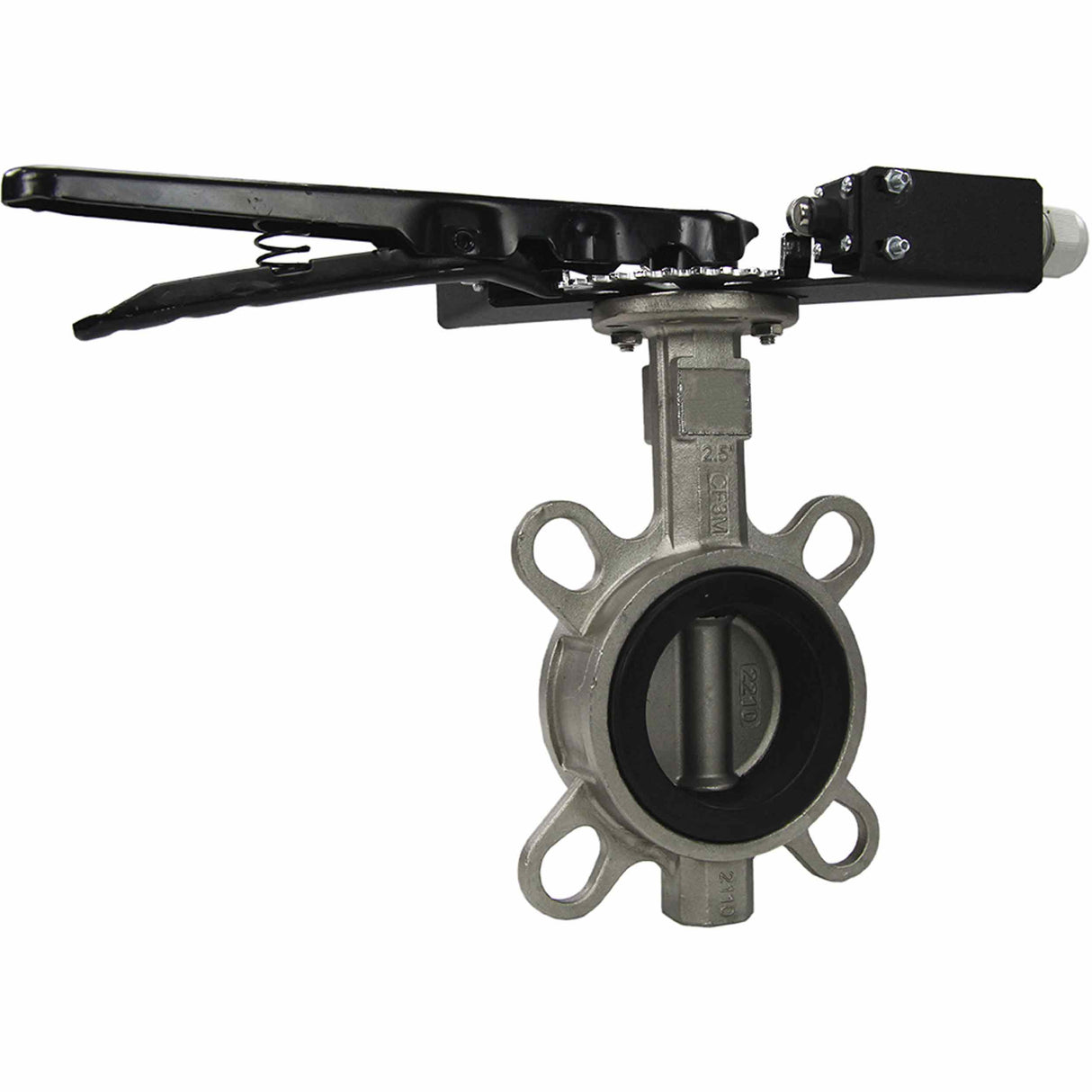

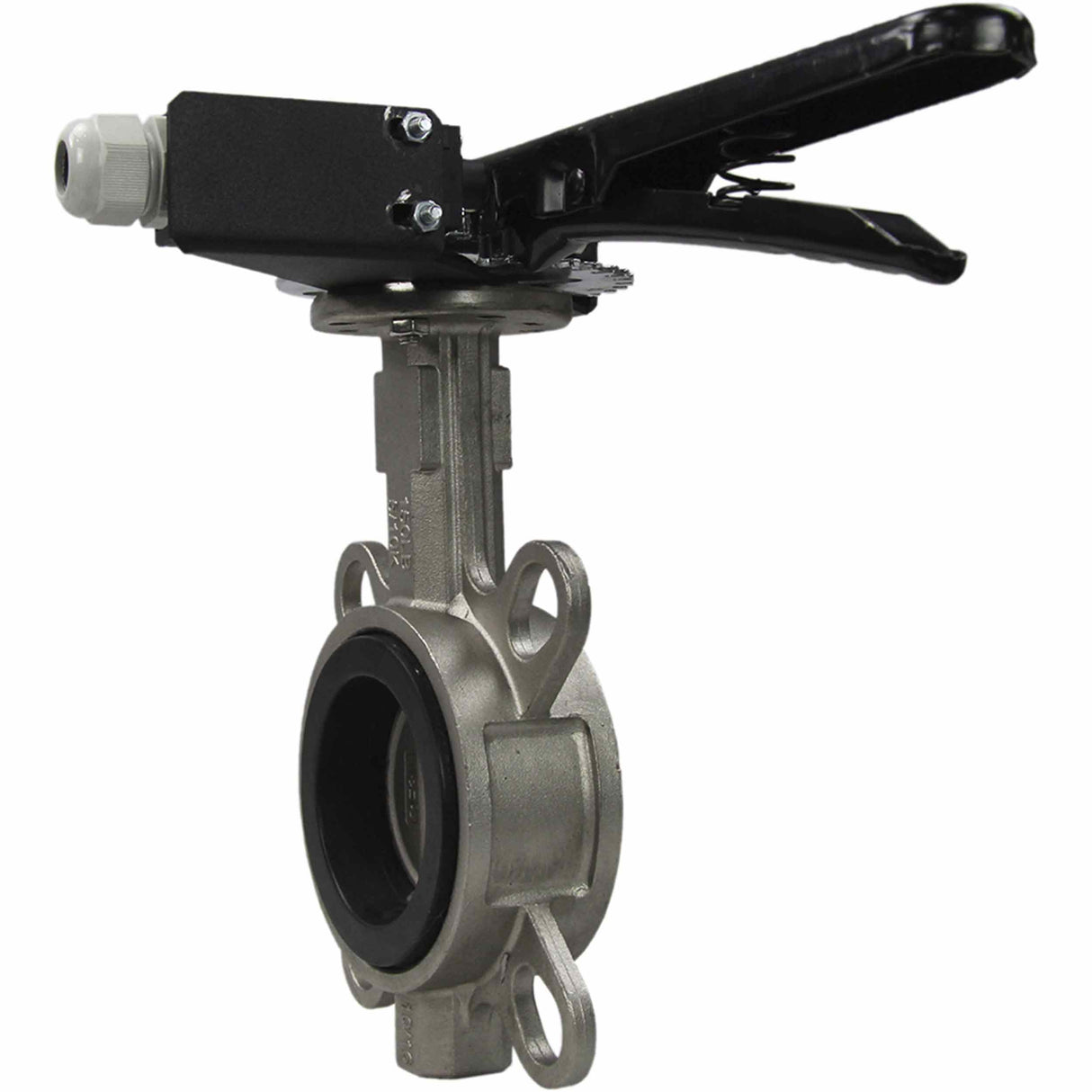

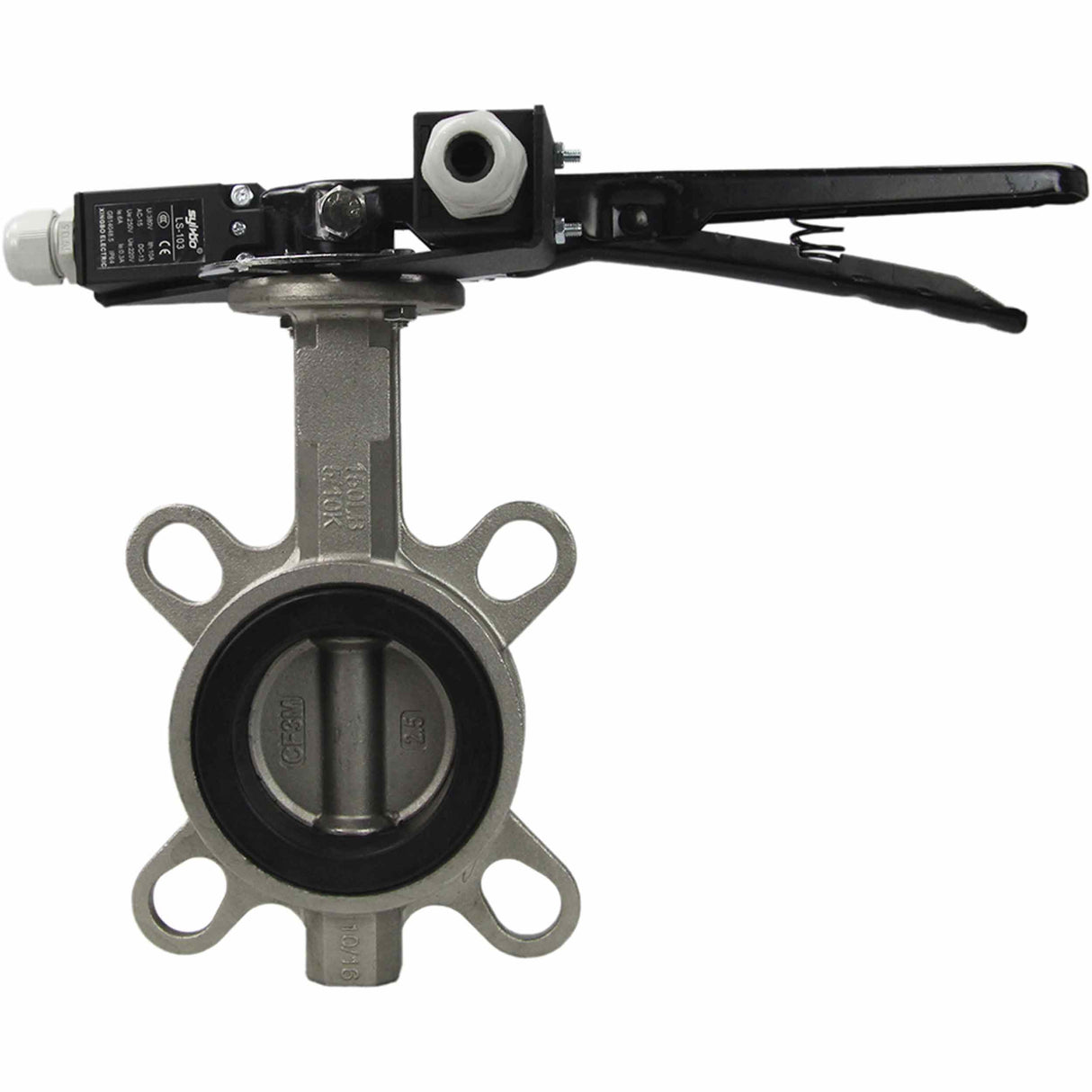

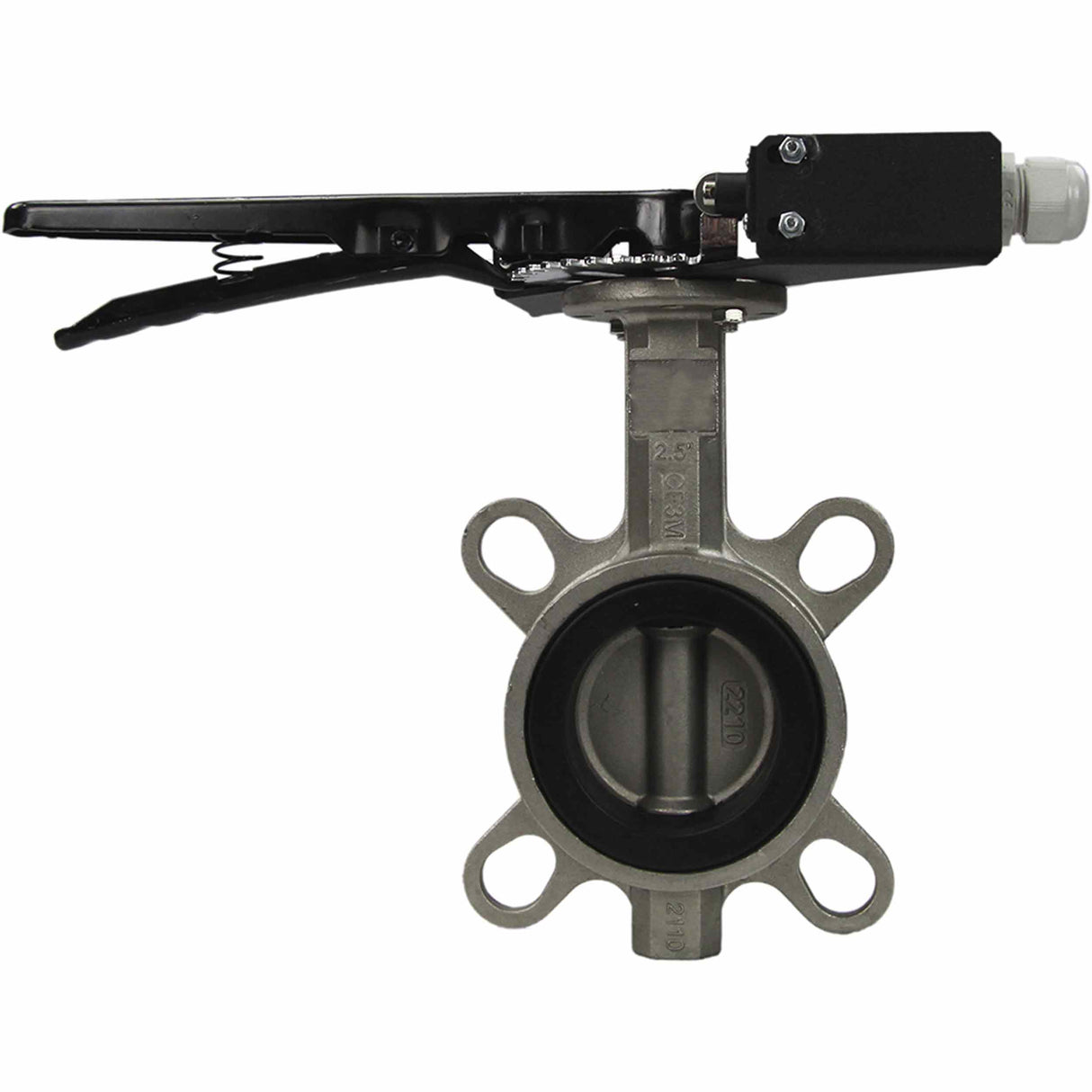

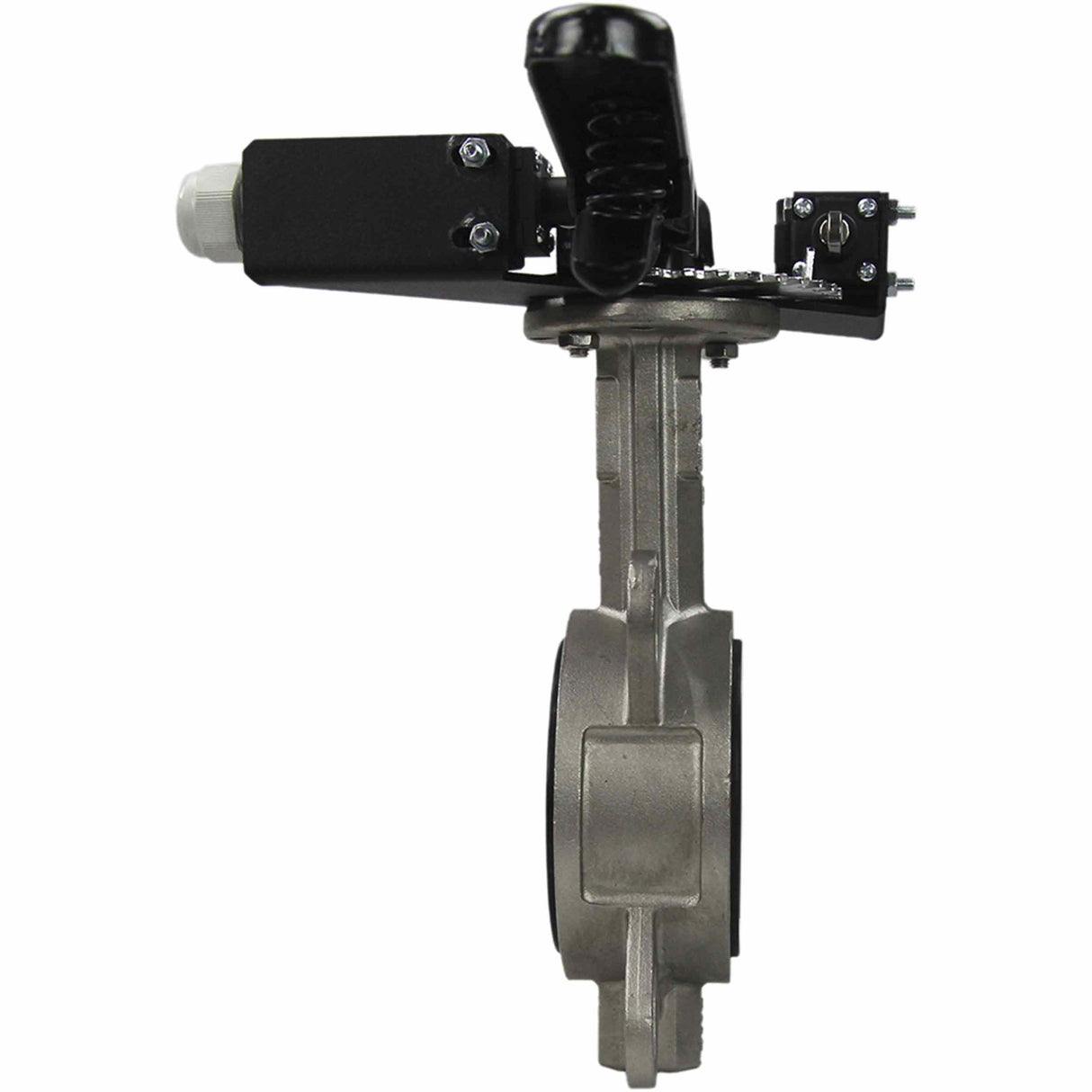

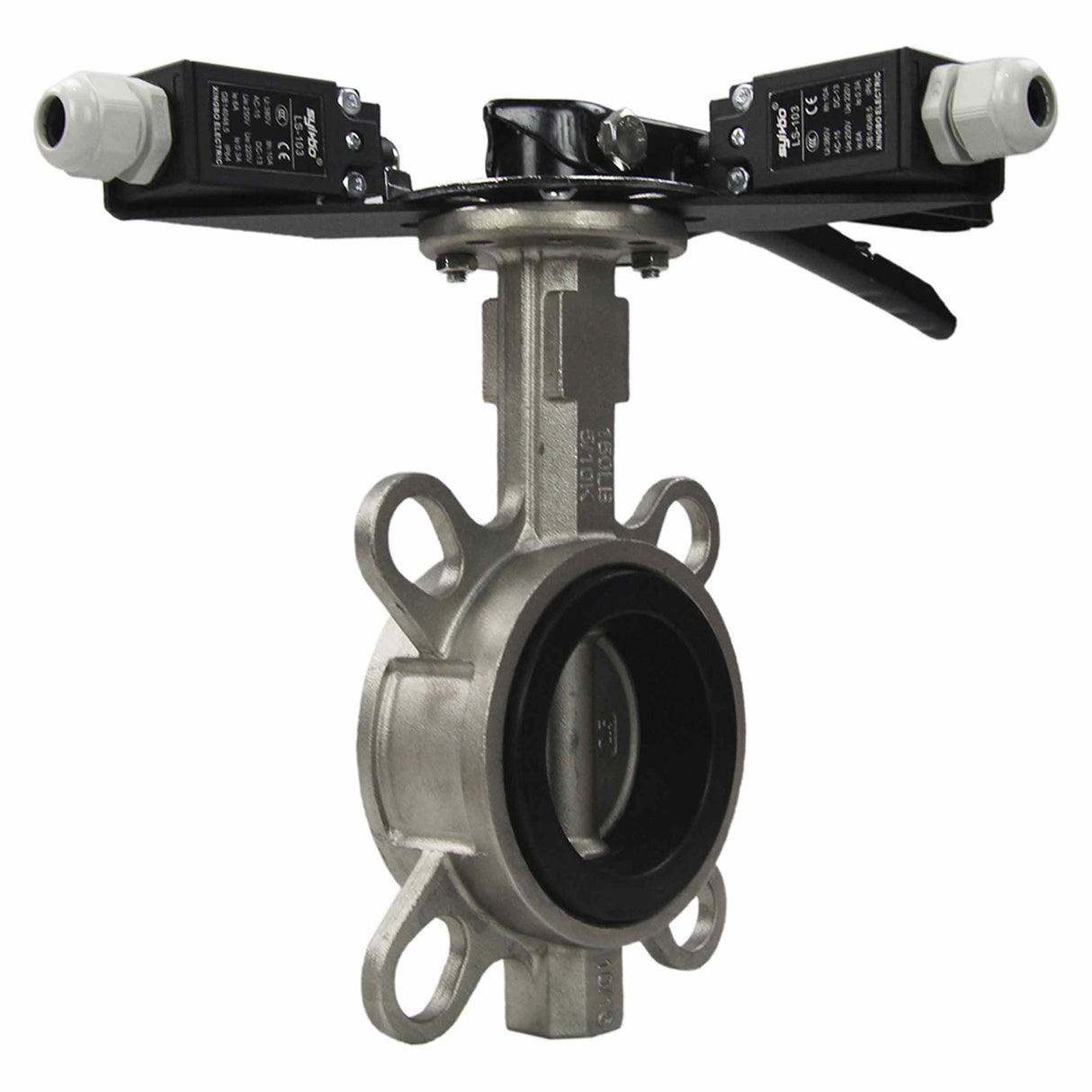

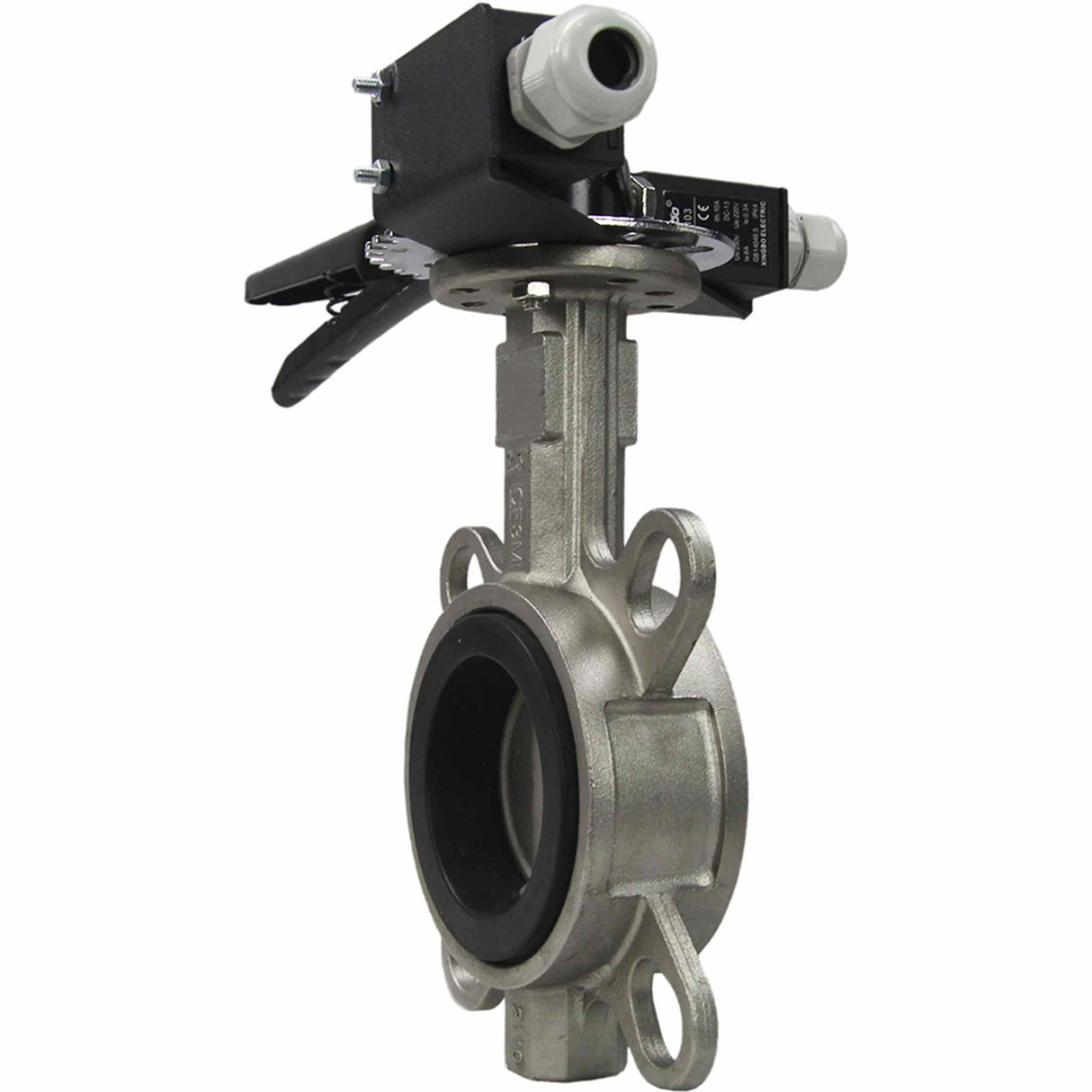

Water butterfly valve Elephant 316L-316L-NBR body material - stainless steel AISI 316L, disk material - stainless steel AISI 316L, seal - NBR with handle, with two limit switches LS-103 250V and a bracket for mounting limit switches

€126,93
Tax included Shipping calculated at checkout.

Water butterfly valve Elephant 316L-316L-NBR body material - stainless steel AISI 316L, disk material - stainless steel AISI 316L, seal - NBR with handle, with two limit switches LS-103 250V and a bracket for mounting limit switches - DN50 / 16 bar is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Butterfly valve Elephant is designed for use as shut-off or regulating valves for flow control in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.
Butterfly valves should only be installed between collar flanges.







General parameters of Elephant 316L-316L-NBR body material - stainless steel AISI 316L, disk material - stainless steel AISI 316L, seal - NBR with handle, with two limit switches LS-103 250V and a bracket for mounting limit switches:

Range of sizes DN, mm

40-150

Nominal pressure PN, bar

16

Flow direction

Two-way

Ambient temperature t, °C

From -20 to +200

Connection to pipeline

Interflange



Technical characteristics of Elephant 316L-316L-NBR body material - stainless steel AISI 316L, disk material - stainless steel AISI 316L, seal - NBR with handle, with two limit switches LS-103 250V and a bracket for mounting limit switches:

DN, mm ISO-5211 Torque at ΔP=16 bar, Nm
40 F05 50
50 F05 50
65 F05 50
80 F05 50
100 F05 50
125 F07 80
150 F07 100


Dimensions of Elephant 316L-316L-VITON body material - stainless steel AISI 316L, disk material - stainless steel AISI 316L, seal - Viton with handle, with two LS-103 250V limit switches and a bracket for mounting the limit switches:

DN Size, mm
H1 H2 H3 Dm Dk L S ØK ØC n - Ød
40 56 110 27 71 88 33 9 50 110 4 - Ø18
50 76 162 32 73 90 45 9 50 125 4 - Ø18
65 89 175 32 85 103 48 9 50 145 4 - Ø18
80 95 181 32 100 116 49 9 50 160 4 - Ø18
100 114 200 32 131 151 55 11 50 180 4 - Ø18
125 127 213 32 155 174 58 14 70 210 4 - Ø18
150 140 225 32 184 205 59 14 70 240 8 - Ø23
200 177 260 36 234 255 64 17 102 295 12 - Ø23
250 203 292 36 288 315 70 22 102 355 12 - Ø27
300 242 337 36 340 375 80 22 125 410 12 - Ø27





Table of parts and materials of Elephant 316L-316L-VITON body material - stainless steel AISI 316L, disk material - stainless steel AISI 316L, seal - Viton with handle, with two LS-103 250V limit switches and a bracket for mounting the limit switches:

№

Name

Material

1

Body

Stainless steel AISI 316L

2

Cuff

NBR

3

Disc

Stainless steel AISI 316L

4

Stem

Stainless steel AISI 316L

5

Stud

Stainless steel AISI 316L

6

Bushing

Stainless steel 420

7

Sealing ring

NBR (nitrile)

8

Handle

Carbon steel



Hydraulic tests of the housing are carried out with a pressure 1.5 times the working pressure.
Hydraulic tests of the packing gland and seat seal are carried out with pressure exceeding the working pressure by 1.1 times.

Specifications
  • Country of origin
    China
  • Body material
    Stainless steel AISI 316
  • Maximum allowable temperature
    85 °C
  • Connection type
    Compact flanged
  • Nominal pressure
    16 bar
  • Type of seal
    NBR
  • Disc material
    Stainless steel AISI 316L/1.4404
  • Torque
    50 Nm
  • Pneumatic actuator
    No
  • Manual override
    Yes
  • Limit switches
    Yes
