Water butterfly valve Elephant 316L-316L-NBR body material - stainless – Valve Elephant
Elephant  |  SKU: D050-25860

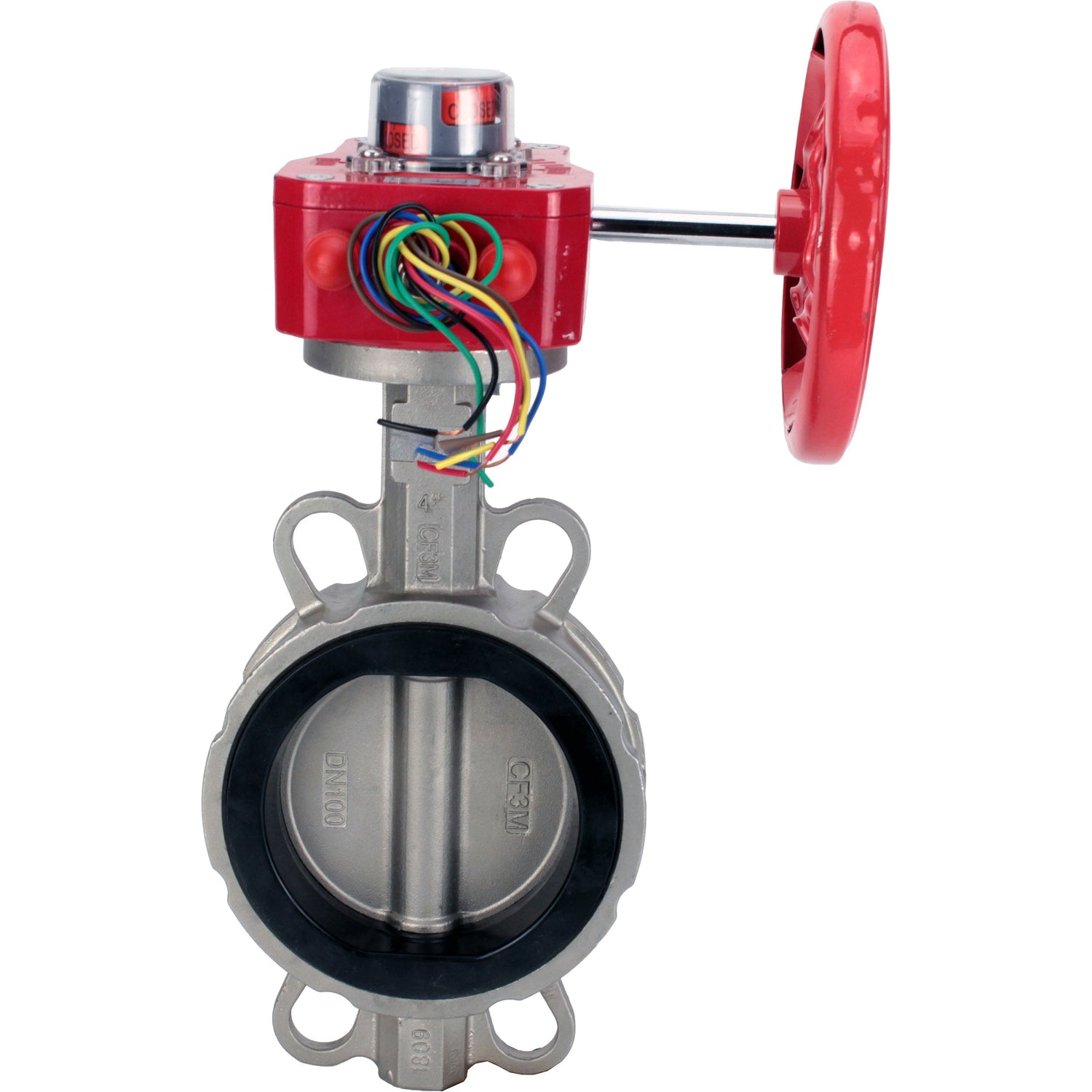

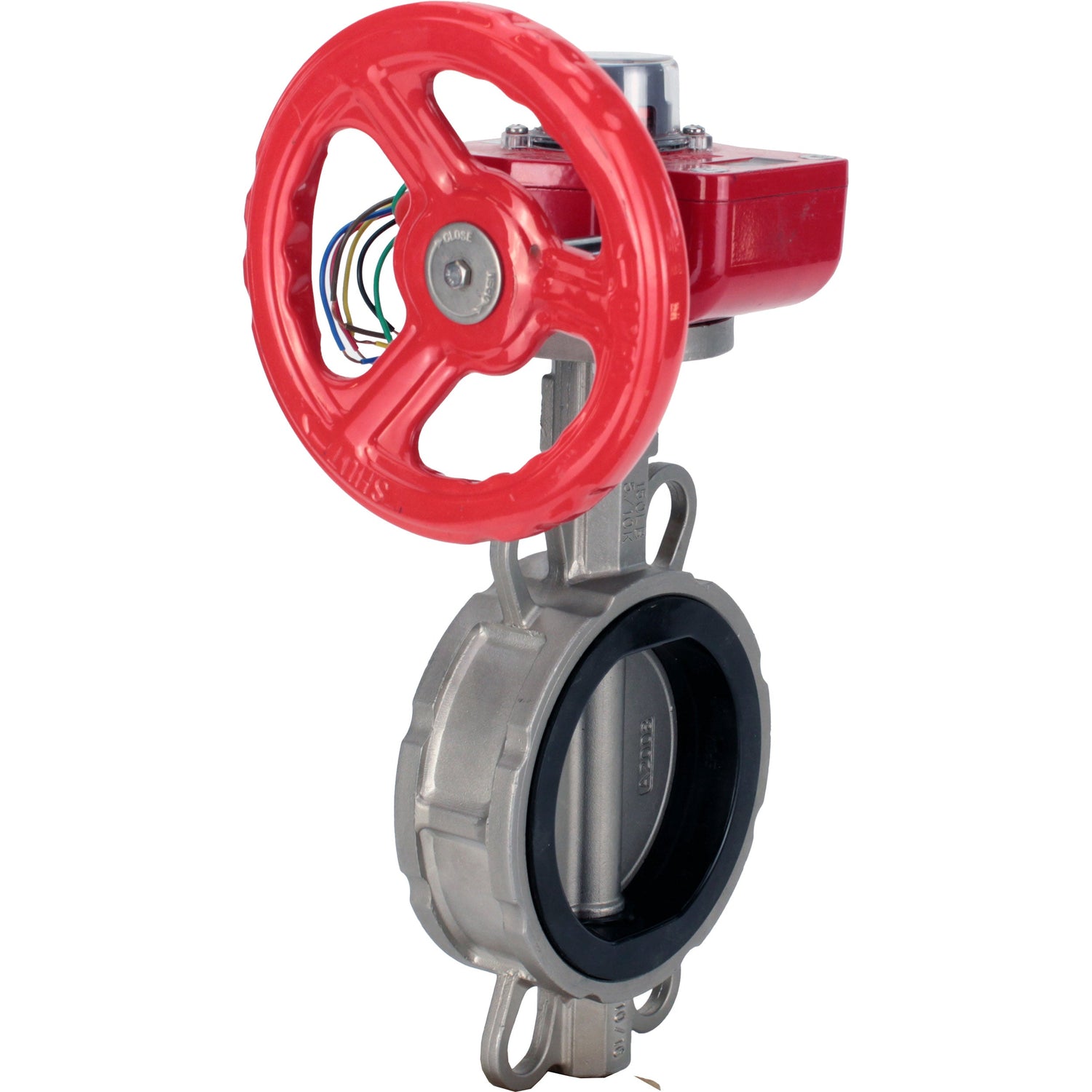

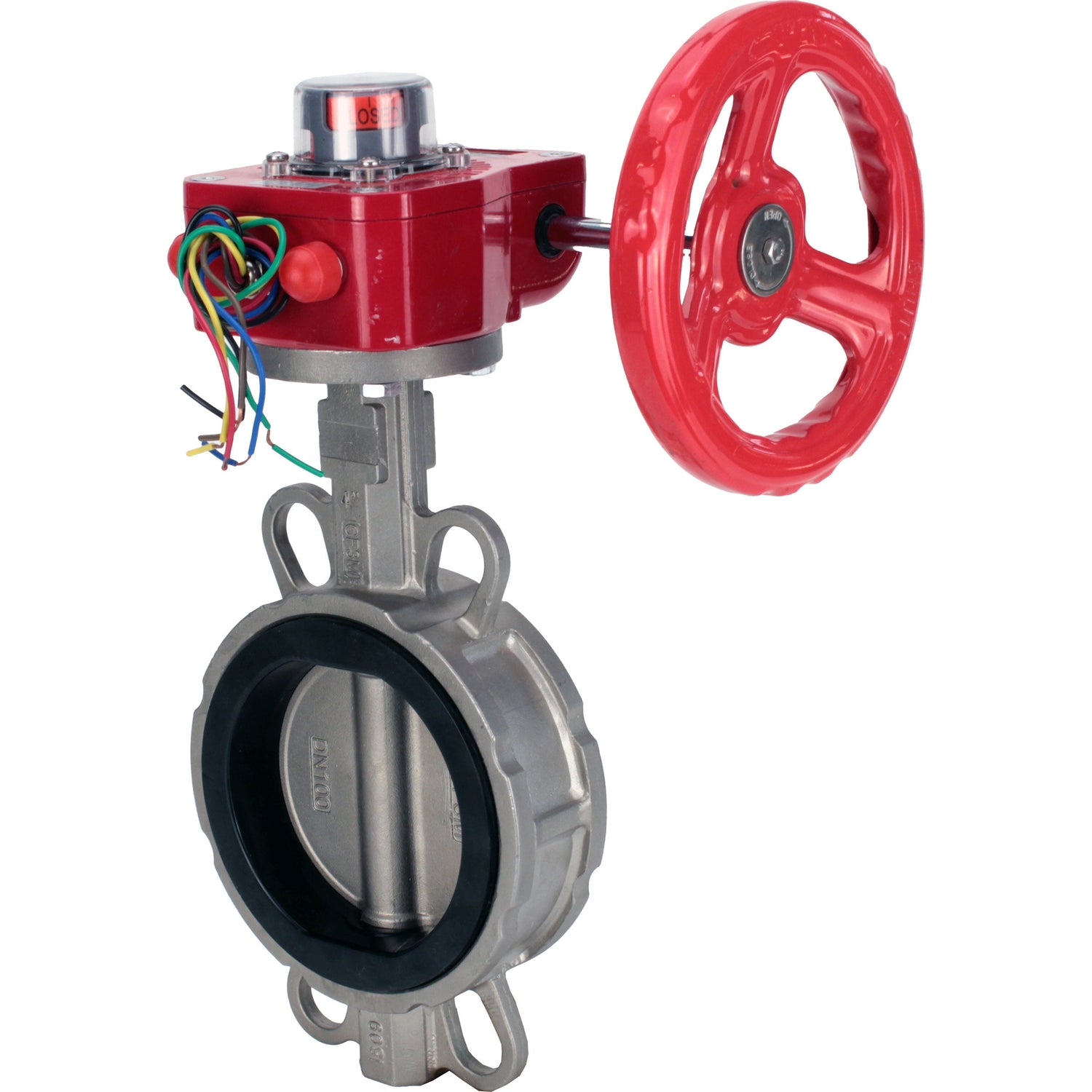

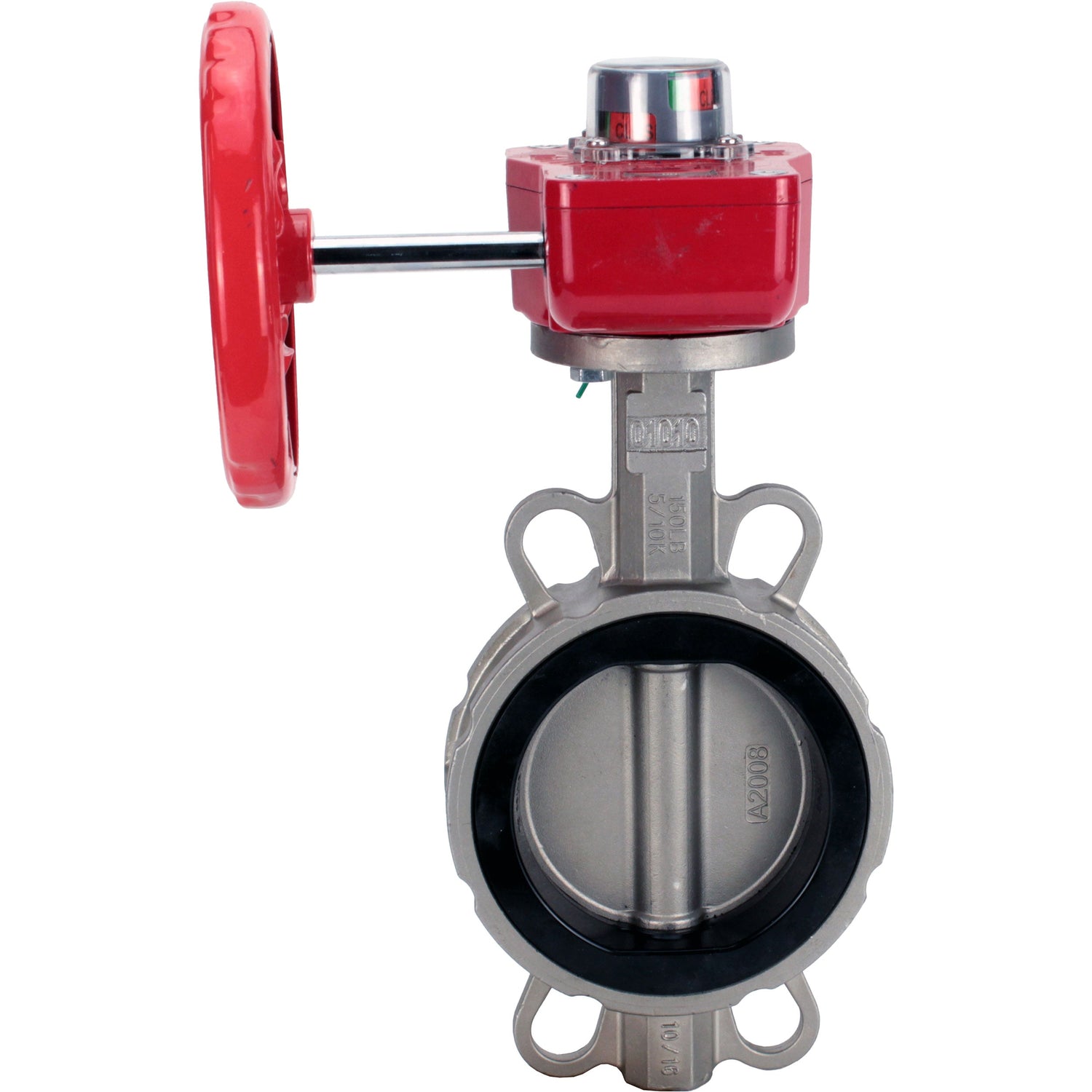

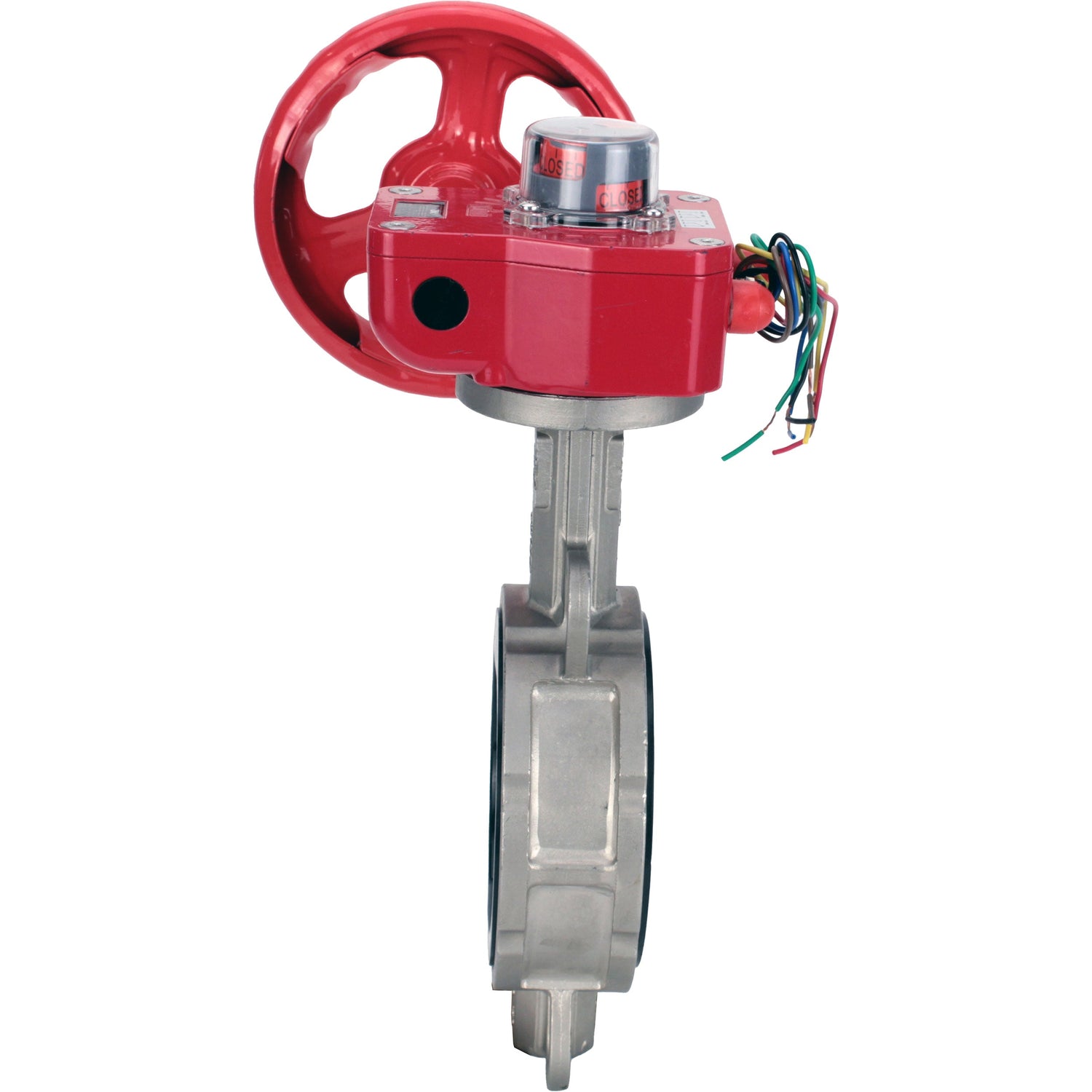

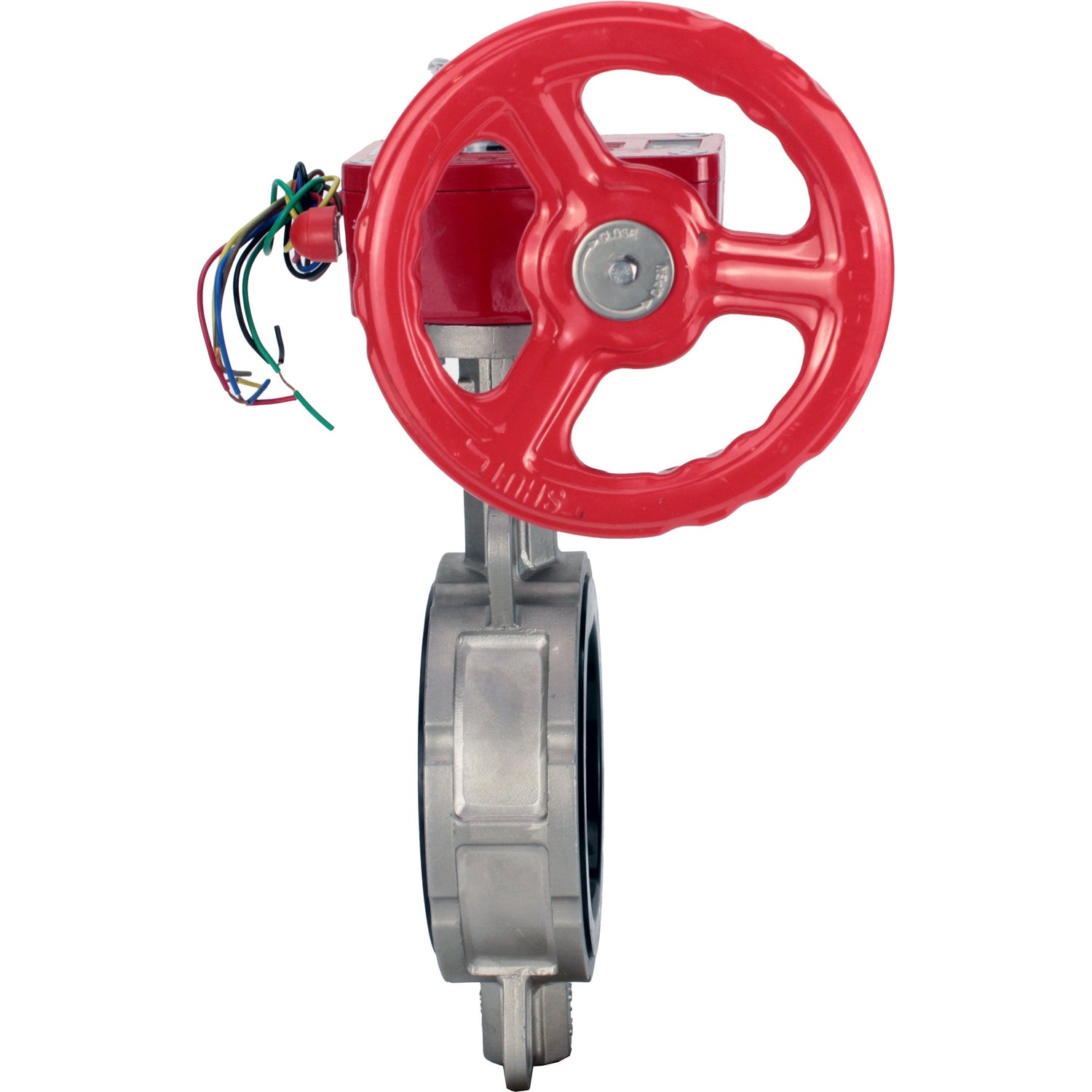

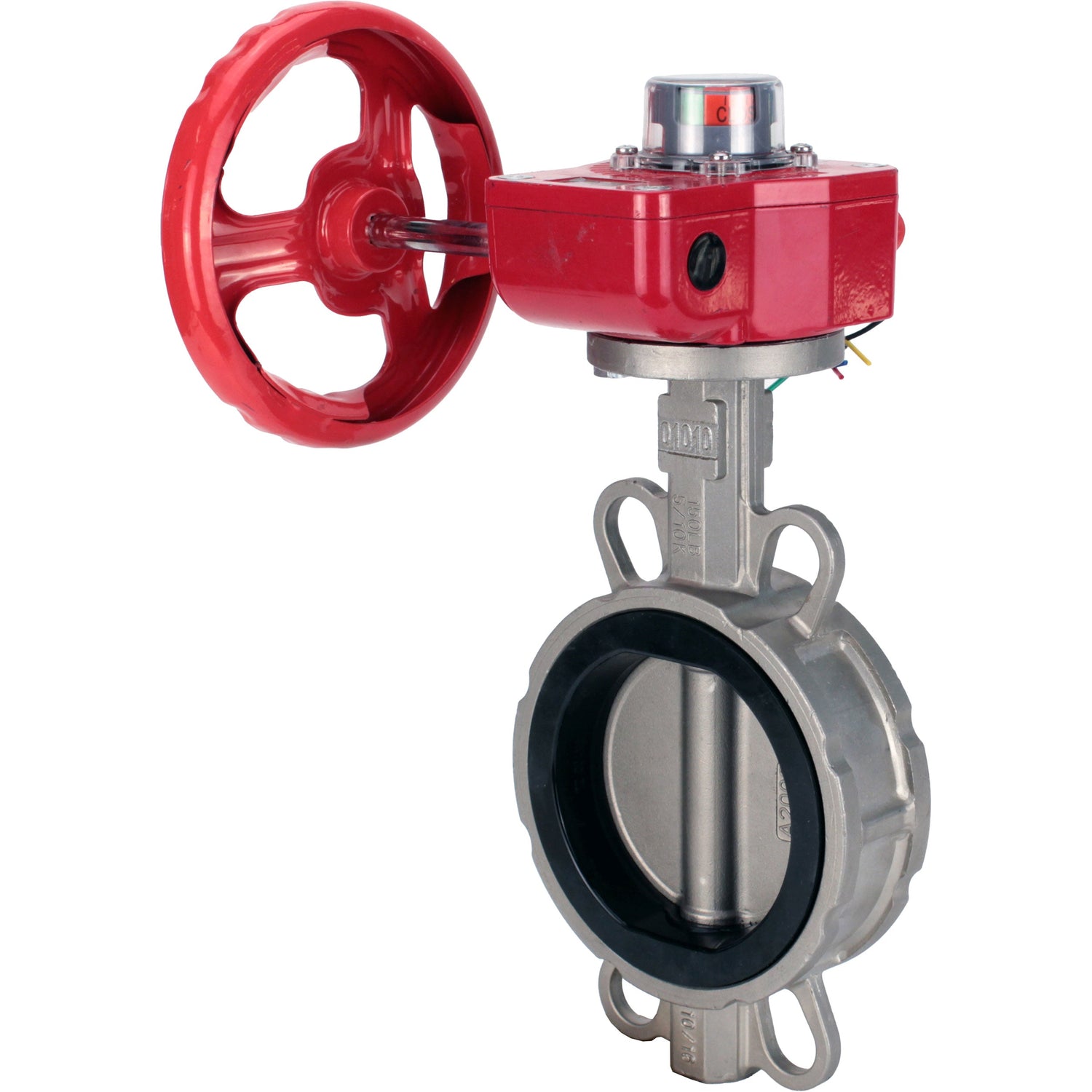

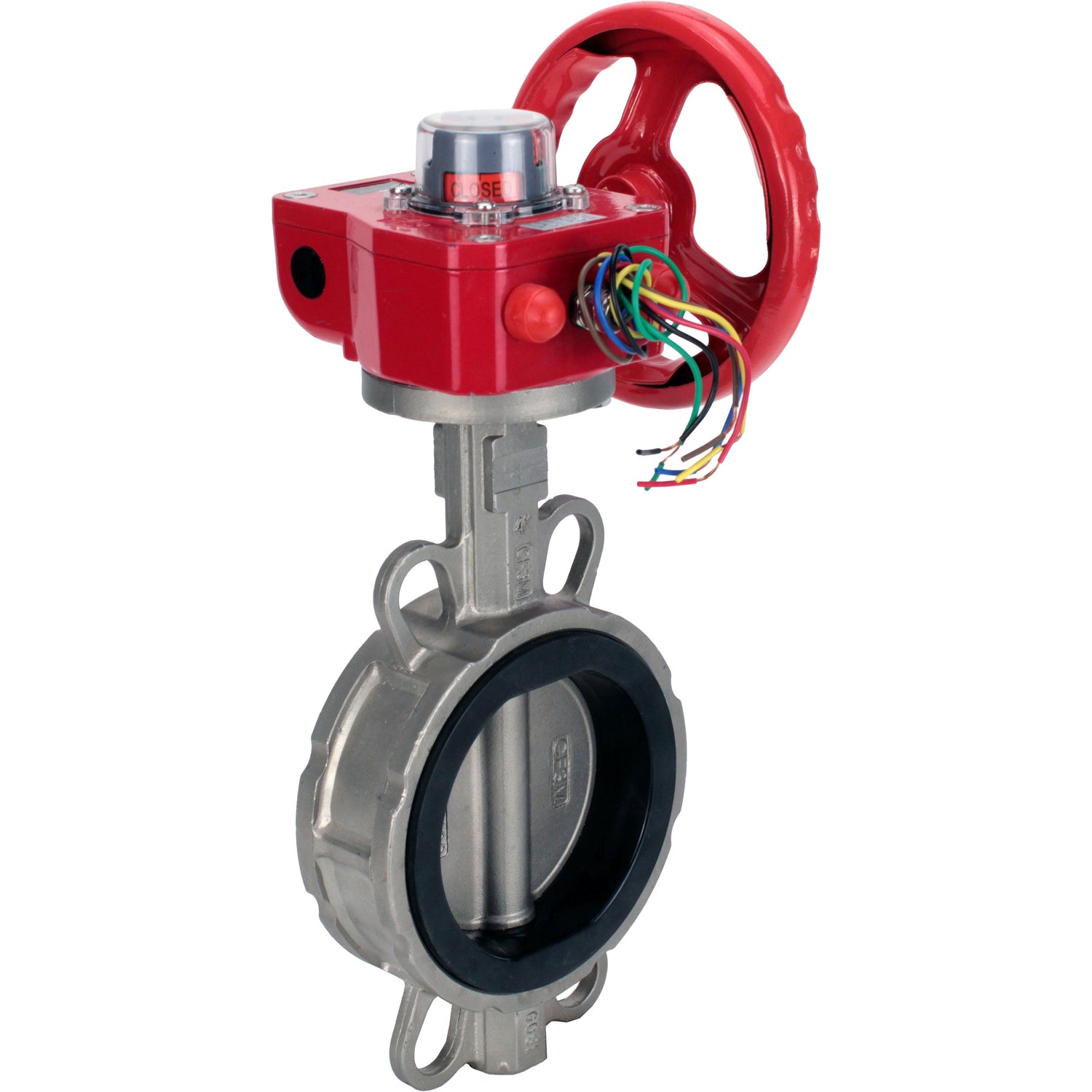

Water butterfly valve Elephant 316L-316L-NBR body material - stainless steel AISI 316L, disk material - stainless steel AISI 316L, seal - NBR with gear Elephant HGBF, with position indicator and feedback sensor

€177,12
Tax included Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

The Elephant butterfly valve is used as shut-off and regulating valves for flow control in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper industries.



Dimensions and dimensions of water butterfly valves Elephant 316L-316L-NBR body material - stainless steel AISI 316L, disk material - stainless steel AISI 316L, seal - NBR with gear Elephant HGBF, with position indicator and feedback sensor:

DN Size, mm
H1 H2 Dm Dk L S ØK ØC n - Ød C F
40 56 110 71 88 33 9 50 110 4 - 18 73 123
50 76 162 73 90 45 9 50 125 4 - 18 73 123
65 89 175 85 103 48 9 50 145 4 - 18 73 123
80 95 181 100 116 49 9 50 160 8 - 18 73 123
100 114 200 131 151 55 11 50 180 4 - 18 73 123
125 127 213 155 174 58 14 70 210 4 - 18 73 123
150 140 225 184 205 59 14 70 240 4 - 23 73 123
200 177 260 234 255 64 17 102 295 4 - 23 108 180
250 203 292 288 315 70 22 102 355 4 - 27 108 180
300 242 337 340 375 80 22 125 410 4 - 27 108 180


Sketch Butterfly valves Elephant 316L-316L-NBR body material - stainless steel AISI 316L, disk material - stainless steel AISI 316L, seal - NBR with gear Elephant HGBF, with position indicator and feedback sensor





Materials of  water butterfly valves Elephant 316L-316L-NBR body material - stainless steel AISI 316L, disk material - stainless steel AISI 316L, seal - NBR with gear Elephant HGBF, with position indicator and feedback sensor:

№

Name

Material

1

Body

Stainless steel AISI 316L/03Х16Н15М3

2

Cuff

NBR

3

Disc

Stainless steel AISI 316L

4

Stem

Stainless steel AISI 316L

5

Stud

Stainless steel AISI 316L

6

Bushing

PTFE

7

Ring

NBR (nitrile)

8

Handle

Carbon steel

Specifications
  • Country of origin
    China
  • Body material
    Stainless steel AISI 316
  • Maximum allowable temperature
    85 °C
  • Connection type
    Compact flanged
  • Control type
    Gear
  • Nominal pressure
    16 bar
  • Type of seal
    NBR
  • Disc material
    Stainless steel AISI 316L/1.4404
  • Explosion-proof
    No
  • Thermal protection
    No
  • Torque
    59 Nm
  • Electropneumatic positioner
    No
  • Pneumatic actuator
    No
  • Manual override
    Yes
  • Limit switches
    No

Reviews (0)

Documentation

Payment & Security

Payment methods

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    Available Variants

    SKUConnection sizePressurePrice AvailabilityQuantity Add to cart
    D050-25860DN5016 bar €177,12 2 in stock
    D050-25862DN8016 bar €208,83 2 in stock
    D050-25863DN10016 bar €268,66 2 in stock
    D050-25864DN12516 bar €342,36 2 in stock
    D050-25865DN15016 bar €387,97 2 in stock
    D050-25866DN20016 bar €642,26 Out of stock
    D050-25867DN25016 bar €886,26 Out of stock
    D050-25868DN30016 bar €1.256,36 Out of stock
    D050-25859DN4016 bar €176,70 Out of stock
    D050-25861DN6516 bar €197,30 2 in stock
