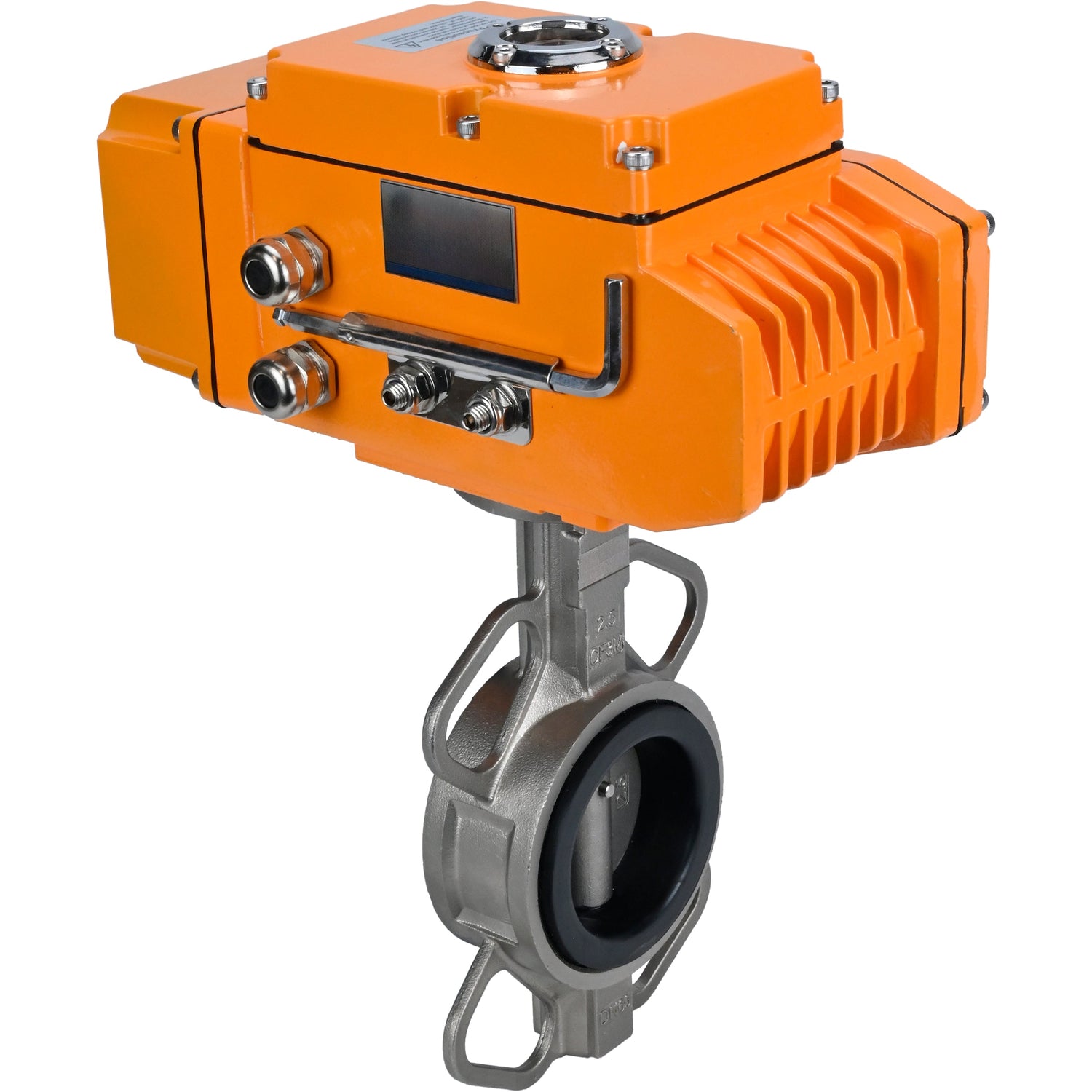

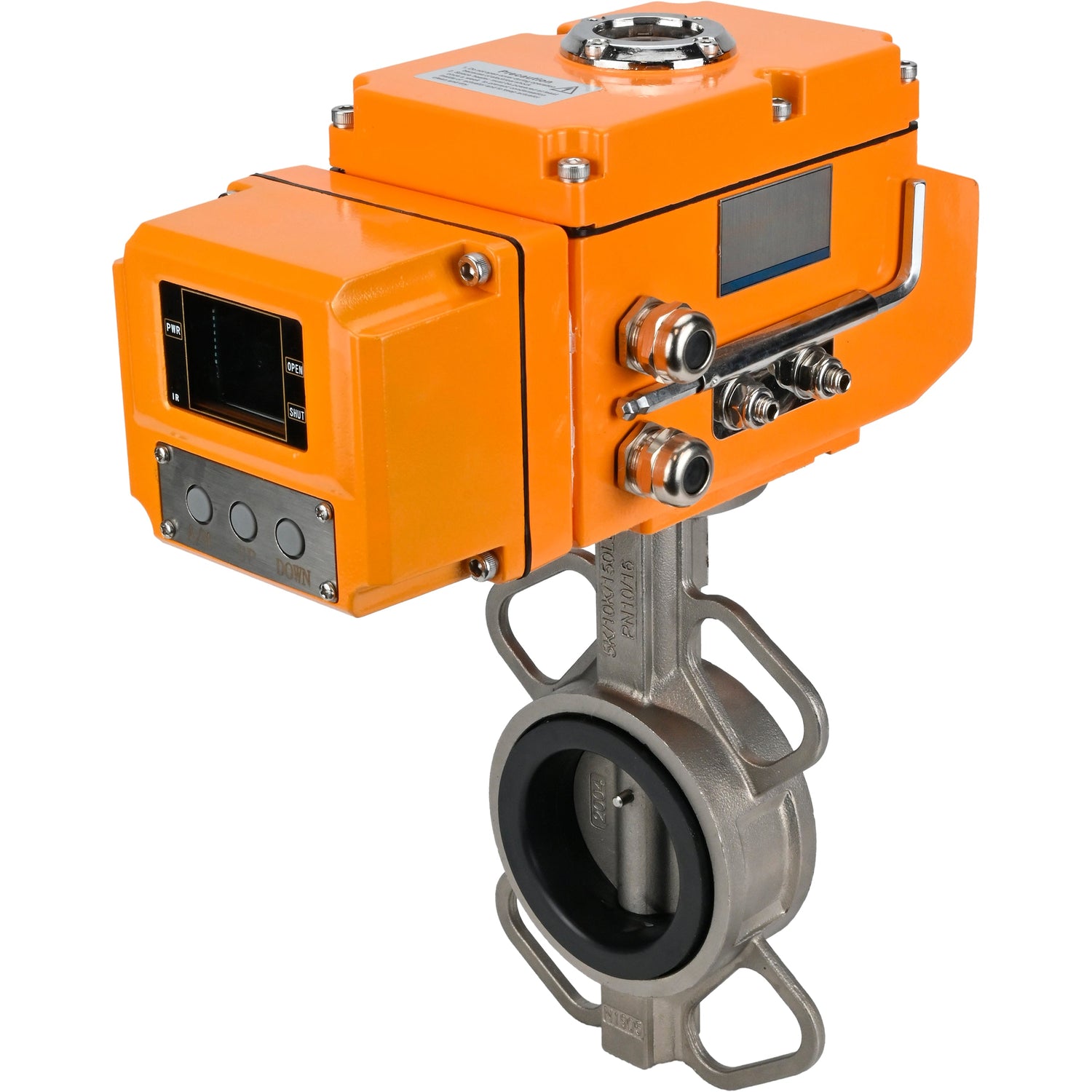

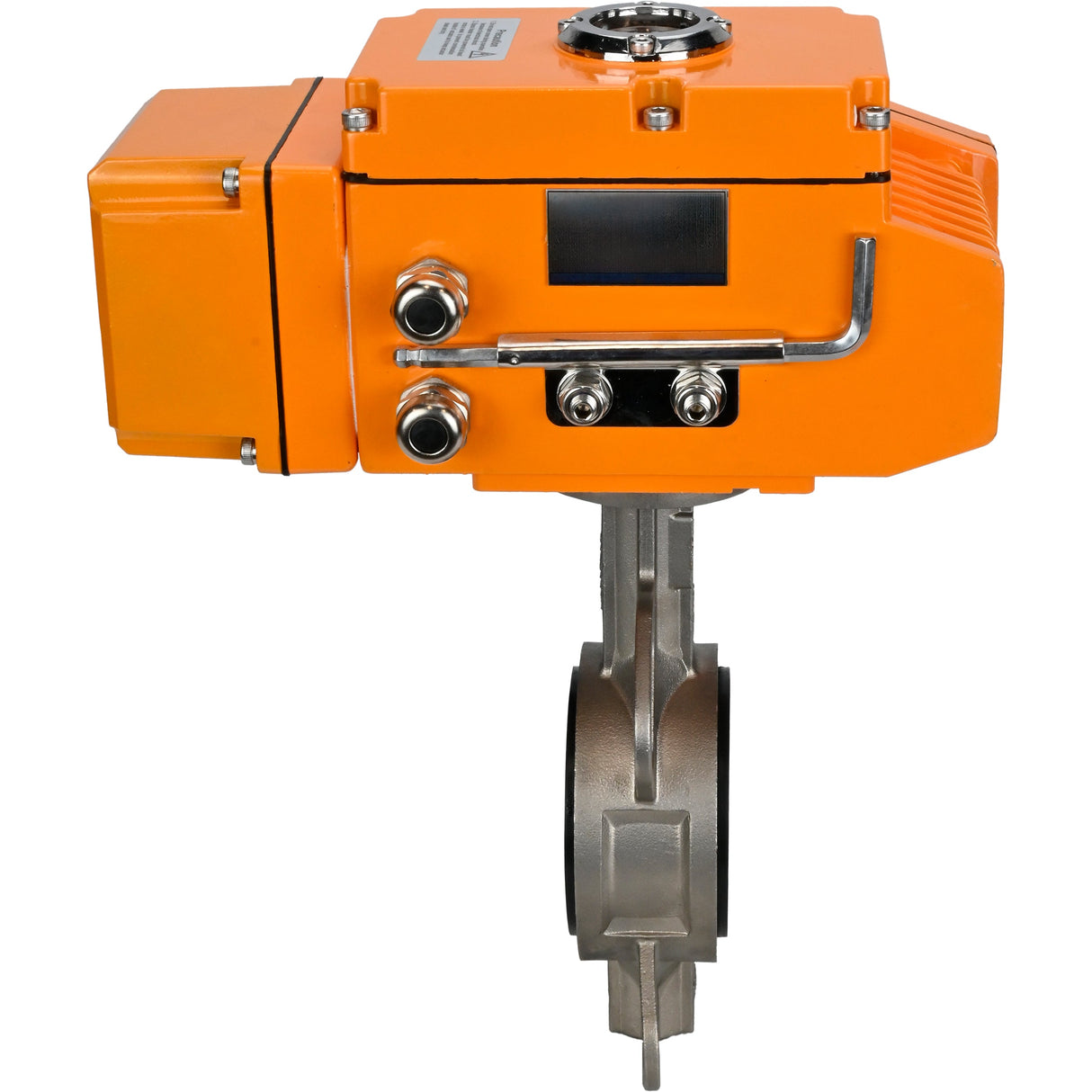

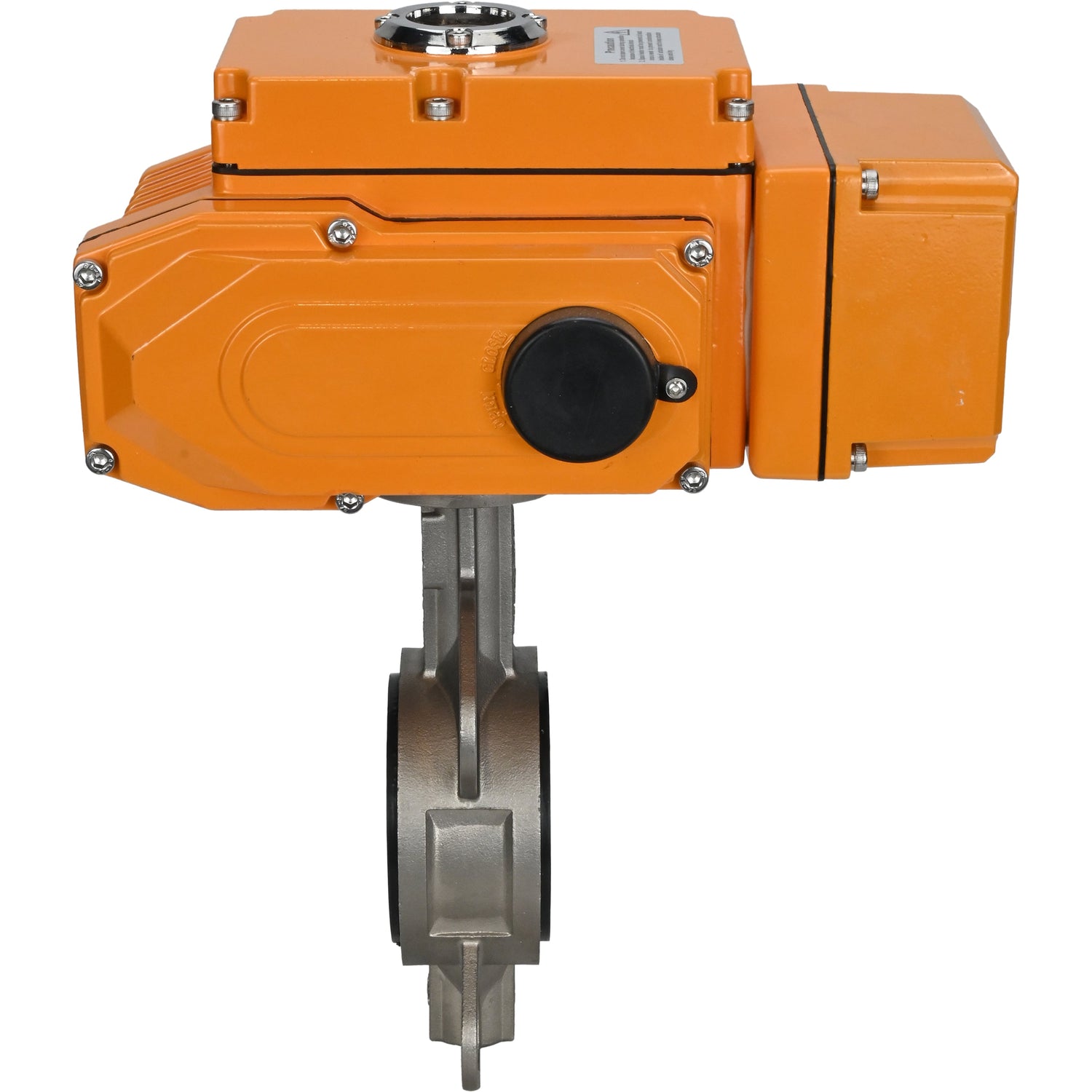

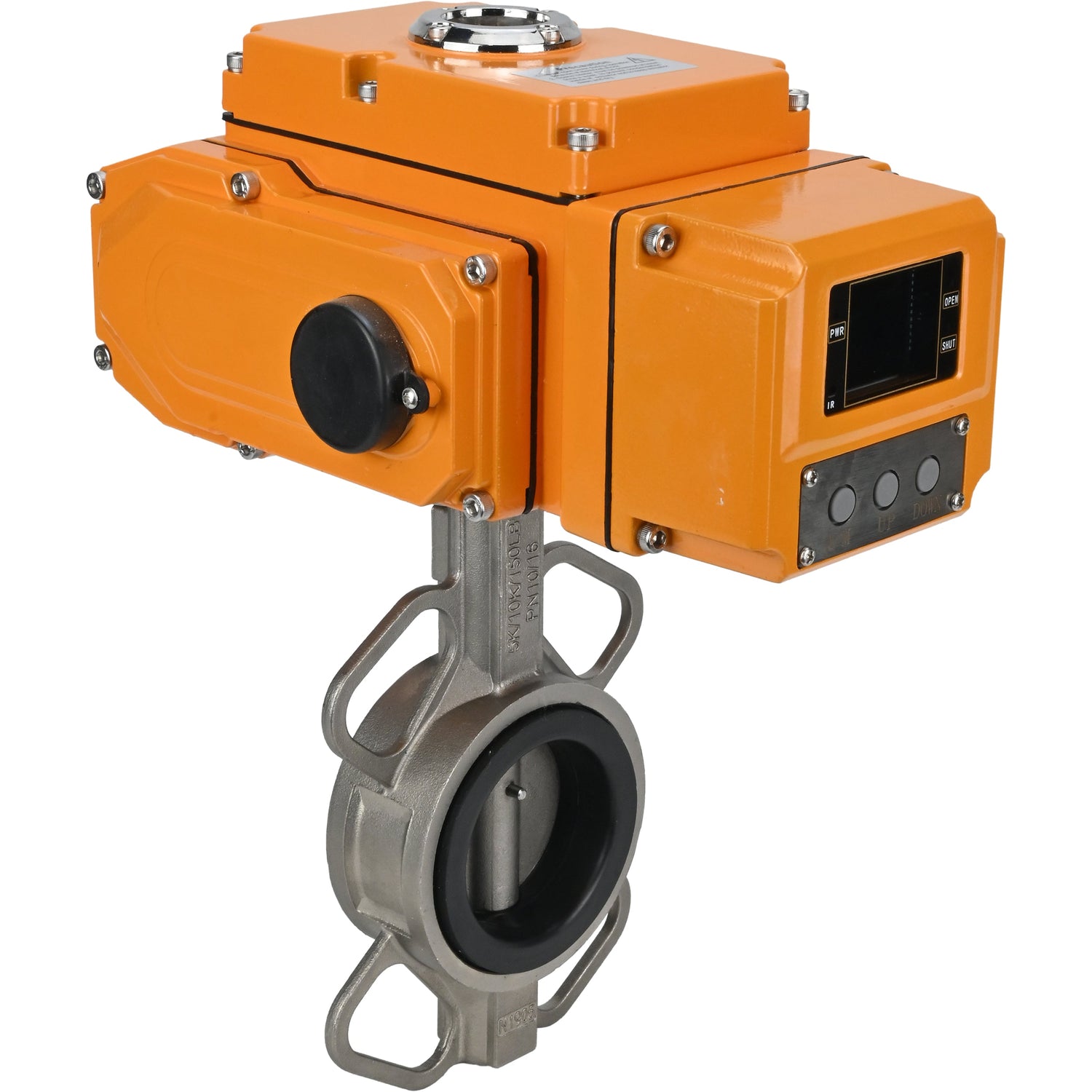

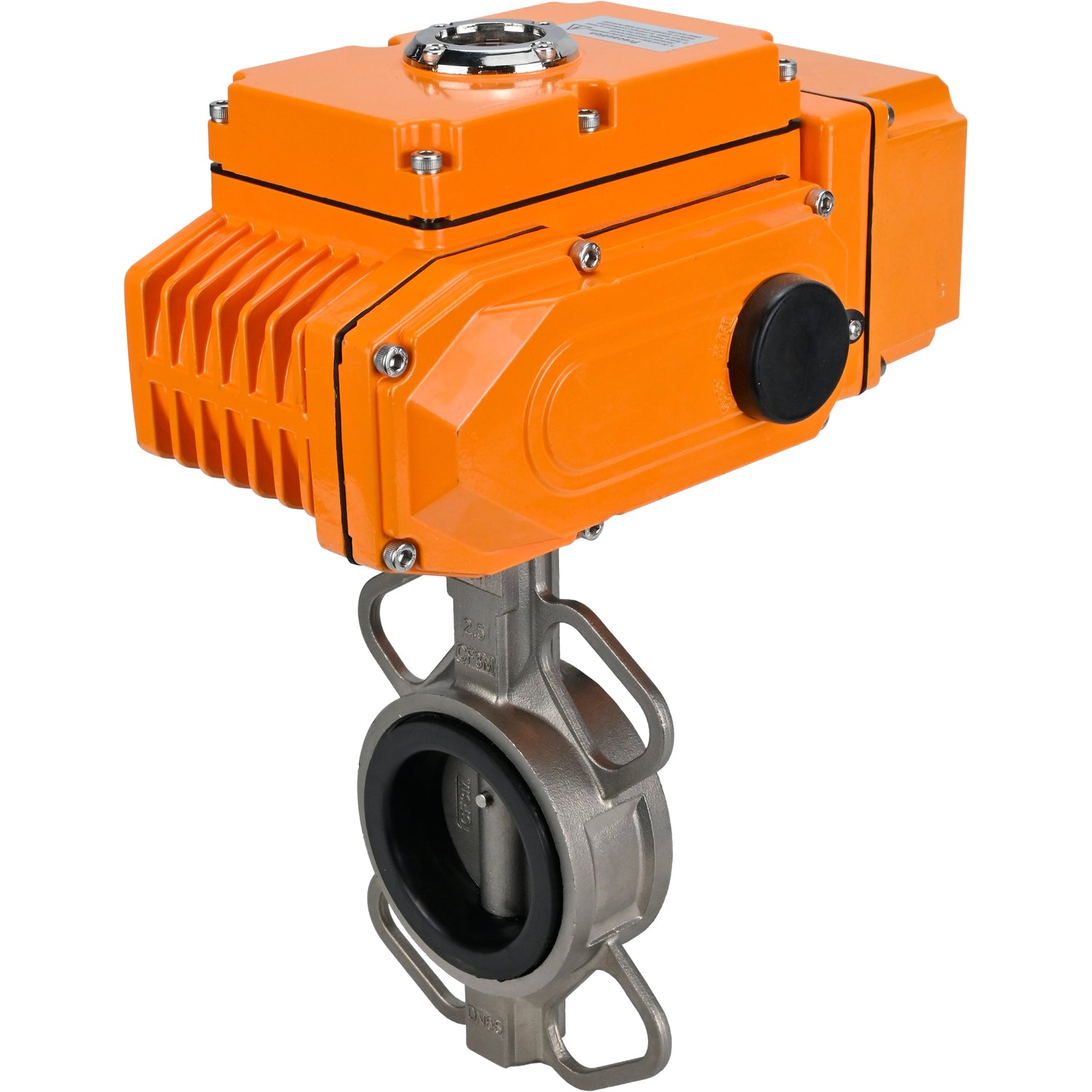

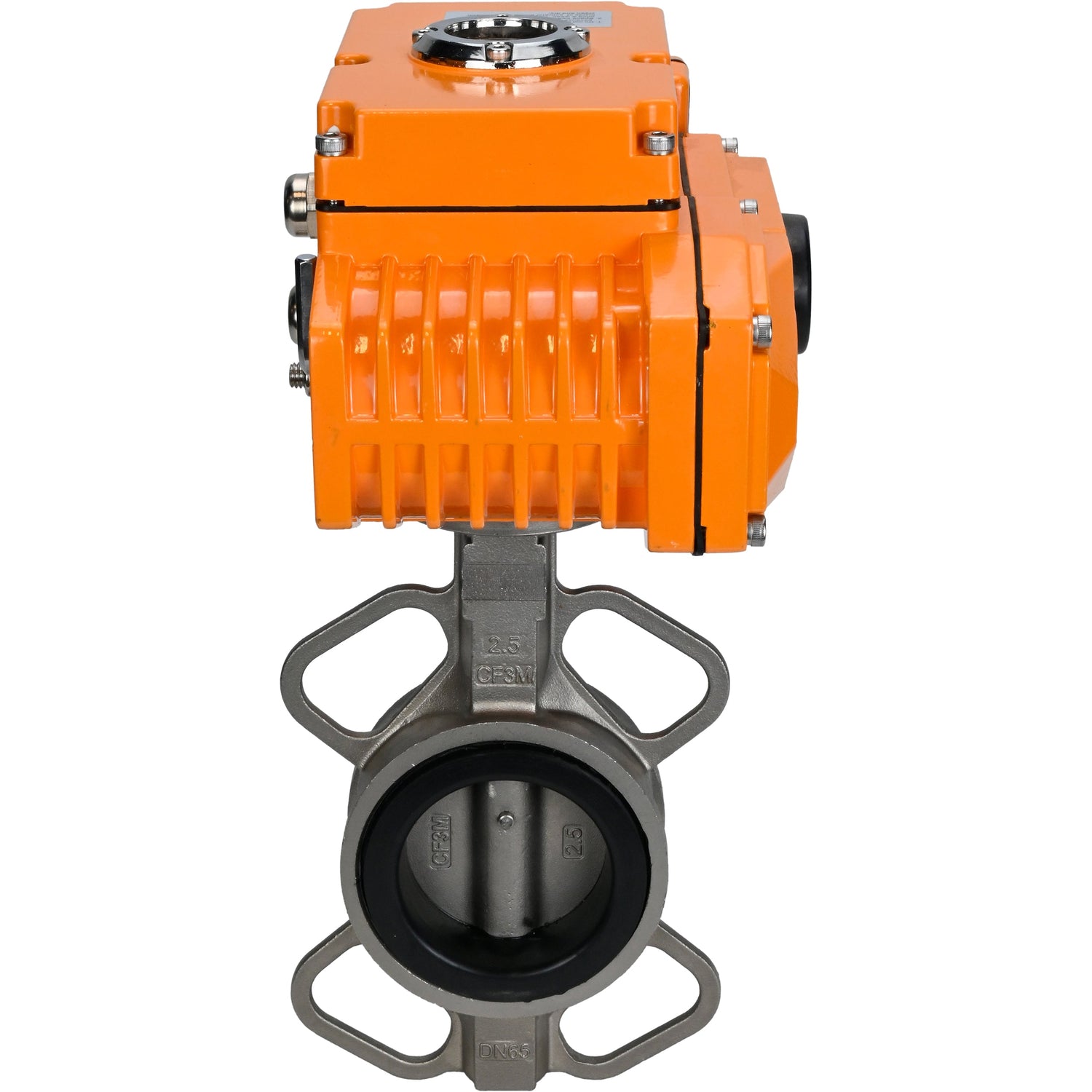

Water Butterfly Valve Elephant 316L-316L-NBR body material - stainless

  • Pre-order now!

    Make sure you don't miss out! As soon as it's in stock, we will ship it to you.
1 8
Elephant  |  SKU: D050-15917

Water Butterfly Valve Elephant 316L-316L-NBR body material - stainless steel aisi 316l, disk material - stainless steel aisi 316l, seal - NBR with electric actuator Elephant 220V, feedback sensor and input control signal 0-10V

€585,00
Shipping calculated at checkout.
Connection size
Pressure
Actuator model

Leave your email

Get notified as soon as this product is available, along with the latest updates on new collections, sales, offers, and product arrival dates.

Secure Your Preorder

Please fill out the form to submit your preorder request. Include your full name, email, phone number, shipping address, product SKU, quantity, preferred payment method, and any additional notes or questions.

Description

Butterfly valves are designed to be used as shut-off or control valves for managing flows in heating systems, water supply systems, and technological processes in the food, chemical, oil and gas, pulp and paper, and other industries.
Quarter-turn electric actuators of the Elephant QT series are designed for remote and local control of the rotation of the shut-off element from 0° to 270°, for types such as ball valves, etc. They are widely used in various sectors of the economy: gas, oil, metallurgy, food industry, housing, and utilities, etc.
The electric actuators are installed directly on pipeline fittings. The installation dimensions comply with the international standard ISO 05211 / DIN3337. Four micro switches are used to limit the stroke of the output shaft at the end positions of the working element of the fittings. The electric actuators are designed to operate in an intermittent duty cycle S2.

Specifications
  • Country of origin
    China
  • Body material
    Stainless steel AISI 316
  • Maximum allowable temperature
    85 °C
  • Connection type
    Compact flanged
  • Control type
    Electric actuator
  • Nominal pressure
    16 bar
  • Type of seal
    NBR
  • Disc material
    Stainless steel AISI 316L/1.4404
  • Voltage
    220V
  • Actuator cycle time
    30s
  • Valve feedback
    Limit switches
  • Explosion-proof
    No
  • Thermal protection
    Yes
  • Torque
    100 Nm
  • Electropneumatic positioner
    No
  • Pneumatic actuator
    No
  • Manual override
    No
  • Limit switches
    No

Reviews (0)

Payment & Security

Payment methods

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    Elephant

    Water Butterfly Valve Elephant 316L-316L-NBR body material - stainless steel aisi 316l, disk material - stainless steel aisi 316l, seal - NBR with electric actuator Elephant 220V, feedback sensor and input control signal 0-10V

    From €585,00

    Butterfly valves are designed to be used as shut-off or control valves for managing flows in heating systems, water supply systems, and technological processes in the food, chemical, oil and gas, pulp and paper, and other industries.
    Quarter-turn electric actuators of the Elephant QT series are designed for remote and local control of the rotation of the shut-off element from 0° to 270°, for types such as ball valves, etc. They are widely used in various sectors of the economy: gas, oil, metallurgy, food industry, housing, and utilities, etc.
    The electric actuators are installed directly on pipeline fittings. The installation dimensions comply with the international standard ISO 05211 / DIN3337. Four micro switches are used to limit the stroke of the output shaft at the end positions of the working element of the fittings. The electric actuators are designed to operate in an intermittent duty cycle S2.

    Connection size

    • DN50
    • DN80
    • DN100
    • DN125
    • DN150
    • DN200
    • DN250
    • DN40
    • DN65

    Pressure

    • 16 bar

    Actuator model

    • Elephant-005
    • Elephant-010
    • Elephant-030
    • Elephant-040
