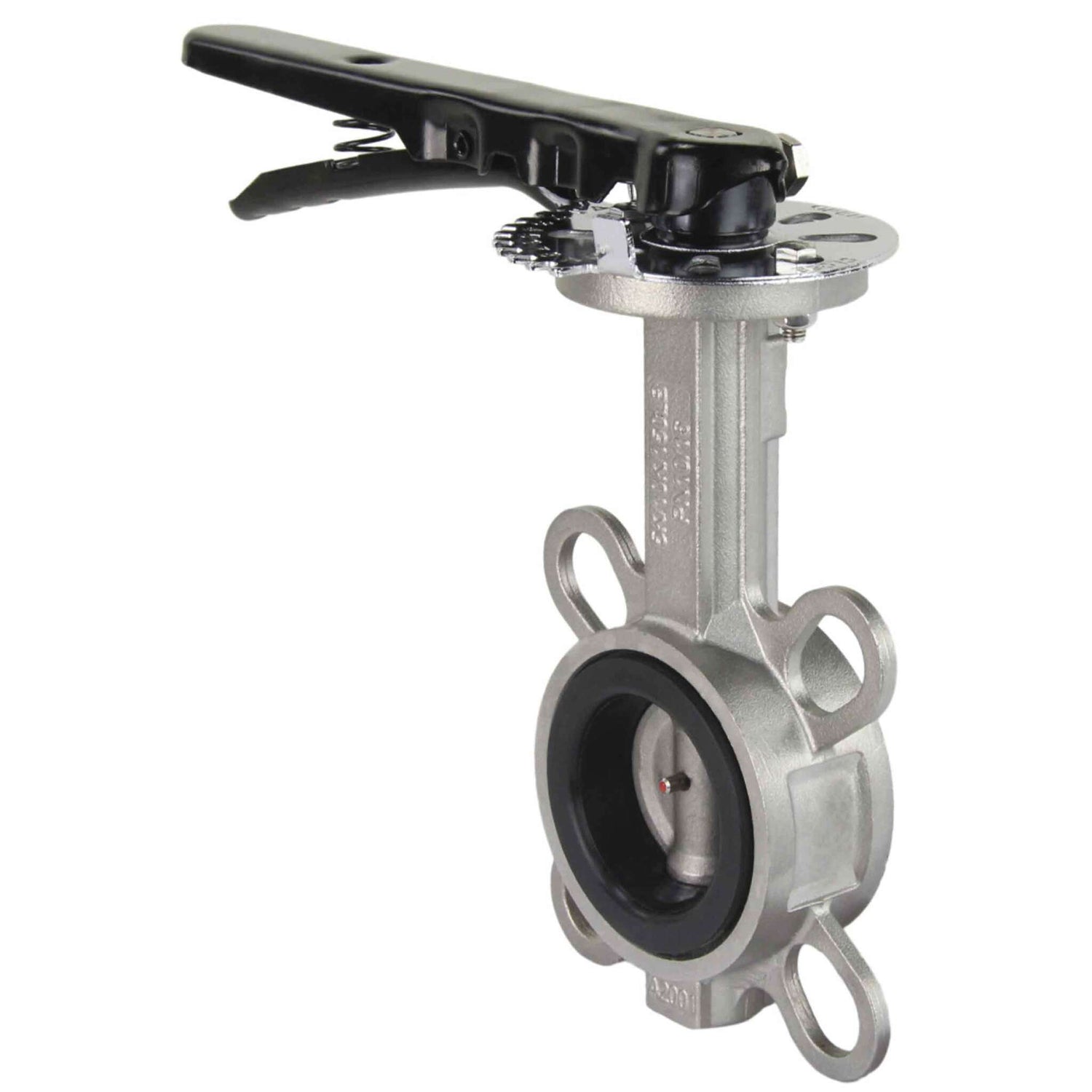

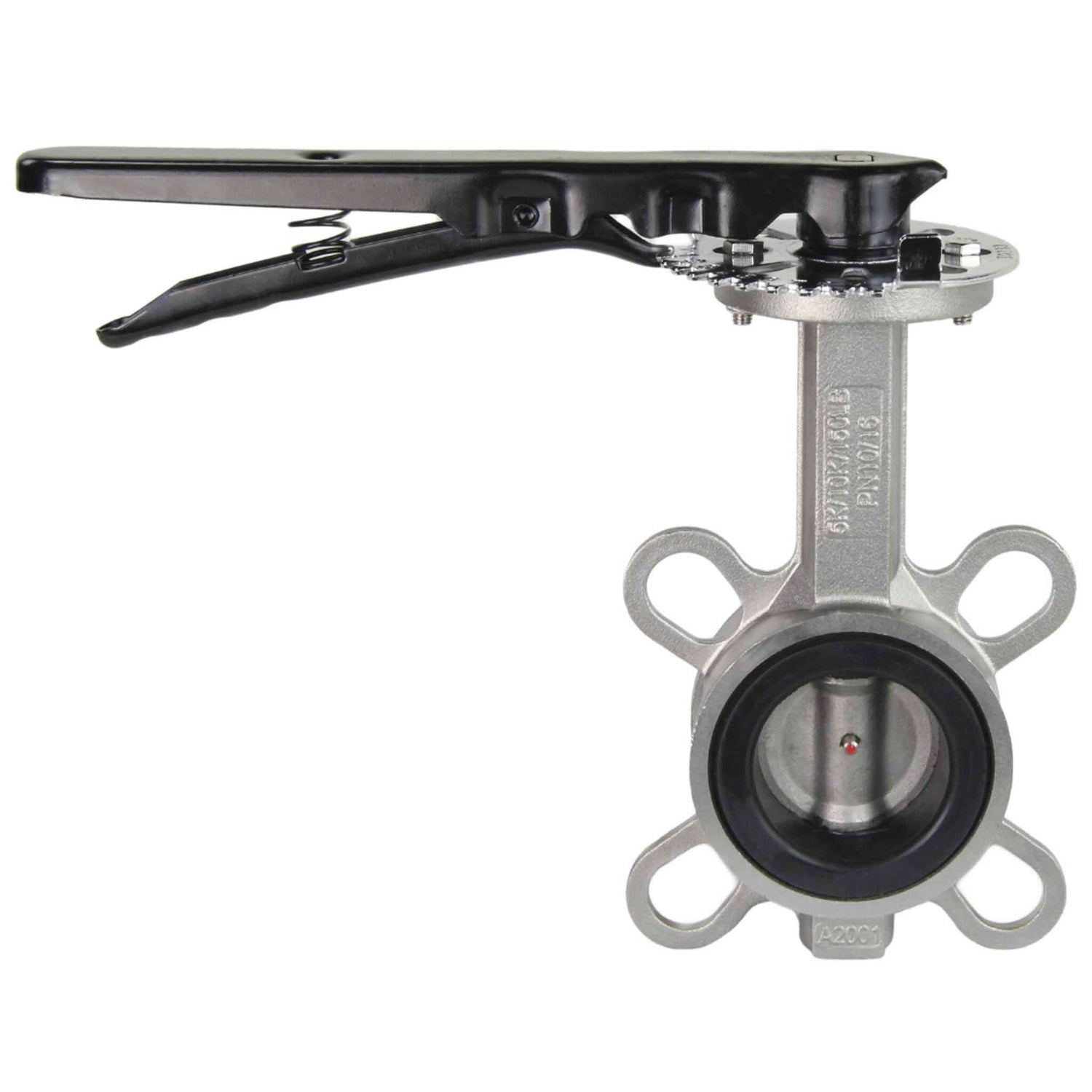

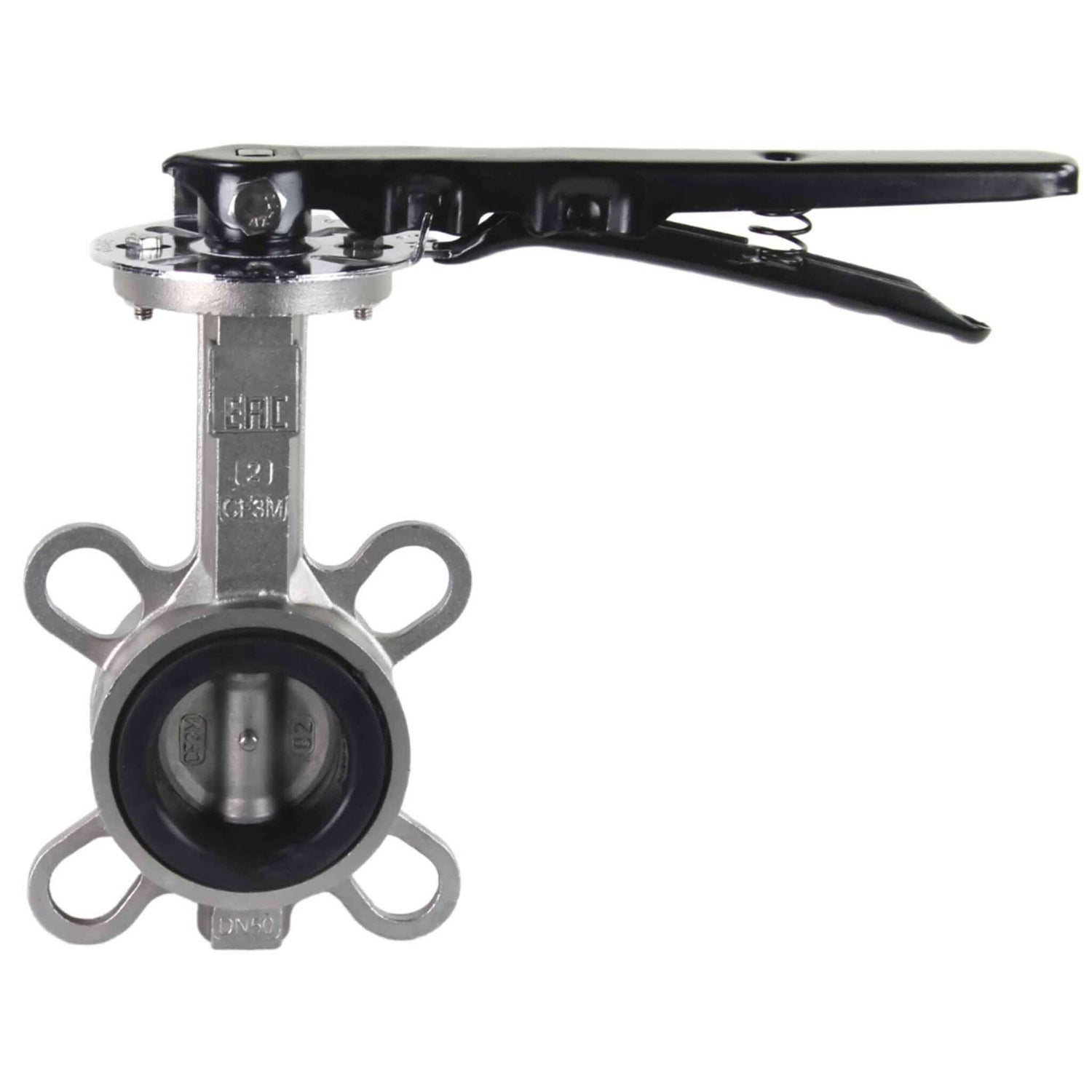

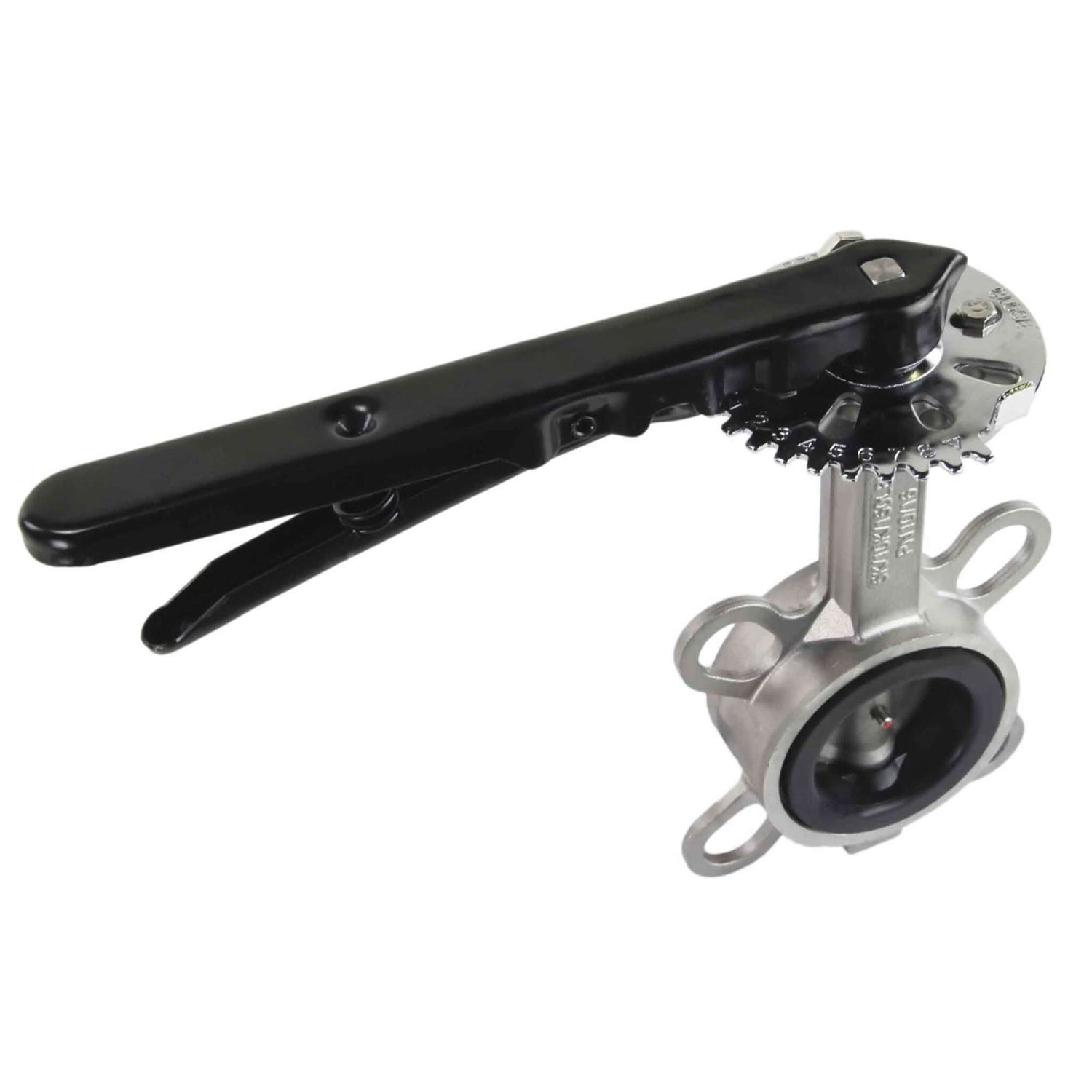

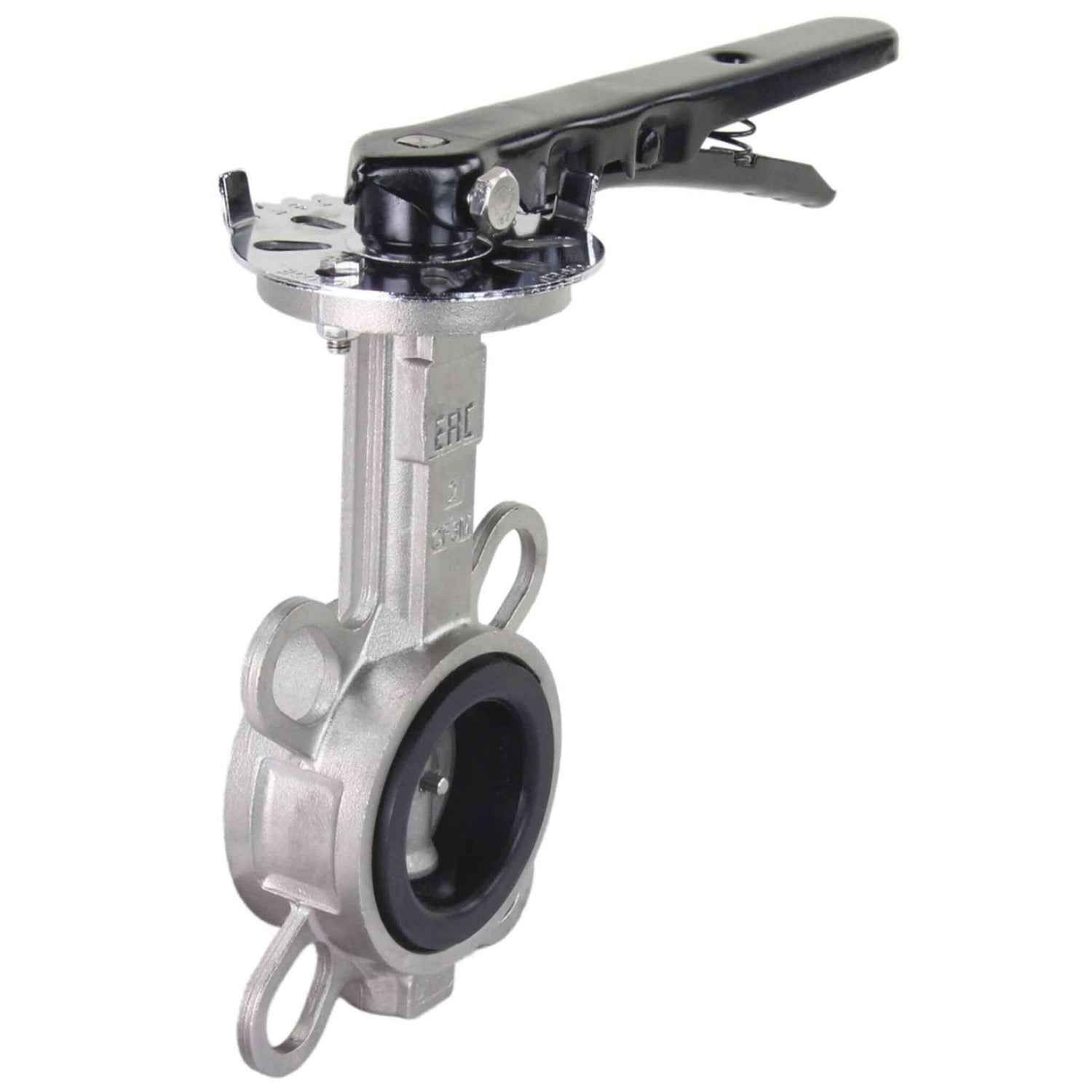

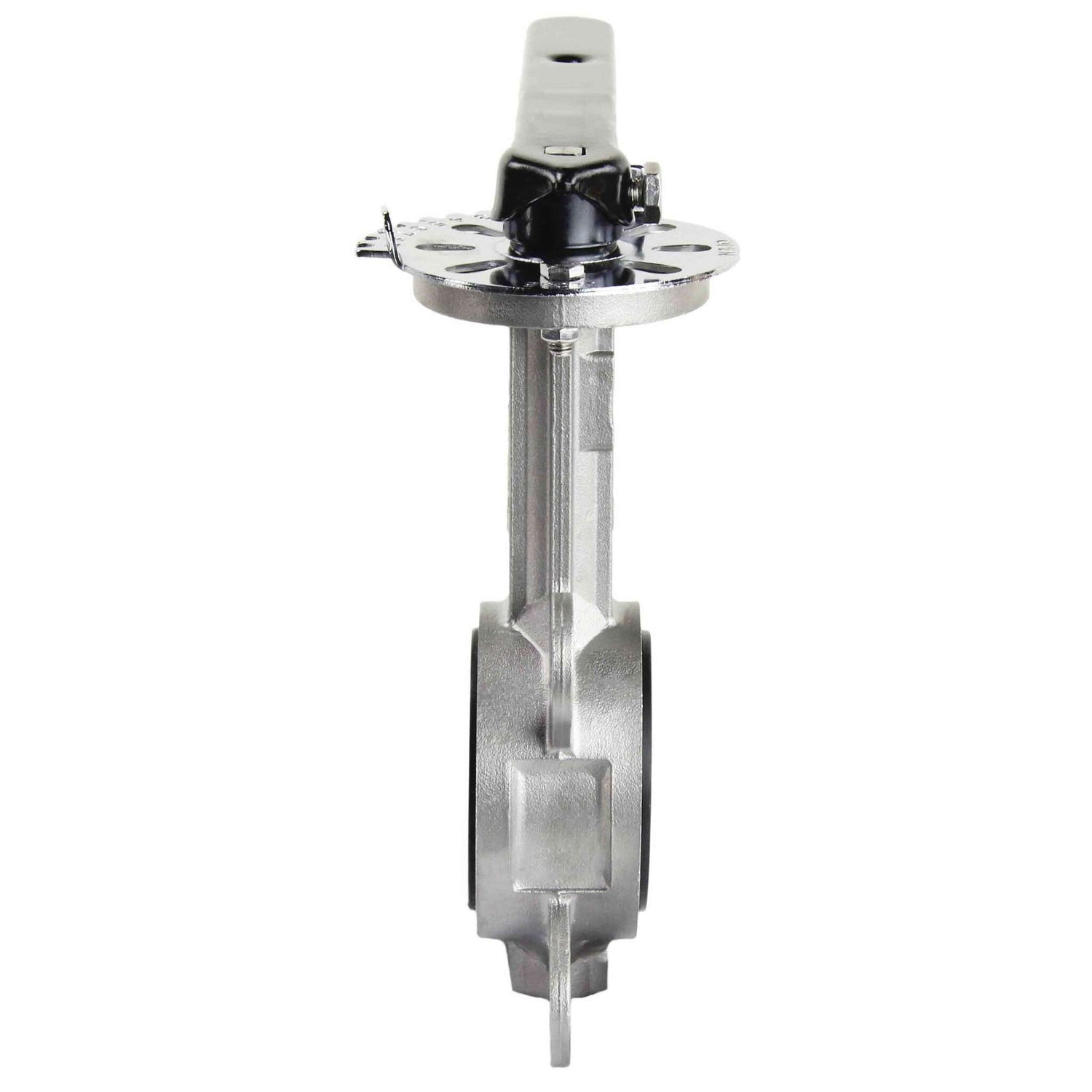

Water Butterfly Valve Elephant WBV3232N-2W-Fb-H PN16, body and disk material - stainless steel 316L, seal - NBR, handwheel operated
Water Butterfly Valve Elephant WBV3232N-2W-Fb-H PN16, body and disk material - stainless steel 316L, seal - NBR, handwheel operated - DN50 / 16 bar is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.
Description
Description
Water Butterfly Valve Elephant is intended for use as shut-off or control valves for flow control in heat supply systems, water supply systems, in technological processes in the food, chemical, oil and gas, pulp and paper and other industries.
Overall dimensions of the gate valve Elephant WBV3232N-2W-Fb-H PN16, body and disk material - stainless steel 316L, seal - NBR, handwheel operated
| DN | H1, mm | H2, mm | H3, mm | Dm, mm | Dk, mm | L, mm | ØC, mm |
| DN40/50 | 62 | 126 | 25 | 73 | 90 | 43 | 125 |
| DN50 | 62 | 126 | 25 | 73 | 90 | 43 | 125 |
| DN65 | 72 | 133 | 25 | 85 | 103 | 46 | 145 |
| DN80 | 91 | 142 | 25 | 100 | 116 | 46 | 160 |
| DN100 | 107 | 165 | 25 | 131 | 151 | 52 | 180 |
| DN125 | 121 | 183 | 25 | 155 | 174 | 56 | 210 |
| DN150 | 134 | 195 | 25 | 184 | 205 | 56 | 240 |
| DN200 | 171 | 236 | 35 | 234 | 255 | 60 | 295 |
| DN250 | 197 | 276 | 35 | 288 | 315 | 68 | 355 |
| DN300 | 240 | 315 | 35 | 340 | 375 | 78 | 410 |
Sketch of overall dimensions of the gate valve Elephant WBV3232N-2W-Fb-H PN16, body and disk material - stainless steel 316L, seal - NBR, handwheel operated
Specification Rear Elephant WBV3232N-2W-Fb-H PN16, body and disk material - stainless steel 316L, seal - NBR, handwheel operated
| № | Name | Material |
| 1 | Housing | WCB steel or AISI 316L stainless steel |
| 2 | Cuff | EPDM, PTFE, NBR |
| 3 | Disc | AISI 316L stainless steel |
| 4 | Rod | SS 416/2Cr13 stainless steel |
| 5 | Pin | AISI 316L stainless steel |
| 6 | Bushing | EPDM |
| 7 | Sealing ring | EPDM |
| 8 | Fixing plate | carbon steel |
| 9 | Handle with lock | carbon steel |
Sketch of specification water Butterfly Valve Elephant
Specifications
Specifications
-
Country of origin
-
Body material
-
Maximum allowable temperature
-
Connection type
-
Control type
-
Nominal pressure
-
Type of seal
-
Disc material
Reviews (0)
Reviews (0)
Documentation
Documentation
Butterfly valve Elephant WBVx32x-2W-Fb-H DN40-300 16 barPayment & Security
